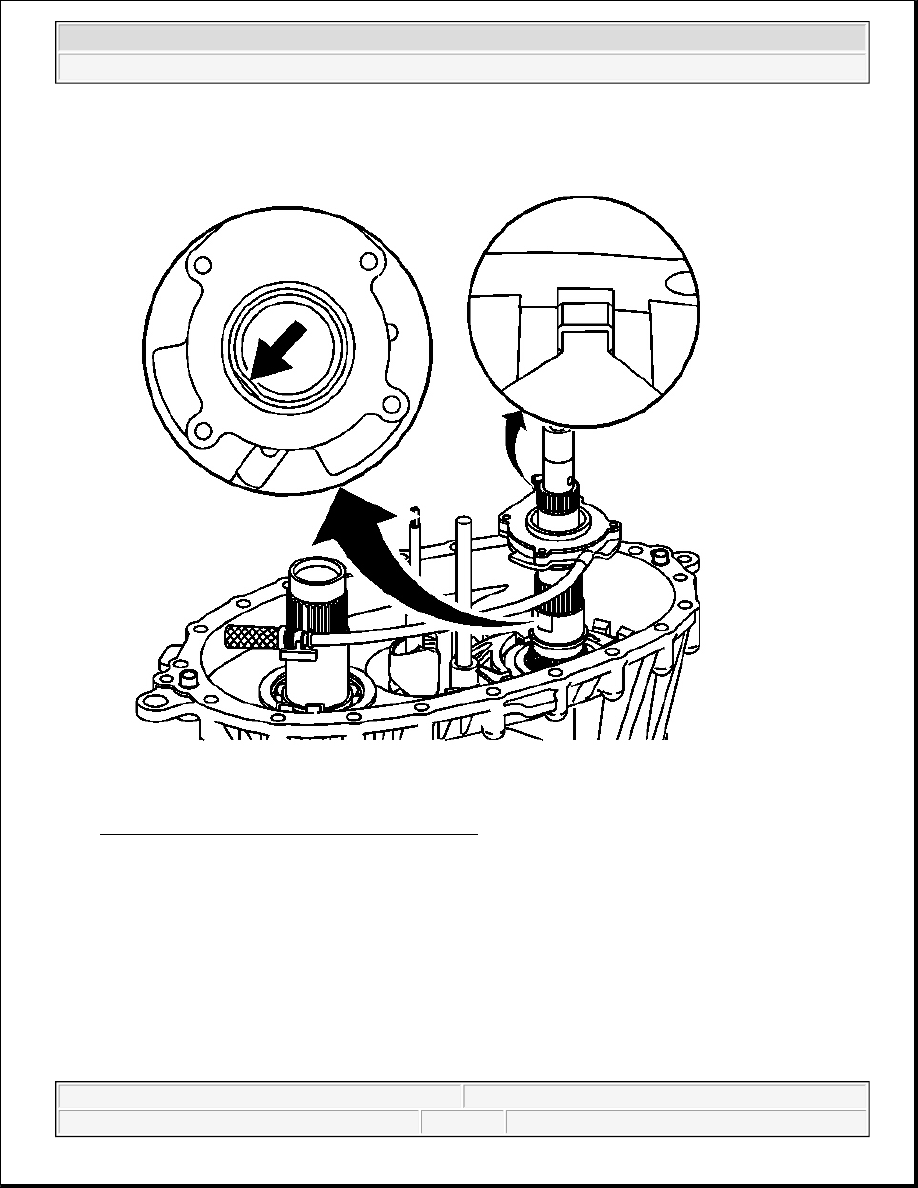

Fig. 62: Oil Pump Assembly With Hose & Screen
Courtesy of GENERAL MOTORS CORP.

33. Remove the oil pump assembly with the hose and screen.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



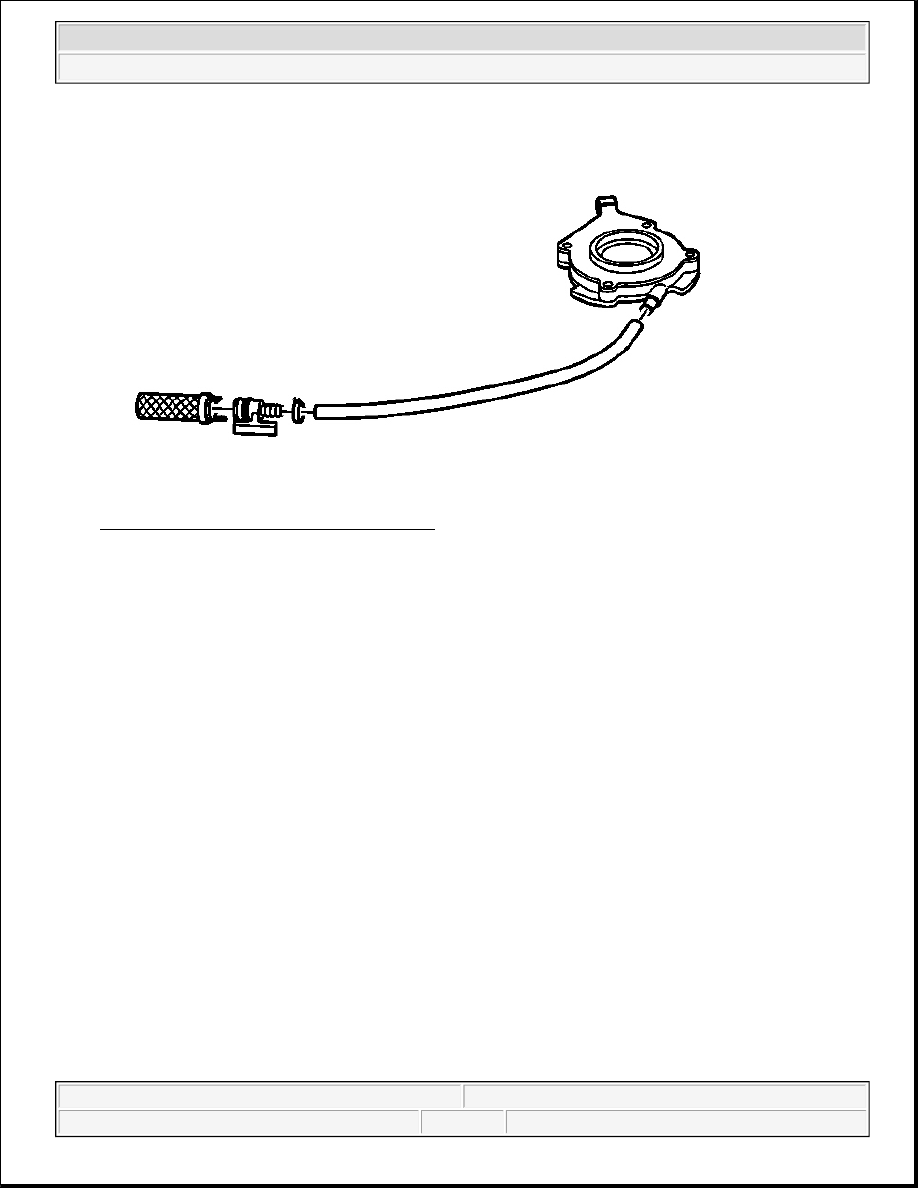

Fig. 63: Oil Pump Hose & Oil Pump Screen
Courtesy of GENERAL MOTORS CORP.

34. Disconnect the oil pump hose from the oil pump screen.

35. Disconnect the oil pump hose from the oil pump.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

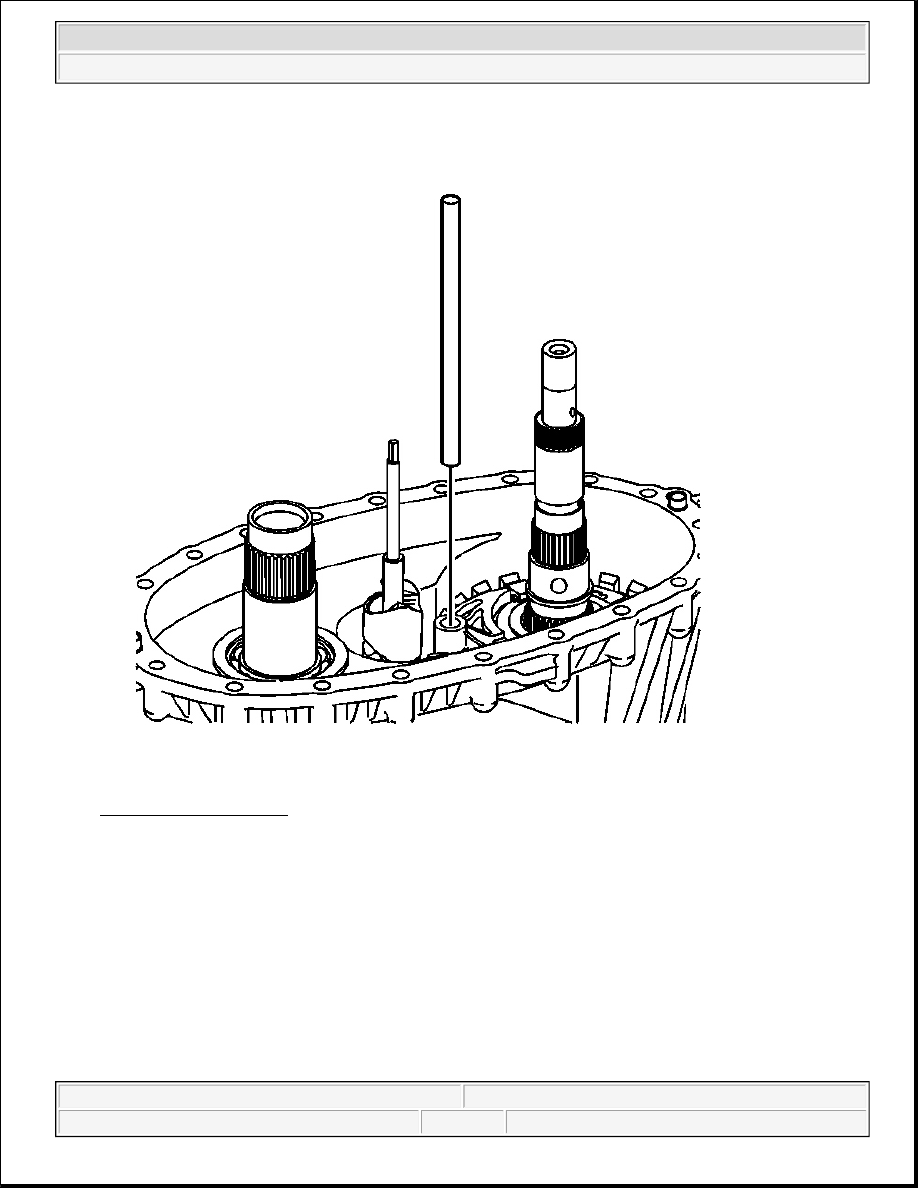

Fig. 64: Shift Fork Shaft
Courtesy of GENERAL MOTORS CORP.

36. Remove the shift fork shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

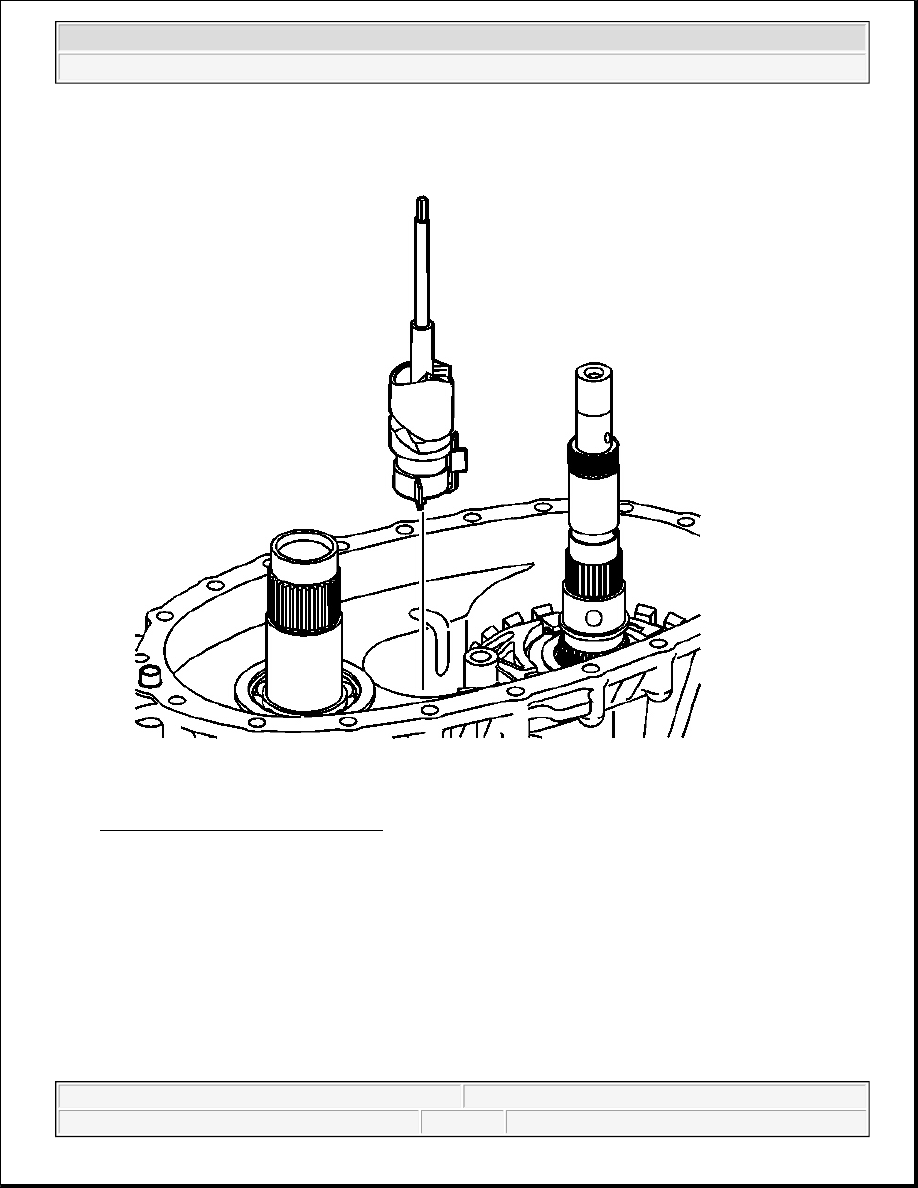

Fig. 65: Shift Detent Lever Assembly
Courtesy of GENERAL MOTORS CORP.

37. Remove the shift detent lever assembly.

z

Rotate the high/low shift fork roller from the shift detent lever assembly.

z

Lift straight up on the shift detent lever assembly.

NOTE:

In order to prevent component damage, properly remove and install the
shift detent lever shaft assembly. When removing or installing the shift
detent lever shaft assembly, keep the shaft straight and do not tilt. Tilting
the shift detent lever shaft assembly in the transfer case housing will
break the tip on the end of the shaft.
