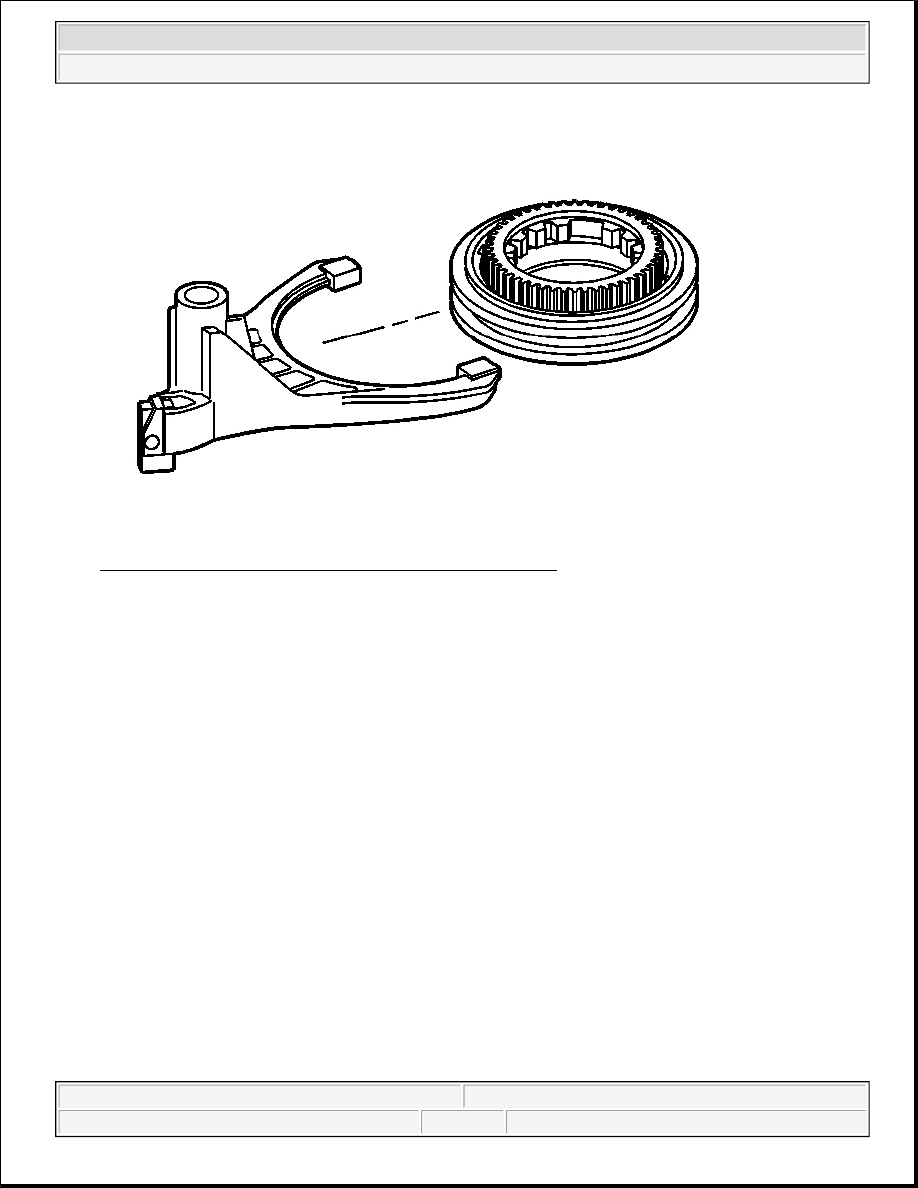

Fig. 58: Lockup Mode Shift Fork & Lockup Shift Assembly
Courtesy of GENERAL MOTORS CORP.

29. Remove the lockup mode shift fork from the lockup shift assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



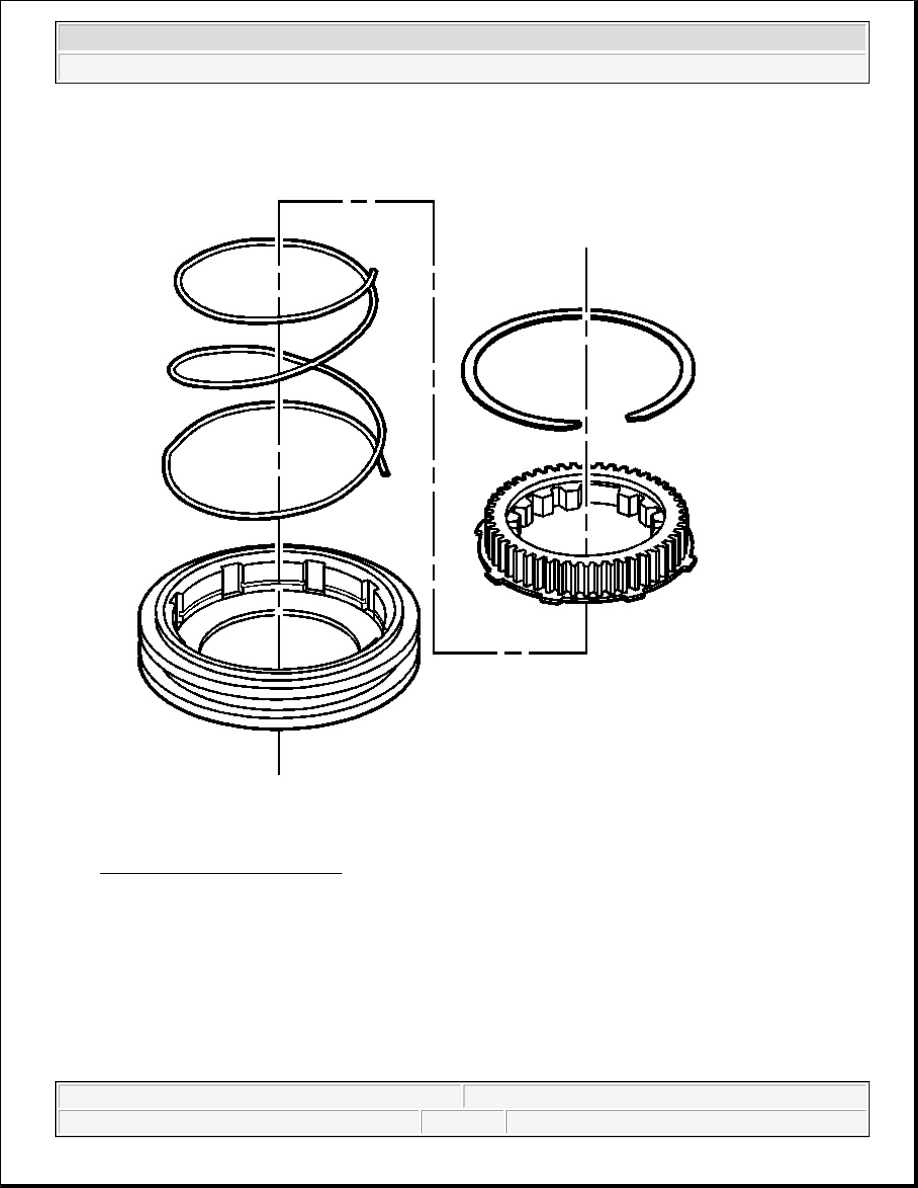

Fig. 59: Lockup Shift Assembly
Courtesy of GENERAL MOTORS CORP.

30. If necessary, disassemble the lockup shift assembly.

1. Remove the retainer ring from the sleeve.

2. Remove the hub.

3. Remove the spring.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



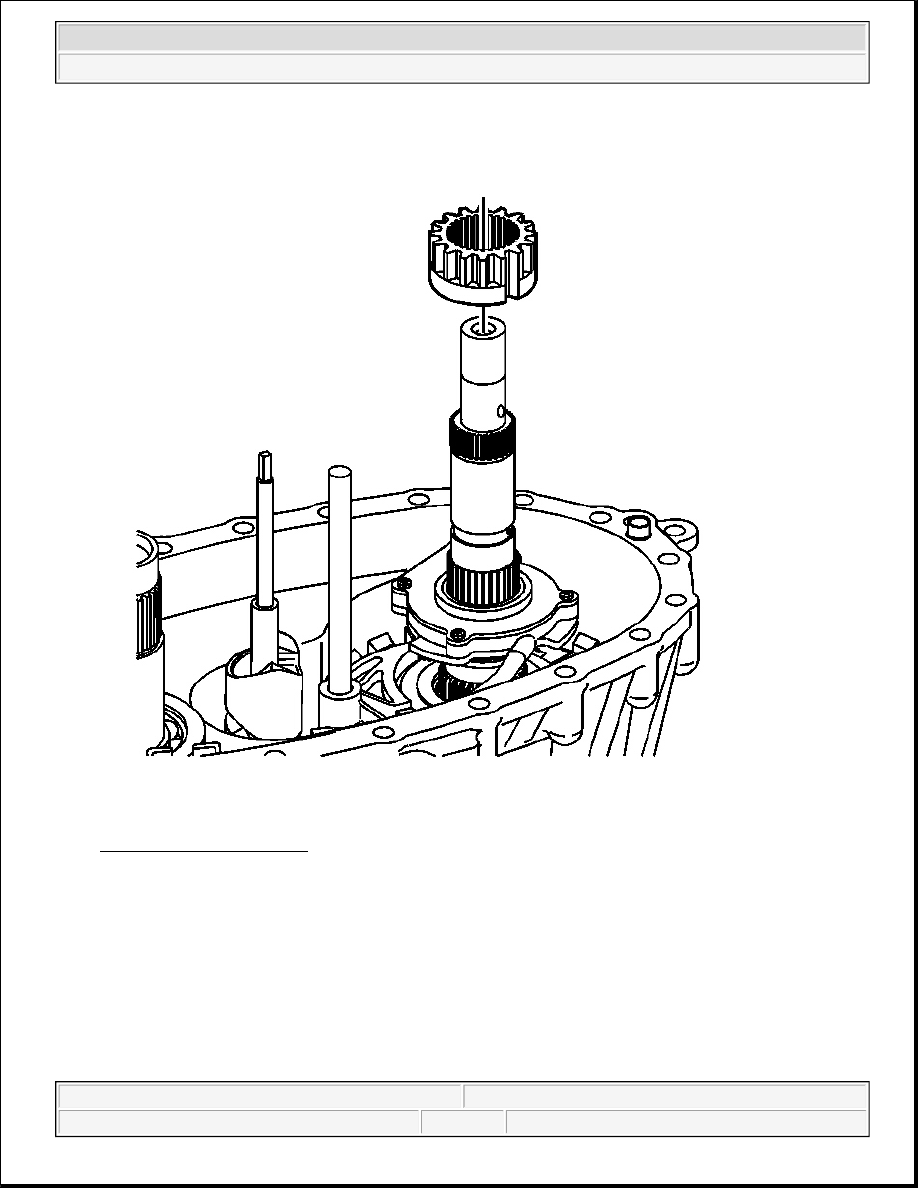

Fig. 60: Inner Lockup Hub
Courtesy of GENERAL MOTORS CORP.

31. Remove the inner lockup hub.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



Fig. 61: View Of Magnet
Courtesy of GENERAL MOTORS CORP.

32. Remove the magnet.
