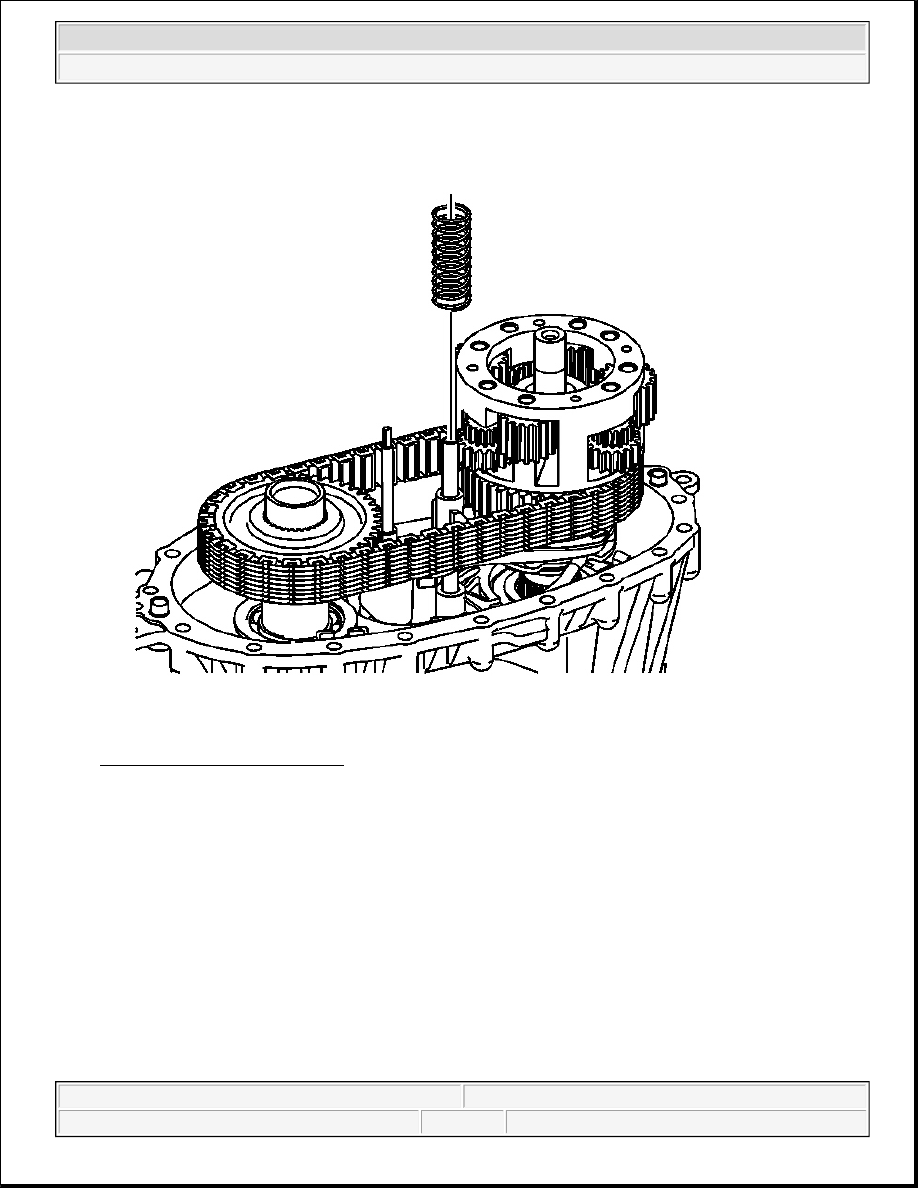

Fig. 50: Shift Fork Shaft Spring
Courtesy of GENERAL MOTORS CORP.

21. Remove the shift fork shaft spring.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

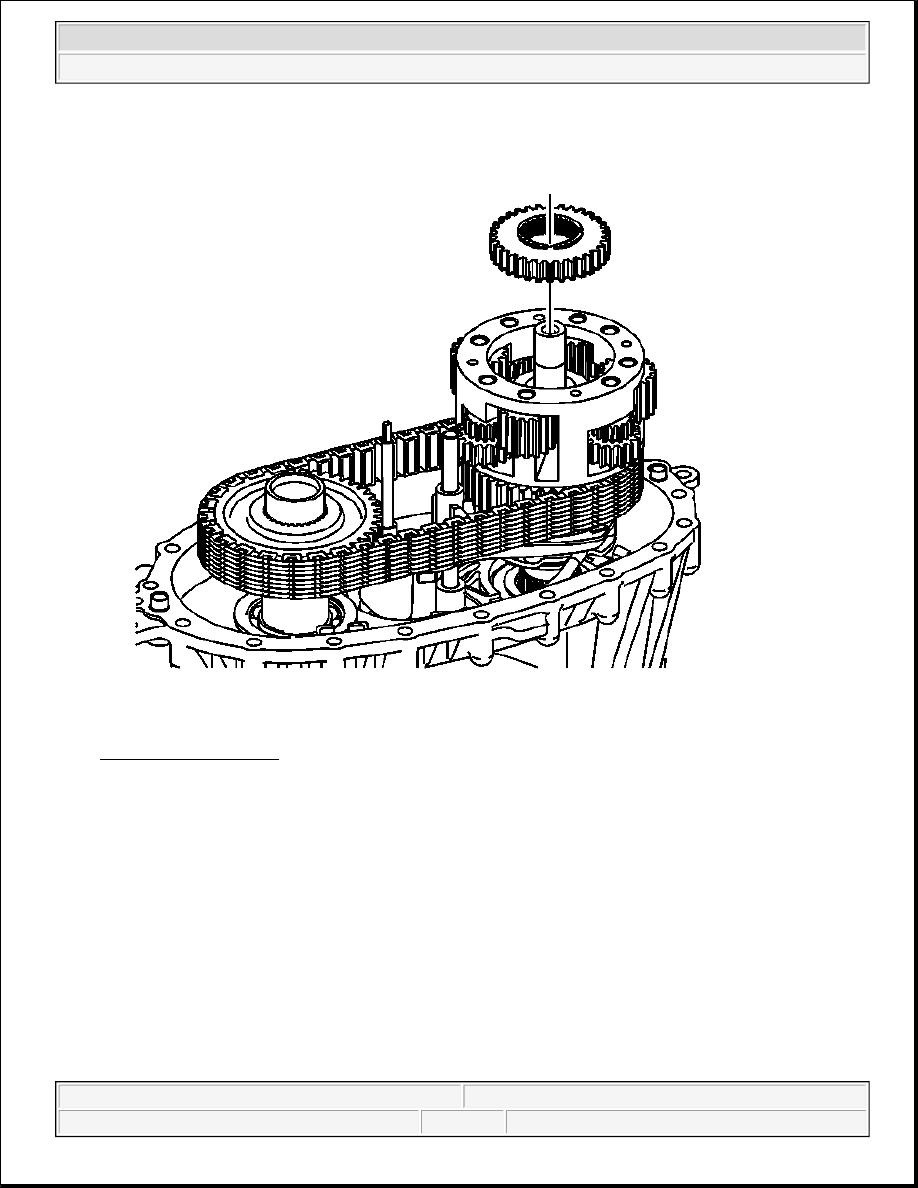

Fig. 51: Rear Sun Gear
Courtesy of GENERAL MOTORS CORP.

22. Remove the rear sun gear.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

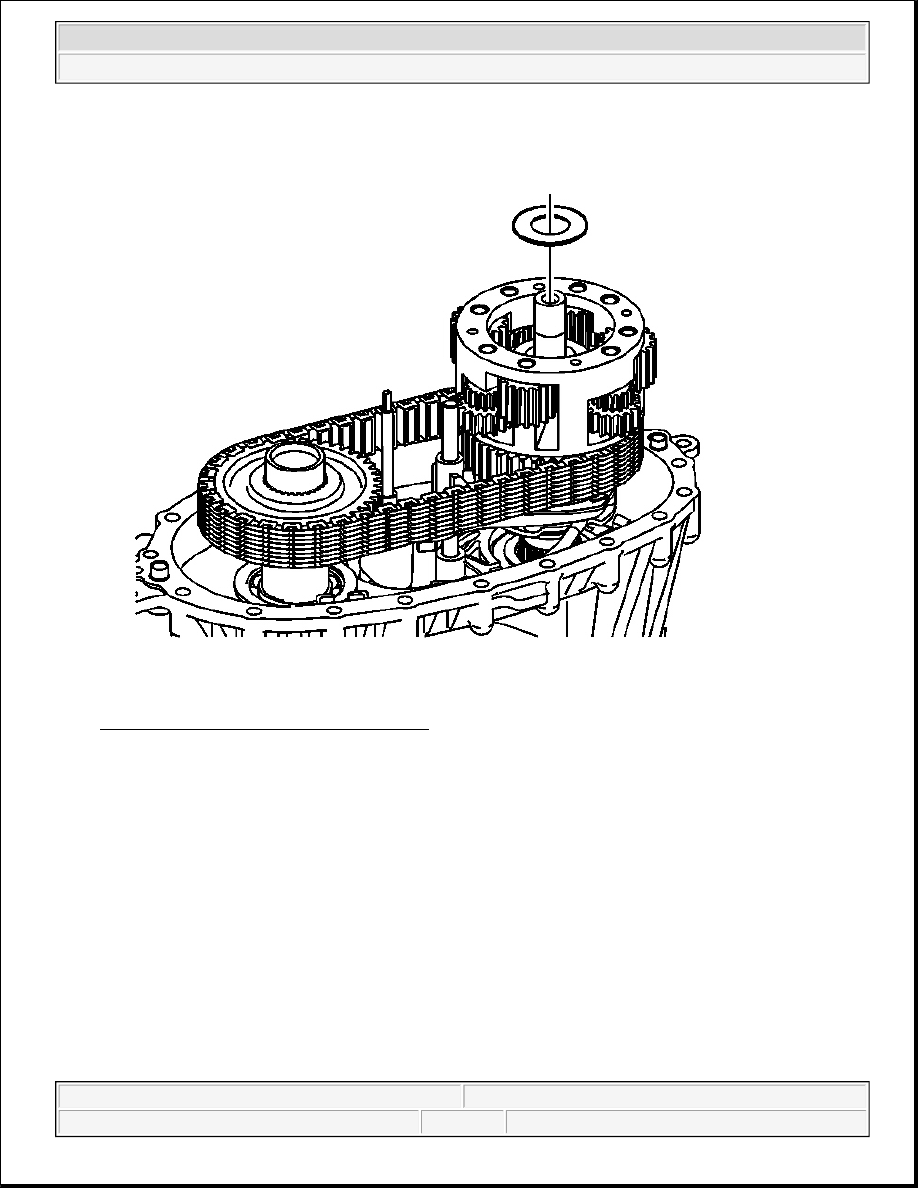

Fig. 52: Rear Output Shaft Thrust Washer
Courtesy of GENERAL MOTORS CORP.

23. Remove the rear output shaft thrust washer.

2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

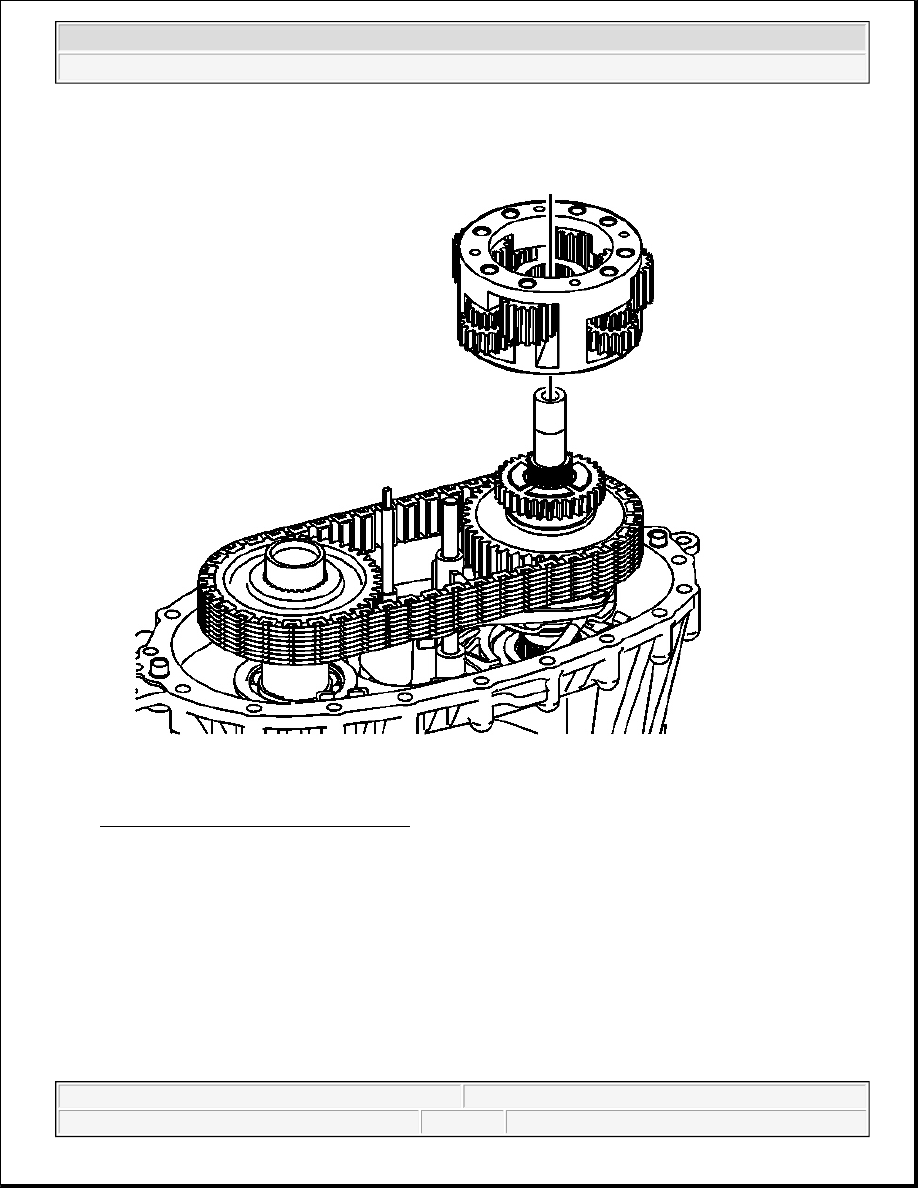

Fig. 53: Planetary Differential Assembly
Courtesy of GENERAL MOTORS CORP.

24. Remove the planetary differential assembly.
