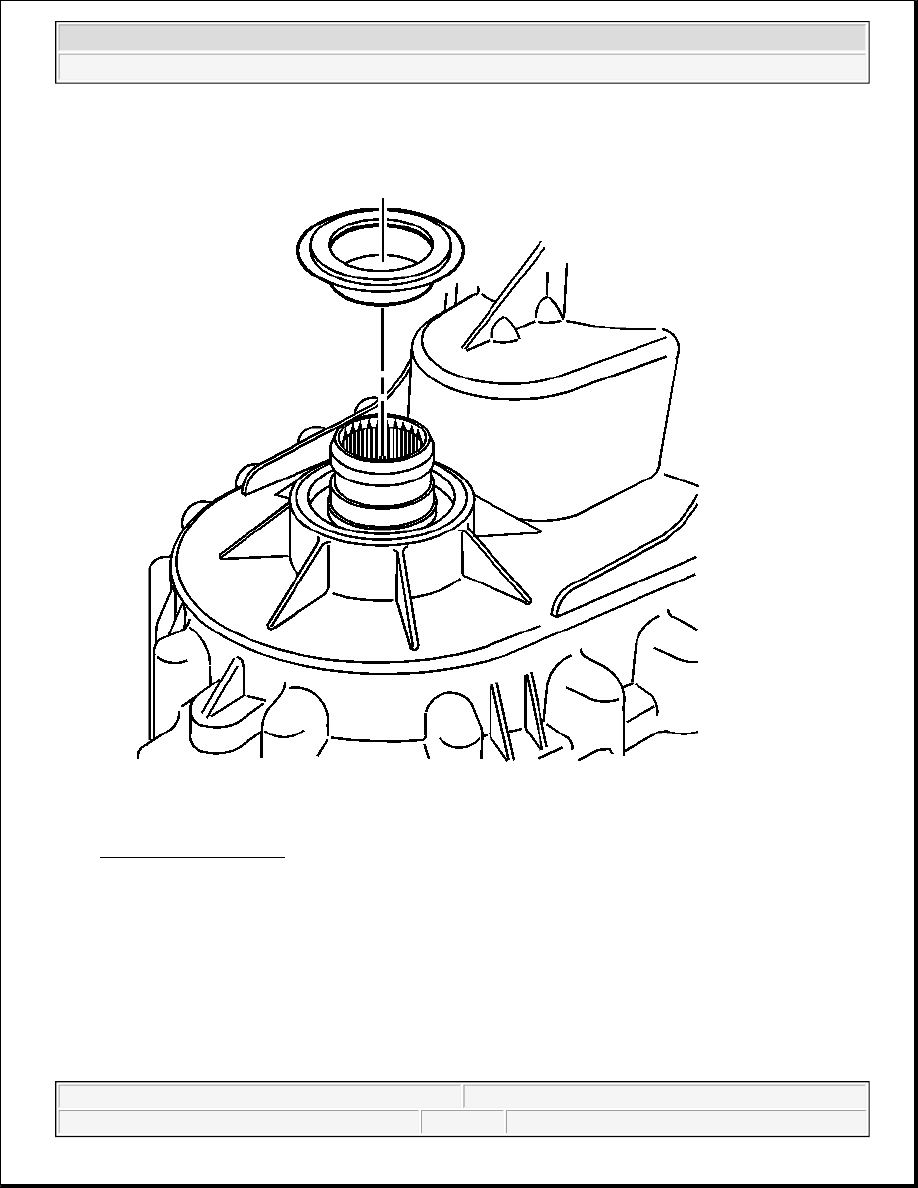

Fig. 42: Inner Seal Race
Courtesy of GENERAL MOTORS CORP.

7. Using a small pry bar, move the inner seal race forward on the front output shaft.

8. Remove the inner seal race from the front output shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



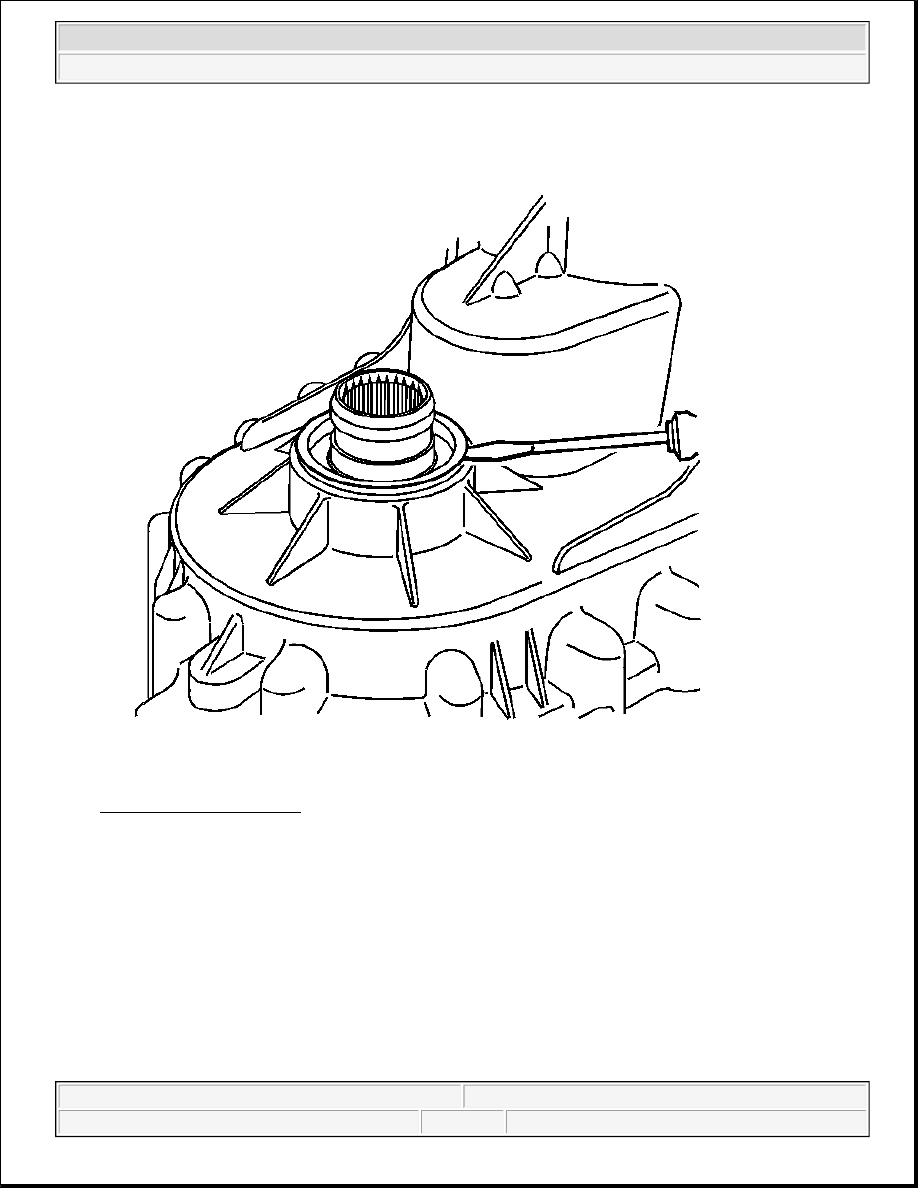

Fig. 43: Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.

9. Insert a flat-tipped screwdriver or a small pry bar between the outer lip of the front output shaft seal and

the transfer case.

10. Remove the remaining part of the front output shaft seal from the transfer case.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

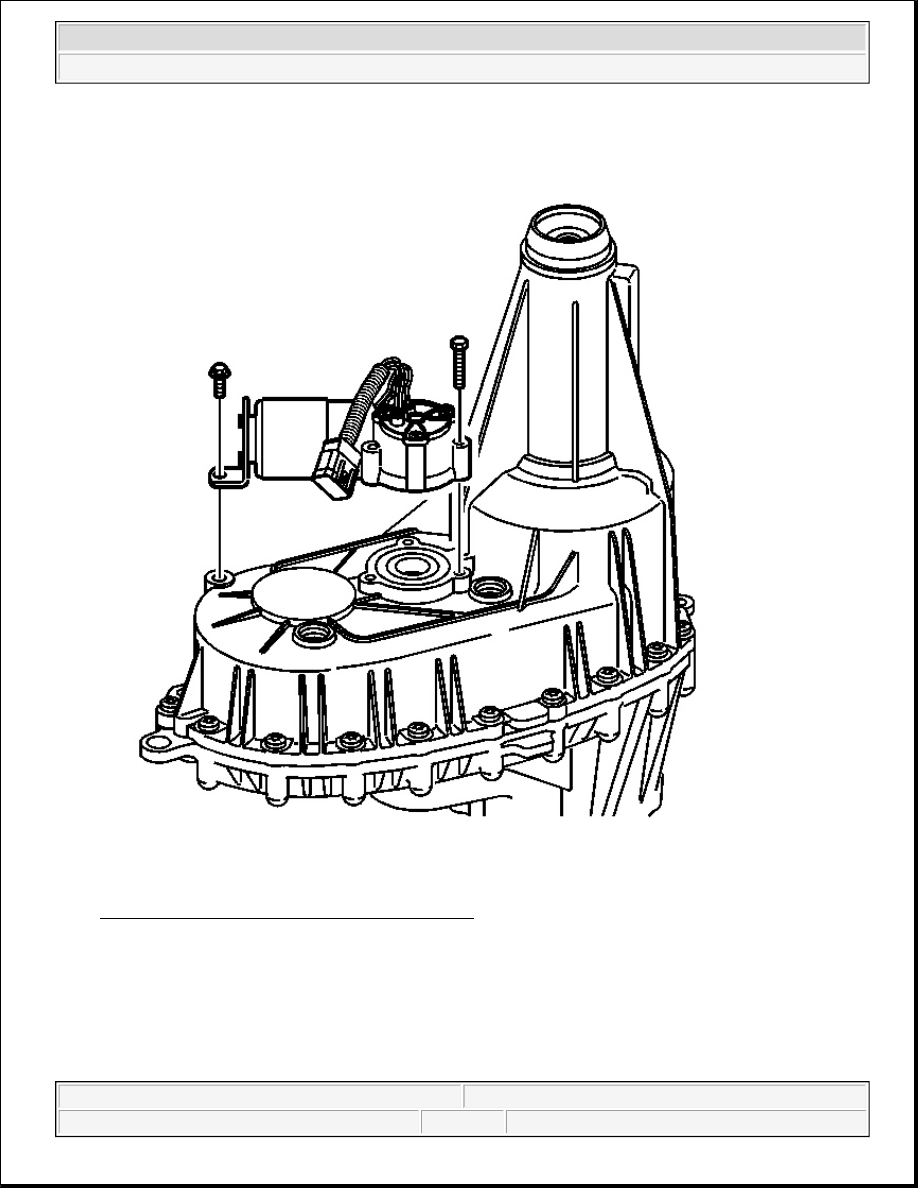

Fig. 44: Transfer Case Encoder/Motor Assembly
Courtesy of GENERAL MOTORS CORP.

11. Remove the encoder motor bracket bolt.

12. Remove the encoder motor mounting bolts.

13. Remove the encoder motor assembly.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

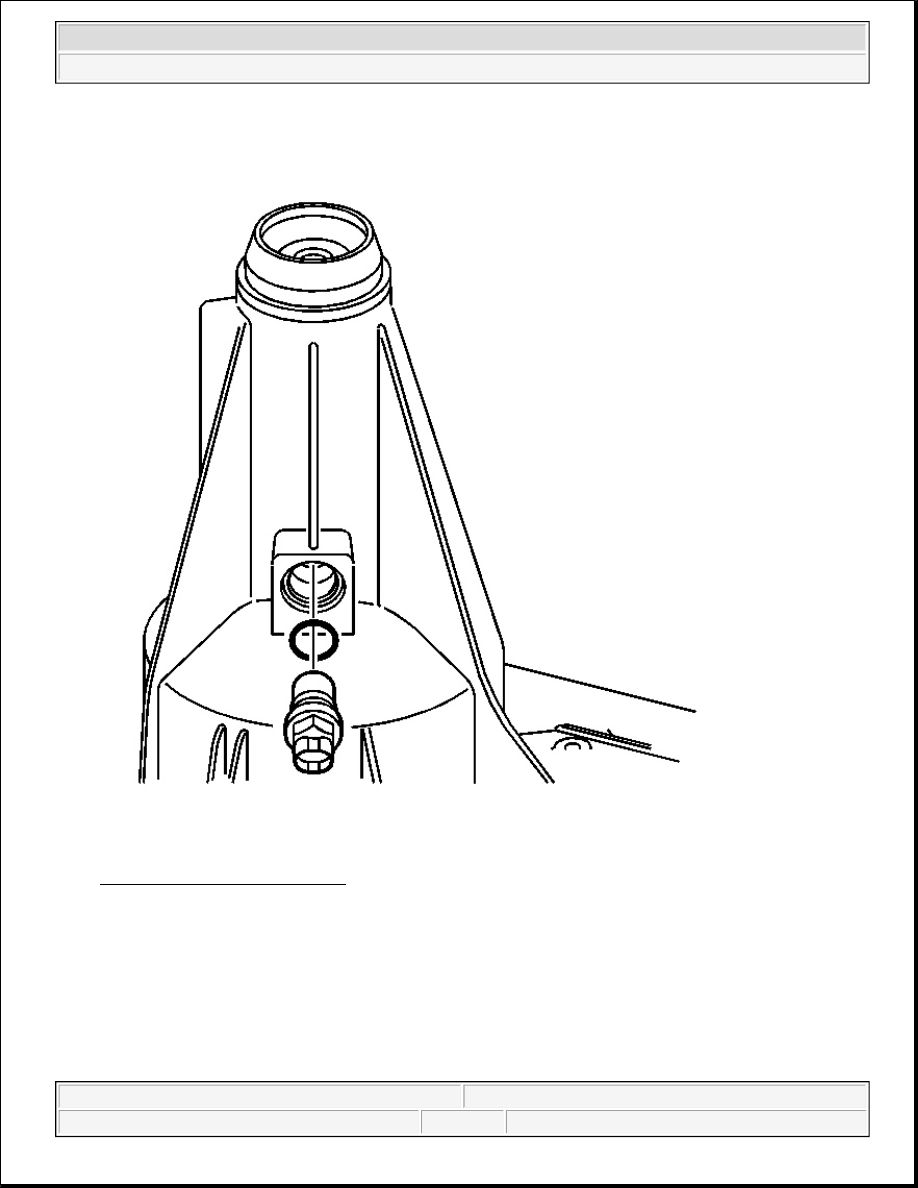

Fig. 45: Speed Sensor & O-Ring
Courtesy of GENERAL MOTORS CORP.

14. Remove the rear vehicle speed sensor (VSS) and the O-ring seal.
