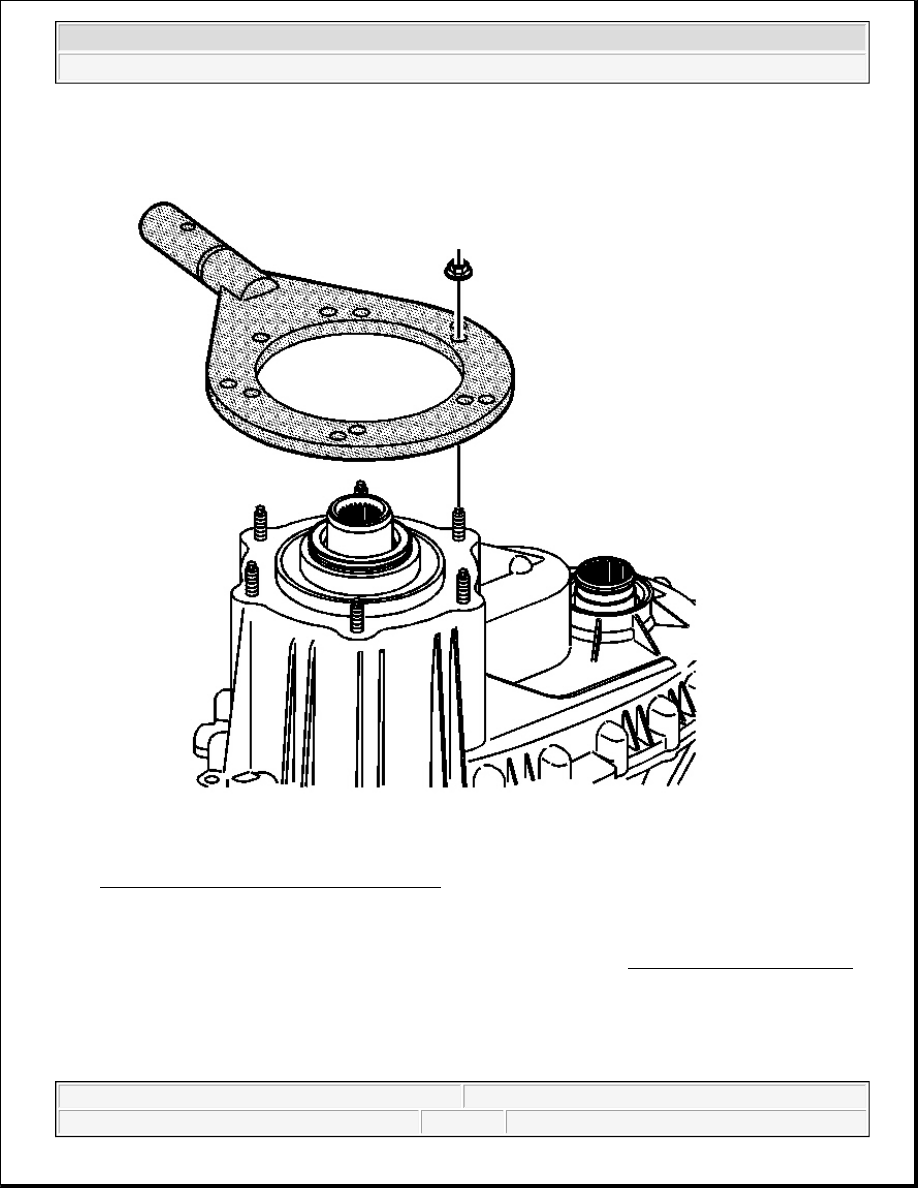

Fig. 38: Attaching J 45759 To Transfer Case
Courtesy of GENERAL MOTORS CORP.

1. Using the adapter studs, attach the J 45759 to the transfer case. All of the transfer case disassembly

procedures can be performed with the case mounted to the J 45759 . See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



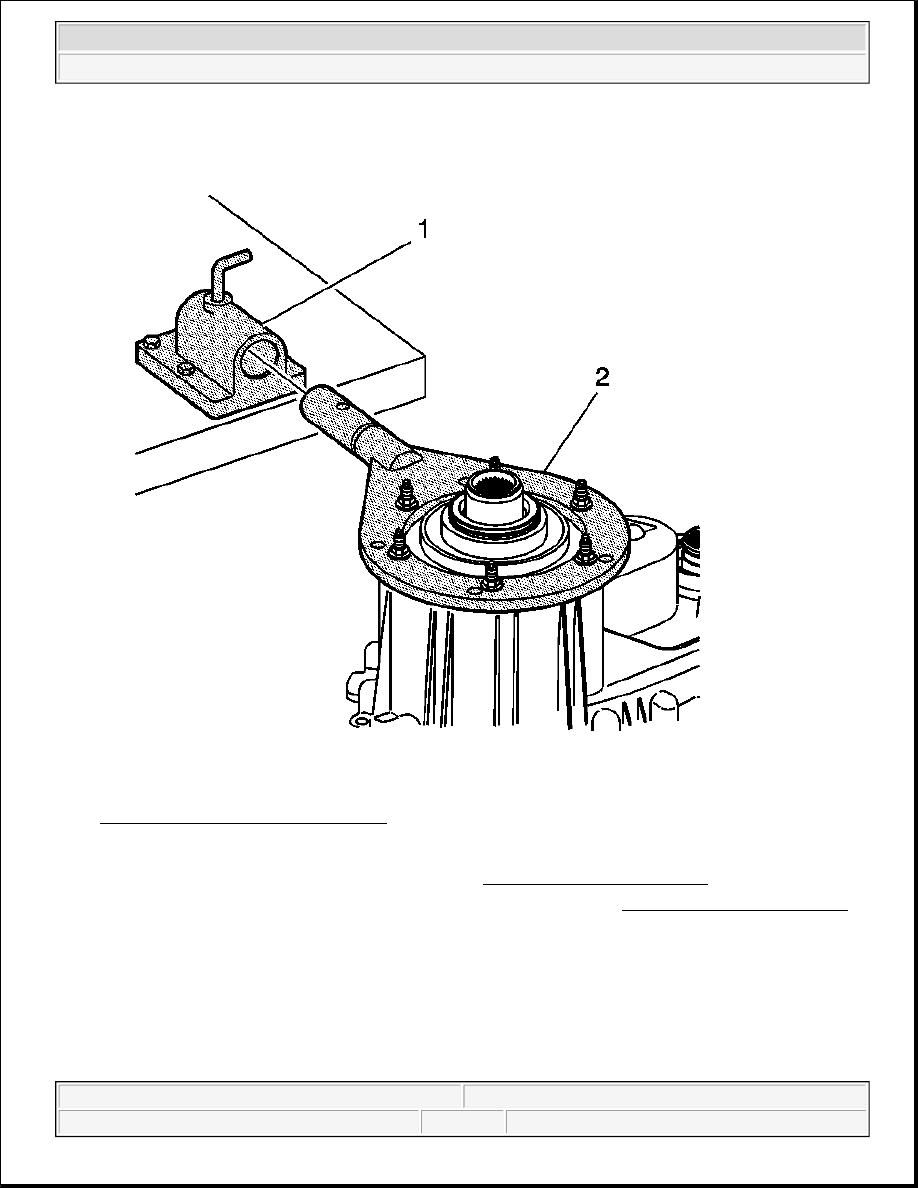

Fig. 39: View Of J 45759 & J 3289-20
Courtesy of GENERAL MOTORS CORP.

2. Mount the J 3289-20 (1) to a sturdy workbench. See Special Tools and Equipment .

3. Install the J 45759 (2) into J 3289-20 (1) and secure with pivot pin. See Special Tools and Equipment .



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



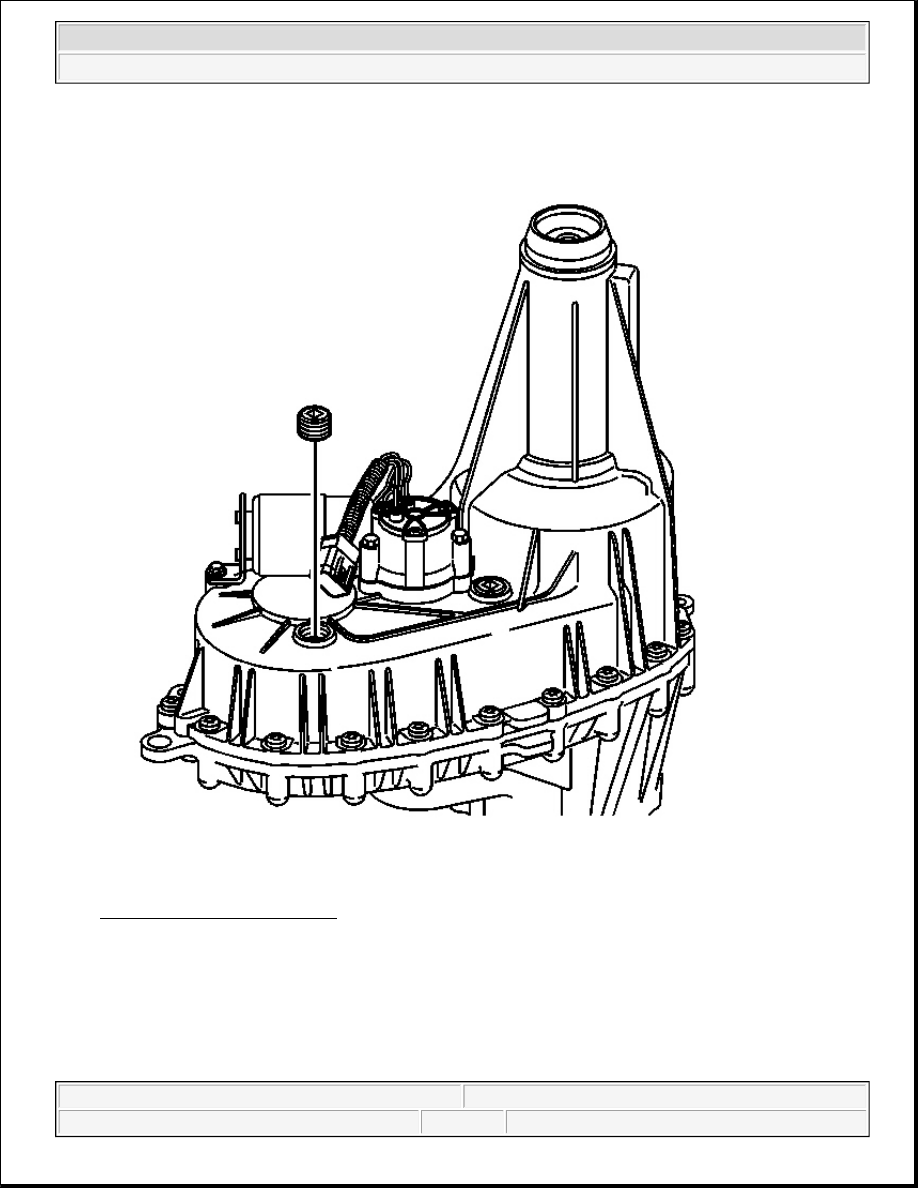

Fig. 40: Drain Plug & Fill Plug
Courtesy of GENERAL MOTORS CORP.

4. Remove the drain plug and the fill plug. Ensure all of the transfer case fluid is drained out of the transfer

case.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



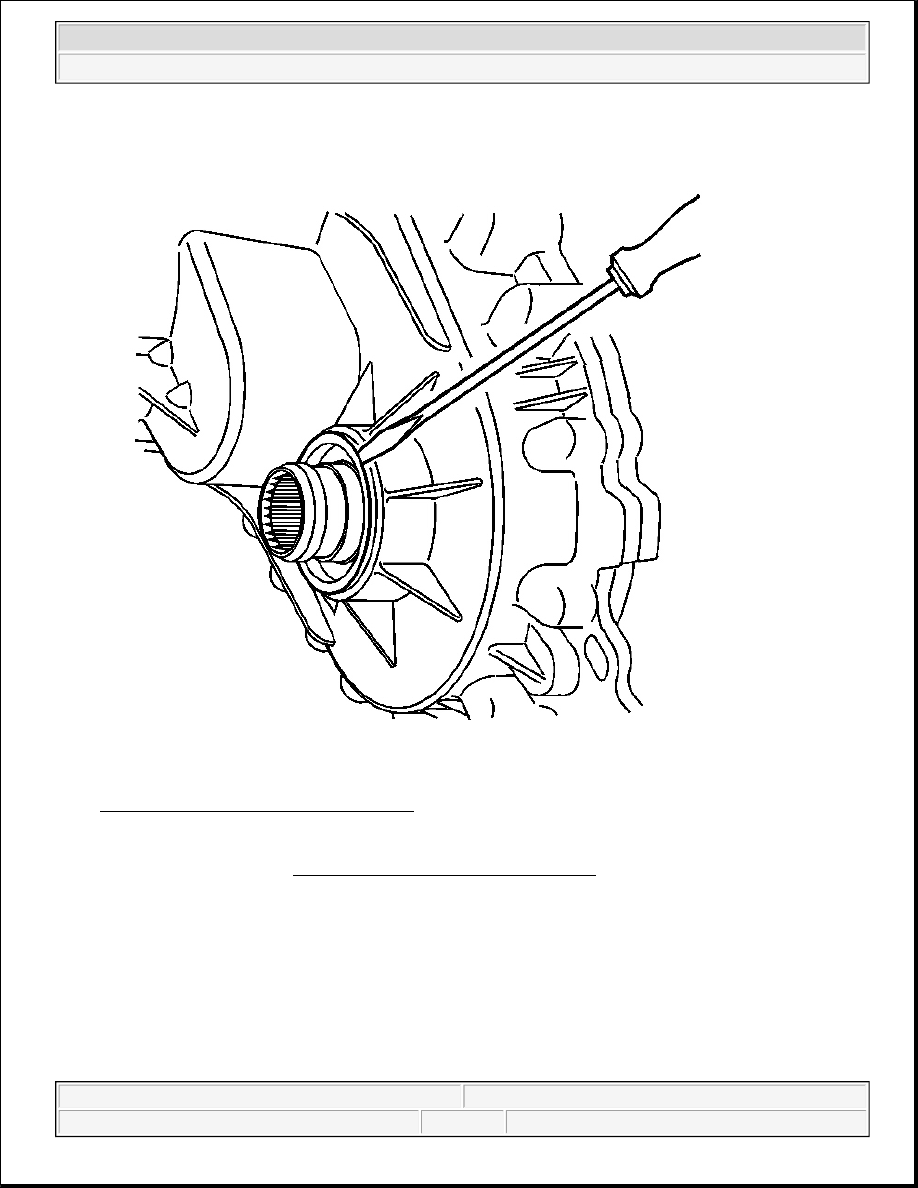

Fig. 41: Prying Inner Seal Race Forward
Courtesy of GENERAL MOTORS CORP.

5. Remove the front output shaft seal by inserting a flat-tipped screwdriver behind the inner race of the seal.

6. Pry the inner seal race forward.

NOTE:

Refer to Transfer Case Seal Removal Notice in Cautions and Notices.

IMPORTANT: The front output shaft seal is a two piece internal seal. The inner seal race

is a force fit on the front output shaft.
