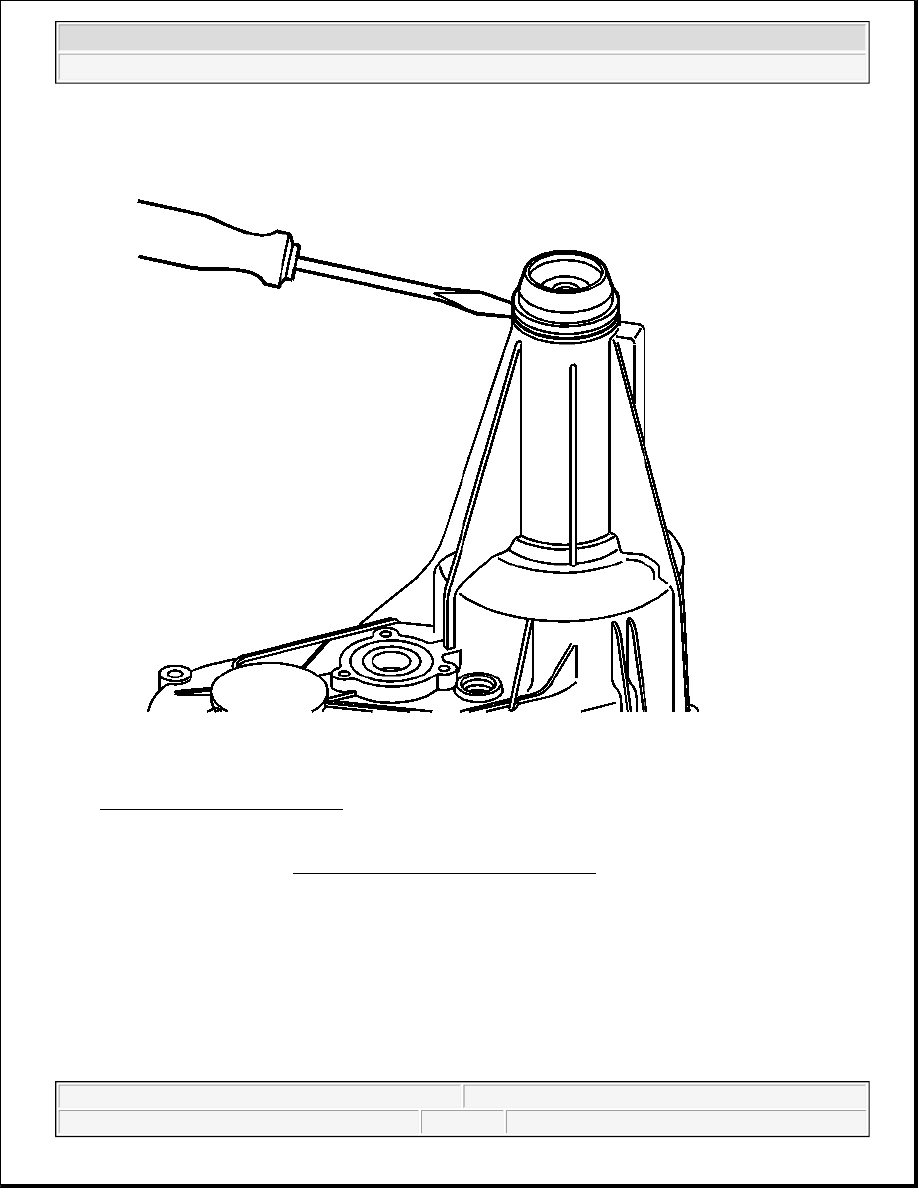

Fig. 46: Rear Output Shaft Seal
Courtesy of GENERAL MOTORS CORP.

15. Remove the rear output shaft seal by prying it out with a flat-blade screwdriver.

16. Remove the shipping seal from the rear output shaft, if equipped.

NOTE:

Refer to Transfer Case Seal Removal Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



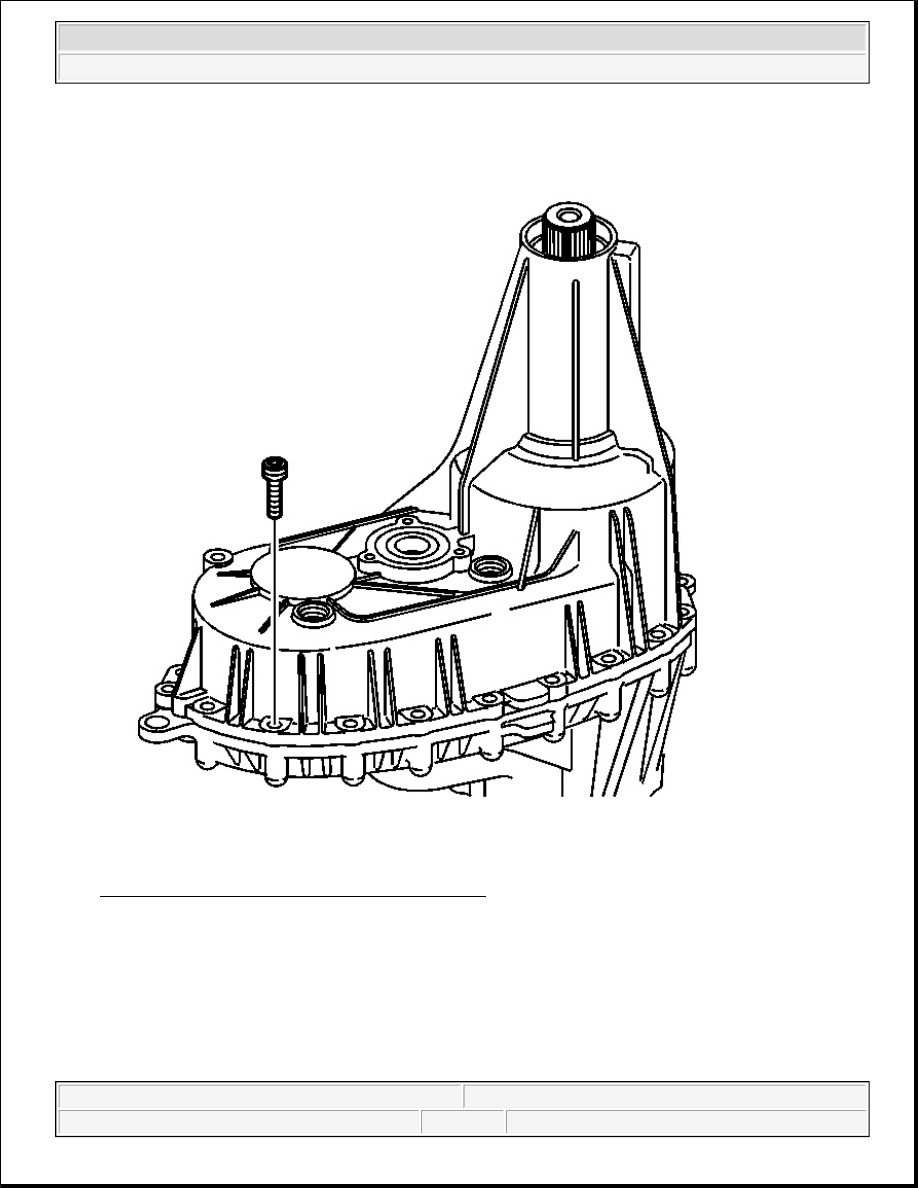

Fig. 47: Transfer Case Retaining Bolts & Washers
Courtesy of GENERAL MOTORS CORP.

17. Remove the transfer case retaining bolts and washers.

Mark the location of the brackets.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



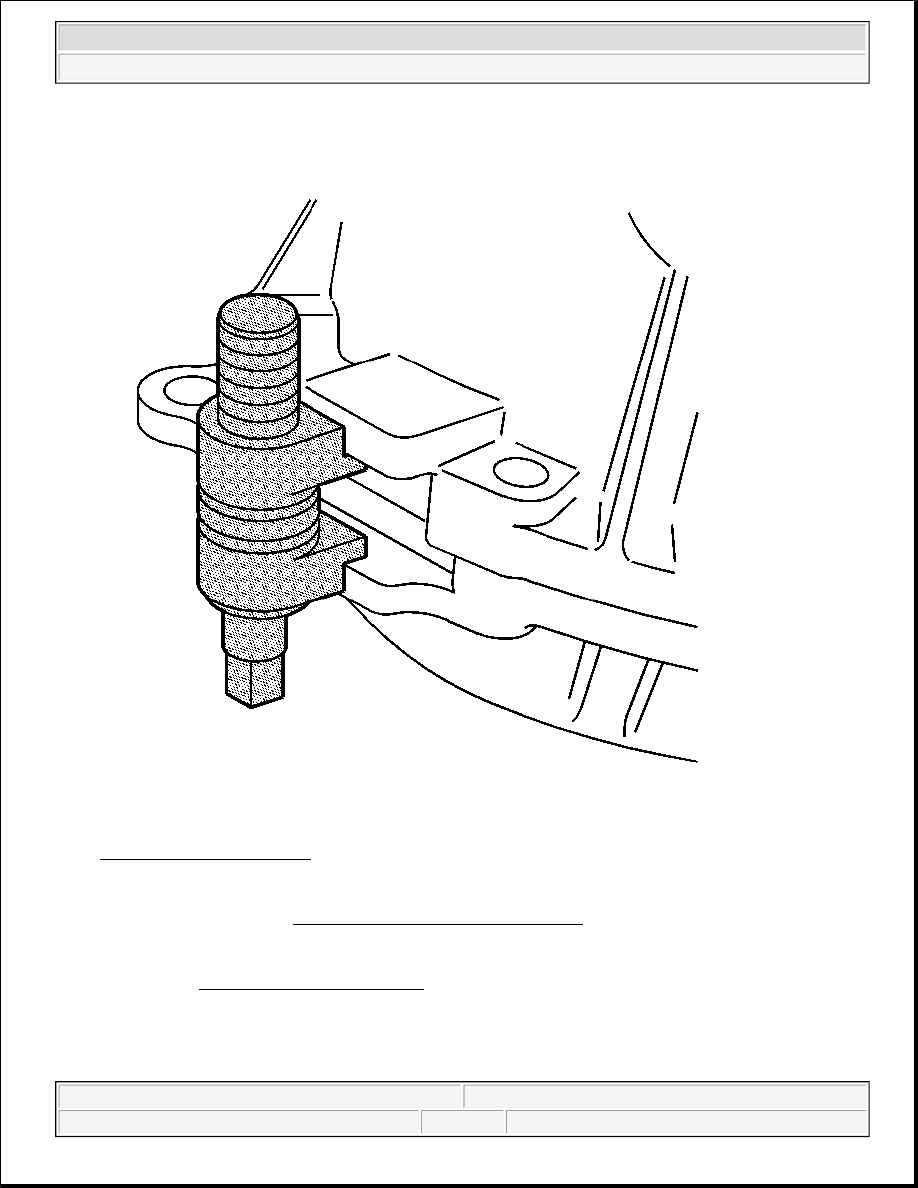

Fig. 48: Identifying J 45358
Courtesy of GENERAL MOTORS CORP.

18. Using the J 45358 between the tabs on the case halves, shear the sealer that is holding the case halves

together. See Special Tools and Equipment .

19. Using pry bars at each side of the case, remove the case from the locating pins.

NOTE:

Refer to Machined Surface Damage Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



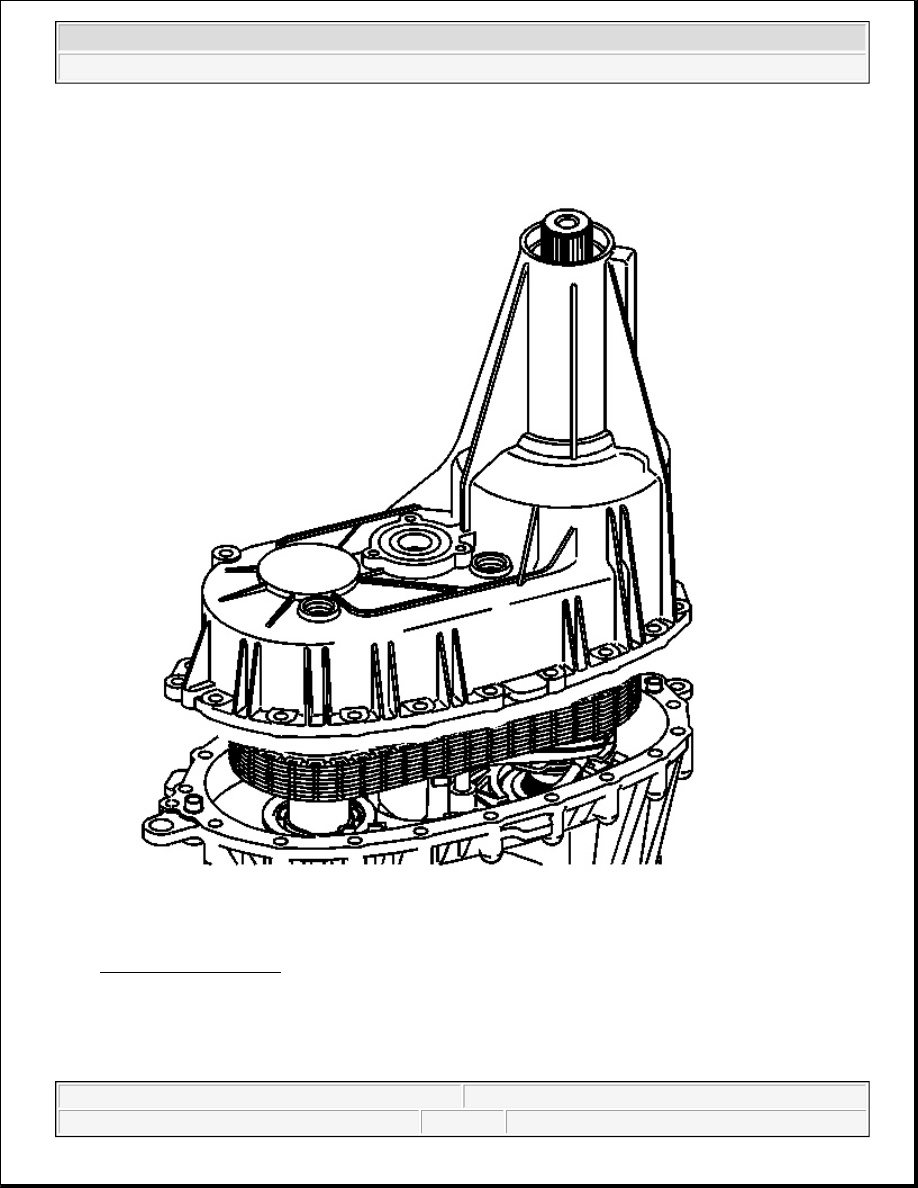

Fig. 49: Rear Case Half
Courtesy of GENERAL MOTORS CORP.

20. Remove the rear case half from the front case half. The rear output shaft will come with the rear case half.
