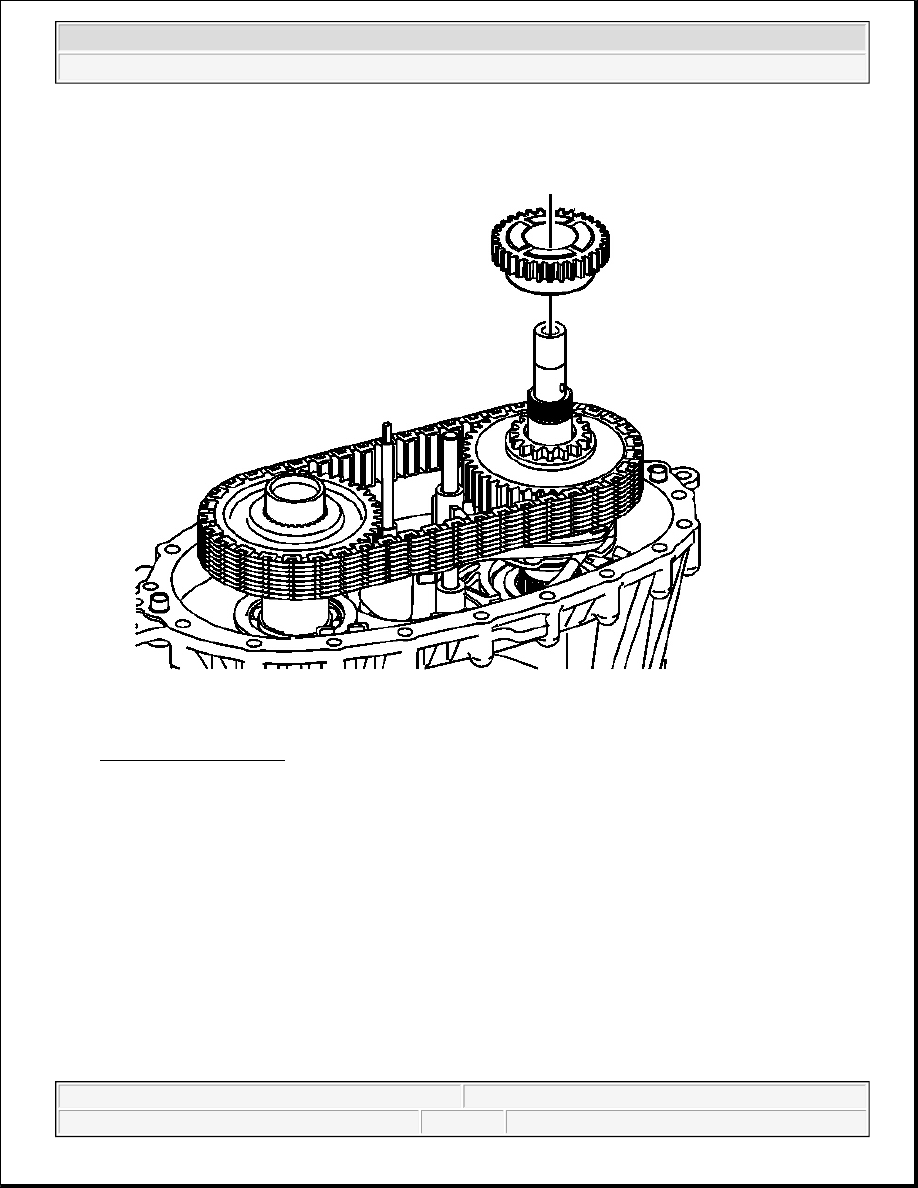

Fig. 54: Front Sun Gear
Courtesy of GENERAL MOTORS CORP.

25. Remove the front sun gear.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



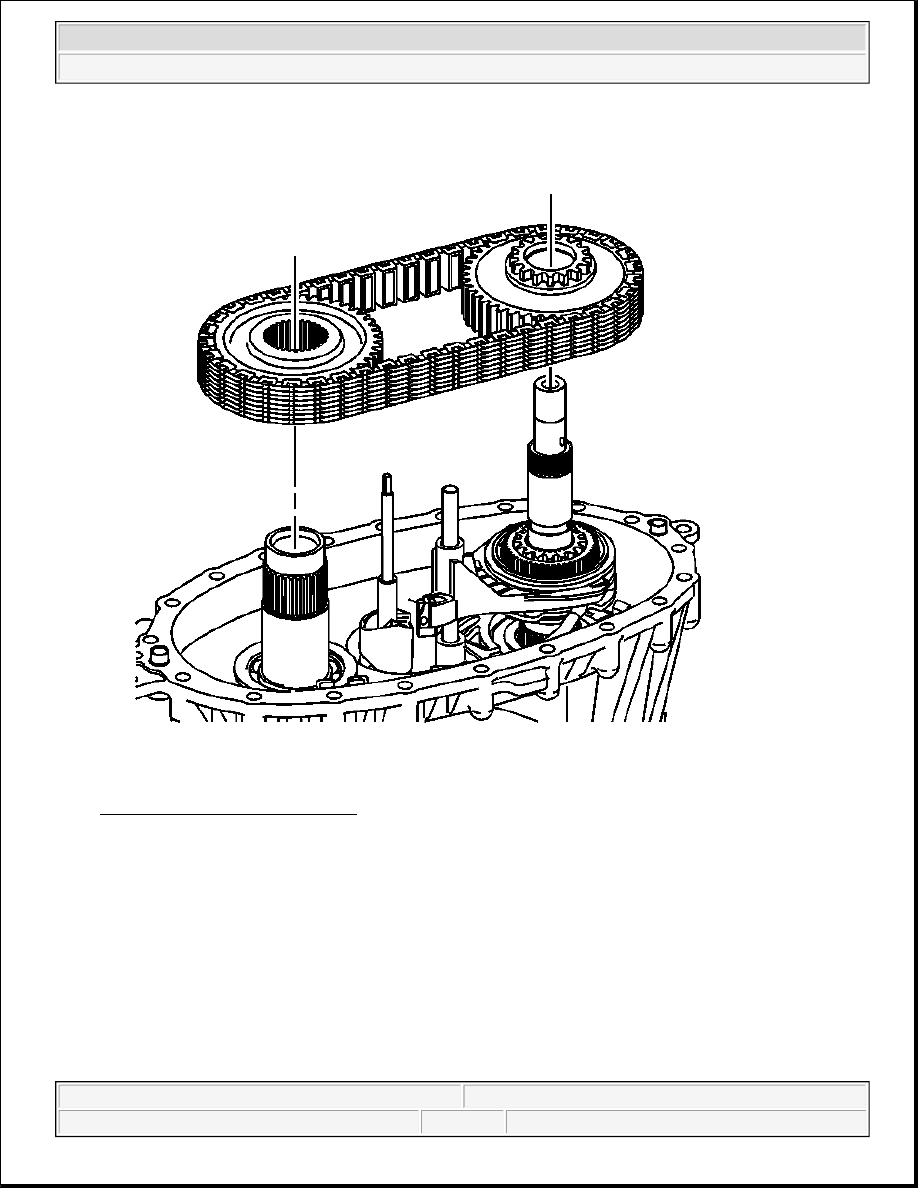

Fig. 55: Drive Chain & Sprockets
Courtesy of GENERAL MOTORS CORP.

26. Remove the chain with the drive sprocket and driven sprocket.

IMPORTANT: If the chain and sprockets are to be used again, mark the relationship of

the chain to the sprockets in order to mark the wear patterns.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



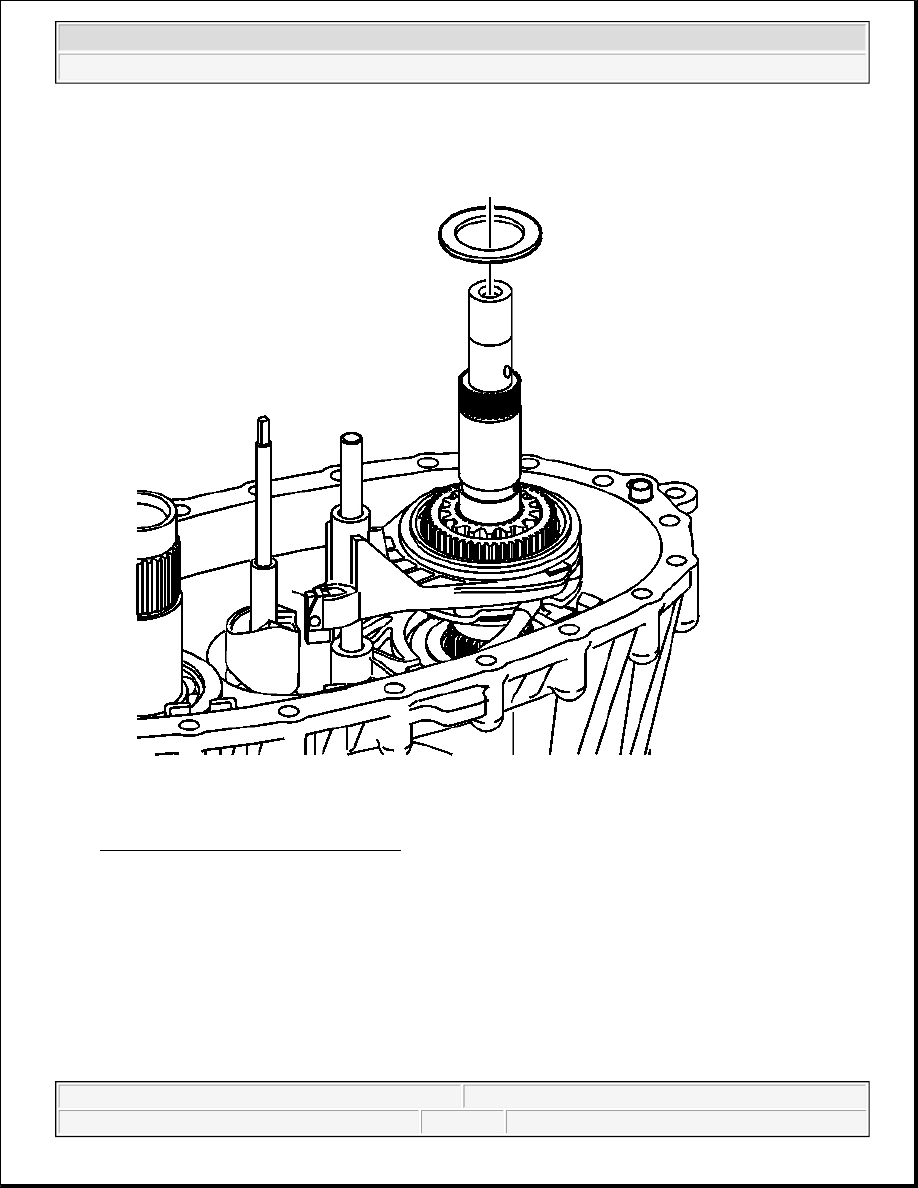

Fig. 56: Drive Sprocket Thrust Washer
Courtesy of GENERAL MOTORS CORP.

27. Remove the drive sprocket thrust washer.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

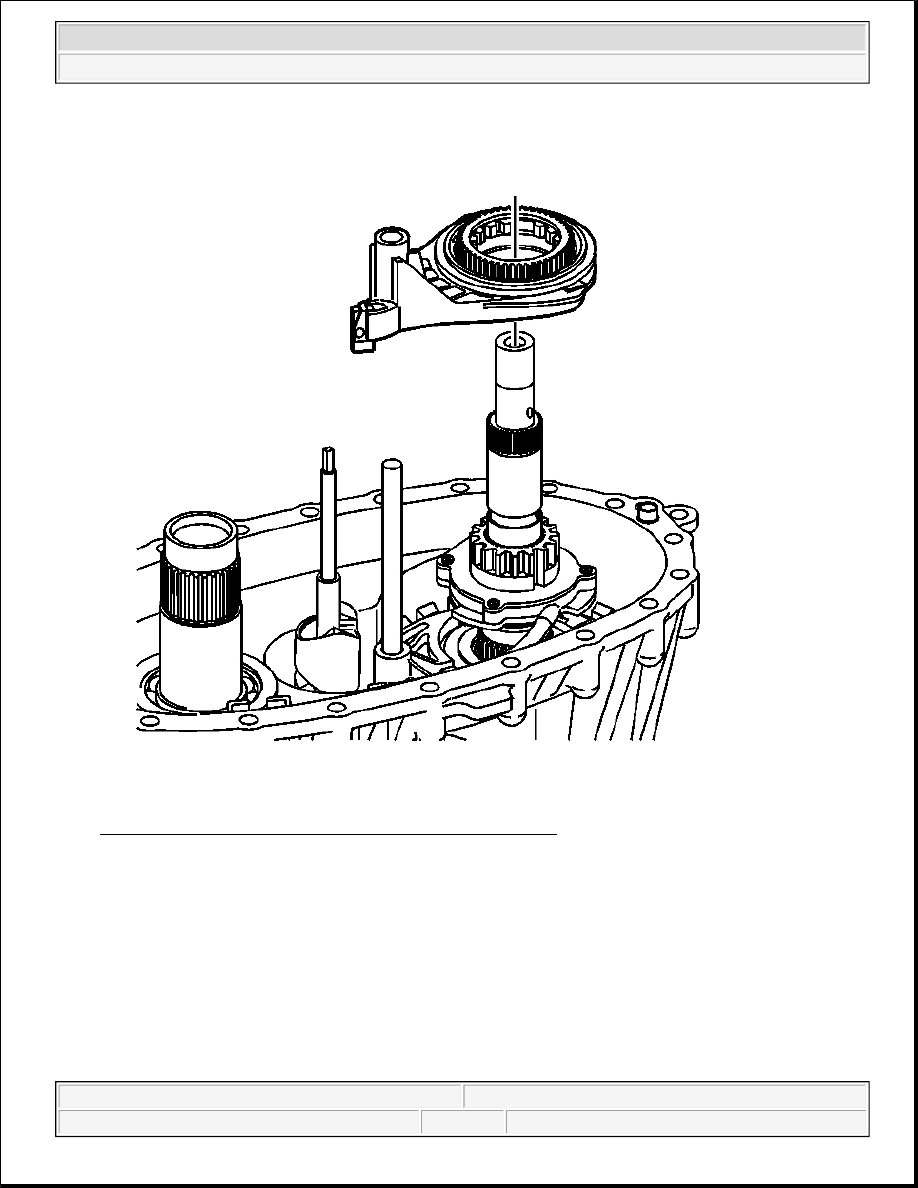

Fig. 57: Lockup Shift Assembly & Lockup Mode Shift Fork
Courtesy of GENERAL MOTORS CORP.

28. Remove the lockup shift assembly and lockup mode shift fork.
