59. Using the J 2619-01 (1) and the J 45548 (2), remove the mainshaft rear support bushing from the rear

output shaft. See Special Tools and Equipment .

Fig. 86: Using J 26941 & J 23907 To Remove Rear Bearing For Front Output Shaft From Rear
Case
Courtesy of GENERAL MOTORS CORP.

60. Using the J 26941 (1) and the J 23907 (2), remove the rear bearing for the front output shaft from the rear



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



case. See Special Tools and Equipment .

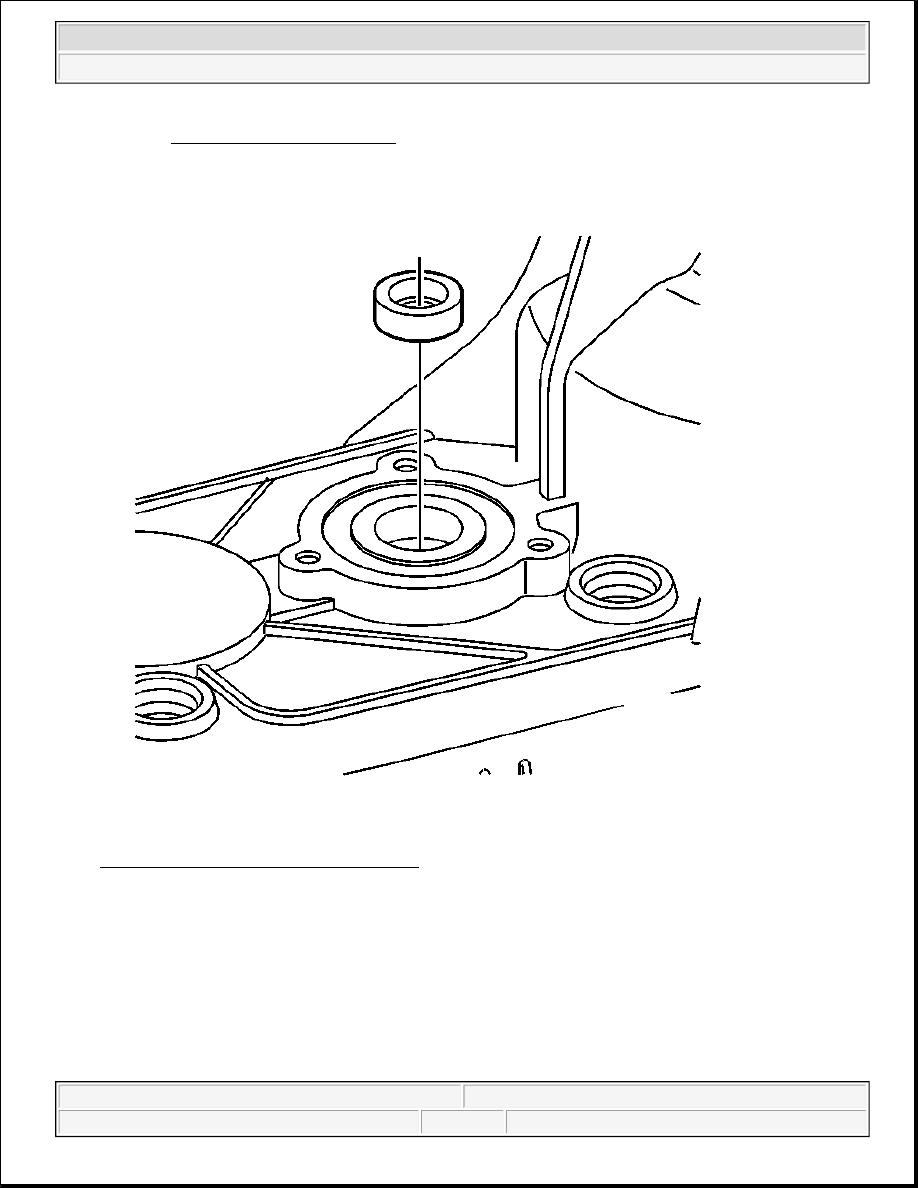

Fig. 87: Seal For Shift Detent Lever Shaft
Courtesy of GENERAL MOTORS CORP.

61. Remove the seal for the shift detent lever shaft by prying it out from the case.

CLEANING AND INSPECTION

Front Case Half



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2

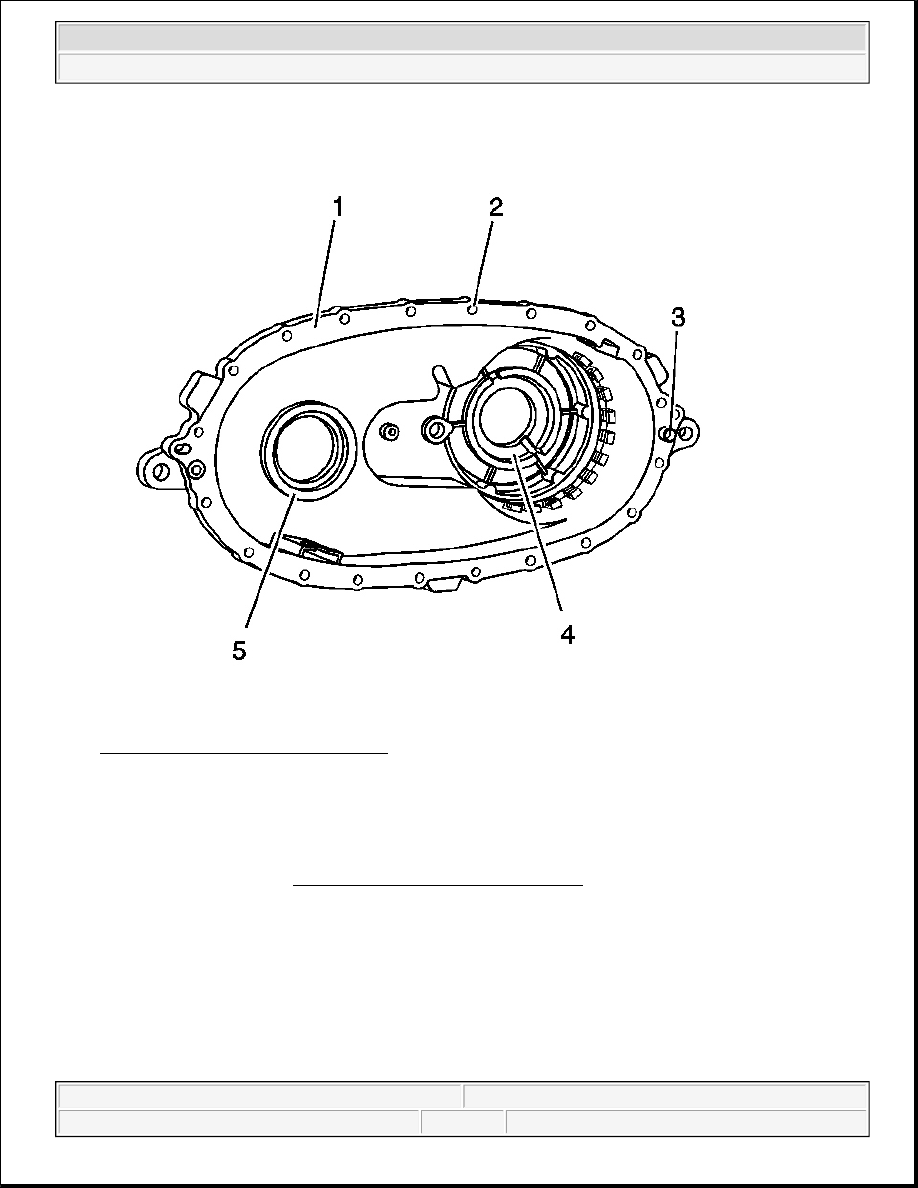

Fig. 88: Front Case Half Components
Courtesy of GENERAL MOTORS CORP.

1. Clean the front case half in cleaning solvent, and air dry.

2. Remove the shavings from the case half bolt holes.

3. Remove the sealer from the case sealing surfaces.

4. Inspect the case for being broken or cracked.

5. Inspect the front output shaft front bearing bore (5) for the following conditions:

z

A spun bearing

z

Cracks

6. Inspect the input shaft bearing bore (4) for the following conditions:

z

A spun bearing

NOTE:

Refer to Machined Surface Damage Notice in Cautions and Notices.



2004 Hummer H2

2004 DRIVELINE/AXLE Transfer Case - BW 4484 - Hummer H2



z

Cracks

7. Replace the front case half if any of the above conditions are found.

8. Inspect the sealing surfaces (1) for damage.

9. Repair small scratches or nicks with a soft stone.

10. Inspect the front case to transmission case mounting surface for damage.

11. Inspect the case threaded bolt holes (2) for damage.

12. Repair any damaged threads.

13. Inspect the transmission to transfer case studs for damage.

14. Replace any damaged studs. Refer to Transfer Case Disassemble and Transfer Case Assemble .

15. Inspect the location pins (3) for being loose or missing.

16. Repair or replace any damaged location pins.

17. Inspect the front output shaft front bearing and the input shaft bearing for the following conditions:

z

Roughness

z

Brinelling

z

Pitting

18. Replace the bearings if any of the above conditions are found. Refer to Transfer Case Disassemble and

Transfer Case Assemble .

Rear Case Half
