Hummer H2. Manual - part 2510

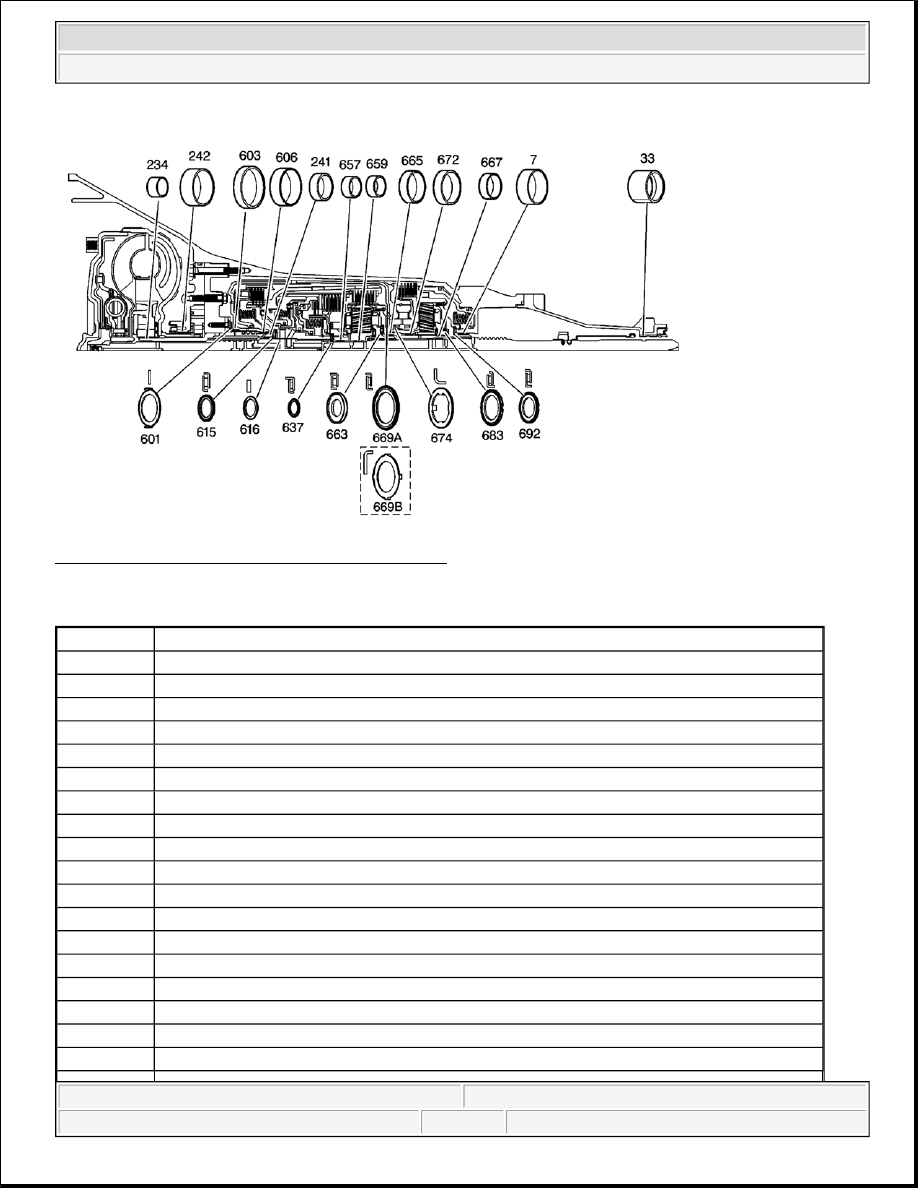

Fig. 17: Bearings & Bushings Component Location
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 17

Callout

Component Name

Case Bushing

Case Extension Bushing

234

Stator Shaft Bushing - Front

241

Stator Shaft Bushing - Rear

242

Oil Pump Body Bushing

601

Thrust Washer - Pump to Drum

603

Reverse Input Cl. Bushing - Front

606

Reverse Input Clutch Bushing - Rear

615

Stator Shaft/Selective Washer Bearing Assembly

616

Thrust Washer - Selective

637

Input Sun Gear Bearing Assembly

657

Input Sun Gear Bushing - Front

659

Input Sun Gear Bushing - Rear

663

Thrust Bearing Assembly - Input Carrier to Reaction Shaft

665

Reaction Carrier Shaft Bushing - Front

667

Reaction Carrier Shaft Bushing - Rear

669a

Thrust Washer - Reaction Shaft/Shell

669b

Thrust Washer - Reaction Shaft/Shell - Some Models

2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

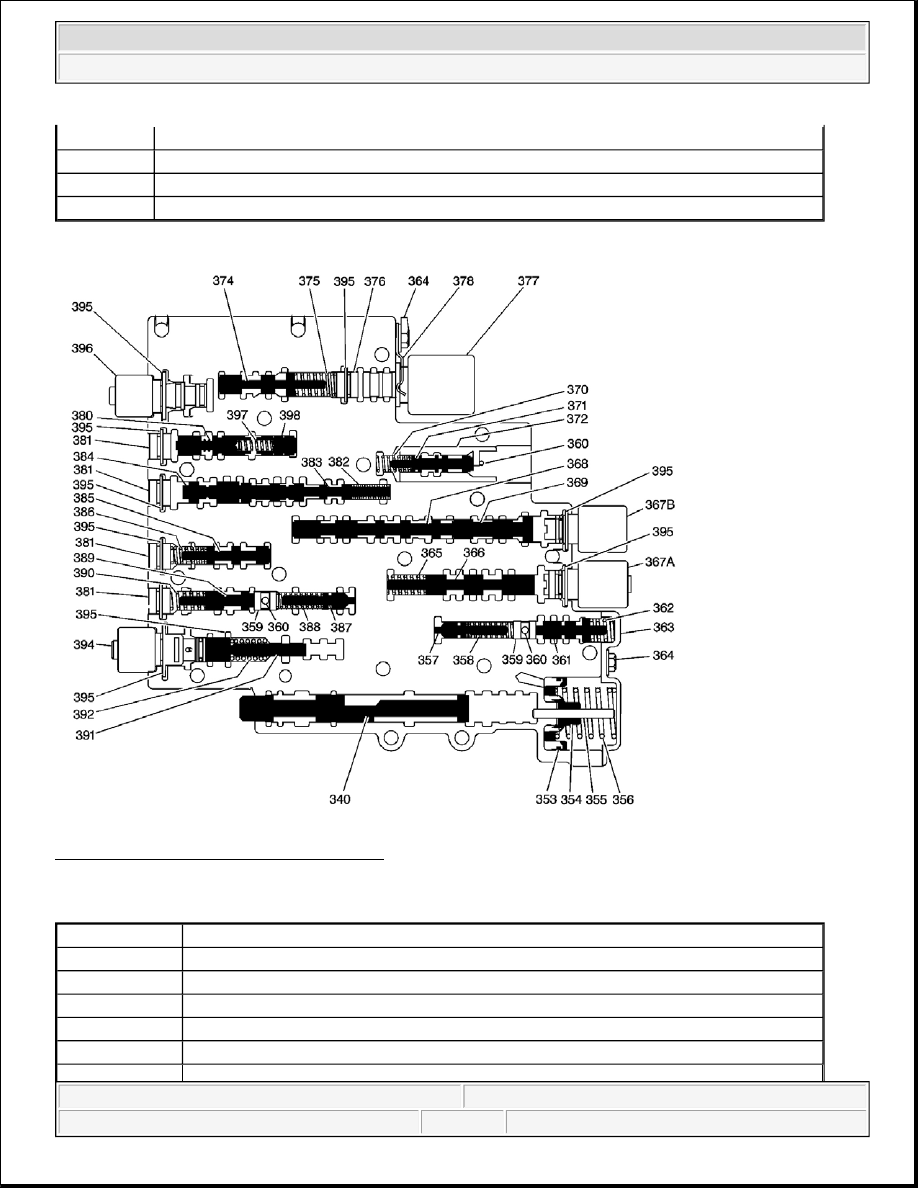

Fig. 18: Valve Trains Component Location
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 18

672

Reaction Gear Bushing

674

Thrust Washer - Race/Reaction Shell

683

Thrust Bearing Assembly - Reaction Carrier/Support

692

Reaction Gear Support to Case Bearing

Callout

Component Name

340

Manual Valve

353

Forward Accumulator Oil Seal

354

Forward Accumulator Piston

355

Forward Accumulator Pin

356

Forward Accumulator Spring

2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

357

Forward Abuse Valve

358

Forward Abuse Valve Spring

359

Bore Plug

359

Bore Plug

360

Coiled Spring Pin

360

Coiled Spring Pin

360

Coiled Spring Pin

361

Low Overrun Valve

362

Low Overrun Valve Spring

363

Forward Accumulator Cover

364

Forward Accumulator Cover Bolt

364

Forward Accumulator Cover Bolt

365

1-2 Shift Valve Spring - Model Dependent

366

1-2 Shift Valve - Model Dependent

367a

1-2 Shift Solenoid Valve

367b

2-3 Shift Solenoid Valve

368

2-3 Shift Valve

369

2-3 Shuttle Valve

370

1-2 Accumulator Valve Spring

371

1-2 Accumulator Valve

372

1-2 Accumulator Valve Sleeve

374

Actuator Feed Limit Valve

375

Actuator Feed Limit Valve Spring

376

Bore Plug

377

Pressure Control Solenoid Valve

378

Pressure Control Solenoid Retainer

380

Regulator Apply Valve - Model Dependent

381

Bore Plug

381

Bore Plug

381

Bore Plug

381

Bore Plug

382

4-3 Sequence Valve Spring

383

4-3 Sequence Valve

384

3-4 Relay Valve

385

3-4 Shift Valve

386

3-4 Shift Valve Spring

387

Reverse Abuse Valve

388

Reverse Abuse Valve Spring

389

3-2 Downshift Valve

390

3-2 Downshift Valve Spring

391

3-2 Control Valve

2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

TORQUE CONVERTER HOUSING IDENTIFICATION

392

3-2 Control Valve Spring

394

3-2 Control Solenoid Valve

395
