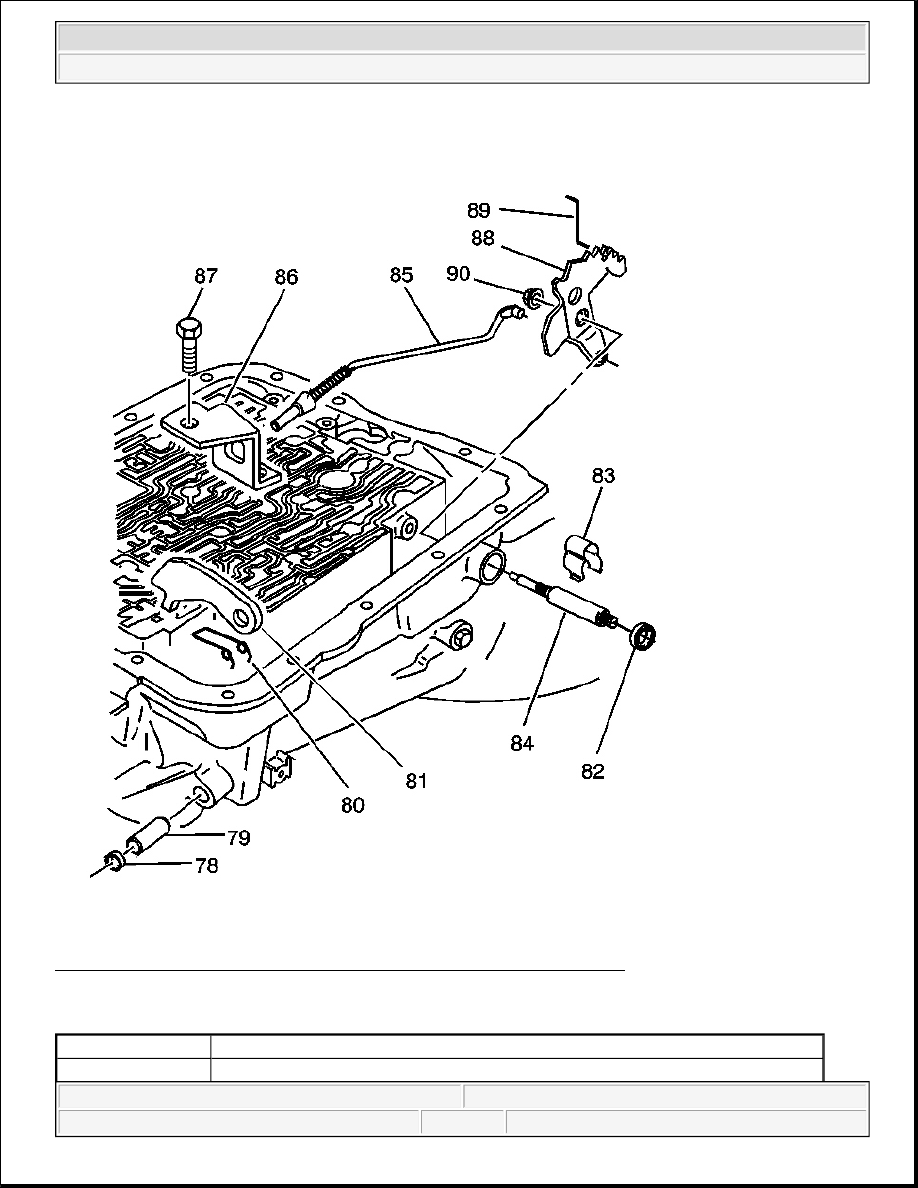

Fig. 10: Parking Lock & Manual Shift Shaft Assembly Disassembled View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

78

Steel Cup Plug



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



AUTOMATIC TRANSMISSION ELECTRONIC COMPONENT VIEWS

Fig. 11: Electronic Component View

79

Parking Brake Pawl Shaft

80

Parking Pawl Return Spring

81

Parking Brake Pawl

82

Manual Shaft Seal

83

Manual Shaft Retainer

84

Manual Shaft - Model Dependent

85

Parking Lock Actuator Assembly

86

Parking Lock Bracket

87

Parking Lock Bracket Bolt

88

Inside Detent Lever

89

Manual Valve Link

90

Hex Head Nut



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

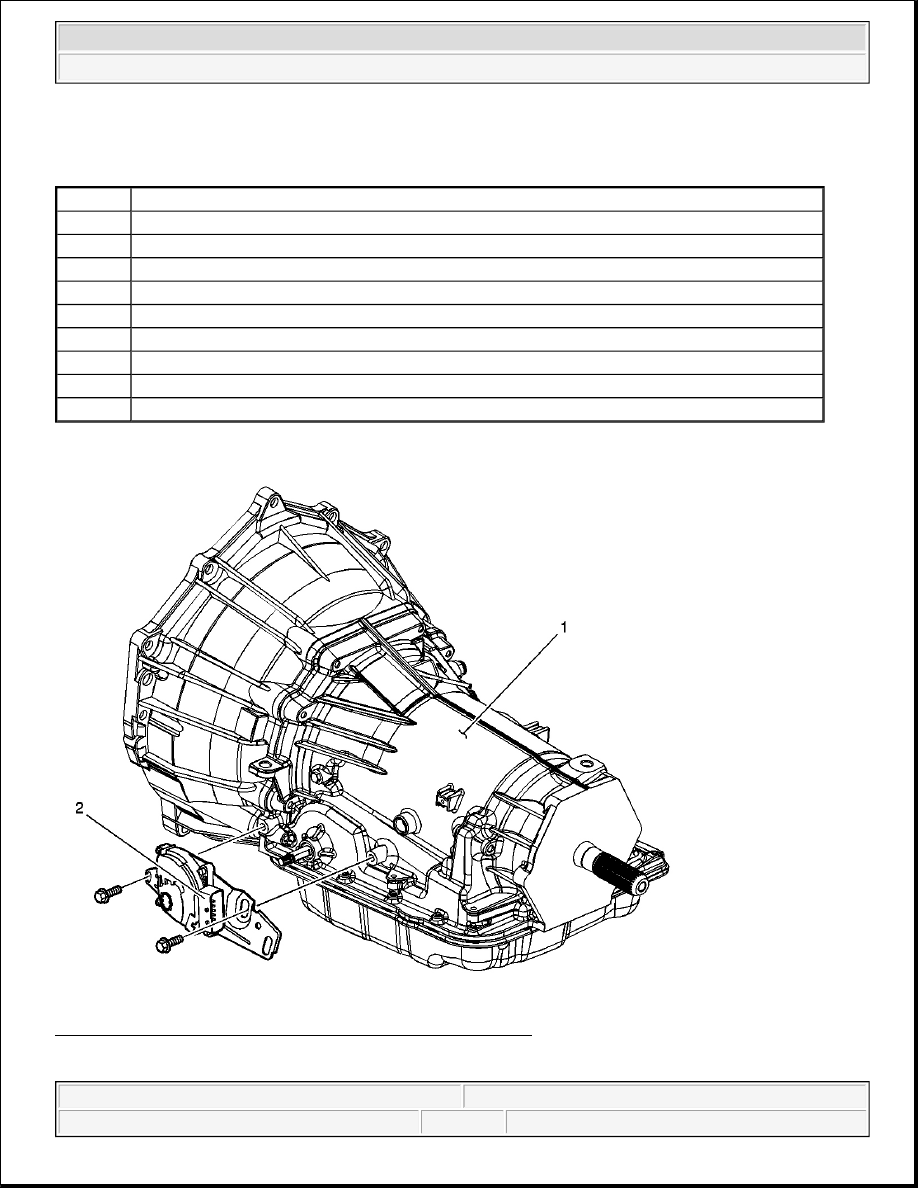

Fig. 12: Park Neutral Position (PNP) Switch Component View
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

36

Vehicle Speed Sensor (VSS)

66

Torque Converter Clutch (TCC) Solenoid Valve

69

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch

108

Secondary Fluid Pump Assembly (M33 Models Only)

367a

1-2 Shift Solenoid (SS) Valve

367b

2-3 Shift Solenoid (SS) Valve

377

Pressure Control (PC) Solenoid Valve

394

3-2 Shift Solenoid (SS) Valve Assembly

396

Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Callouts For Fig. 12

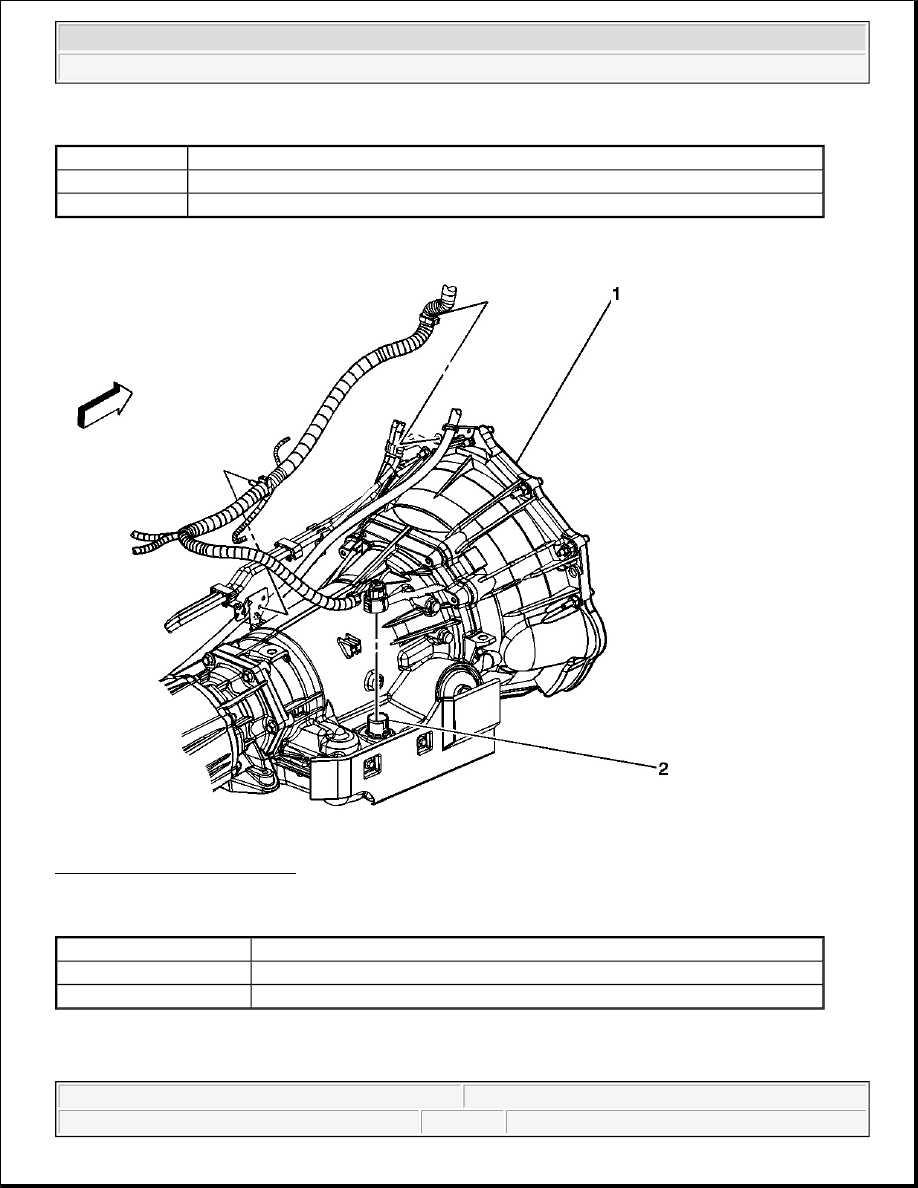

Fig. 13: C175 Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 13

Callout

Component Name

1

Automatic Transmission 4L60-E/4L65-E

2

Park/Neutral Position (PNP) Switch

Callout

Component Name

1

Automatic Transmission

2

C175
