Hummer H2. Manual - part 2509

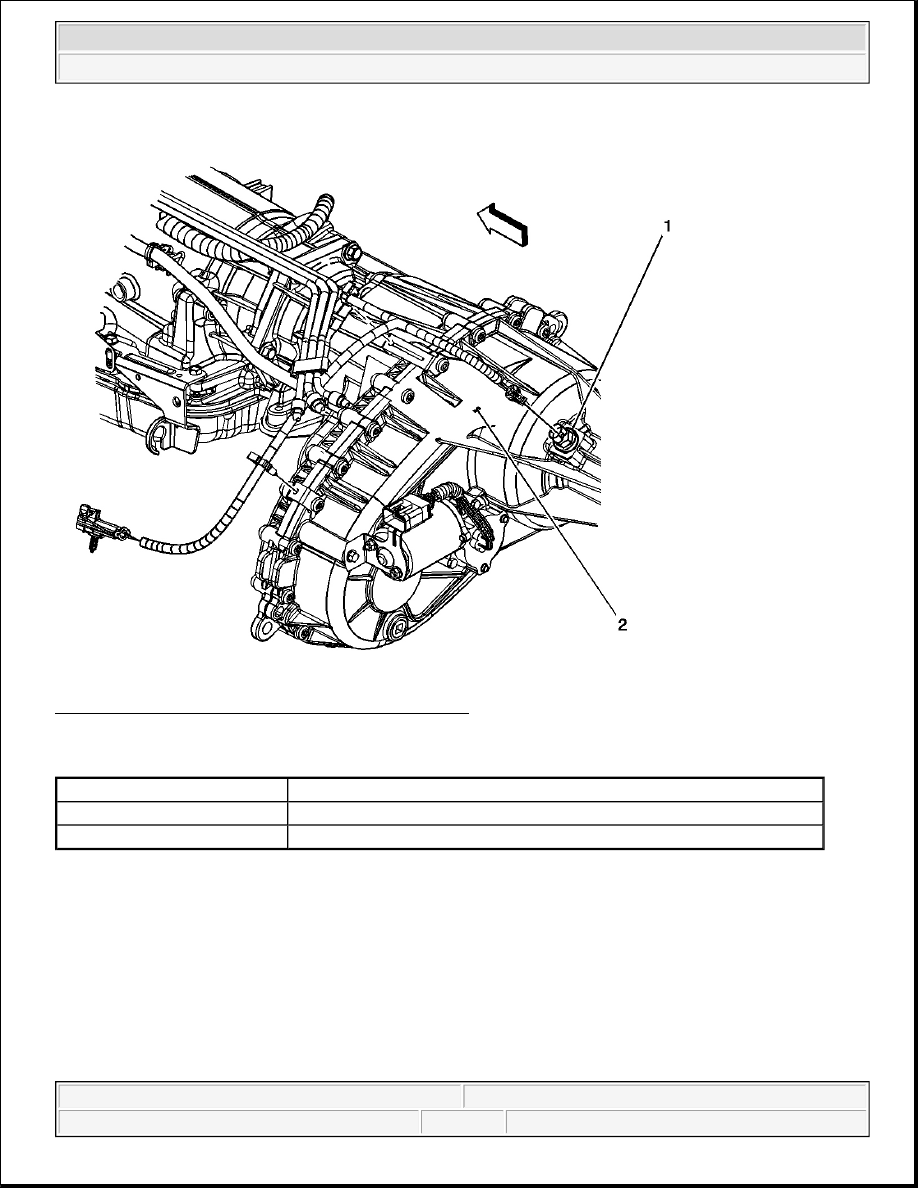

Fig. 14: Vehicle Speed Sensor (VSS) Component View
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 14

COMPONENT LOCATION

Callout

Component Name

1

VSS Sensor

2

Transfer Case



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



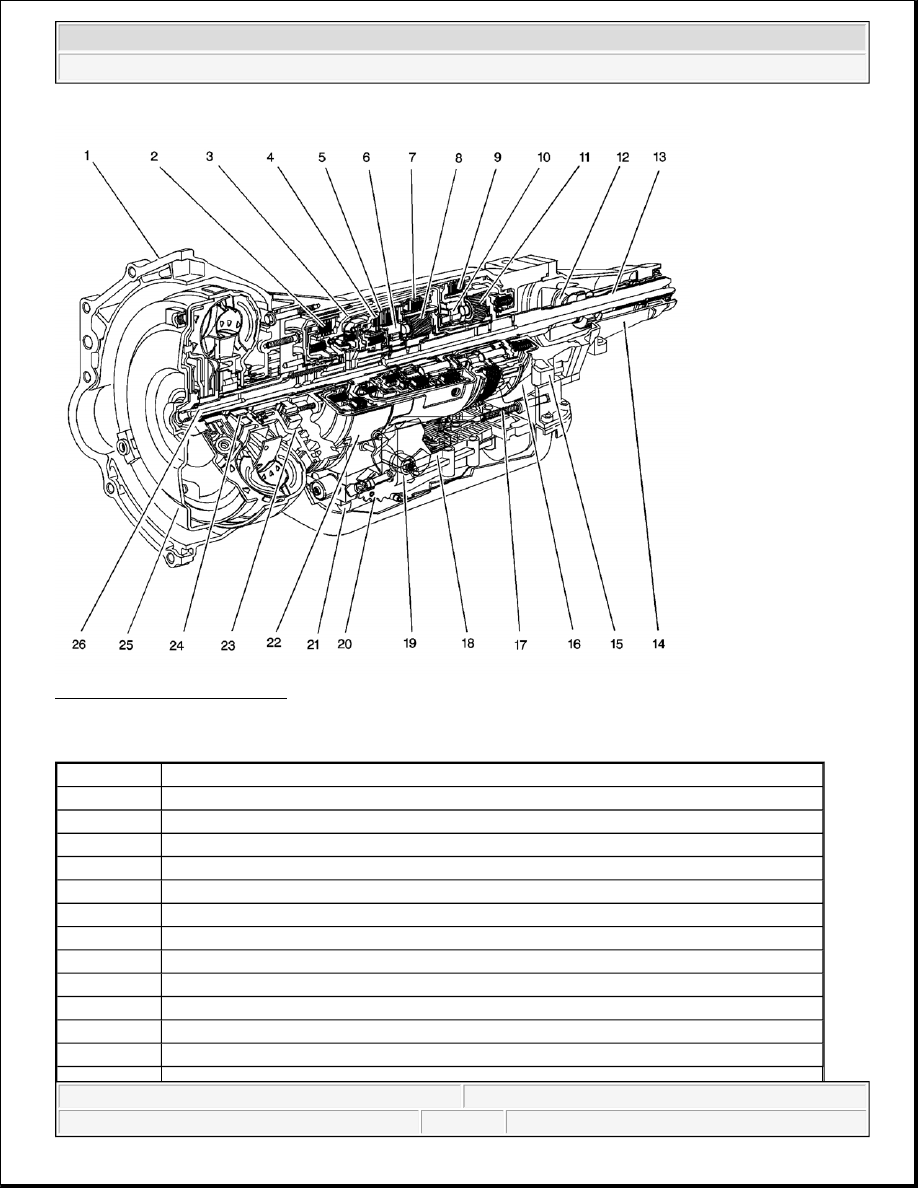

Fig. 15: Components Location
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 15

Callout

Component Name

1

Converter Housing

2

Reverse Input Clutch

3

Input Clutch Housing

4

Overrun Clutch

5

Forward Clutch

6

Forward Sprag Clutch Assembly

7

3-4 Clutch

8

Input Planetary Gear Set

9

Lo and Reverse Clutch

10

Lo Roller Clutch Assembly

11

Reaction Planetary Gear Set

12

Speed Sensor



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



13

Output Shaft

14

Case Extension

15

Main Section Case

16

Parking Pawl

17

Parking Lock Actuator Assembly

18

Control Valve Assembly

19

Manual Shaft

20

Inside Detent Lever

21

Secondary Fluid Pump Assembly - M33 Models Only

22

2-4 Band Assembly

23

Pump Assembly

24

Stator Roller Clutch

25

Torque Converter Assembly

26

Turbine Shaft



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



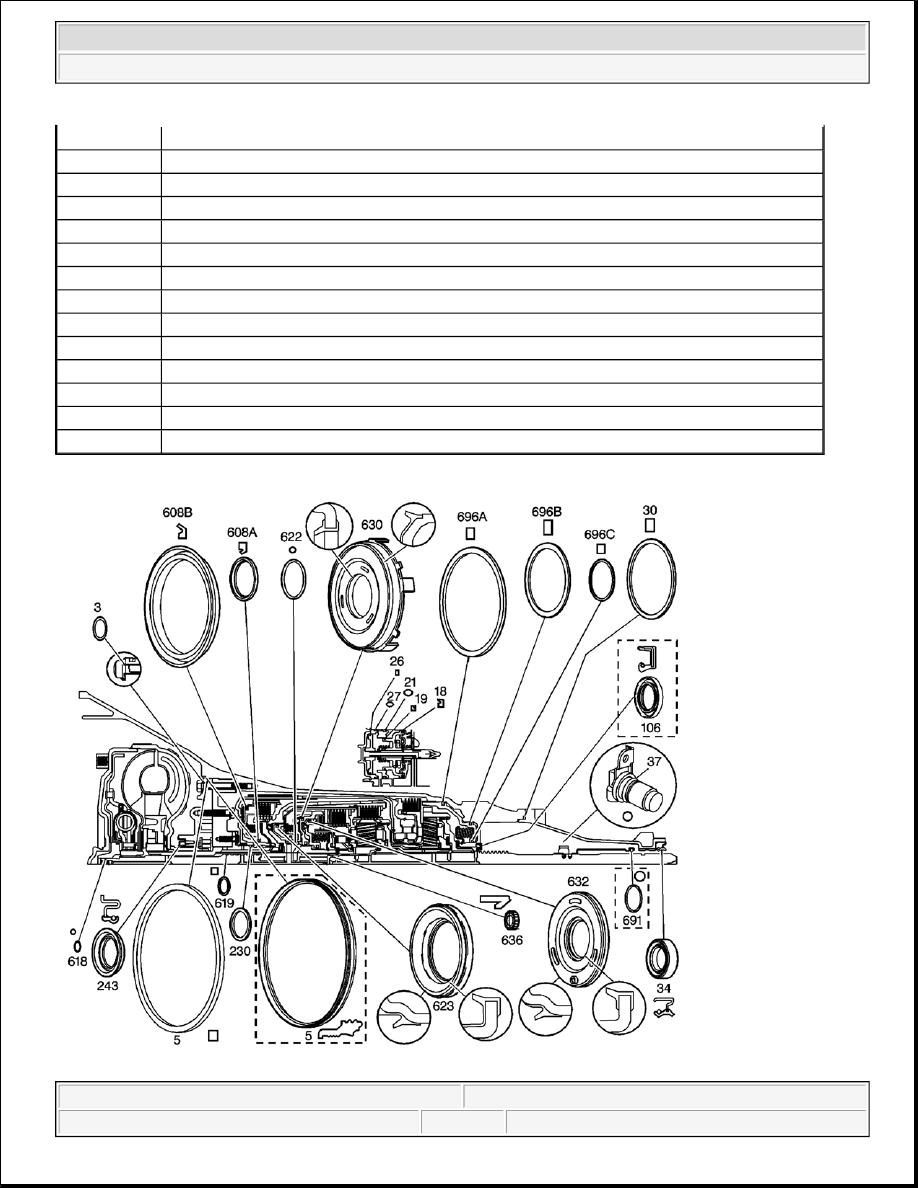

Fig. 16: Seals Component Location
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 16

Callout

Component Name

3

Pump to Case Bolt O-Ring

5

Oil Seal - Pump to Case - Model Dependent

5

Oil Seal - Pump to Case - Model Dependent

18

Oil Seal Ring - 2nd Apply Piston-Outer

19

Oil Seal Ring - 2nd Apply Piston-Inner

21

O-Ring Seal

26

Oil Seal Ring - 4th Apply Piston-Outer

27

O-Ring Seal - 2-4 Servo Cover

30

Case Extension to Case Seal

34

Case Extension Oil Seal Assembly

37

O-Ring Seal - Speed Sensor to Case Extension

106

Case Oil Seal Assembly - Y-Car Only

230

Oil Seal Ring - Stator Shaft

243

Oil Seal Assembly

608a

Reverse Input Clutch Seal - Inner

608b

Reverse Input Clutch Seal - Outer

618

O-Ring Seal - Turbine Shaft/Selective Washer

619

Oil Seal Ring - Solid

622

O-Ring Input to Forward Housing Seal

623

3rd and 4th Clutch Piston

630

Forward Clutch Piston

632

Overrun Clutch Piston

636

Input Housing to Output Shaft Seal

691

Output Shaft - Model Dependent Seal

696a

Low and Reverse Clutch - Outer Seal

696b

Low and Reverse Clutch - Center Seal

696c

Low and Reverse Clutch - Inner Seal
