Hummer H2. Manual - part 2506

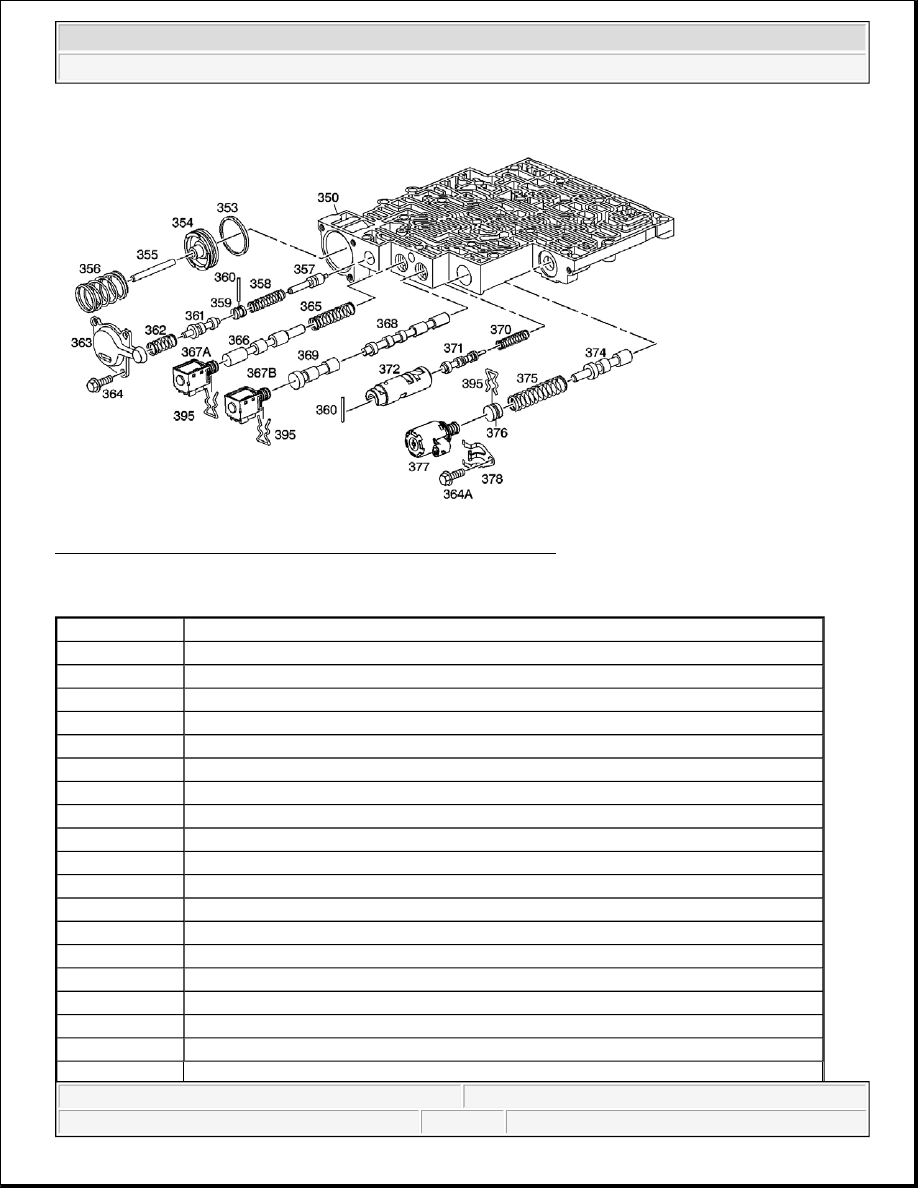

Fig. 6: Control Valve Body Assembly Disassembled View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

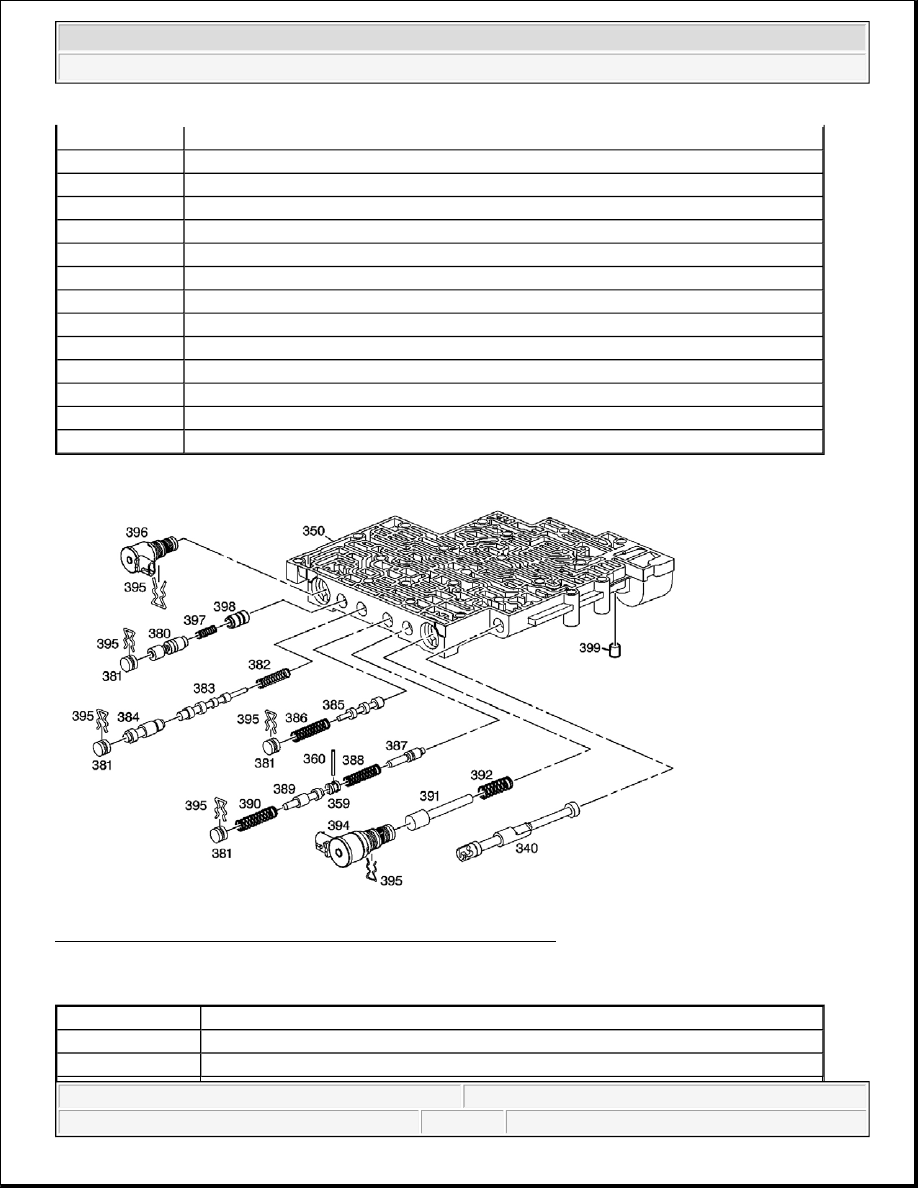

Callout

Component Name

350

Control Valve Body Assembly

353

Forward Accumulator Oil Seal

354

Forward Accumulator Piston

355

Forward Accumulator Pin

356

Forward Accumulator Spring

357

Forward Abuse Valve

358

Forward Abuse Valve Spring

359

Bore Plug

360

Coiled Spring Pin

360

Coiled Spring Pin

361

Low Overrun Valve

362

Low Overrun Valve Spring

363

Forward Accumulator Cover

364

Forward Accumulator Cover Bolt

364a

Pressure Control Solenoid Retainer Bolt

365

1-2 Shift Valve Spring - Model Dependent

366

1-2 Shift Valve - Model Dependent

367a

1-2 Shift Solenoid Valve



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Fig. 7: Control Valve Body Assembly Disassembled View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

367b

2-3 Shift Solenoid Valve

368

2-3 Shift Valve

369

2-3 Shuttle Valve

370

1-2 Accumulator Valve Spring

371

1-2 Accumulator Valve

372

1-2 Accumulator Valve Sleeve

374

Actuator Feed Limit Valve

375

Actuator Feed Limit Valve Spring

376

Bore Plug

377

Pressure Control Solenoid Valve

378

Pressure Control Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

Callout

Component Name

340

Manual Valve

350

Control Valve Body Assembly



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



359

Bore Plug

360

Coiled Spring Pin

380

Regulator Apply Valve

381

Bore Plug

381

Bore Plug

381

Bore Plug

381

Bore Plug

382

4-3 Sequence Valve Spring

383

4-3 Sequence Valve

384

3-4 Relay Valve

385

3-4 Shift Valve

386

3-4 Shift Valve Spring

387

Reverse Abuse Valve

388

Reverse Abuse Valve Spring

389

3-2 Downshift Valve

390

3-2 Downshift Valve Spring

391

3-2 Control Valve

392

3-2 Control Valve Spring

394

3-2 Control Solenoid Valve

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

395

Bore Plug and Solenoid Retainer

396

TCC PWM Solenoid Valve

397

Regulator Apply Spring

398

Isolator Valve

399

Pump Ball Check Valve - M33 Only



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



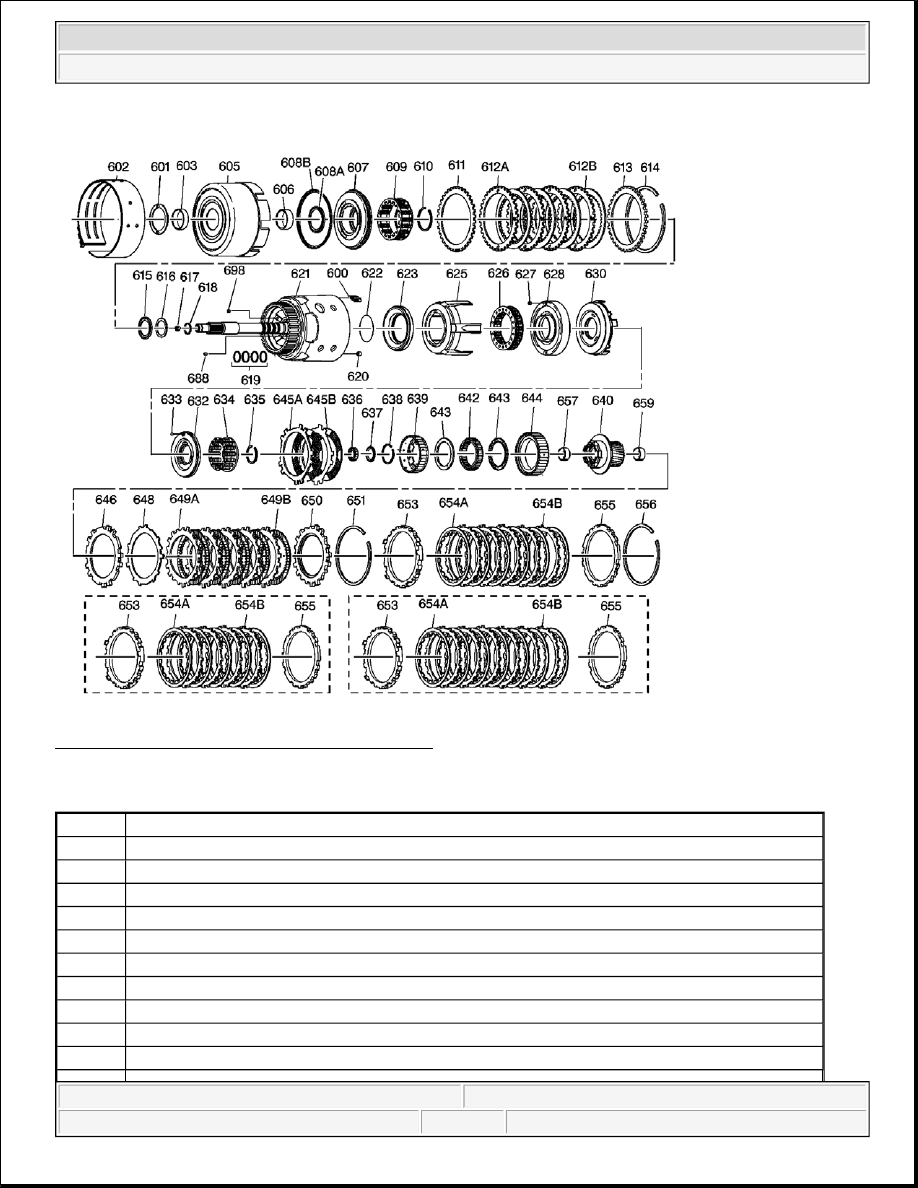

Fig. 8: Internal Parts Disassembled View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

600

3-4 Clutch Boost (5) Spring Assembly

601

Thrust Washer - Pump to Drum

602

2-4 Band Assembly

603

Reverse Input Clutch Bushing - Front

605

Reverse Input Clutch Housing and Drum Assembly

606

Reverse Input Clutch Bushing - Rear

607

Reverse Input Clutch Piston Assembly

608a

Reverse Input Clutch Seal - Inner

608b

Reverse Input Clutch Seal - Outer

609

Reverse Input Clutch Spring Assembly



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
