Hummer H2. Manual - part 2504

99

Cup D4 Orifice Plug

102

Converter Housing - Model Dependent

103

Main Section Case - Model Dependent

105

Servo Cushion Spring - Inner - Model Dependent

107

A/T Oil Pan Hex Head Plug Assembly - Model Dependent



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E

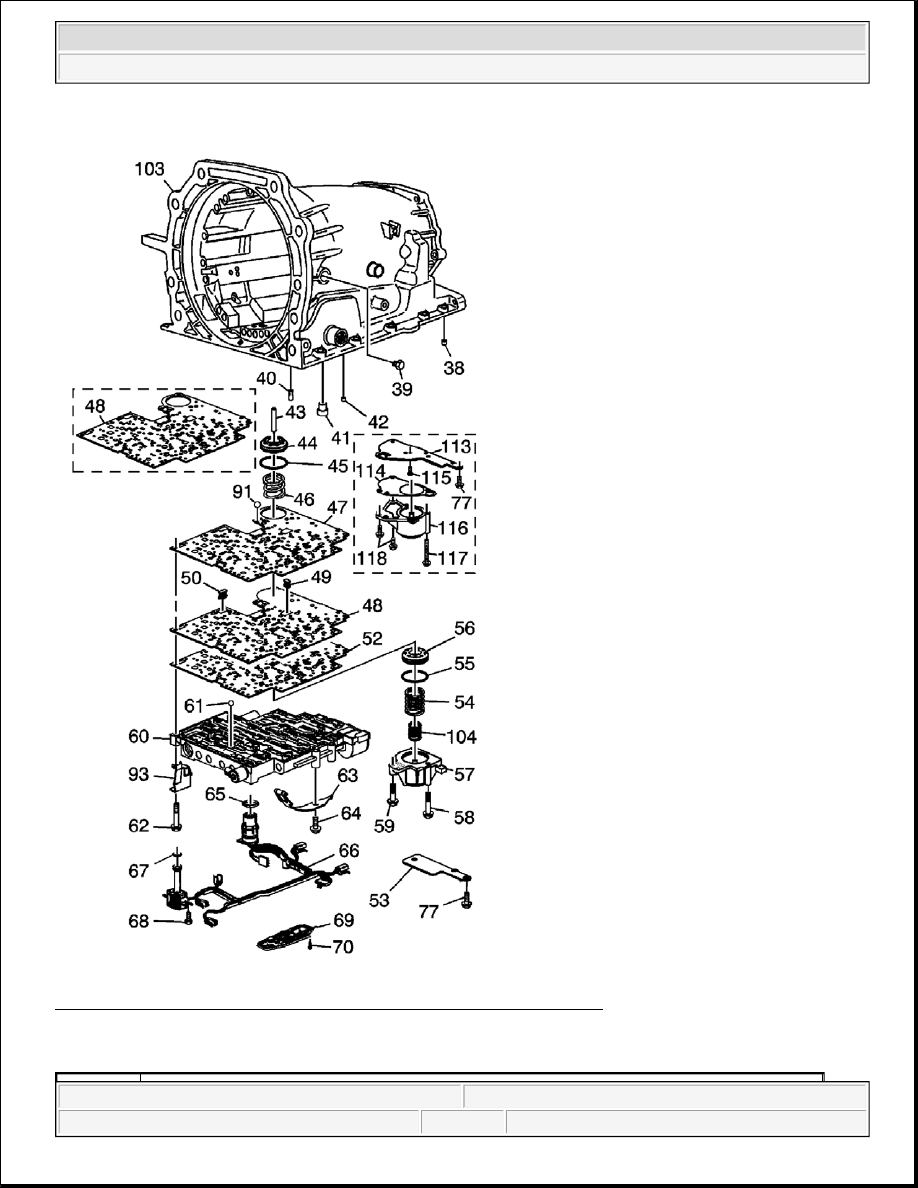

Fig. 3: Case & Associated Parts Disassembled View (2 Of 2) - M30/M32
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



Callout

Component Name

38

Transmission Case Plug - Accumulator Bleed

39

Pressure Plug

40

Third Accumulator (#7) Retainer and Ball Assembly

41

Band Anchor Pin

42

Retainer and Ball Assembly - Double Orifice (#10)

43

Accumulator Piston Pin

44

3-4 Accumulator Piston

45

Oil Seal Ring - 3-4 Accumulator Piston

46

3-4 Accumulator Spring - Model Dependent

47

Spacer Plate to Case Gasket

48

Valve Body Spacer Plate

48

Valve Body Spacer Plate

49

Shift Solenoids Screen

50

Pressure Control Solenoid Screen

52

Spacer Plate to Valve Body Gasket

53

Spacer Plate Support Plate

54

1-2 Accumulator Spring - Outer

55

Oil Seal Ring - 1-2 Accumulator

56

1-2 Accumulator Piston

57

1-2 Accumulator Cover and Pin Assembly - Model Dependent

58

Accumulator Cover Bolt

59

Accumulator Cover Bolt

60

Control Body Valve Assembly - Model Dependent

61

Checkball (#2, 3, 4, 5, 6, 8, 12)

62

Valve Body Bolt

63

Manual Detent Spring Assembly

64

Manual Detent Spring Bolt

65

Wiring Harness Pass-Through Connector O-Ring Seal

66

Wiring Harness Solenoid Assembly - Model Dependent

67

O-Ring Seal - Solenoid

68

Hex Washer Head Bolt - Solenoid

69

Transmission Fluid Pressure Manual Valve Position Switch Assembly

70

Pressure Switch Assembly Bolt

77

Spacer Plate Support Bolt

77

Spacer Plate Support Bolt

91

Number 1 Checkball

93

Dipstick Stop Bracket - Model Dependent

103

Main Section Case - Model Dependent

104

1-2 Accumulator Spring - Inner

113

Spacer Plate Support Plate - Colorado/Canyon



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



114

Accumulator Gasket - Colorado/Canyon

115

Accumulator Bolt - Colorado/Canyon

116

Accumulator Cover - Colorado/Canyon

117

Accumulator Bolt - Colorado/Canyon

118

Accumulator Bolt - Colorado/Canyon
