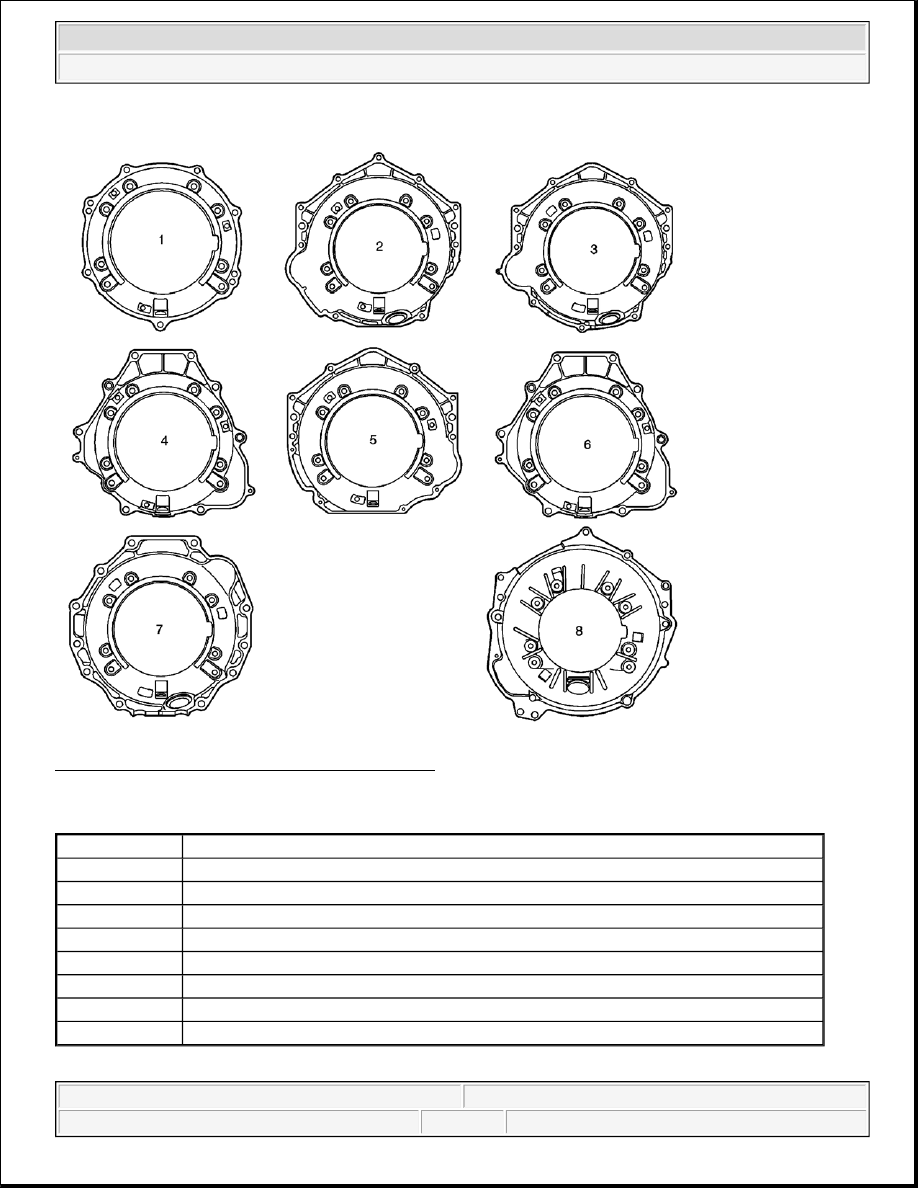

Fig. 19: Torque Converter Housing Identification
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 19

Callout

Component Name

1

Domestic Bell V-8 - Corvette

2

Domestic Gen lll Large Bell V-8 (300 mm)

3

Domestic Gen l/ll Large Bell V-8/V-6

4

Holden Small Bell V-6

5

Holden Gen lll Large Bell V-8

6

Domestic Small Bell V-6

7

Domestic Bell L-6

8

Hybrid Pickup Truck - V8 Bell



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



TRANSMISSION FLUID PAN IDENTIFICATION

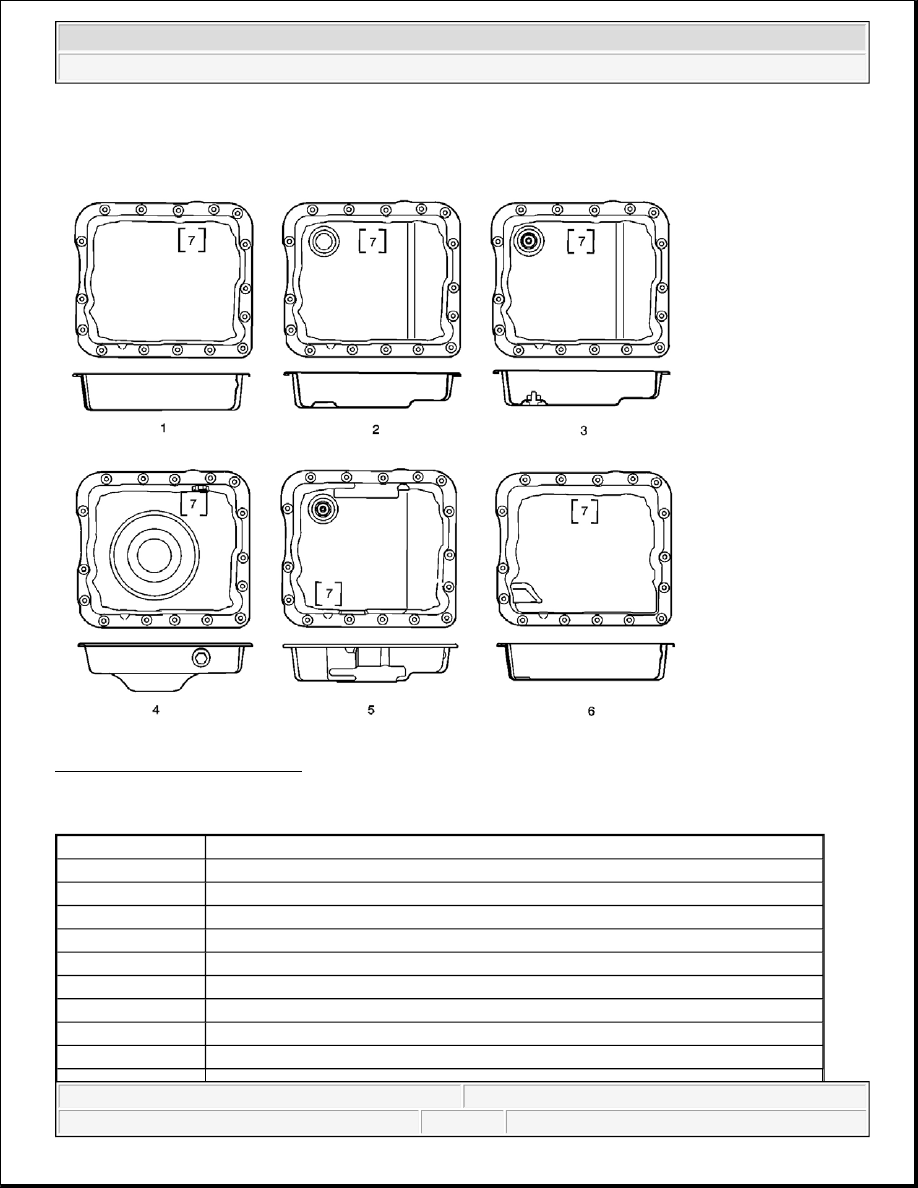

Fig. 20: Fluid Pan Identification
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 20

Callout

Component Name

1

Regular Sump

2

Deep Sump

3

Deep Sump with Drain Plug

4

Corvette

5

Hybrid Pickup Truck - M33 Model

6

Colorado/Canyon

7

Pan Magnet Location

7

Pan Magnet Location

7

Pan Magnet Location



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



CASE EXTENSION IDENTIFICATION

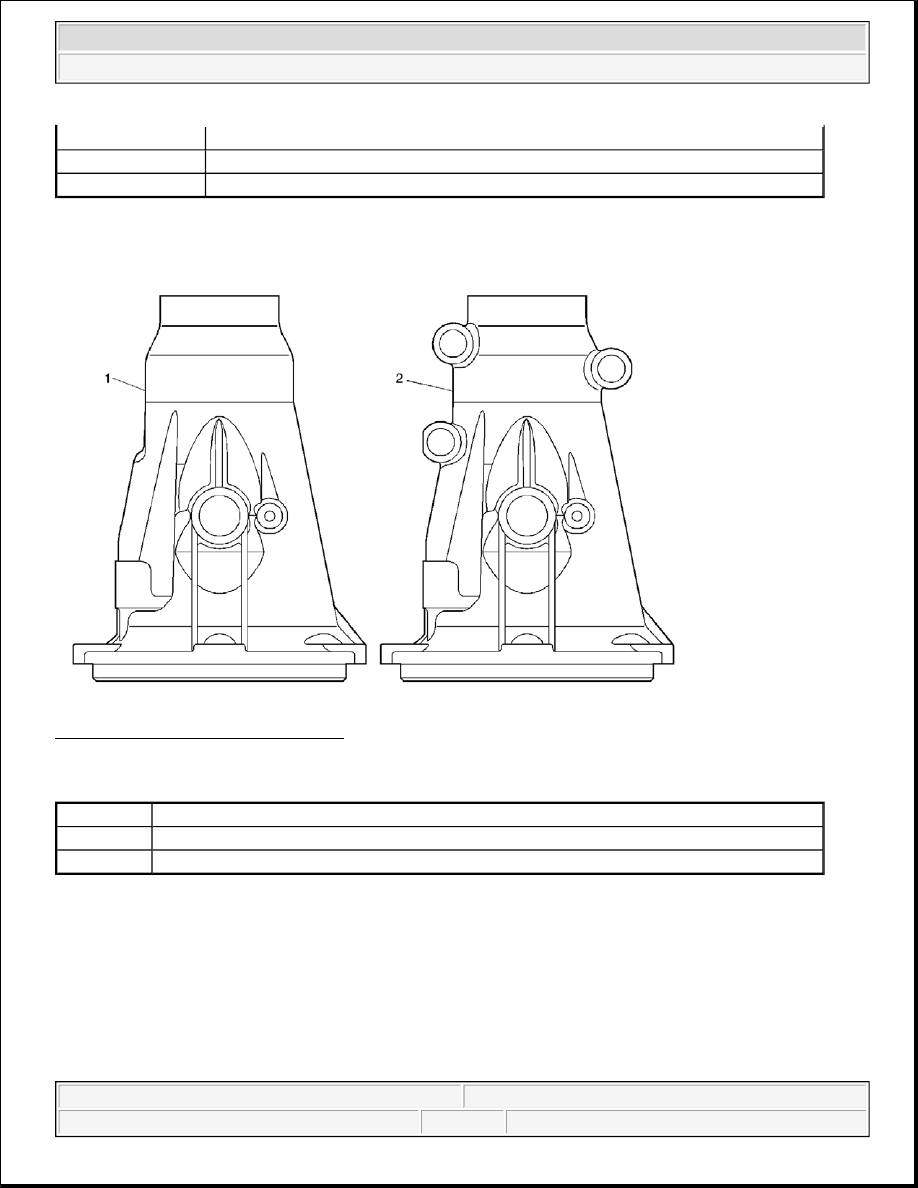

Fig. 21: Case Extension Identification
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 21

REPAIR INSTRUCTIONS

DO NOT USE AIR TOOLS

7

Pan Magnet Location

7

Pan Magnet Location

7

Pan Magnet Location

Callout

Component Name

1

Case Extension - used on C-Truck, G-Van, M-Van, S-Truck

2

Case Extension - Some Models

NOTE:

Do not use air powered tools in order to disassemble or assemble any vehicle
component. Bolt torques are vital to diagnosis. You can detect bolt torques only
when using hand tools. Improper bolt torques can contribute to vehicle repair
problems.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E



HOLDING FIXTURE INSTALLATION

Tools Required

J 8763-02 Holding Fixture and Base. See Special Tools and Equipment .

Installation Procedure

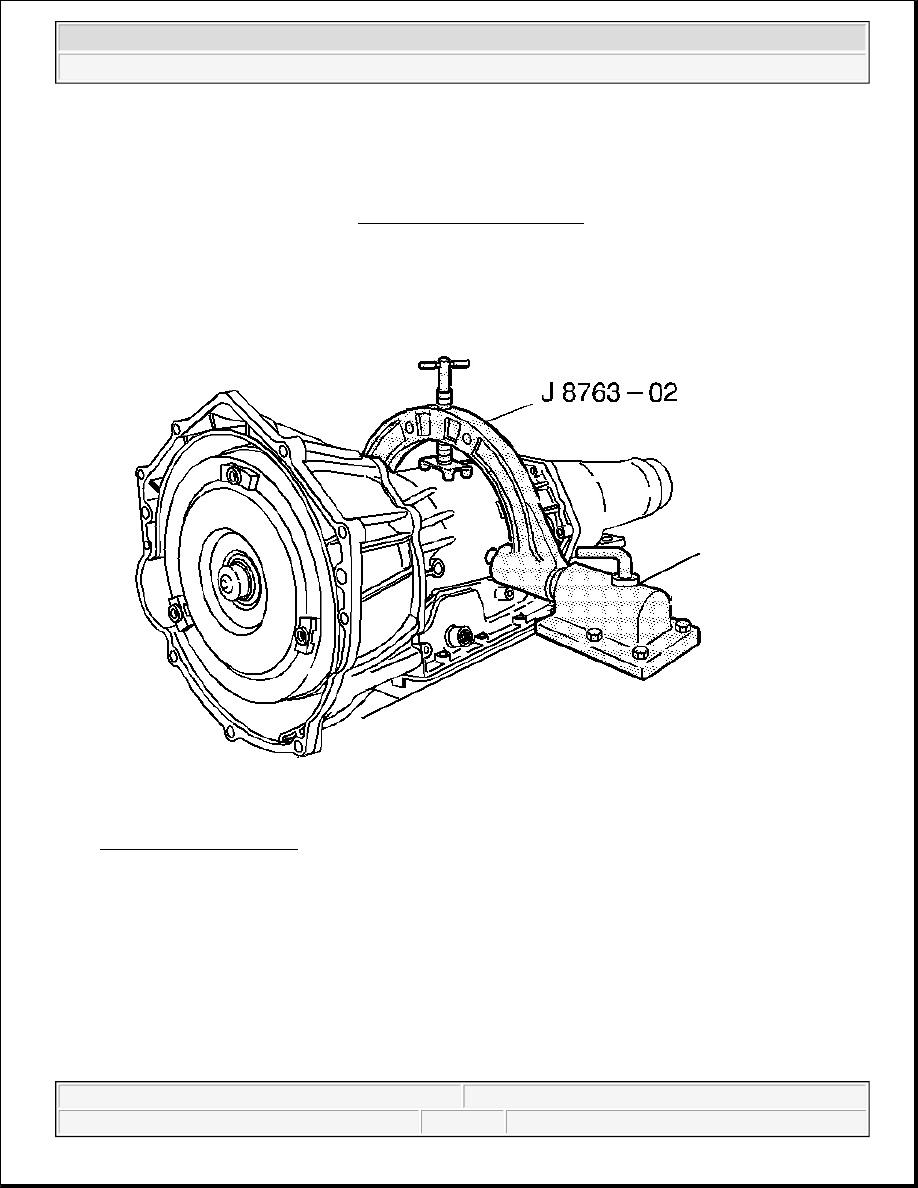

Fig. 22: View Of J 8763-B
Courtesy of GENERAL MOTORS CORP.

1. Install the J 8763-02 onto the transmission.

2. Install the J 8763-02 into the base.

TORQUE CONVERTER ASSEMBLY REMOVAL

CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may

result if you lift the torque converter improperly.



2004 Hummer H2

2004 TRANSMISSION/TRANSAXLE Automatic Transmission - Overhaul - 4L60-E/4L65-E
