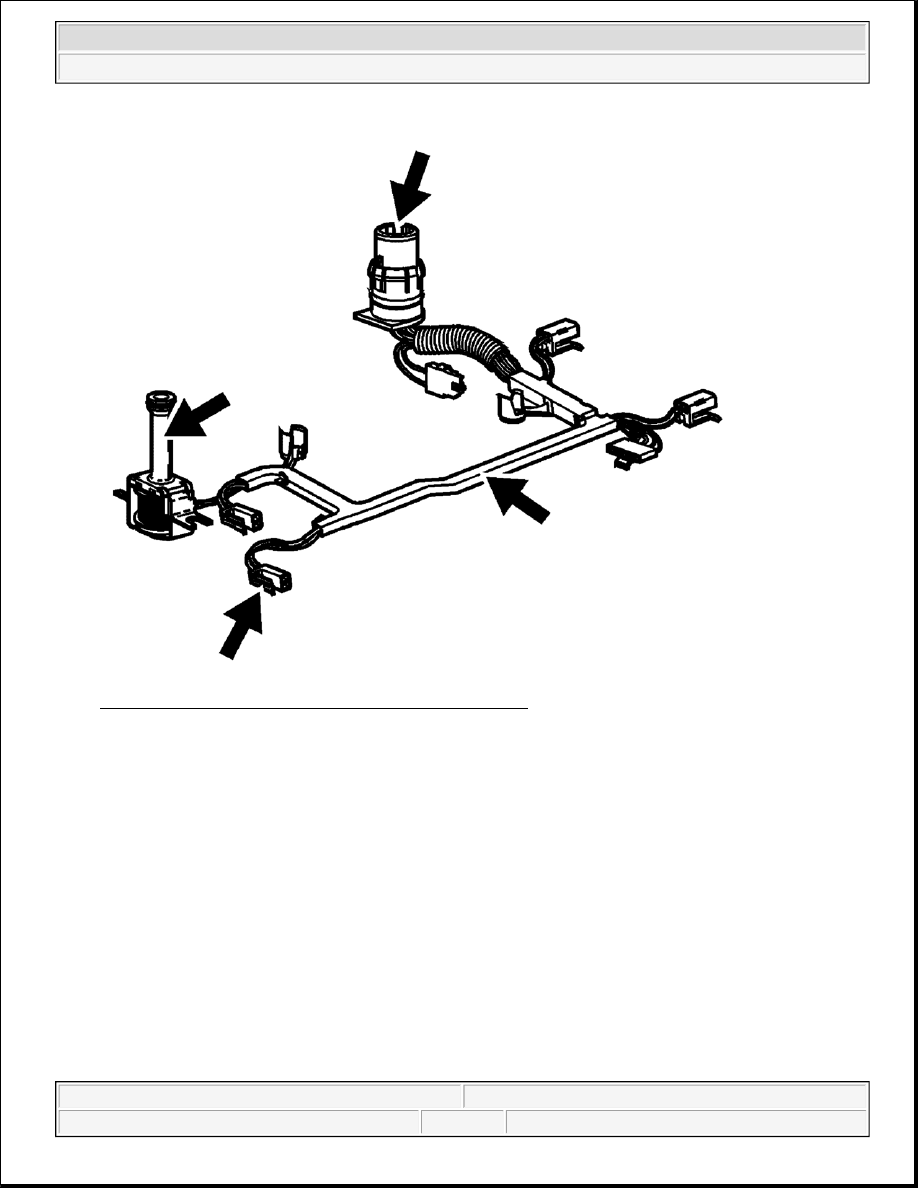

Fig. 442: Inspecting Wiring Harness Solenoid Assembly
Courtesy of GENERAL MOTORS CORP.

9. Inspect the wiring harness solenoid assembly for the following conditions:

z

Damage

z

Cracked connectors

z

Exposed wires

z

Loose pins

z

Poor terminal retension



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

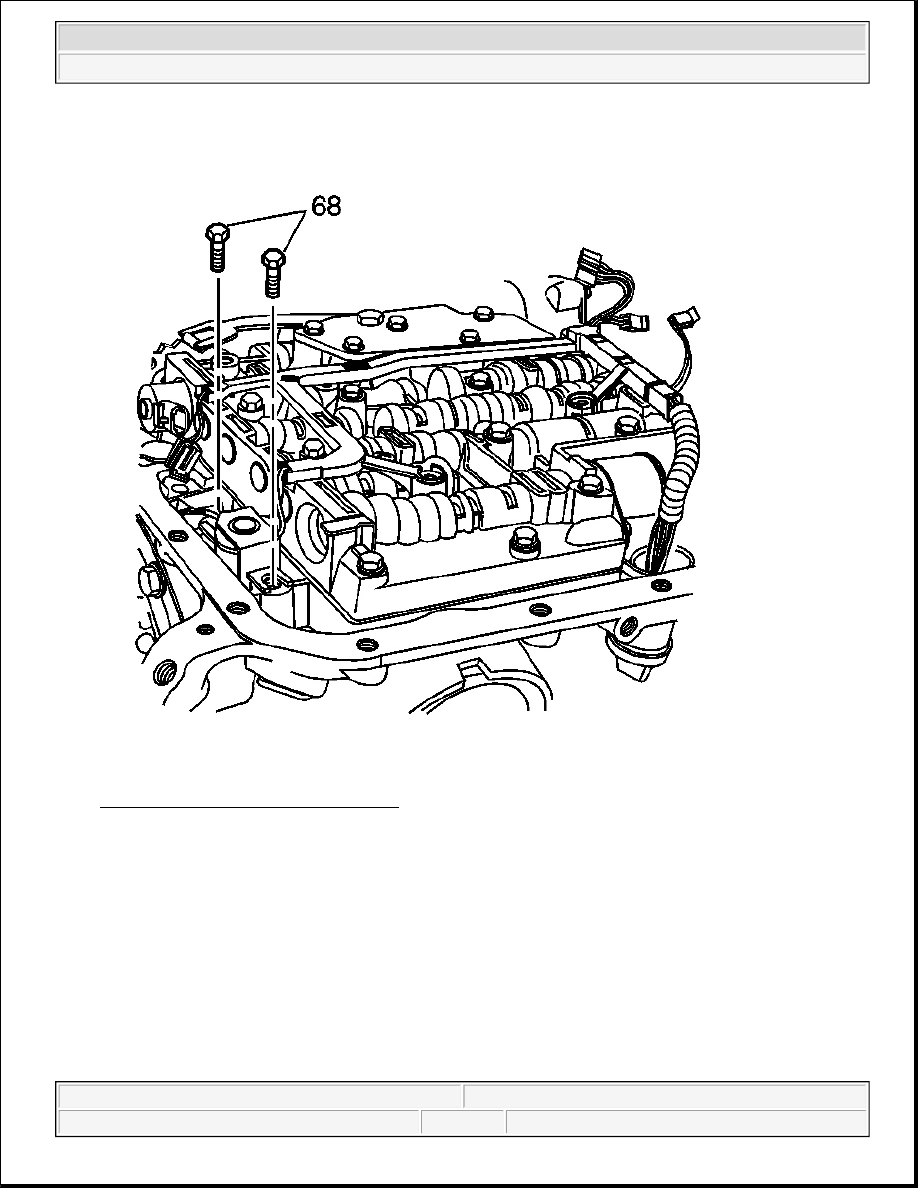

Fig. 443: TCC Solenoid Valves & Bolts
Courtesy of GENERAL MOTORS CORP.

10. Install the transmission wiring harness on the valve body.

11. Install the TCC solenoid valve and bolts (68).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

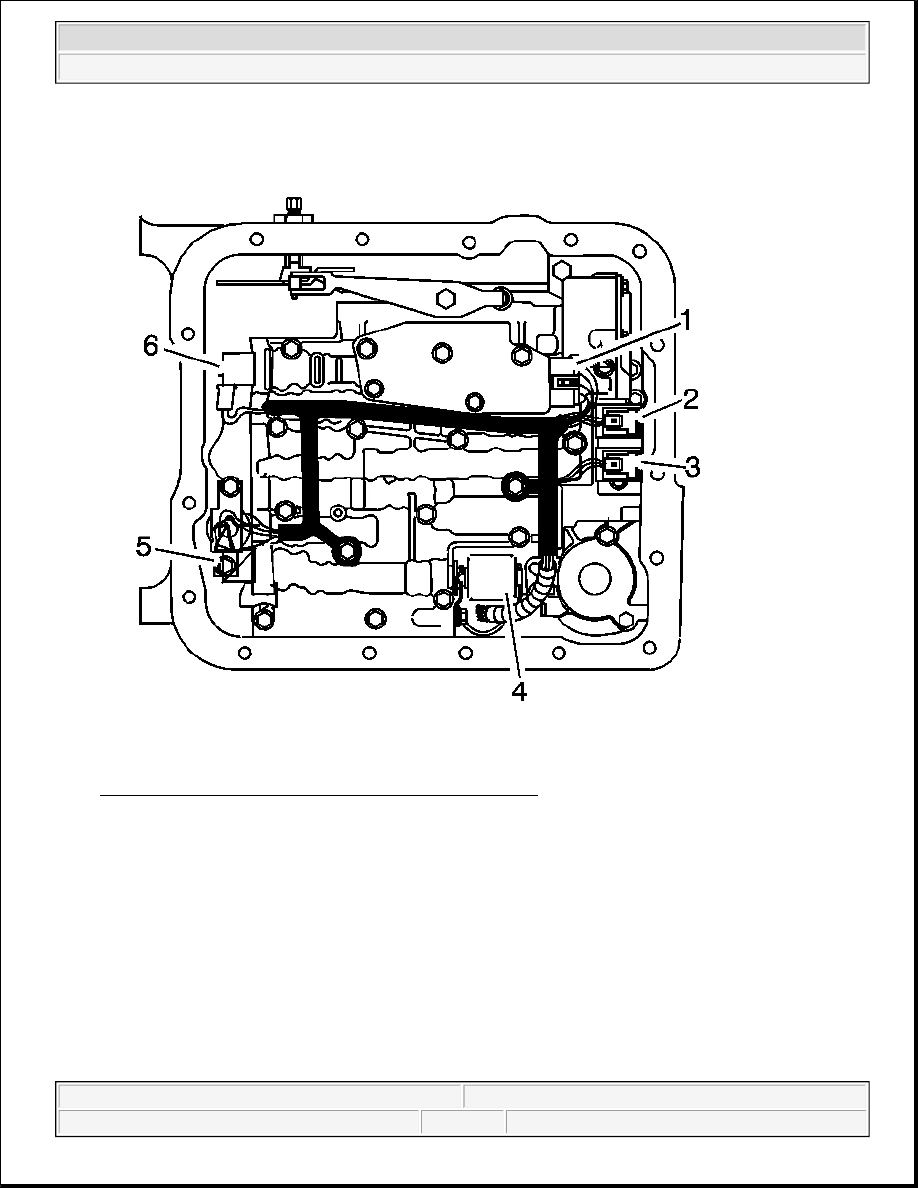

Fig. 444: Electrical Connectors & Electrical Components
Courtesy of GENERAL MOTORS CORP.

12. Tighten the bolts in the order shown.

Tighten: Tighten the bolts to 11 N.m (8 lb ft).

Each bolt number refers to a specific bolt size, as indicated by the following list:

IMPORTANT: You must tighten certain bolts in a spiral pattern as indicated. If you

tighten these bolts at random you may distort valve bores. This will inhibit
valve operation.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



z

1 - M6 x 1.0 x 65.0

z

2 - M6 x 1.0 x 54.4

z

3 - M6 x 1.0 x 47.5

z

4 - M6 x 1.0 x 35.0

z

5 - M8 x 1.25 x 20.0

z

6 - M6 x 1.0 x 12.0

z

7 - M6 x 1.0 x 18.0

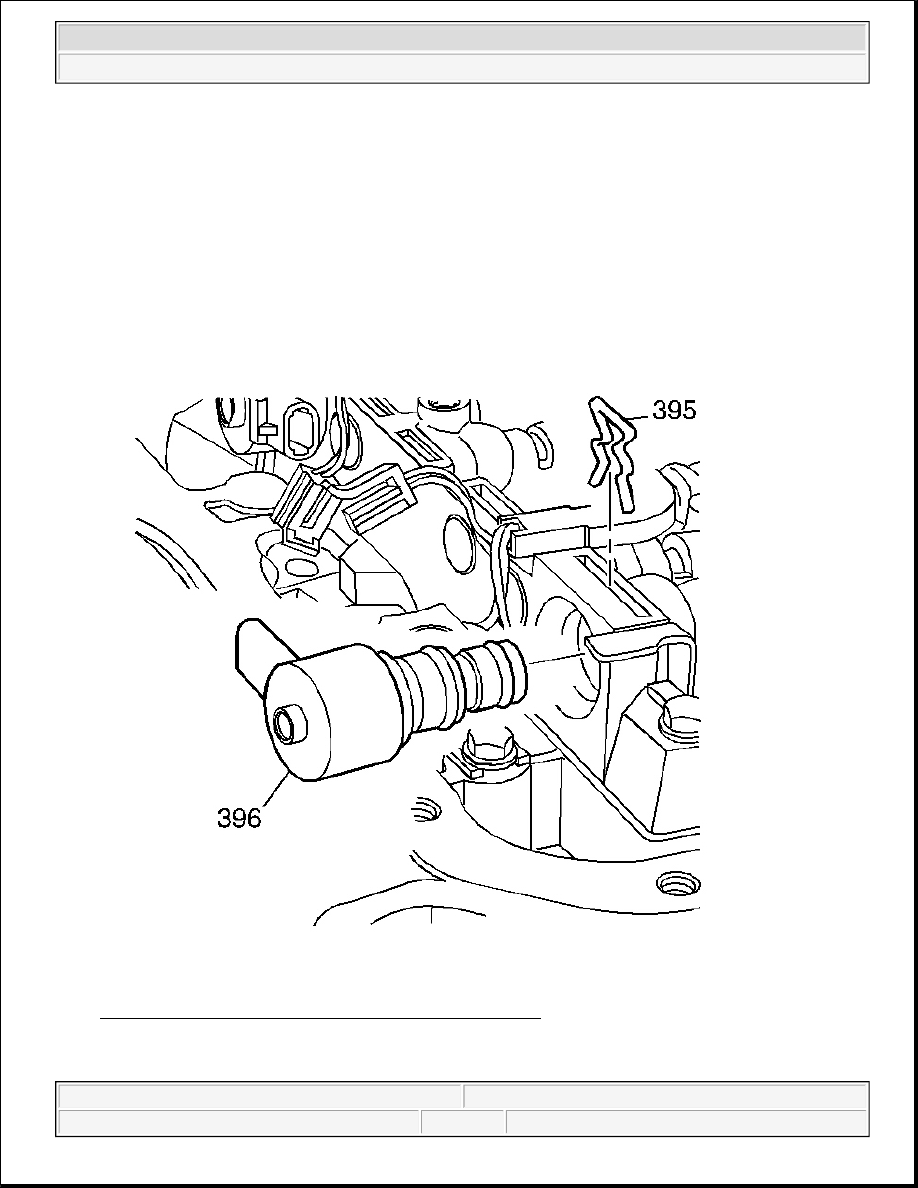

Fig. 445: TCC PWM Solenoid Valve & Solenoid Retainer
Courtesy of GENERAL MOTORS CORP.

13. Install the TCC PWM solenoid valve (396) and the solenoid retainer (395).
