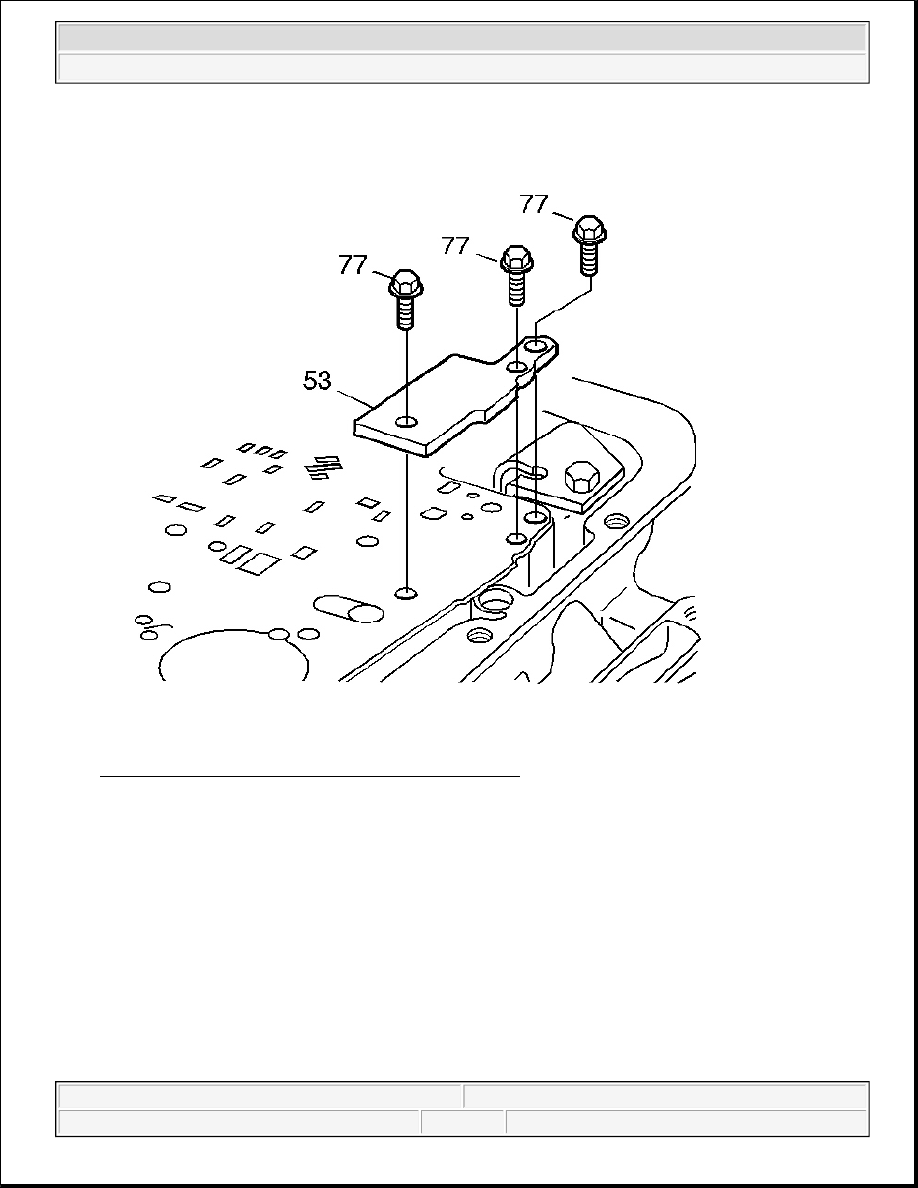

Fig. 435: Installing Spacer Plate Support Plate & Bolts
Courtesy of GENERAL MOTORS CORP.

6. Install the spacer plate support plate (53).

7. Install the spacer plate support bolts (77).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

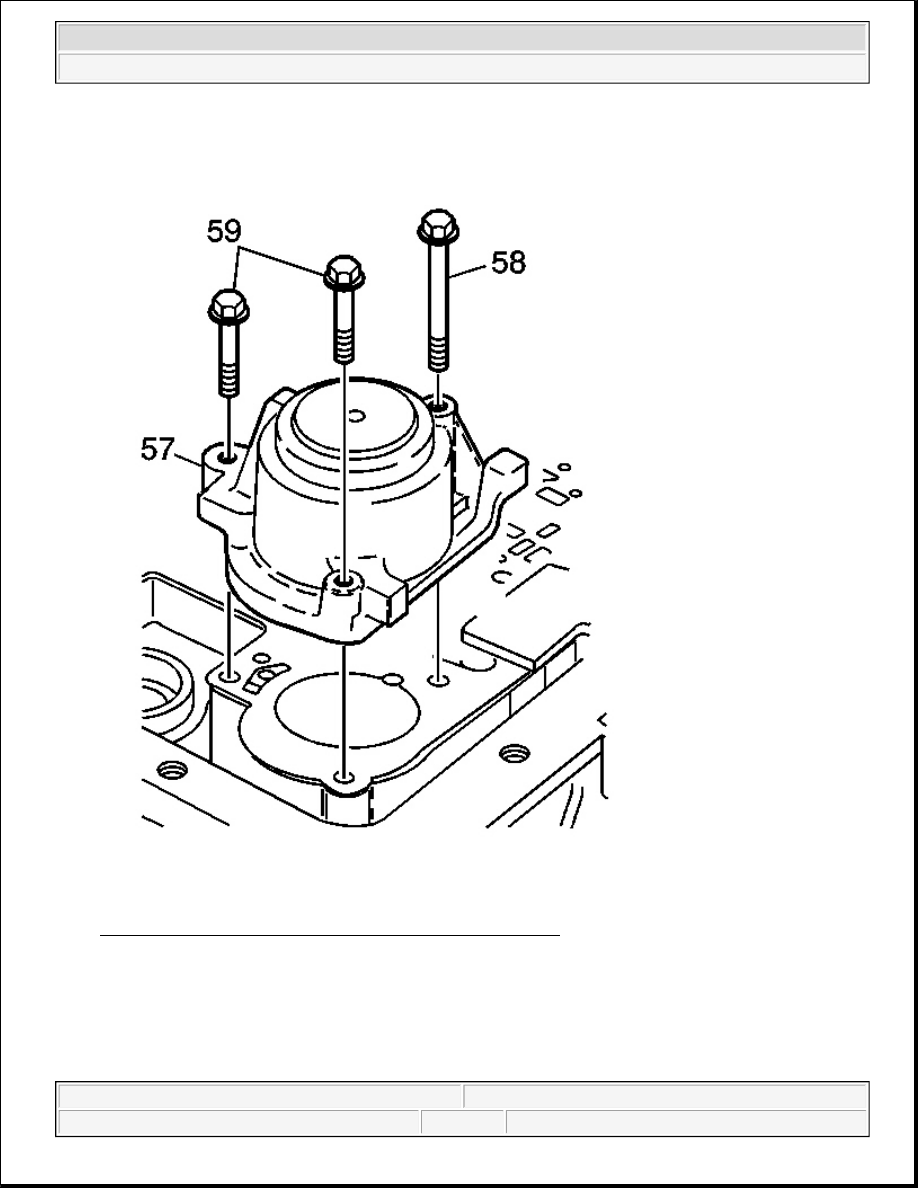

Fig. 436: Installing Accumulator Housing Assembly & Bolts
Courtesy of GENERAL MOTORS CORP.

8. Install the 1-2 accumulator housing assembly (57).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



9. Install the 1-2 accumulator housing bolts (58, 59).

Tighten: Tighten the bolts to 11 N.m (8 lb ft).

CONTROL VALVE BODY INSTALLATION

Tools Required

z

J 25025-5 Dial Indicator Mounting Post M6 x 1. See Special Tools and Equipment .00

z

J 36850 Transjel Lubricant



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

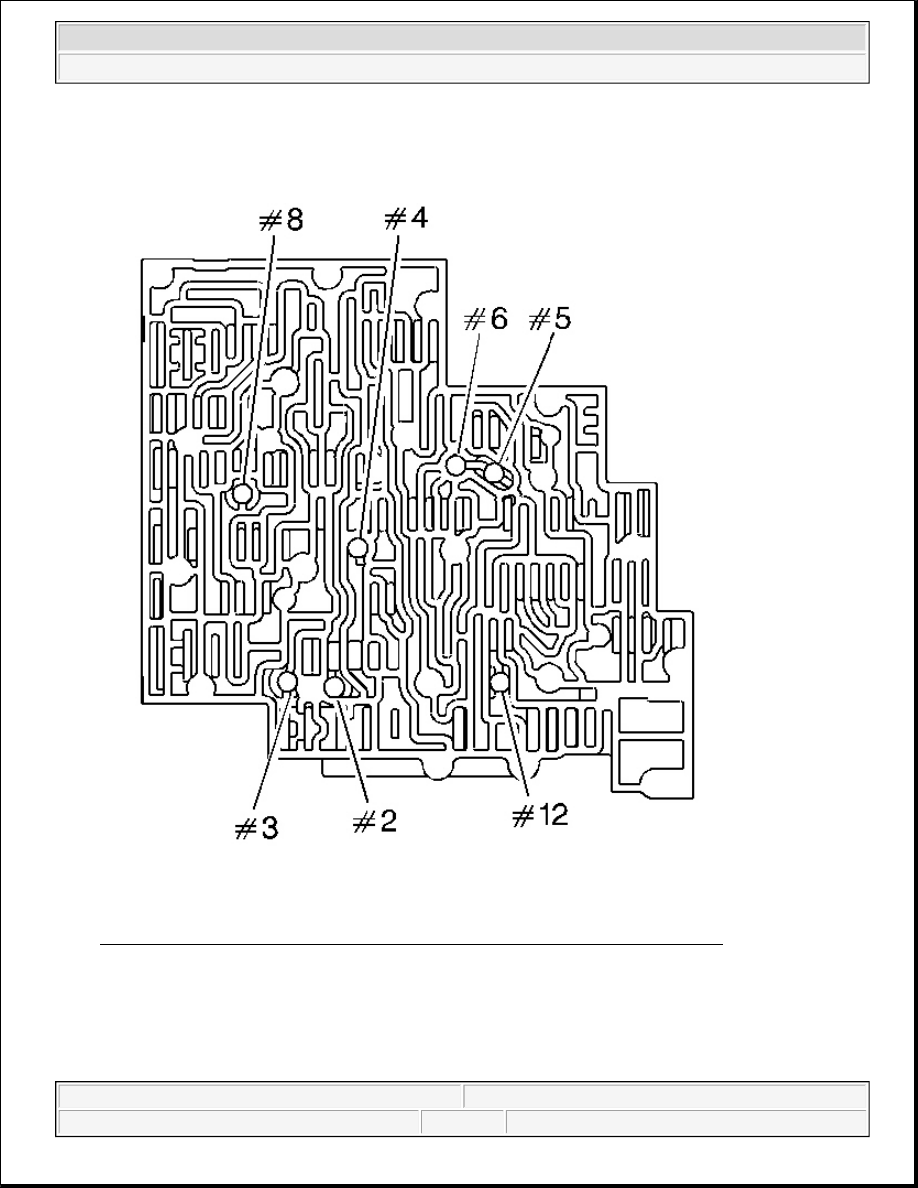

Fig. 437: Installing Checkballs (2-6, 8, 12) In Valve Body & Retaining Checkballs
Courtesy of GENERAL MOTORS CORP.

1. Install the checkballs (2-6, 8, 12) in the valve body and retain checkballs with J 36850 or an equivalent.
