Hummer H2. Manual - part 2353

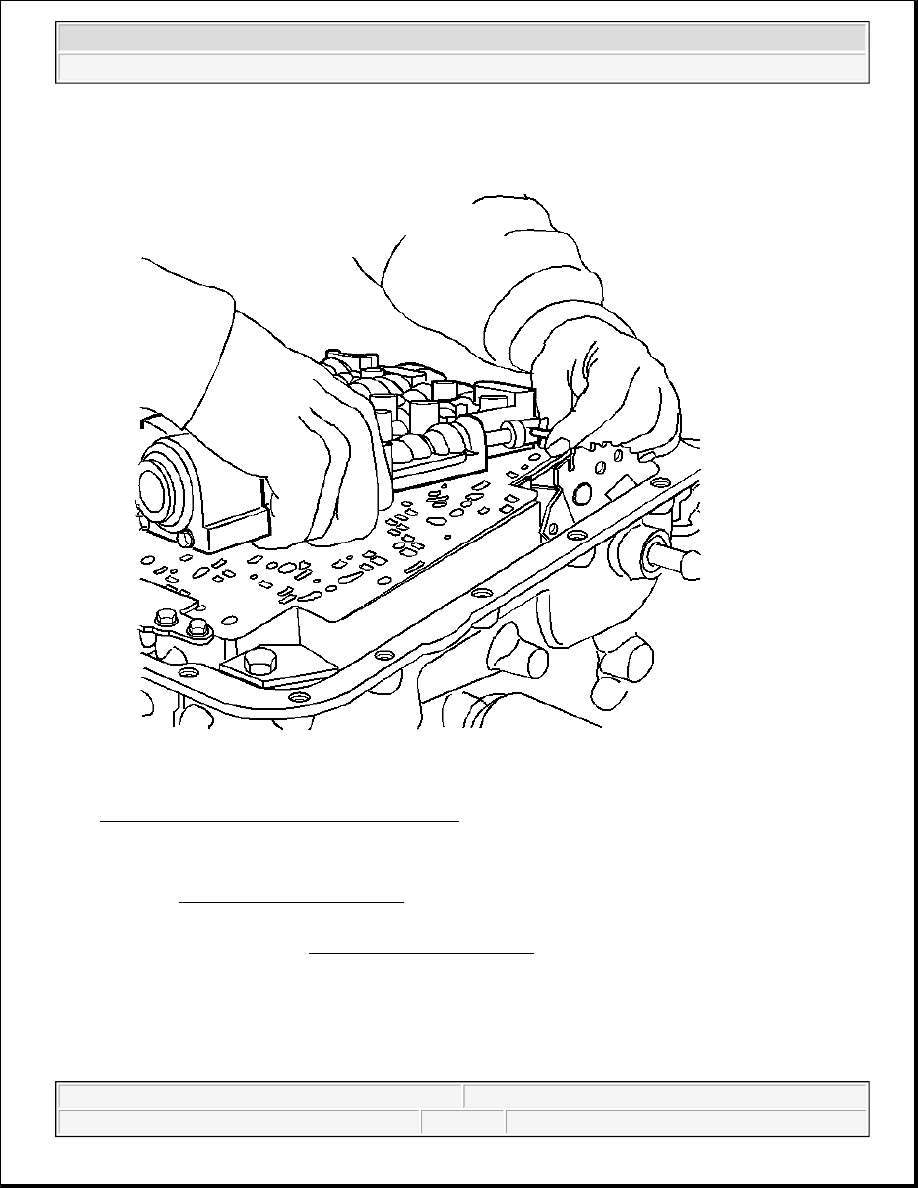

Fig. 438: Installing Valve Body Over J 25025-5
Courtesy of GENERAL MOTORS CORP.

2. Install the valve body over the J 25025-5 Guide Pins, and connect the manual valve link to the manual

valve. See Special Tools and Equipment .

3. Install two bolts to hold the valve body in place.

4. Remove the J 25025-5 . See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

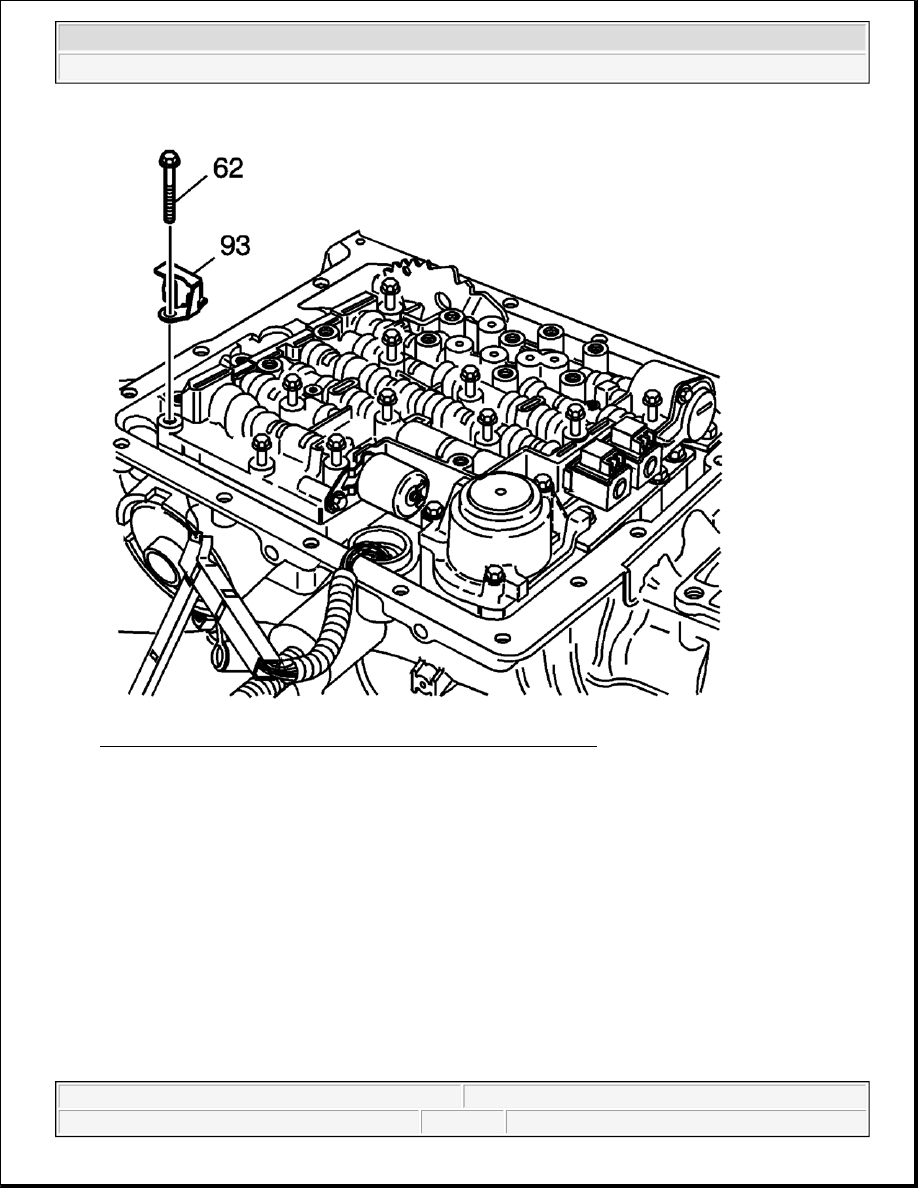

Fig. 439: Fluid Level Indicator Stop Bracket & Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.

5. Install the fluid level indicator stop bracket (93) and the valve body bolts (62) that are shown only.

6. Finger tighten the bolts.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

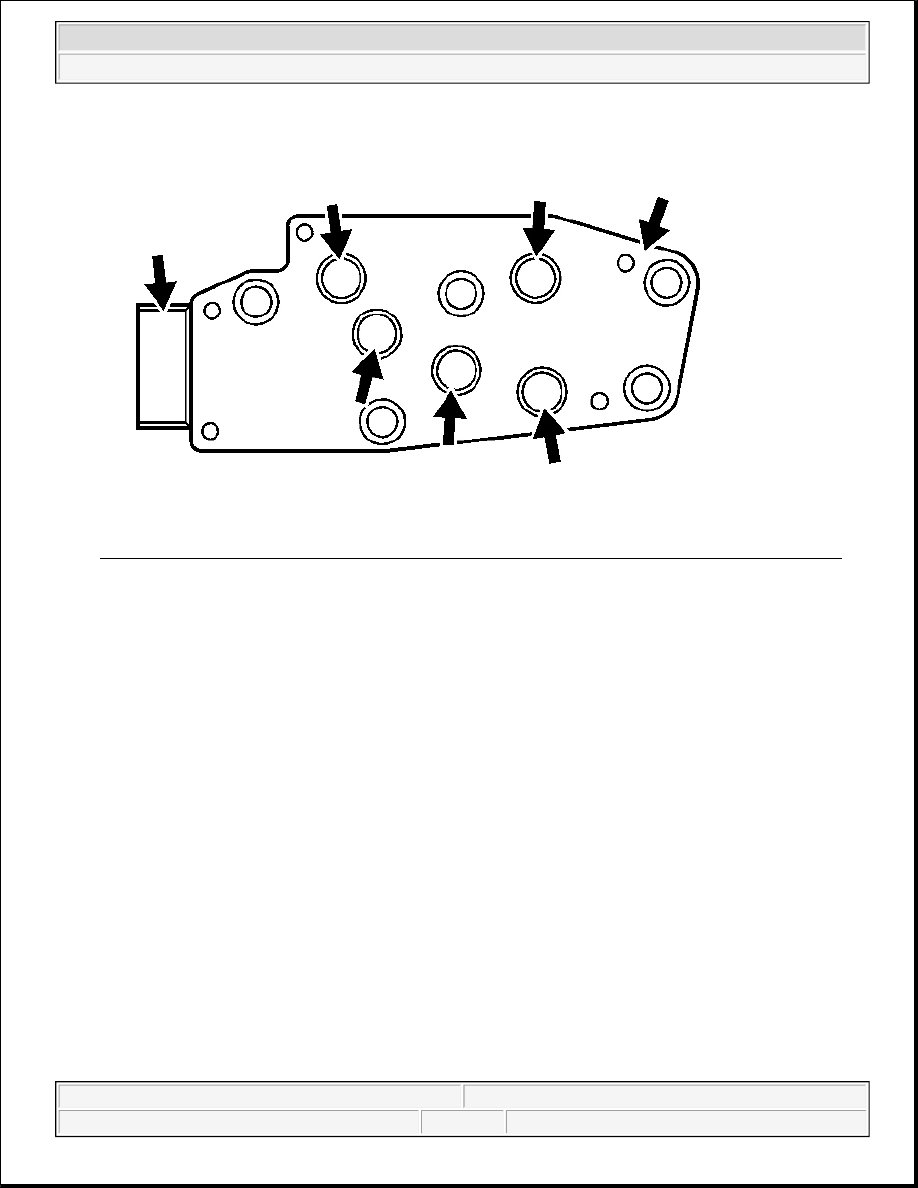

Fig. 440: Inspecting Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly
Courtesy of GENERAL MOTORS CORP.

7. Inspect the Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly for the following

conditions:

z

Damage

z

Debris

z

Damaged or missing O-rings

z

Cracked connector

z

Loose pins

z

Poor terminal retension

z

Sediment in switch membrane



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

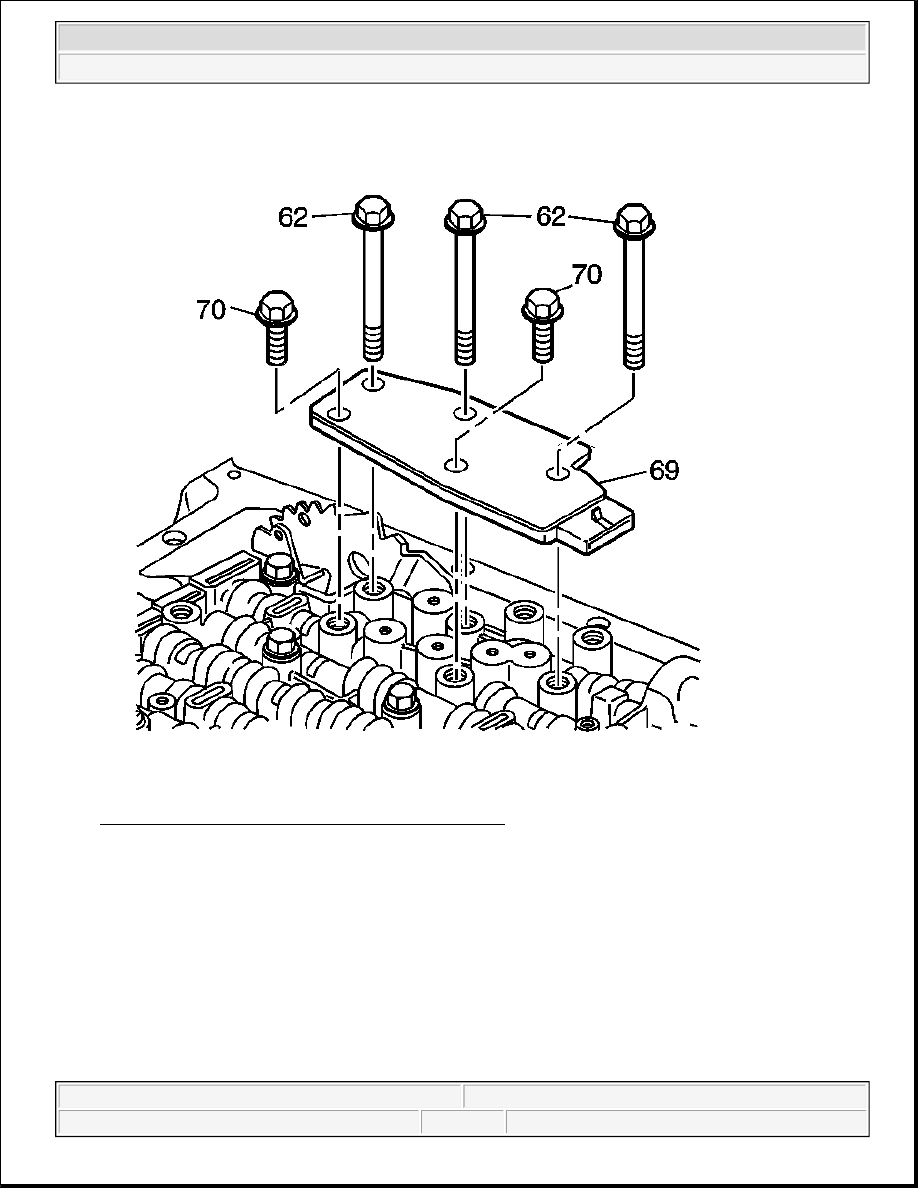

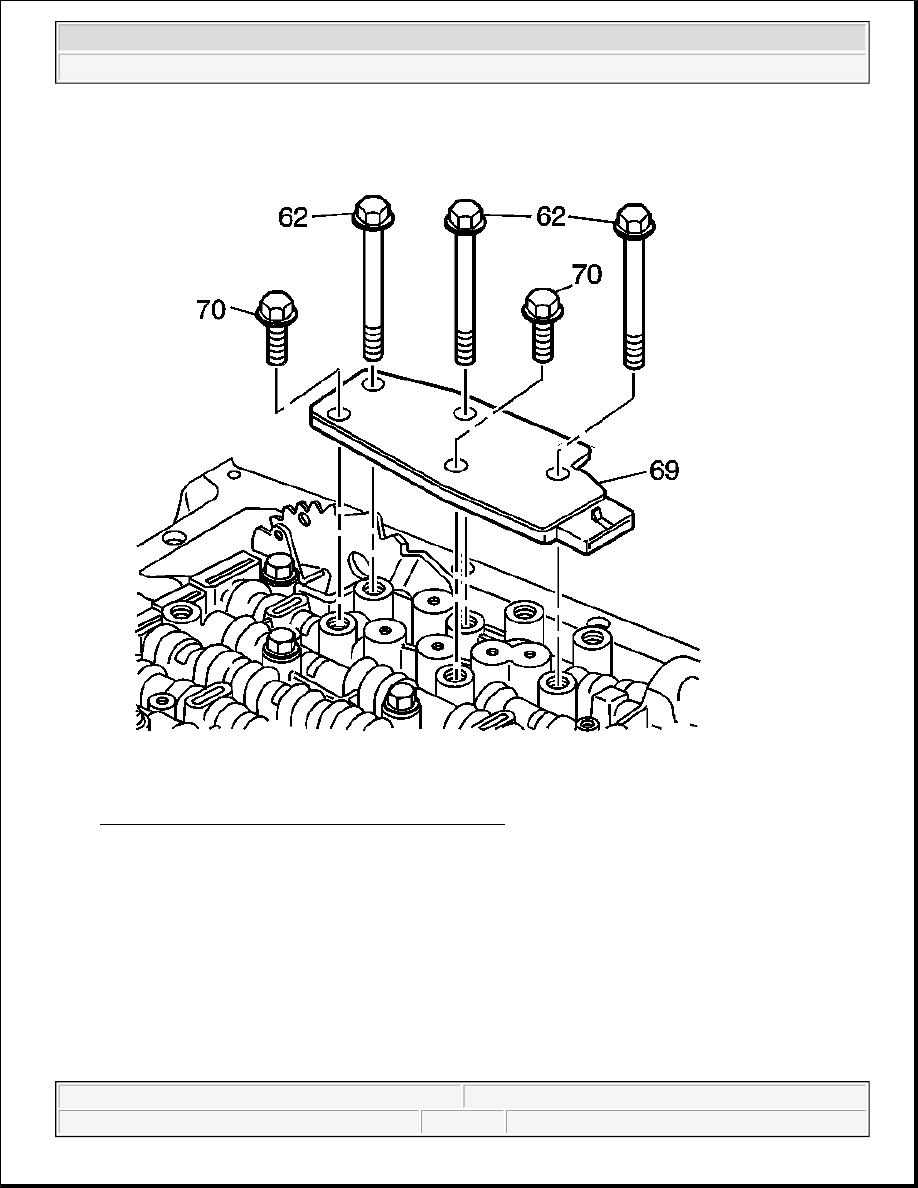

Fig. 441: TFP Manual Valve Position Switch & Bolts
Courtesy of GENERAL MOTORS CORP.

8. Install the TFP manual valve position switch (69) and bolts (62, 70).
