Hummer H2. Manual - part 2351

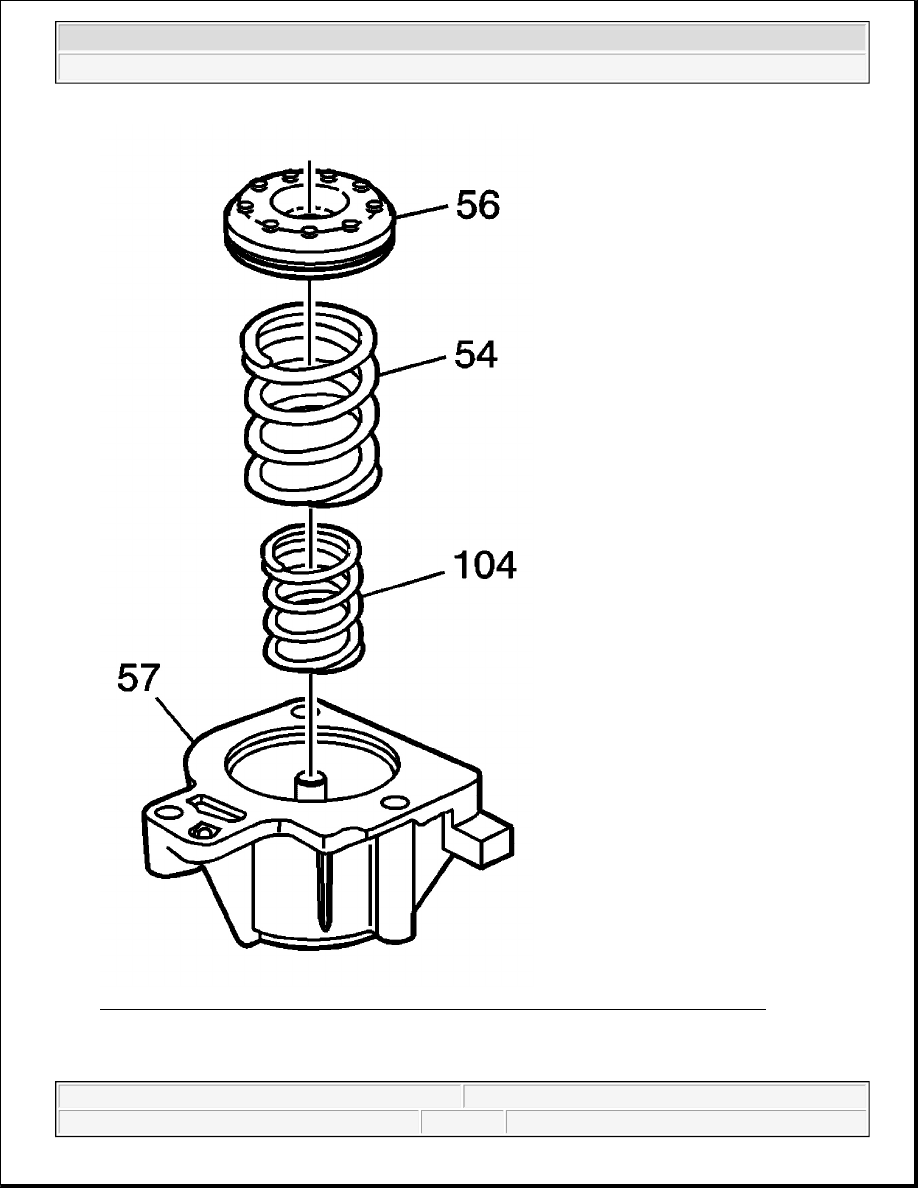

Fig. 431: Installing 1-2 Inner & Outer Accumulator Springs & 1-2 Accumulator Piston
Courtesy of GENERAL MOTORS CORP.

4. Install the 1-2 inner (104) and outer (54) accumulator springs.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



5. Install the 1-2 accumulator piston (56).

1-2 ACCUMULATOR INSTALLATION

Tools Required

z

J 25025-5 Dial Indicator Mounting Post - M6. See Special Tools and Equipment .

z

J 36850 Transjel Lubricant

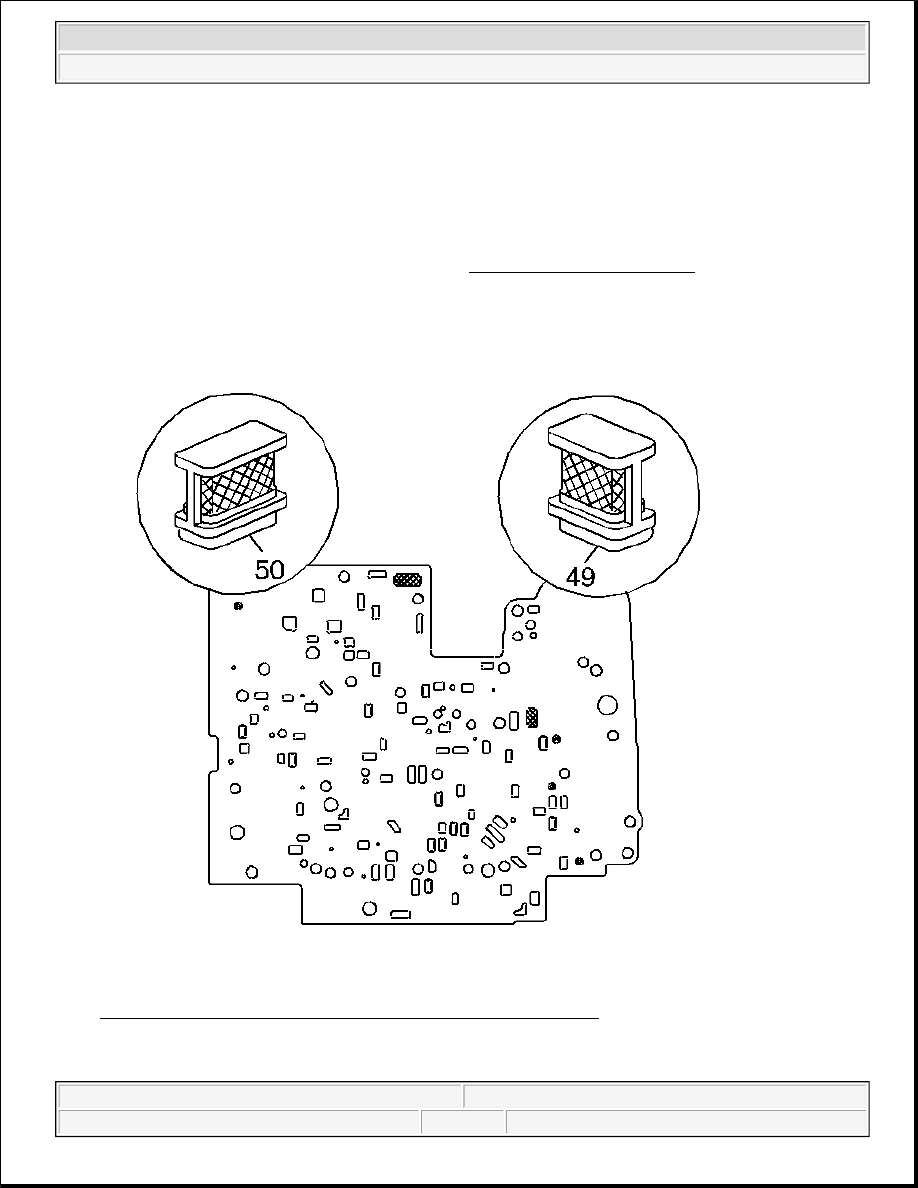

Fig. 432: Inspecting Valve Body Spacer Plate & Solenoid Screens
Courtesy of GENERAL MOTORS CORP.

1. Inspect the valve body spacer plate and the solenoid screens (49, 50) for damage or debris.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Replace the solenoid screens (49, 50) if necessary.

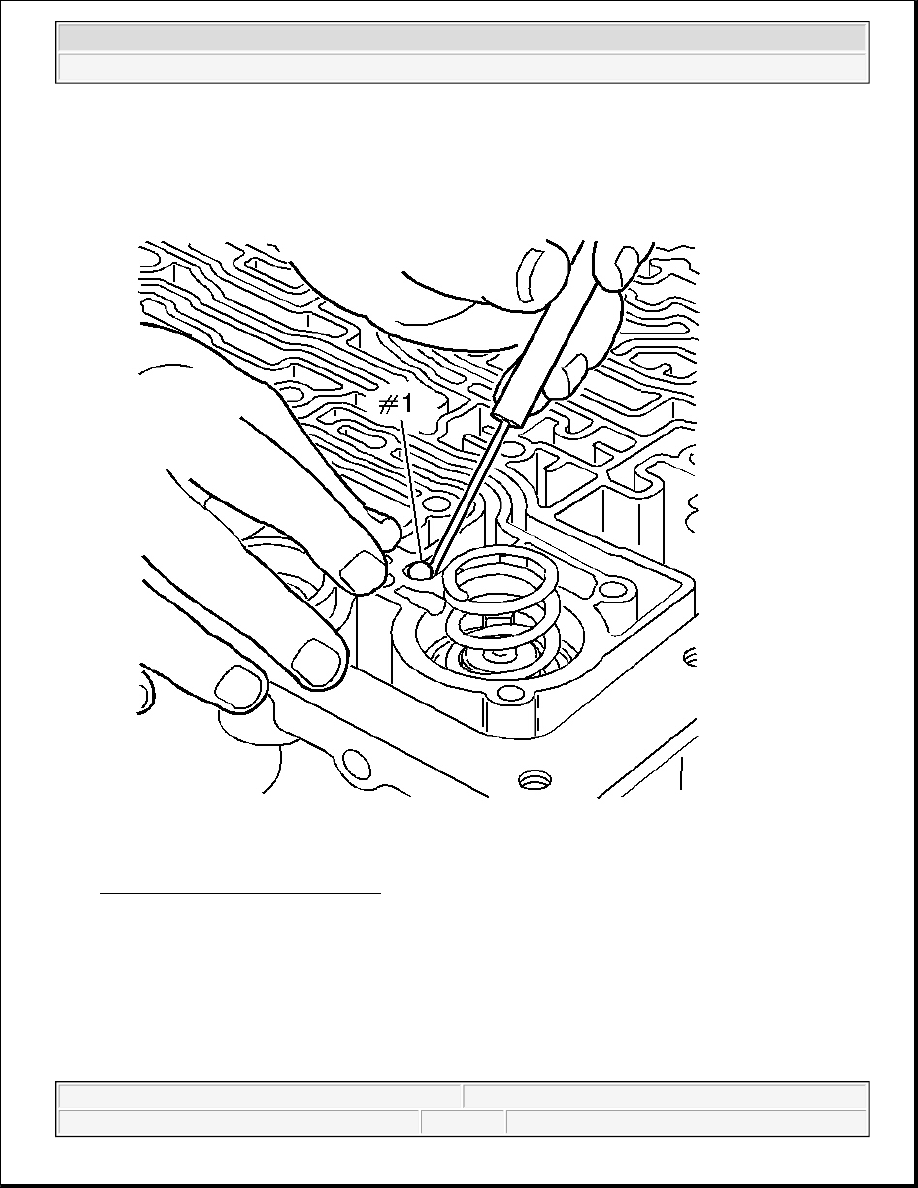

Fig. 433: Identifying Case Checkball
Courtesy of GENERAL MOTORS CORP.

2. Install the #1 checkball into the case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

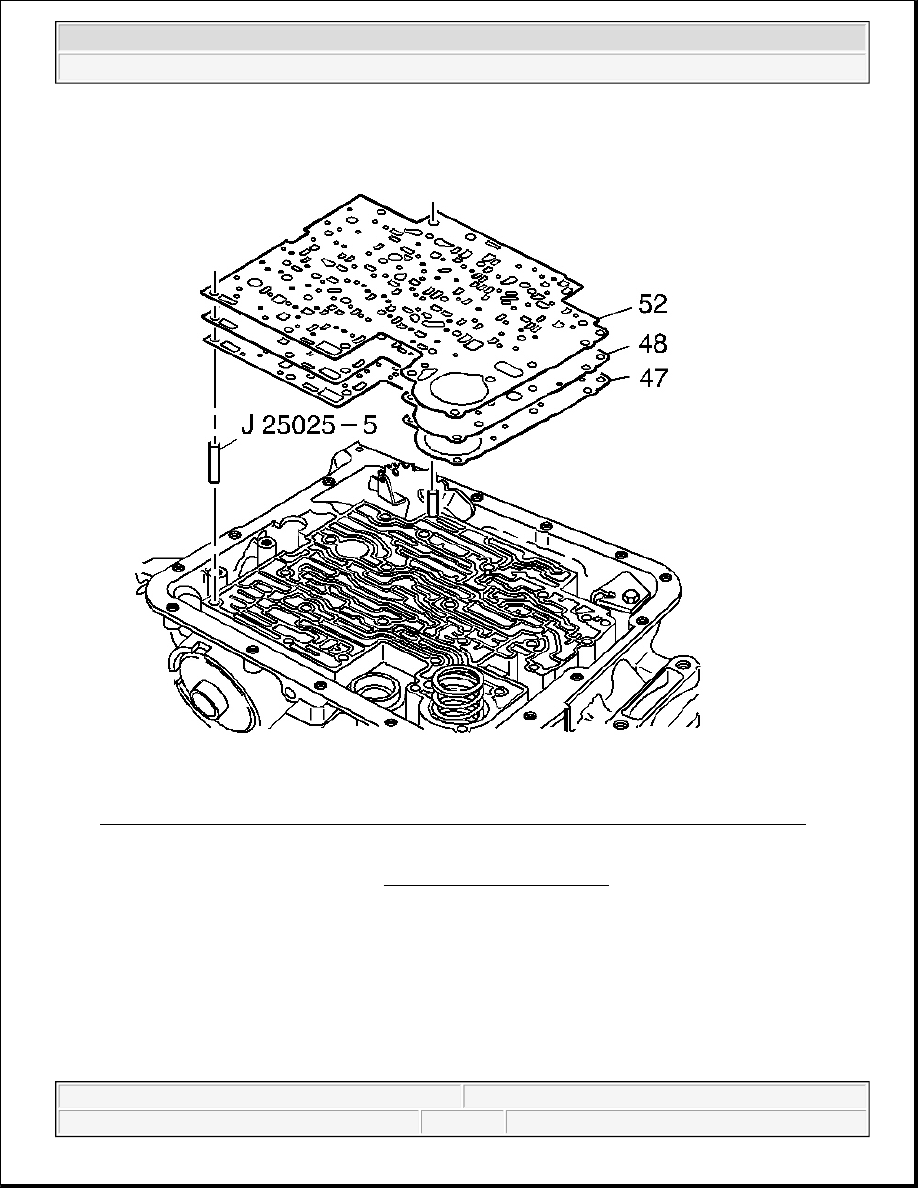

Fig. 434: Spacer Plate To Case Gasket, Spacer Plate To Valve Body Gasket On Spacer Plate
Courtesy of GENERAL MOTORS CORP.

3. Install the J 25025-5 into the case. See Special Tools and Equipment .

4. Place the spacer plate to case gasket (47) (identified by a "C") and the spacer plate to valve body gasket

(52) (identified by a "V") on the spacer plate (48). Retain gaskets on the spacer plate with J 36850 or
equivalent.

5. Place the spacer and the spacer plate gaskets on the case.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
