Hummer H2. Manual - part 2355

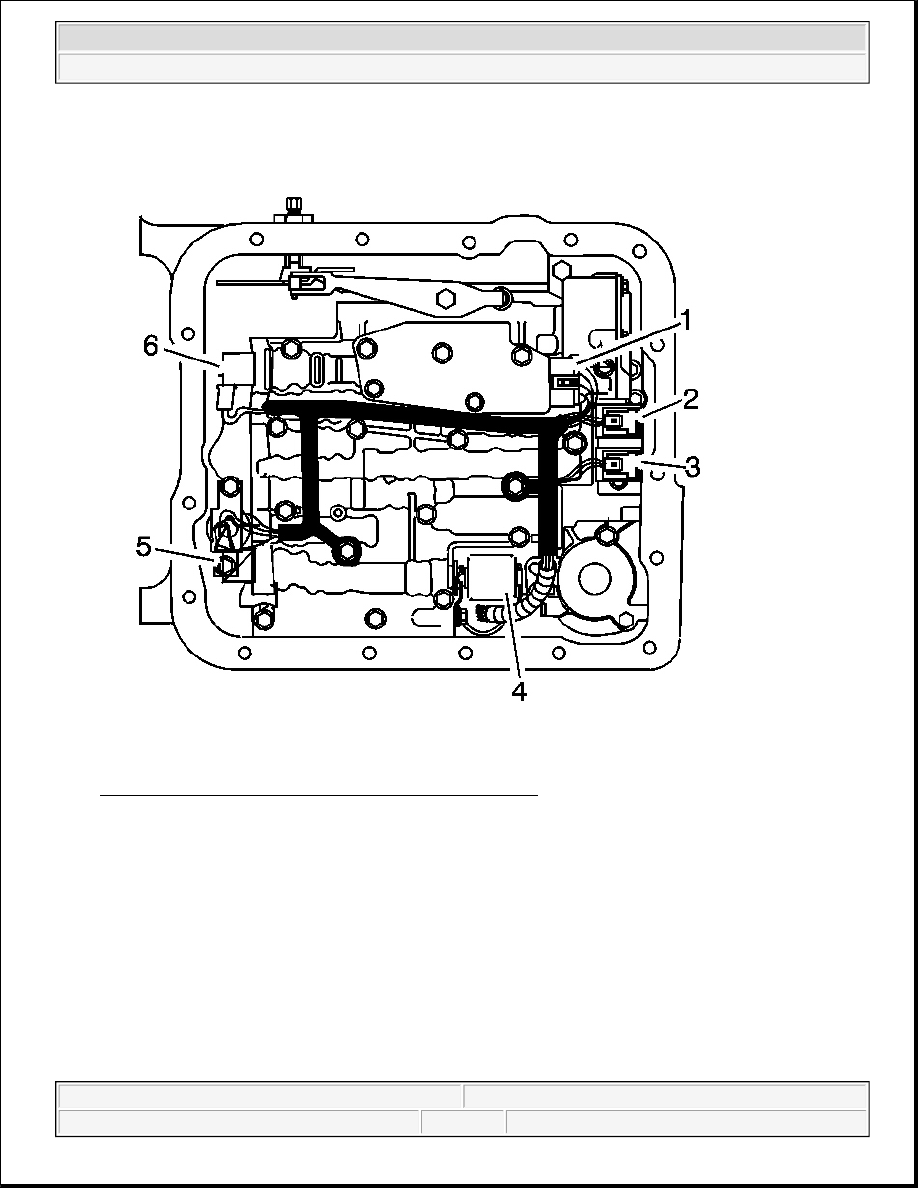

Fig. 446: Electrical Connectors & Electrical Components
Courtesy of GENERAL MOTORS CORP.

14. Connect all electrical connectors (1-6) to the electrical components.

MANUAL DETENT SPRING INSTALLATION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

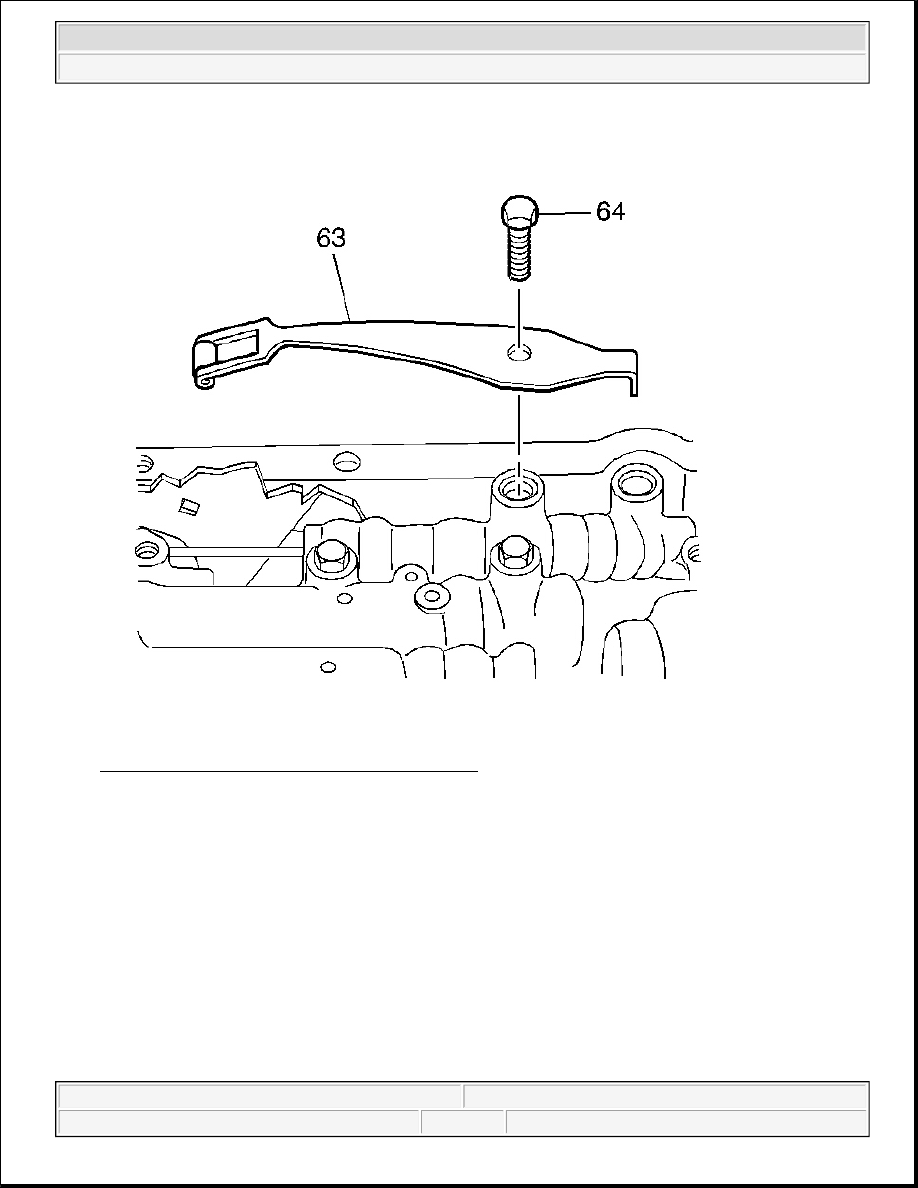

Fig. 447: Manual Detent Spring Bolt & Assembly
Courtesy of GENERAL MOTORS CORP.

1. Inspect the manual detent spring assembly (63) for cracks or damage.

2. Install the manual detent spring assembly (63).

3. Install the manual detent spring bolt (64).

Tighten: Tighten the bolt to 20-27 N.m (15-20 lb ft).

OIL FILTER ASSEMBLY INSTALLATION

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

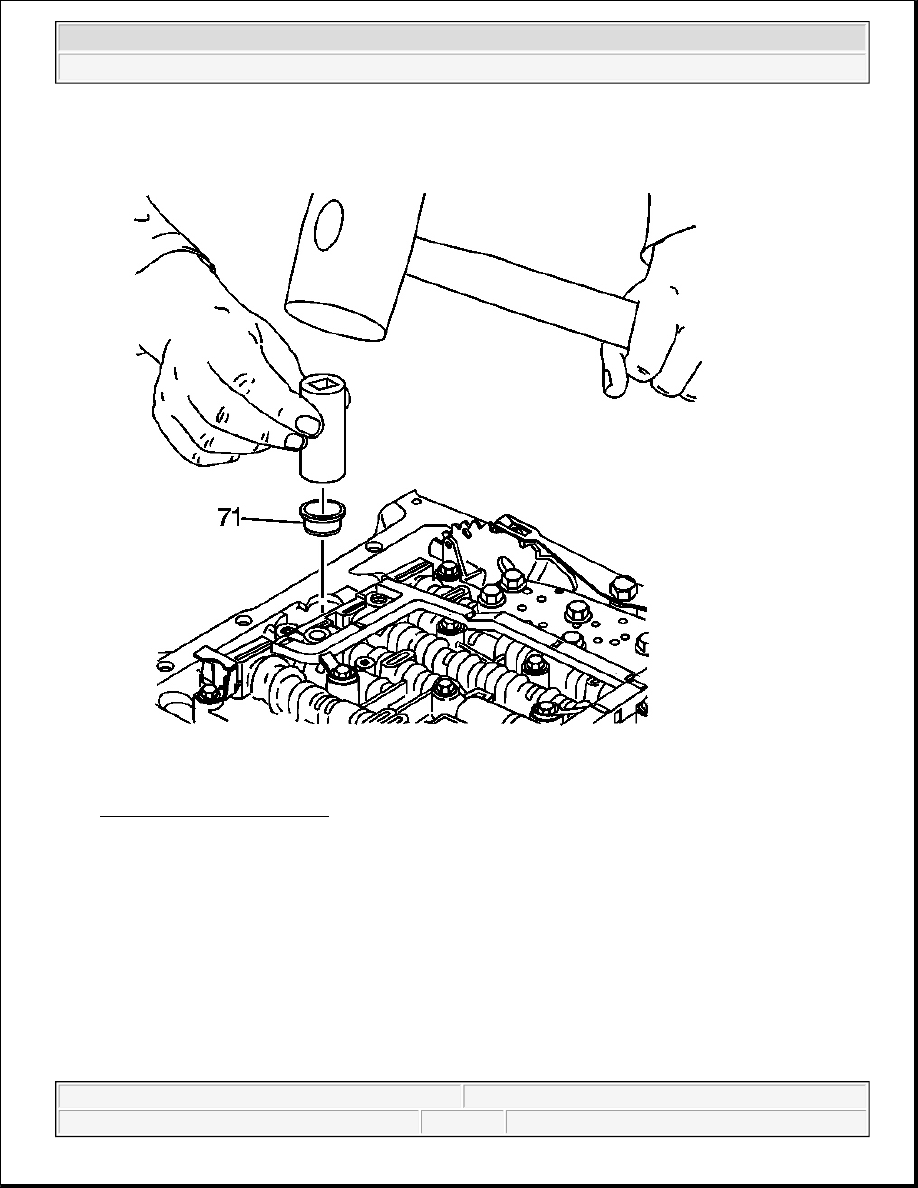

Fig. 448: Installing Filter Seal
Courtesy of GENERAL MOTORS CORP.

1. Lubricate the filter seal (71) with transmission fluid.

2. Use a socket the same size diameter as the filter seal (71) and install the seal.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

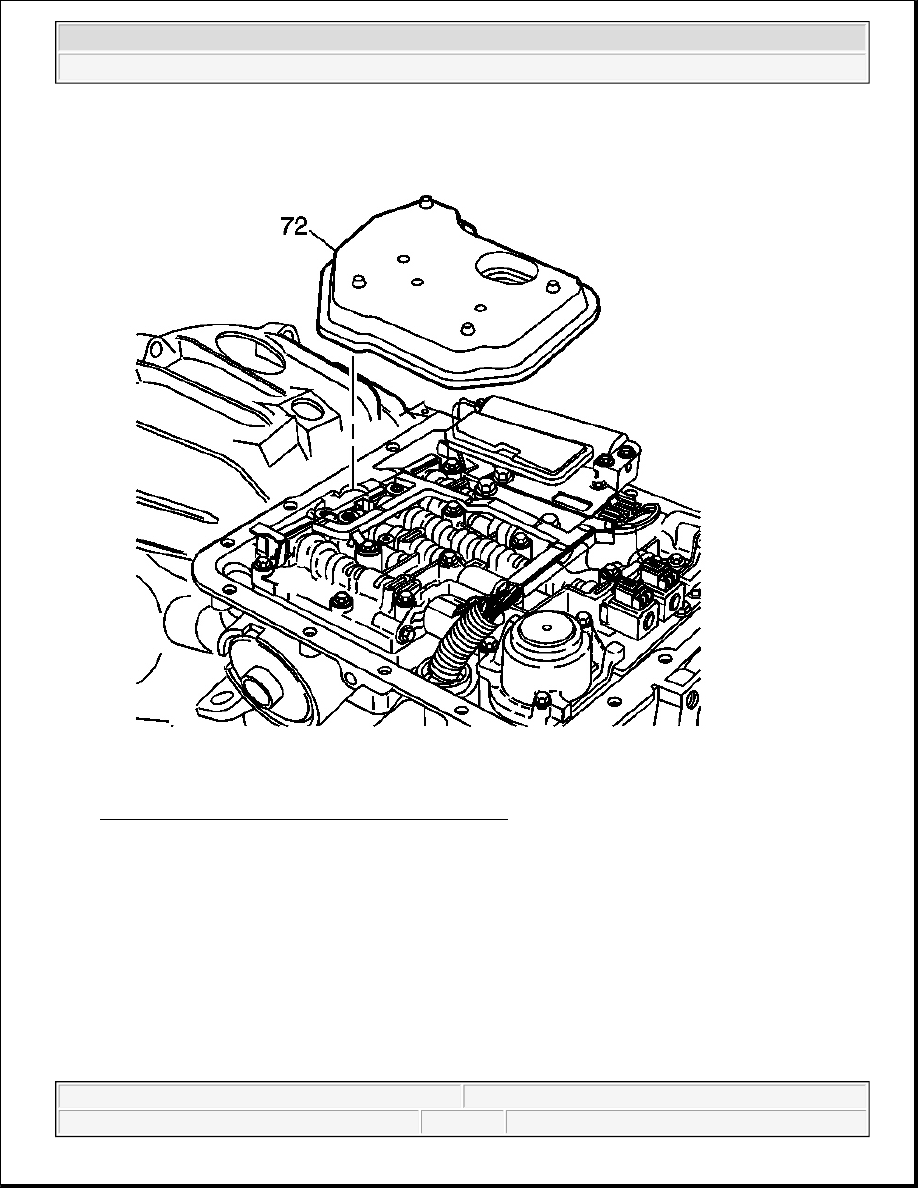

Fig. 449: Installing Transmission Oil Filter Assembly
Courtesy of GENERAL MOTORS CORP.

3. Install the transmission oil filter assembly (72).

TRANSMISSION OIL PAN INSTALLATION



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
