Hummer H2. Manual - part 2335

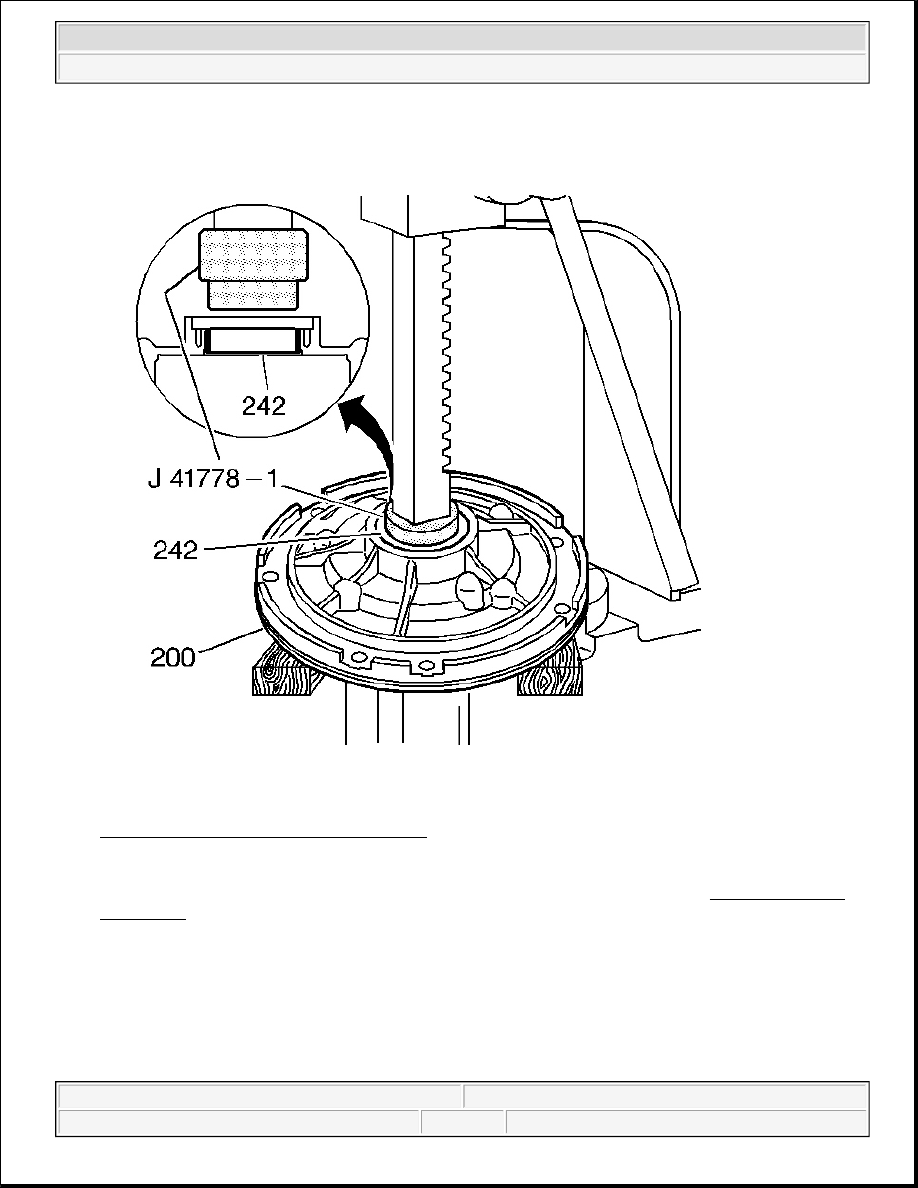

Fig. 368: J 41778-1 & Pump Body Bushing
Courtesy of GENERAL MOTORS CORP.

4. Using the J 41778-1 with an arbor press, remove the pump body bushing (242). See Special Tools and

Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

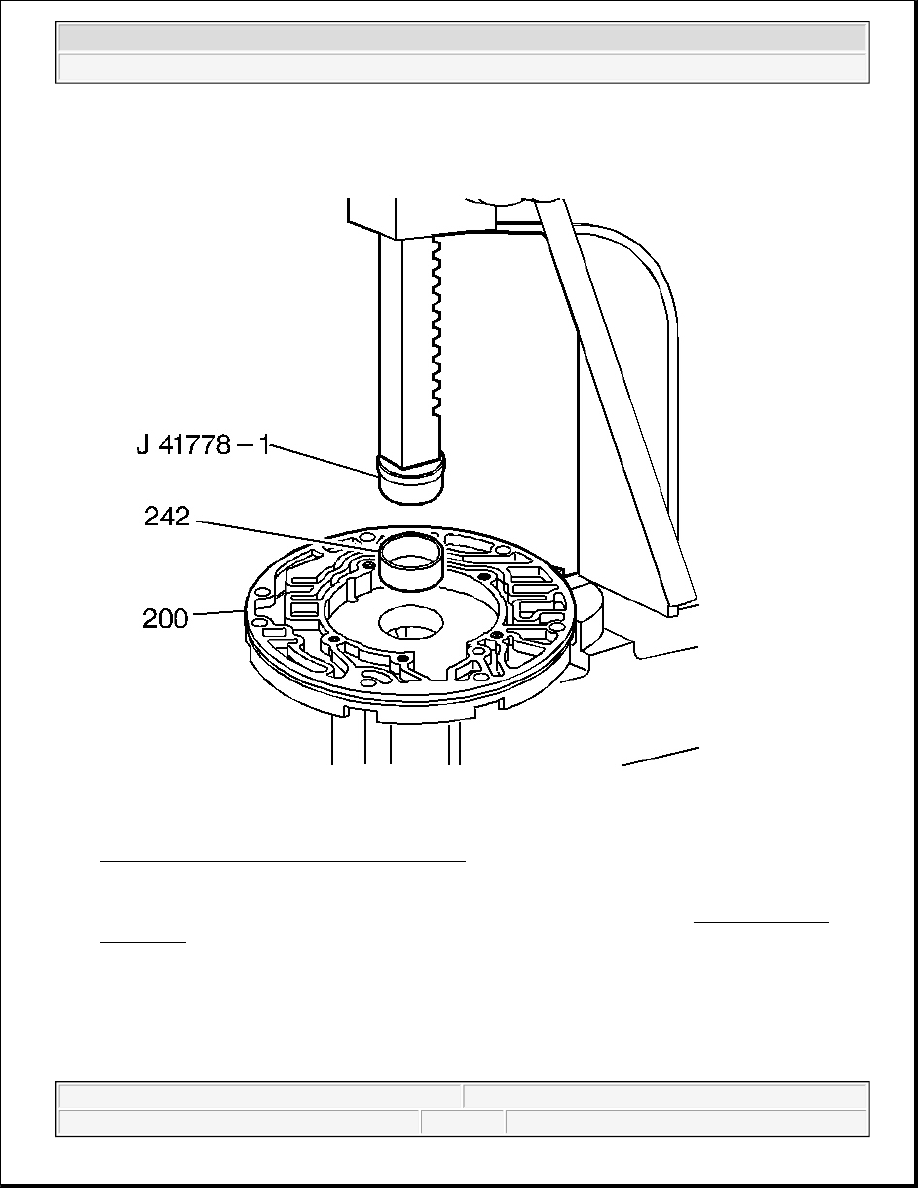

Fig. 369: J 41778-1 & New Pump Body Bushing
Courtesy of GENERAL MOTORS CORP.

5. Using J 41778-1 with an arbor press, install a new pump body bushing (242). See Special Tools and

Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

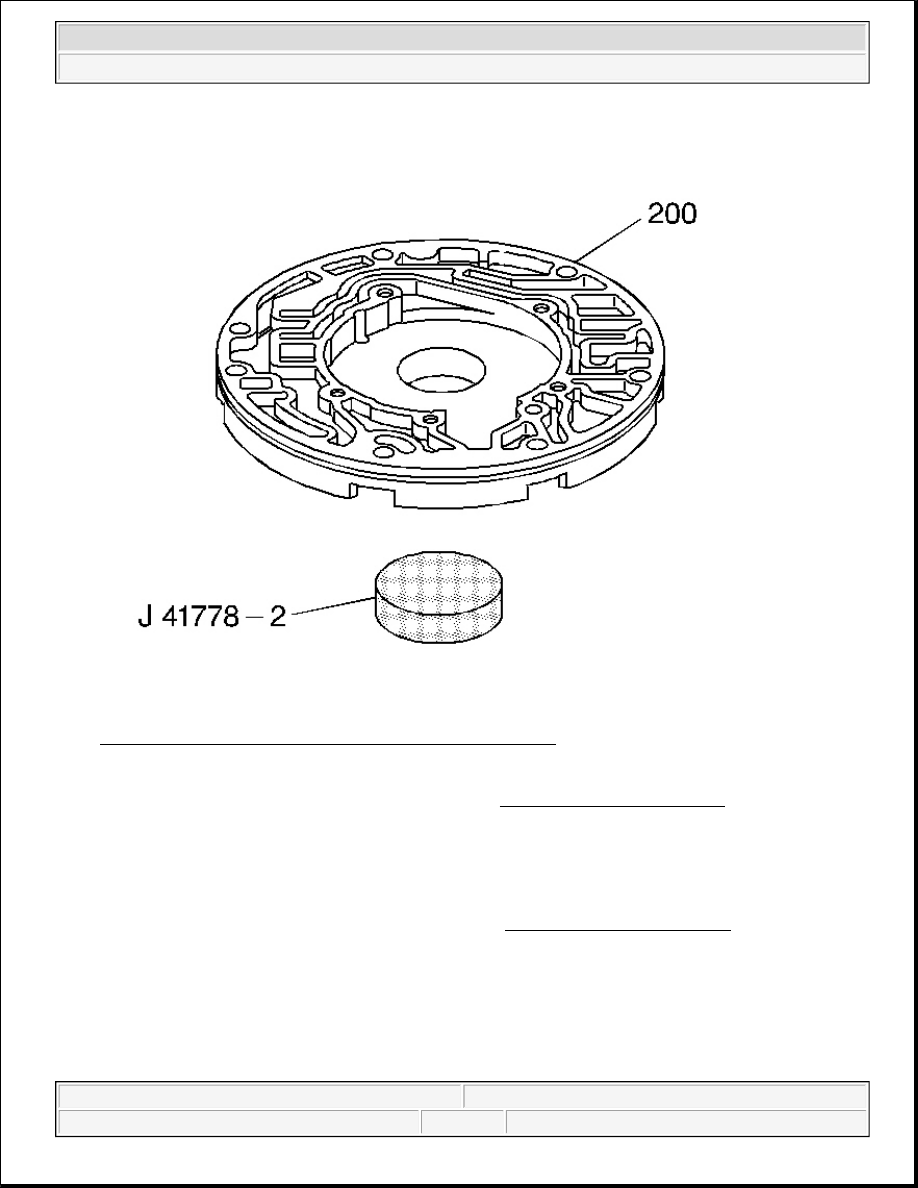

Fig. 370: Using J 41778-2 To Ensure Proper Bushing Depth
Courtesy of GENERAL MOTORS CORP.

6. Use the J 41778-2 to ensure proper bushing depth. See Special Tools and Equipment .

OIL PUMP BODY ASSEMBLE

Tools Required

z

J 25016 Pump Seal and speedometer gear Installer. See Special Tools and Equipment .

z

J 36850 Transjel Lubricant



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

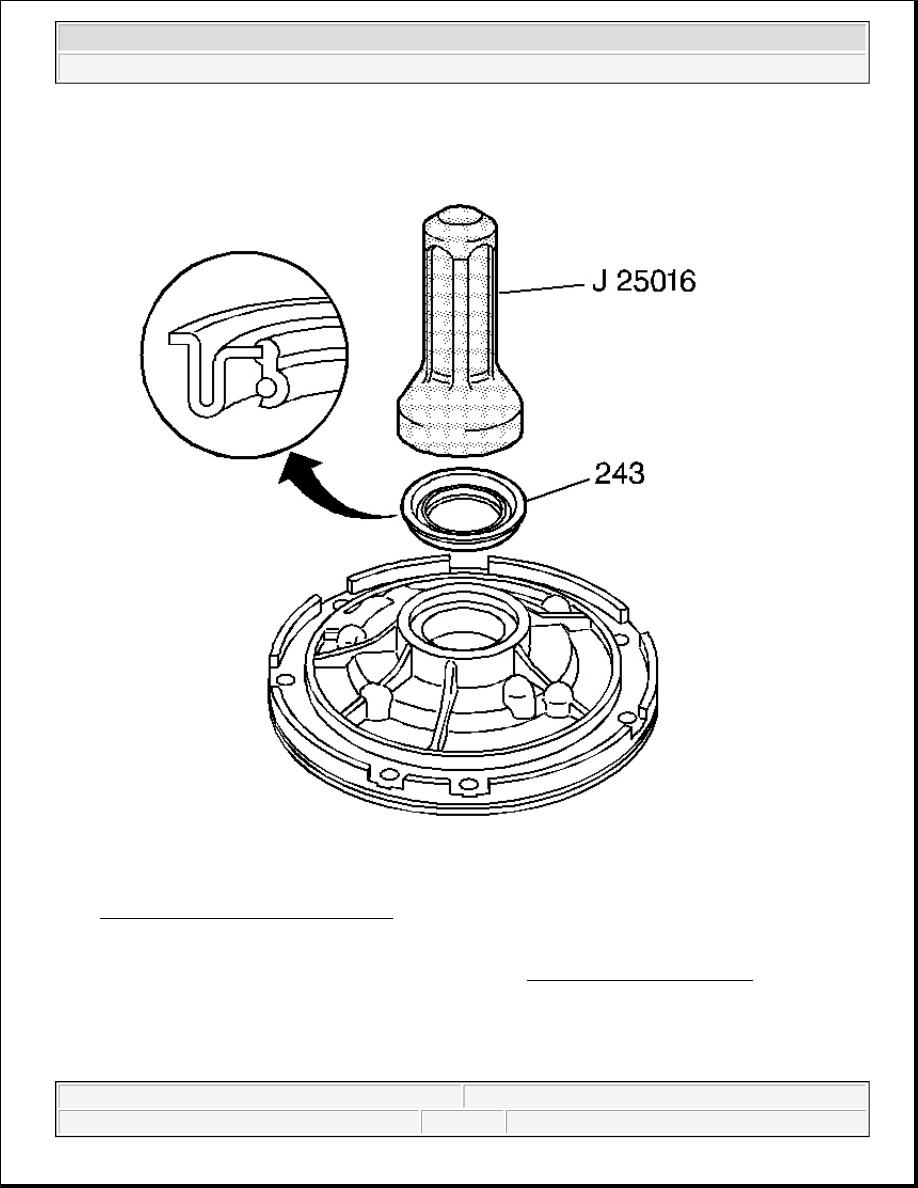

Fig. 371: J 25016 & Oil Seal Assembly
Courtesy of GENERAL MOTORS CORP.

1. Using the J 25016 , install the oil seal assembly (243). See Special Tools and Equipment .



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
