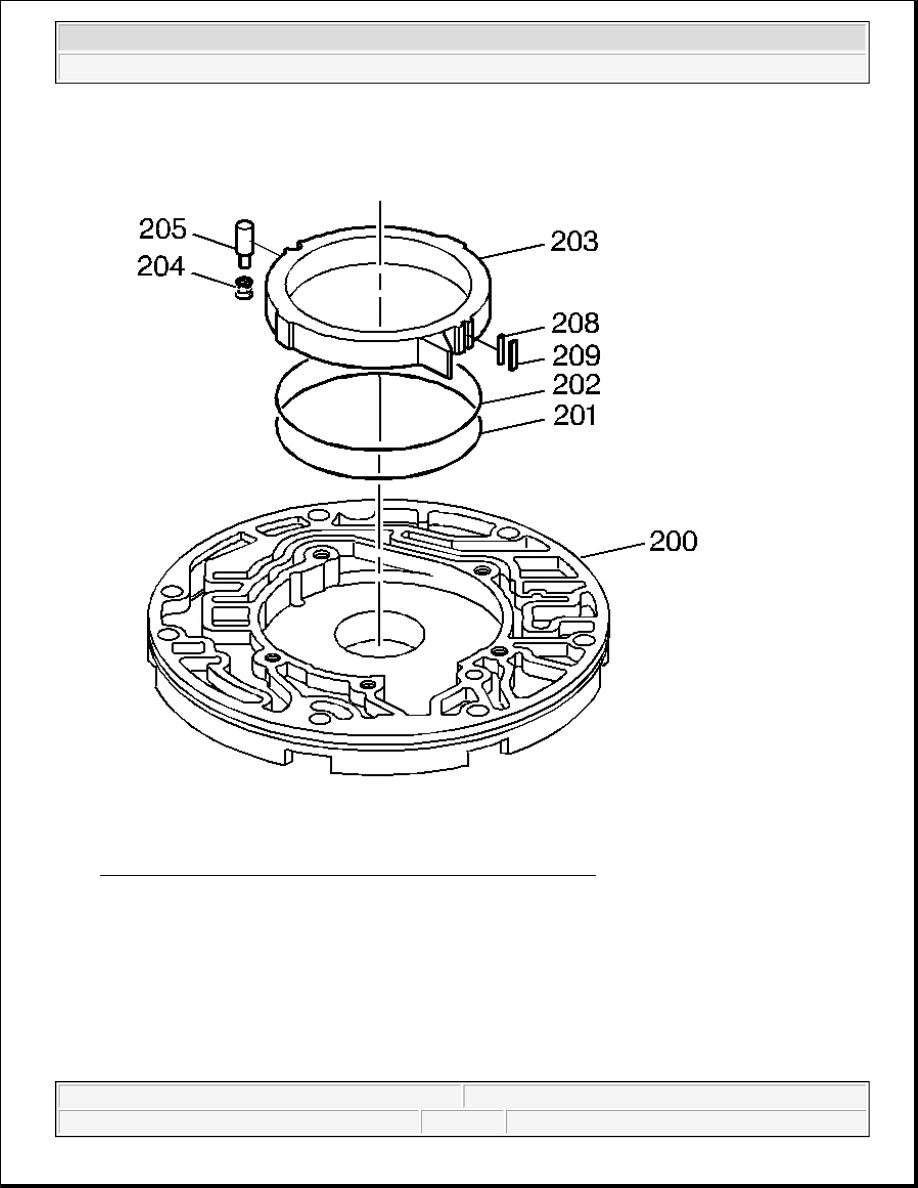

Fig. 364: Removing (203), (208), (209), (202), (201), (205) & (204) 6. Remove the pump slide (203), pump slide support seal (208) and the pump slide seal (209). 7. Remove the slide seal back-up O-ring seal (202) and the oil seal (slide to wear plate) ring (201). 8. Remove the pivot slide pin (205) and the pivot pin spring (204). OIL PUMP ROTOR AND SLIDE MEASUREMENT
2004 Hummer H2 2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
|
