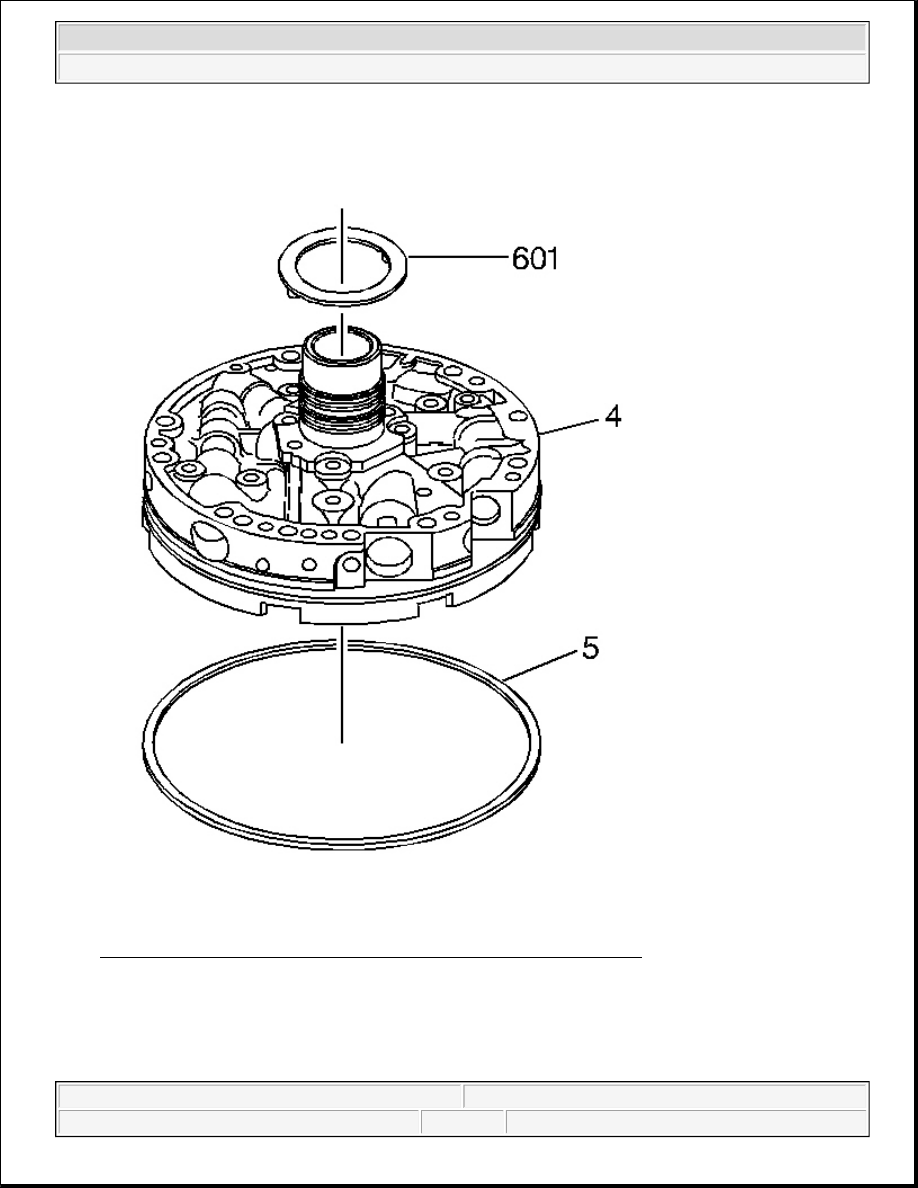

Fig. 360: Thrust (Pump To Drum) Washer & Oil (Pump To Case) Seal
Courtesy of GENERAL MOTORS CORP.

1. Remove the thrust (pump to drum) washer (601).

2. Remove the oil (pump to case) seal (5).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

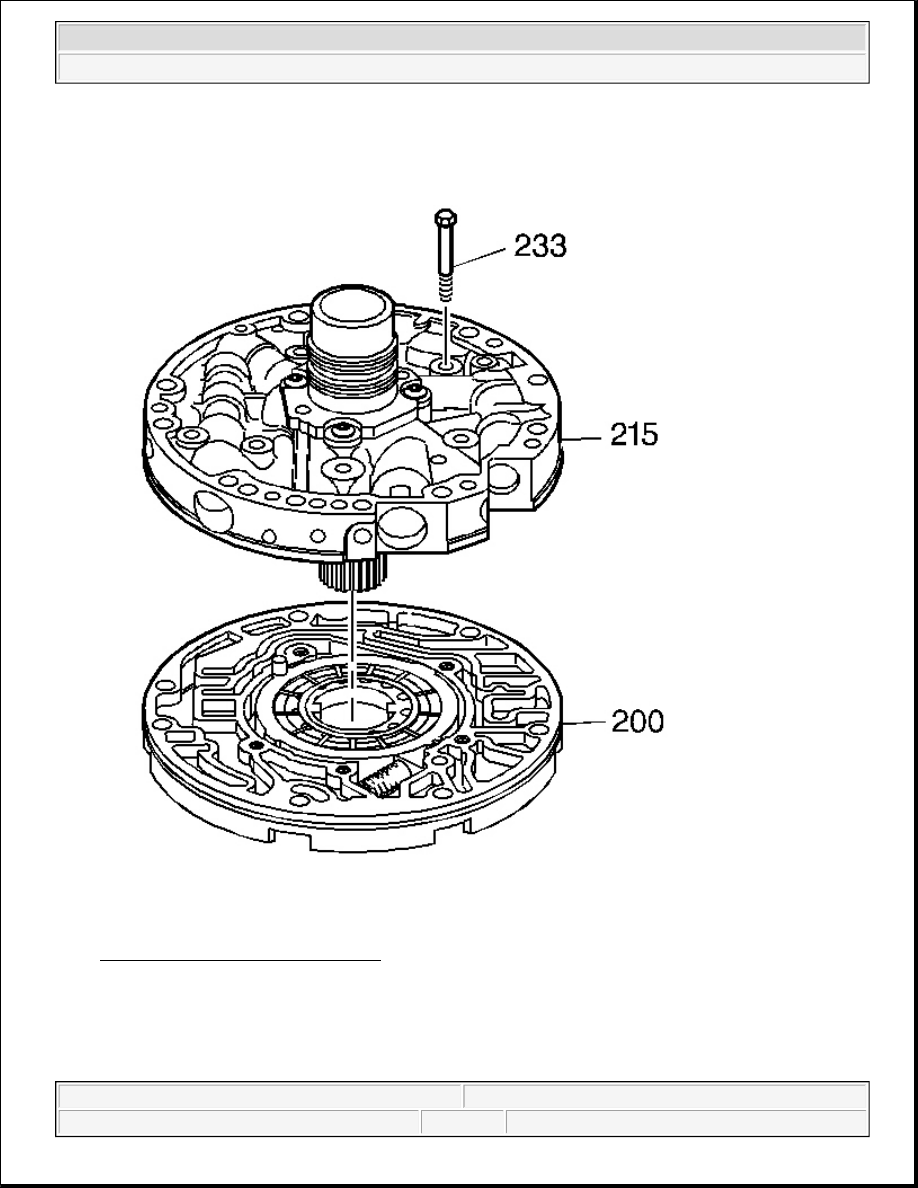

Fig. 361: Pump Cover, Bolts & Body
Courtesy of GENERAL MOTORS CORP.

3. Remove the pump cover bolts (233).

4. Remove the pump cover (215) from the pump body (200).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



OIL PUMP BODY DISASSEMBLE

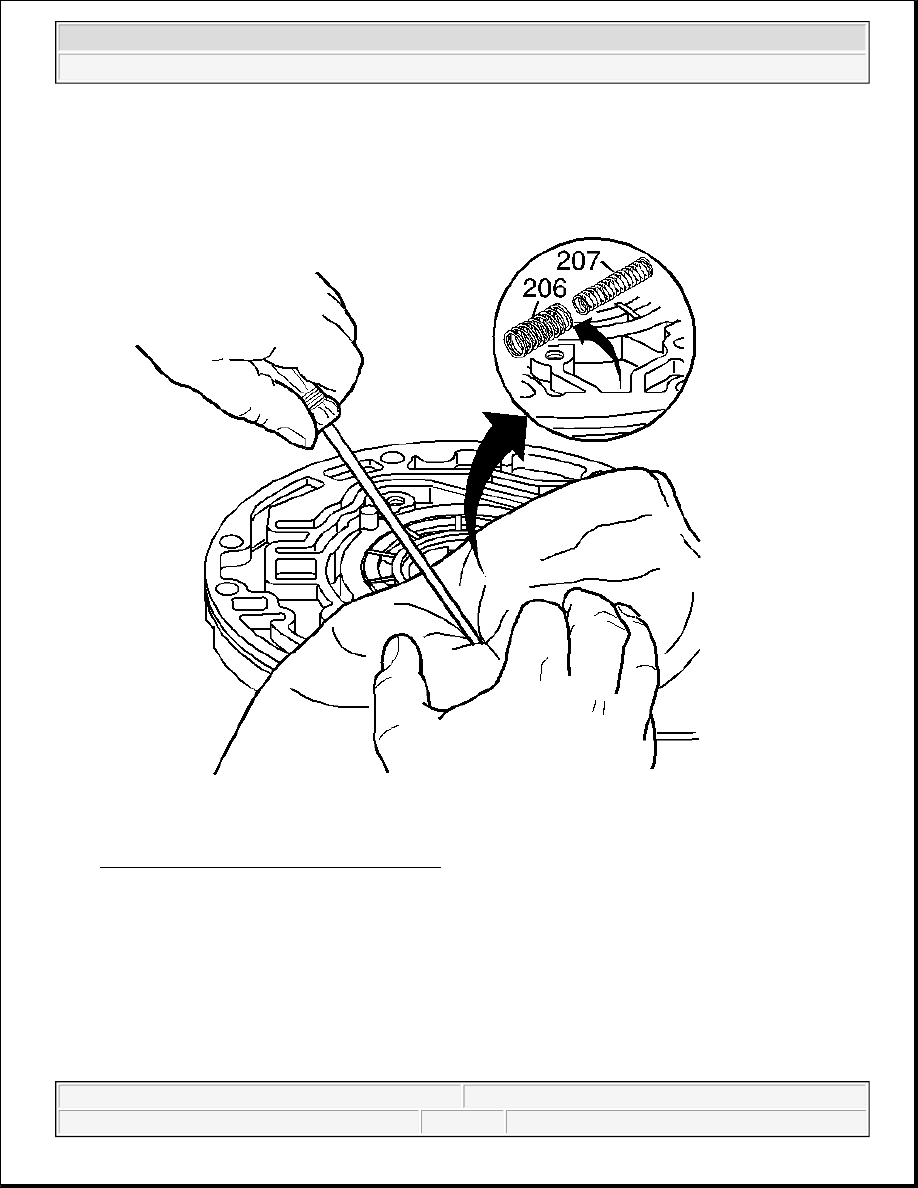

Fig. 362: Pump Slide Inner & Outer Springs
Courtesy of GENERAL MOTORS CORP.

1. Remove the pump slide inner (207) and outer (206) springs.

2. Place a rag over the springs while removing them to prevent the springs from flying out.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

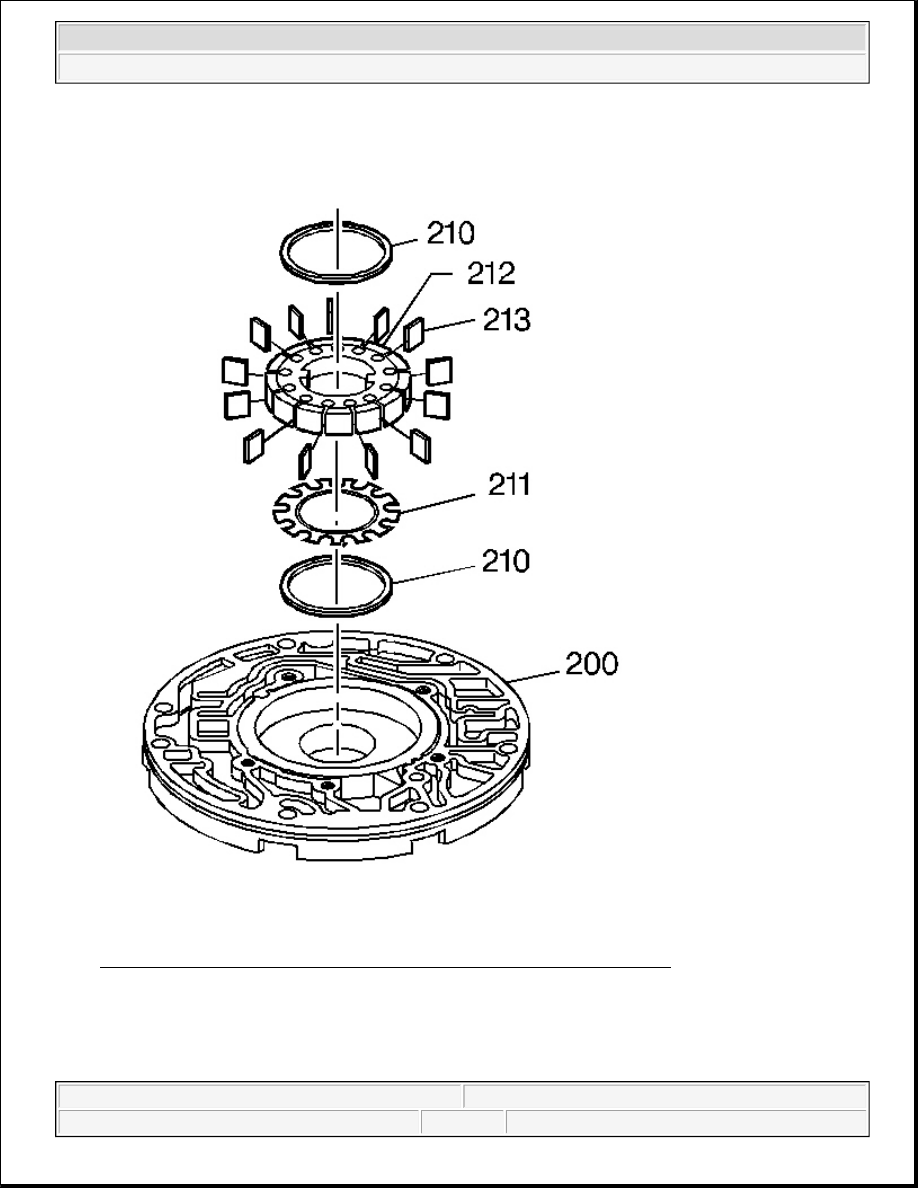

Fig. 363: Oil Pump Rotor, Pump Vane Rings, Pump Vanes & Rotor Guide
Courtesy of GENERAL MOTORS CORP.

3. Remove the oil pump rotor (212) and pump vane rings (210).

4. Remove the pump vanes (213).

5. Remove the rotor guide (211).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
