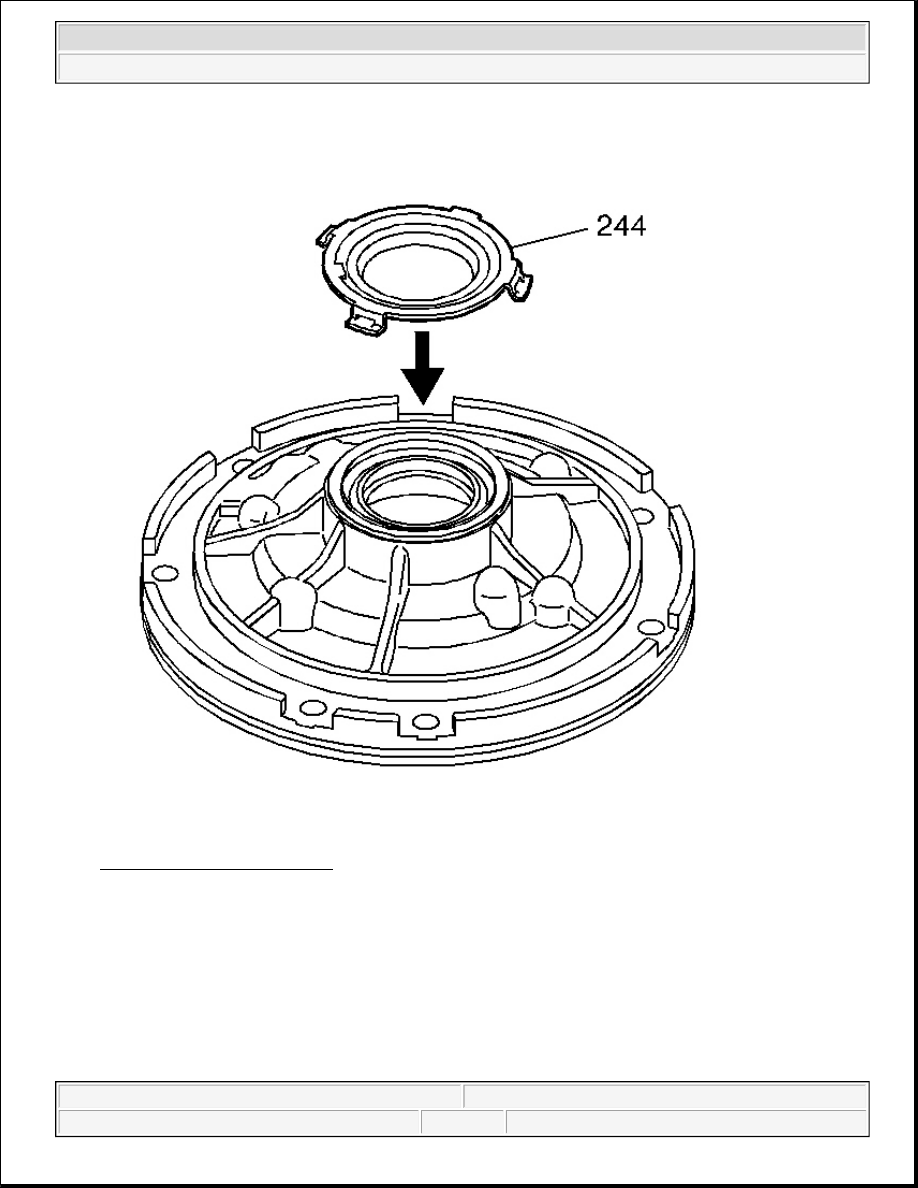

Fig. 372: Front Helix Retainer
Courtesy of GENERAL MOTORS CORP.

2. Install the front helix retainer (244).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



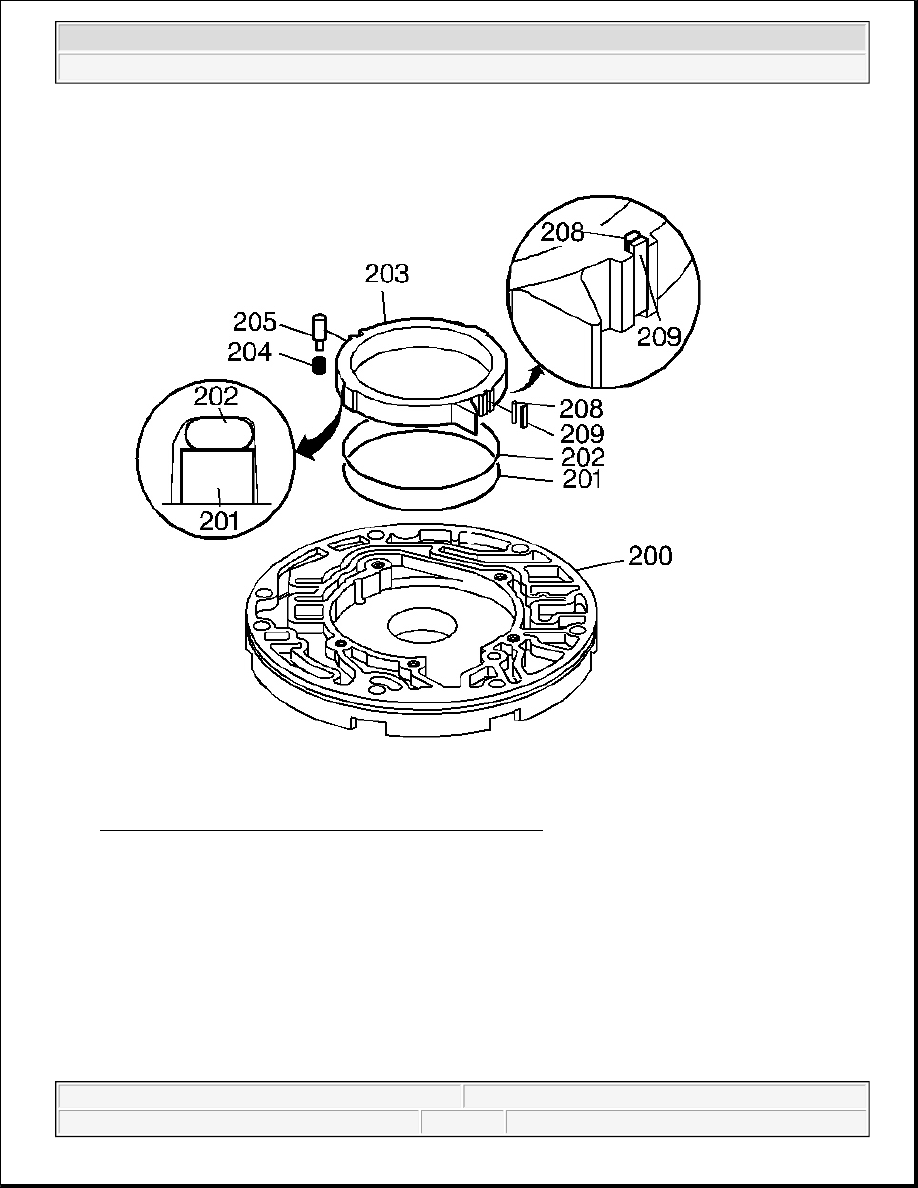

Fig. 373: Installing (202), (201), (204), (205), (208) & (209)
Courtesy of GENERAL MOTORS CORP.

3. Install an O-ring seal (202) and oil seal ring (201) into the groove on the back side of the pump slide

(203).

4. Use J 36850 , or an equivalent, to retain the seal and the ring on the slide.

5. Install the pivot pin spring (204) and the pivot pin (205).

6. Install the pump slide (203).

7. Index the slide notch with the pivot pin (205).

The oil seal ring must face downward into the pump pocket.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



8. Install the pump slide seal support (208) and the pump slide seal (209).

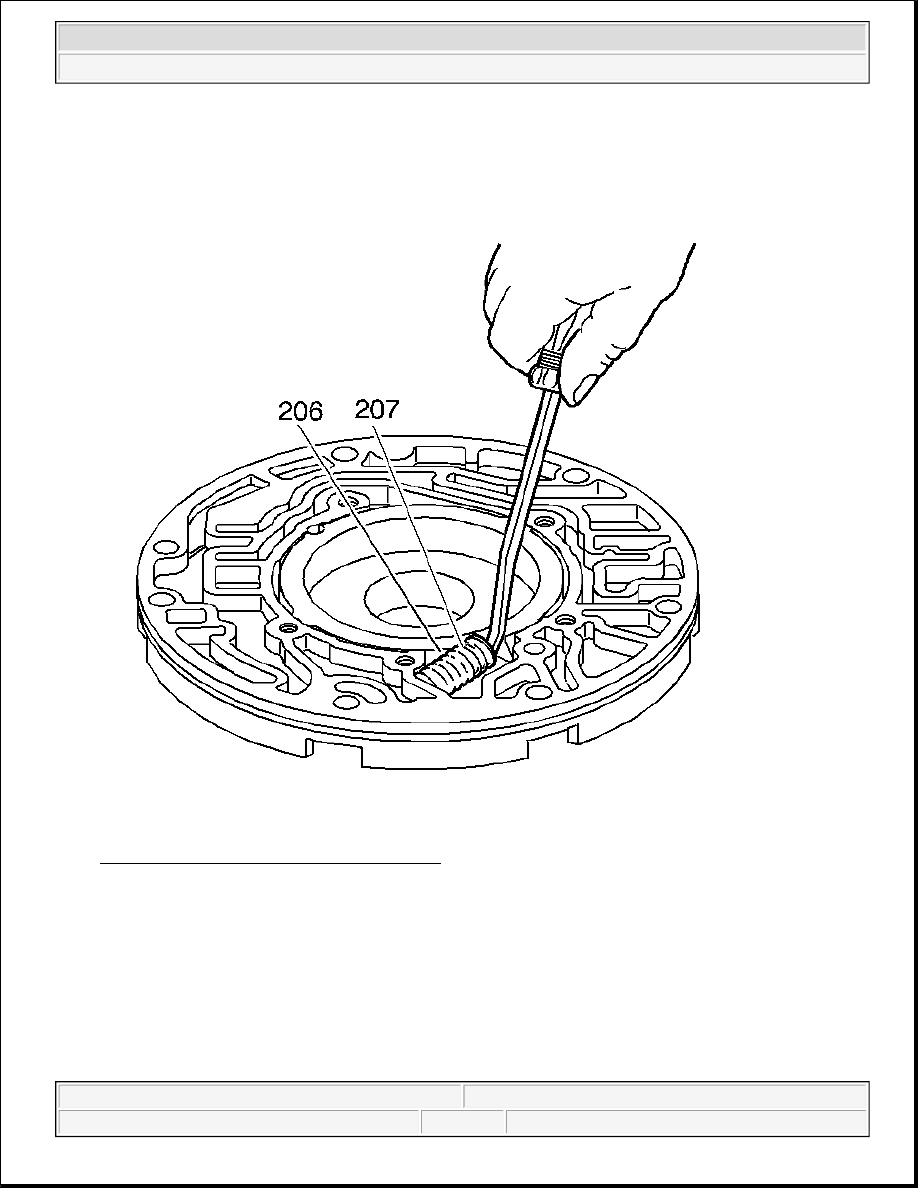

Fig. 374: Pump Slide Inner & Outer Springs
Courtesy of GENERAL MOTORS CORP.

9. Install the pump slide inner (207) and outer (206) springs.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



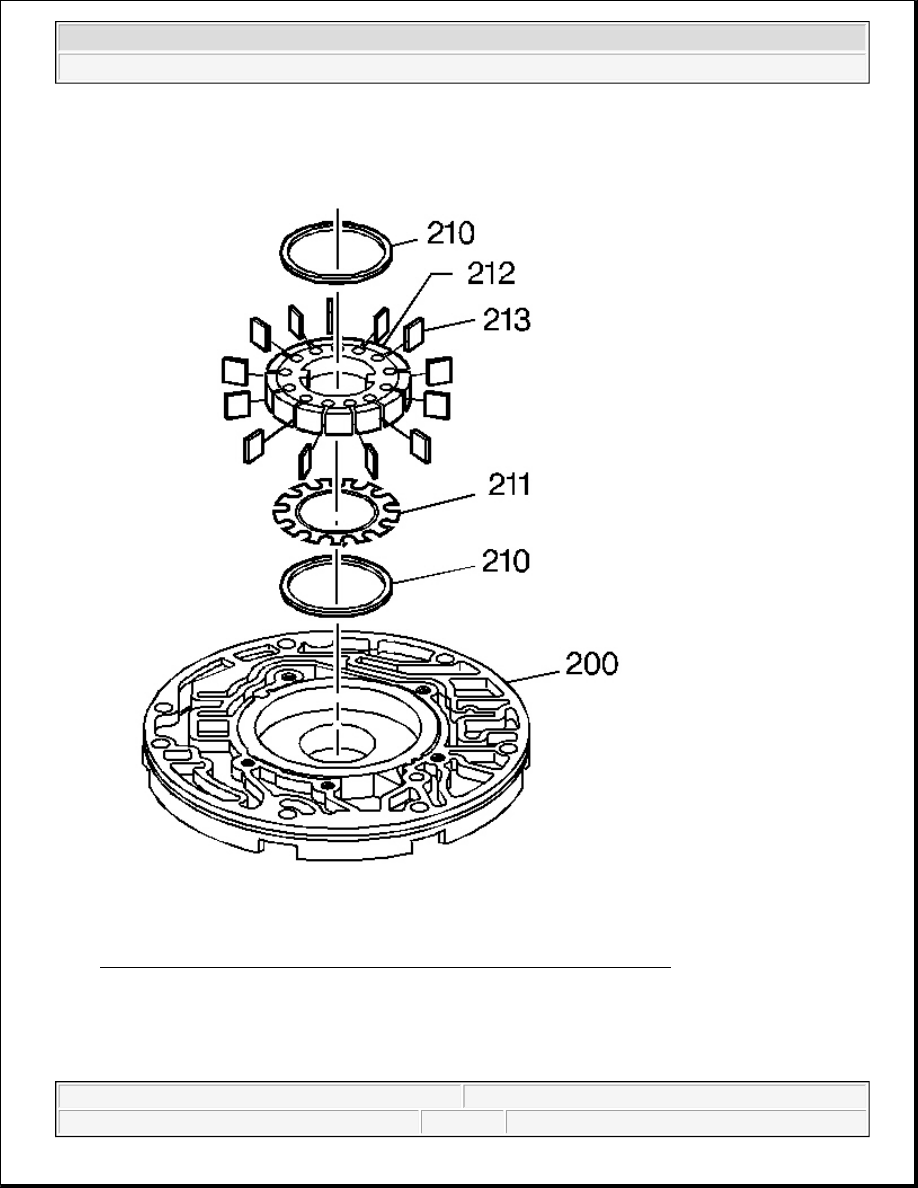

Fig. 375: Oil Pump Rotor, Pump Vane Rings, Pump Vanes & Rotor Guide
Courtesy of GENERAL MOTORS CORP.

10. Install the bottom pump vane ring (210) and the rotor guide (211) into the rotor (212) and retain with J

36850 or an equivalent.

11. Install the rotor (212) with the rotor guide (211) toward the pump pocket.
