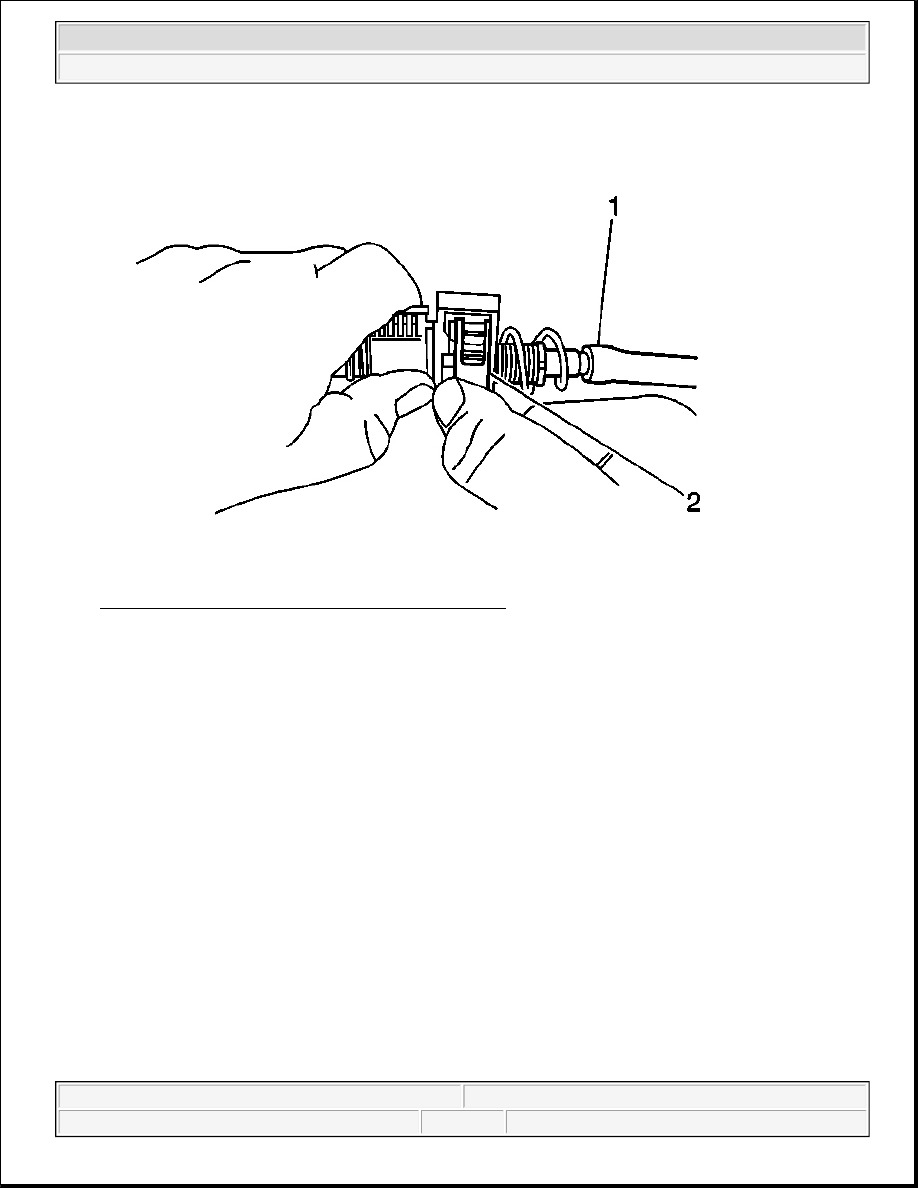

Fig. 34: Pushing Natural Colored Lock Button Down
Courtesy of GENERAL MOTORS CORP.

7. Push the natural colored lock button (2) down to engage the locking teeth on the shift cable end (1).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



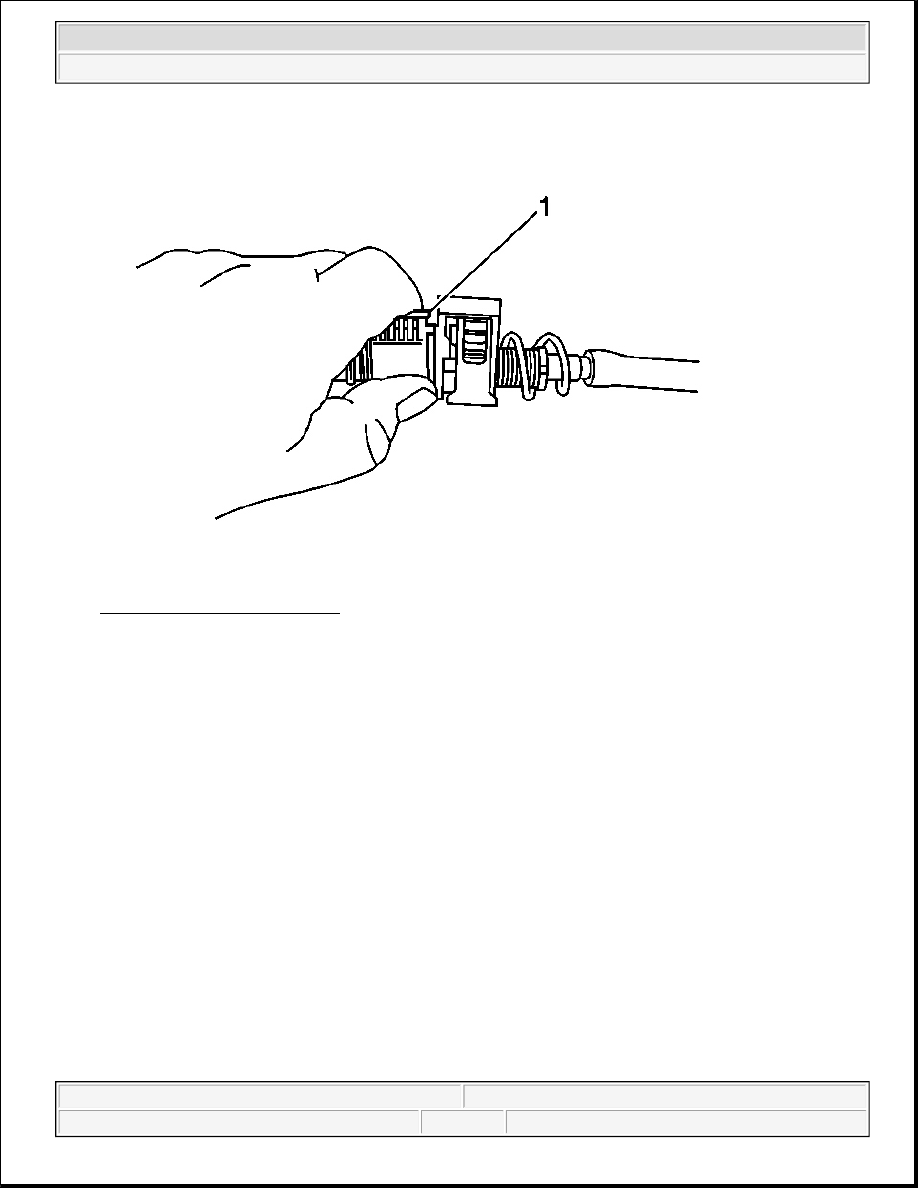

Fig. 35: Releasing White Cover
Courtesy of GENERAL MOTORS CORP.

8. Release the white cover (1).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



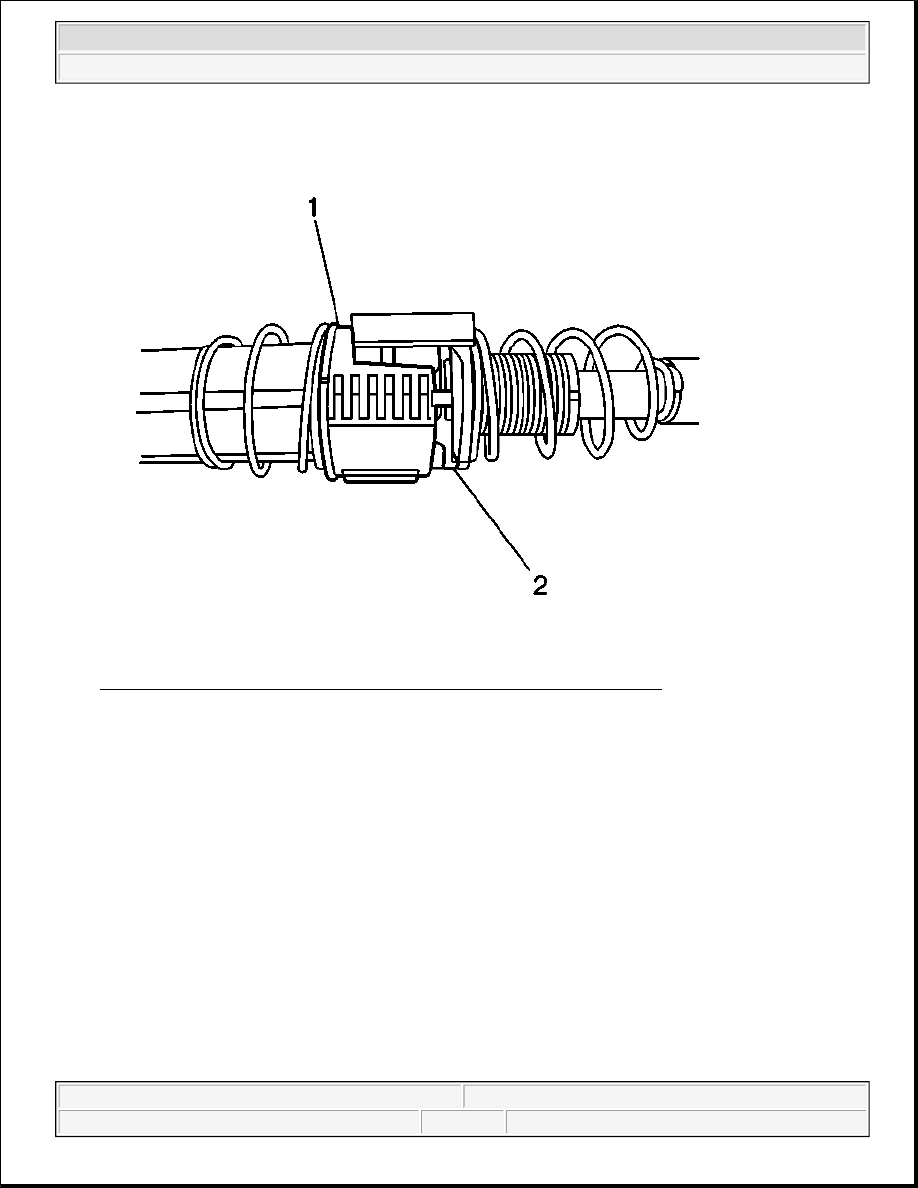

Fig. 36: Placing Steering Column Shift Lever Back Into Park (P) Position
Courtesy of GENERAL MOTORS CORP.

9. Verify the white cover (1) conceals the natural colored lock (2).

10. If the white cover (1) does not conceal the natural colored lock (2), the shift cable must be readjusted.

11. Test the transmission for proper shift operation.

12. If all of the gear positions cannot be achieved, the shift cable must be readjusted.

FLOOR SHIFT CONTROL REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



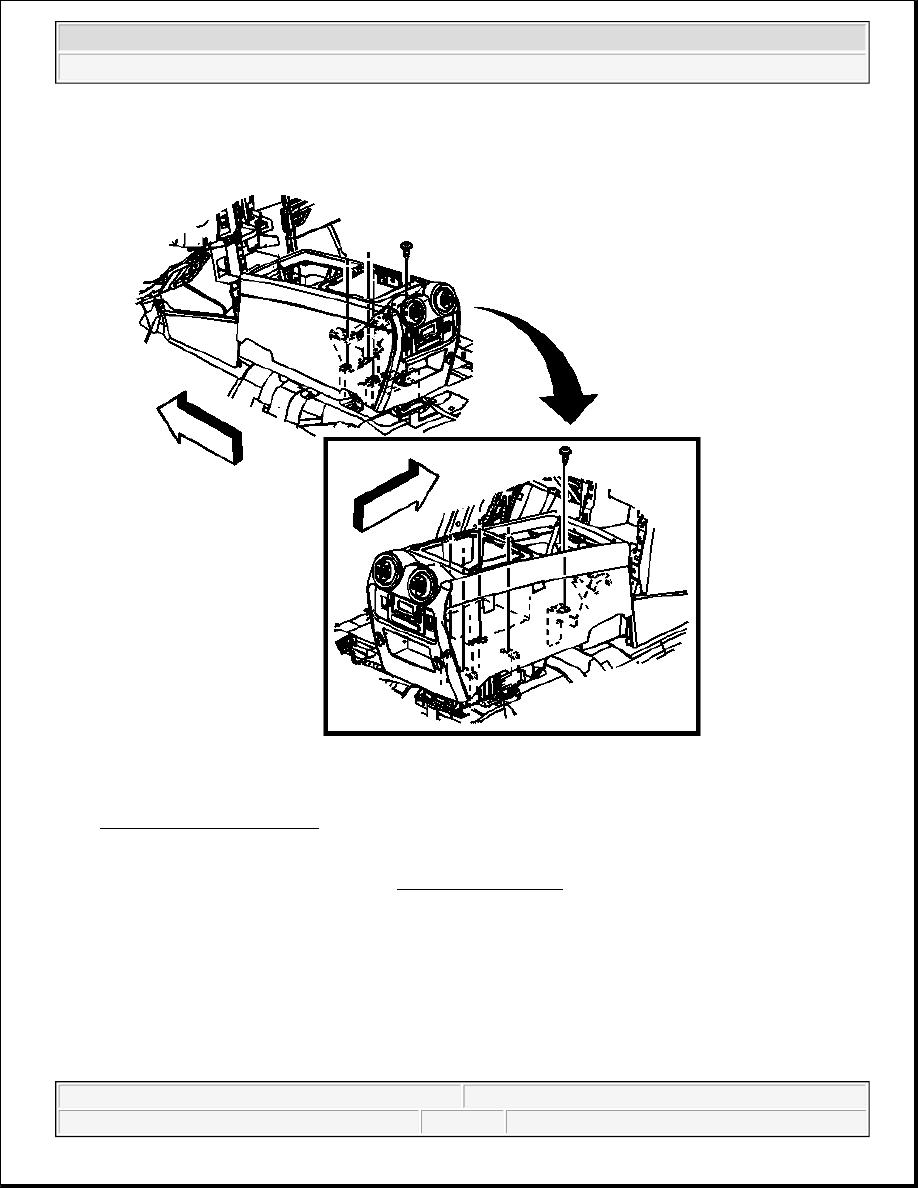

Fig. 37: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

1. Remove the front floor console. Refer to Console Replacement in Instrument Panel, Gauges and

Console.
