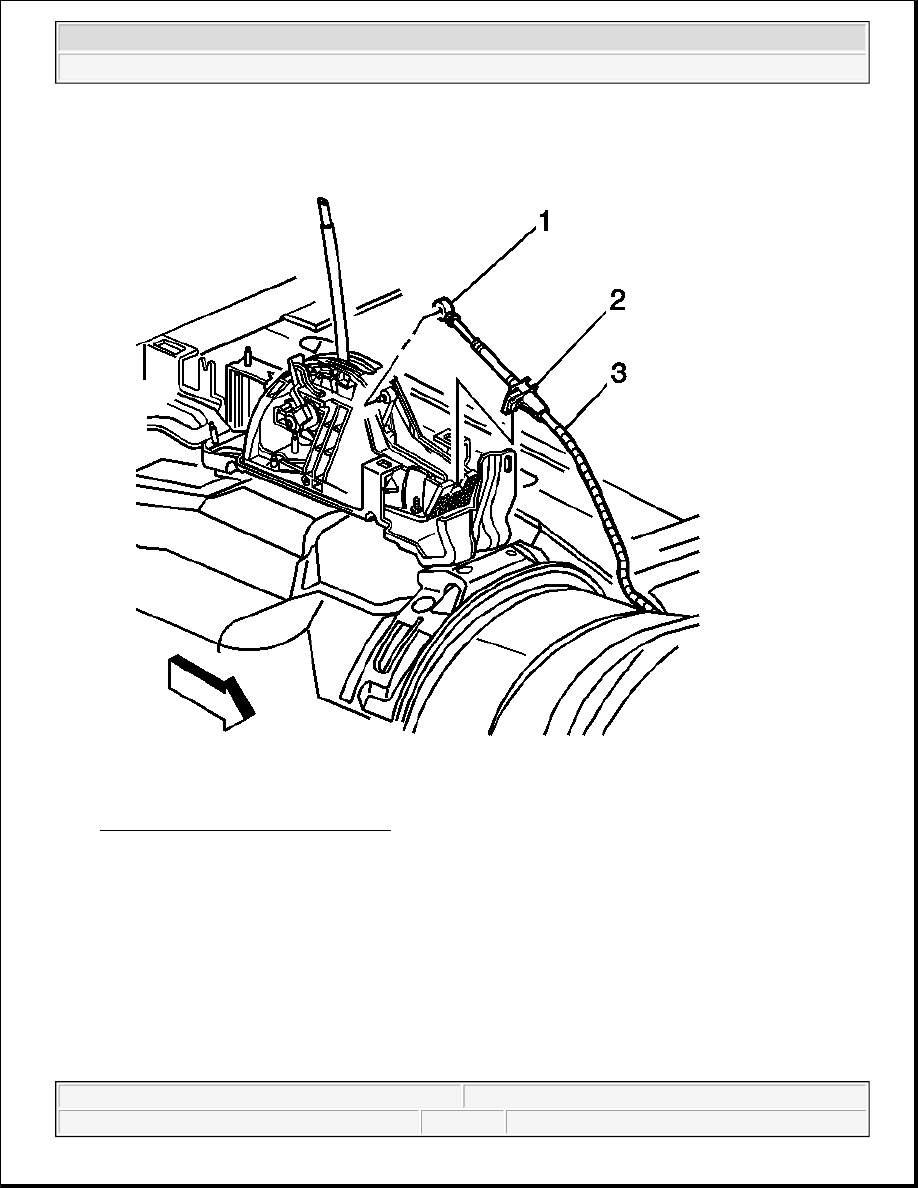

Fig. 38: Shift Control Cable & Shifter
Courtesy of GENERAL MOTORS CORP.

2. Remove the end of the range selector cable (1) from the transmission control ball stud.

3. Remove the range selector cable (2) from the floor shift control.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

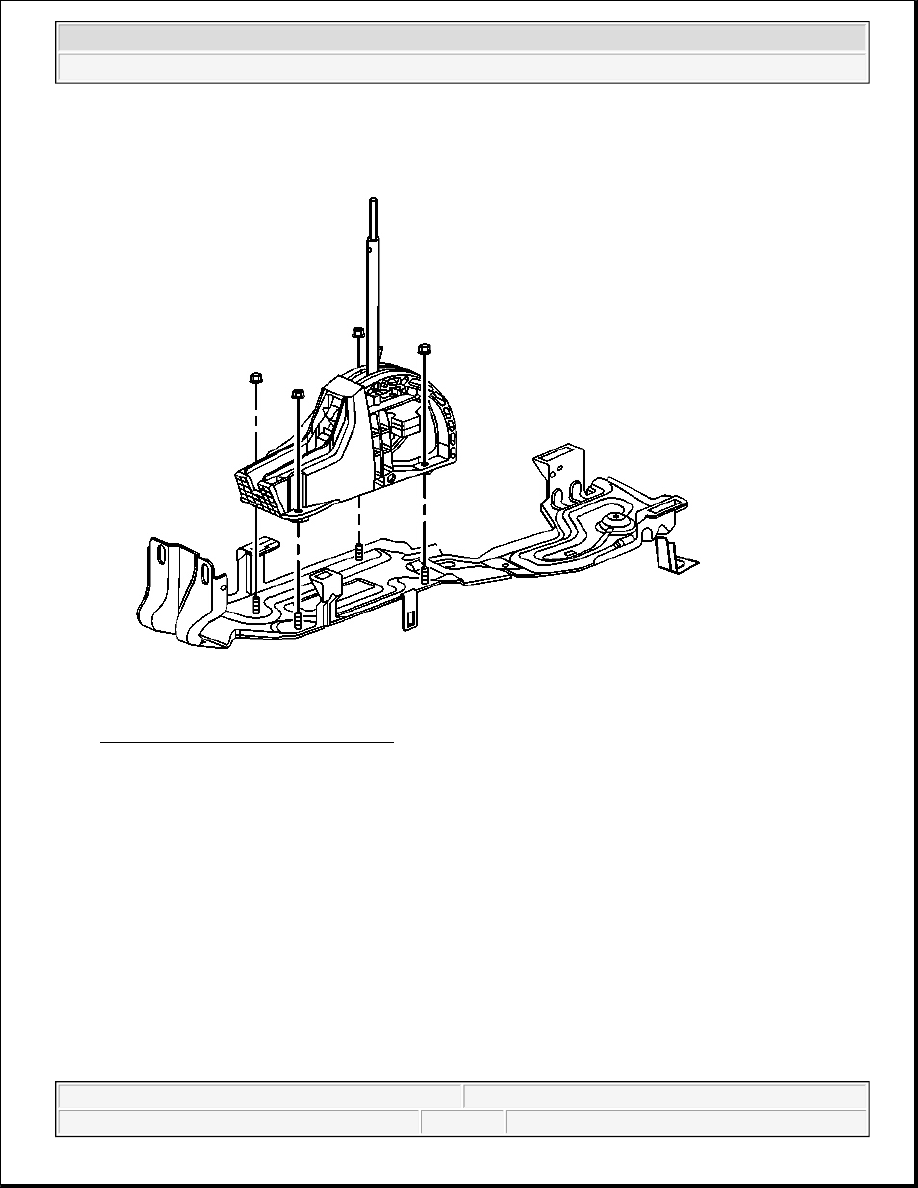

Fig. 39: Transmission Control & Bolts
Courtesy of GENERAL MOTORS CORP.

4. Remove the transmission control bolts.

5. Remove the transmission control.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 40: Transmission Control & Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the transmission control.

2. Install the transmission control bolts.

Tighten: Tighten the transmission control bolts to 25 N.m (18 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 41: Shift Control Cable & Shifter
Courtesy of GENERAL MOTORS CORP.

3. Install the range selector cable (2) to the floor shift control.

4. Install the end of the range selector cable (1) to the transmission control ball stud.
