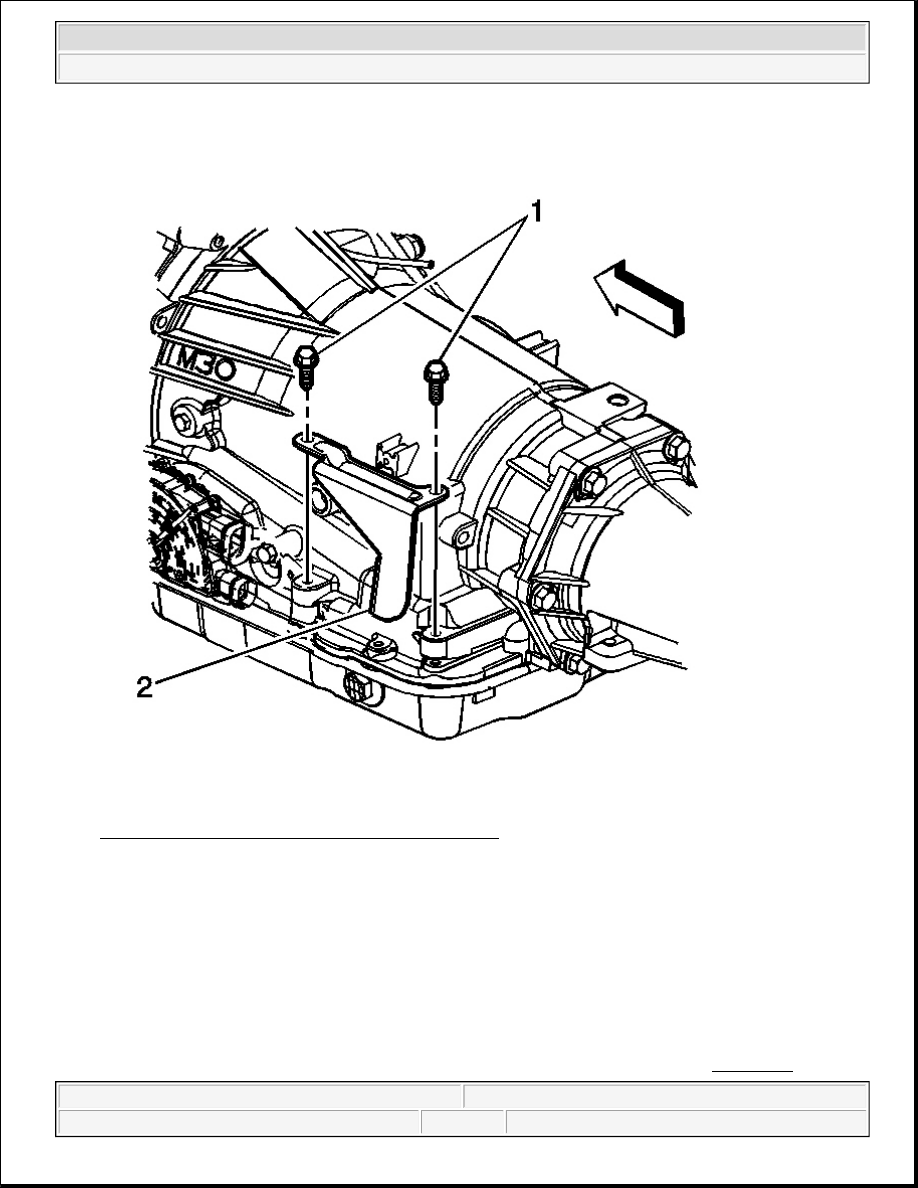

Fig. 30: Positioning Selector Cable Bracket & Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the transmission range selector cable bracket to the vehicle.

2. Install the transmission range selector cable bracket bolts (1).

Tighten: Tighten the bolts to 25 N.m (18 lb ft).

3. Install the transmission range selector cable to the bracket (2) and the lever. Refer to Automatic

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Transmission Range Selector Cable Replacement .

4. Lower the vehicle.

5. Check the vehicle for proper operation. If adjustment of the cable is necessary, refer to Automatic

Transmission Range Selector Cable Adjustment .

AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT

1. Ensure that the steering column shift lever and the transmission manual shaft lever are in the park

position.

2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

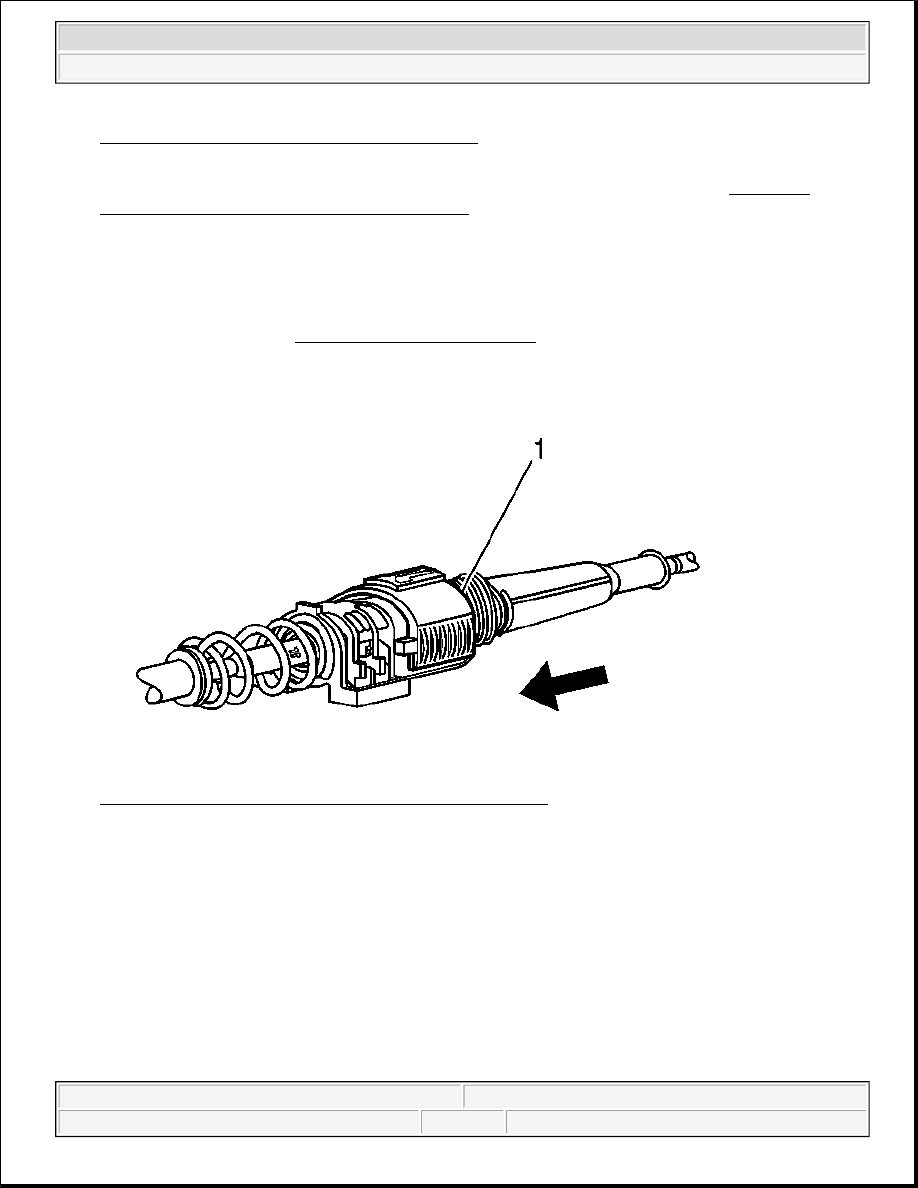

Fig. 31: Pulling White Plastic Cover On Center Connector
Courtesy of GENERAL MOTORS CORP.

3. Pull back the white plastic cover (1) on the center connector.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



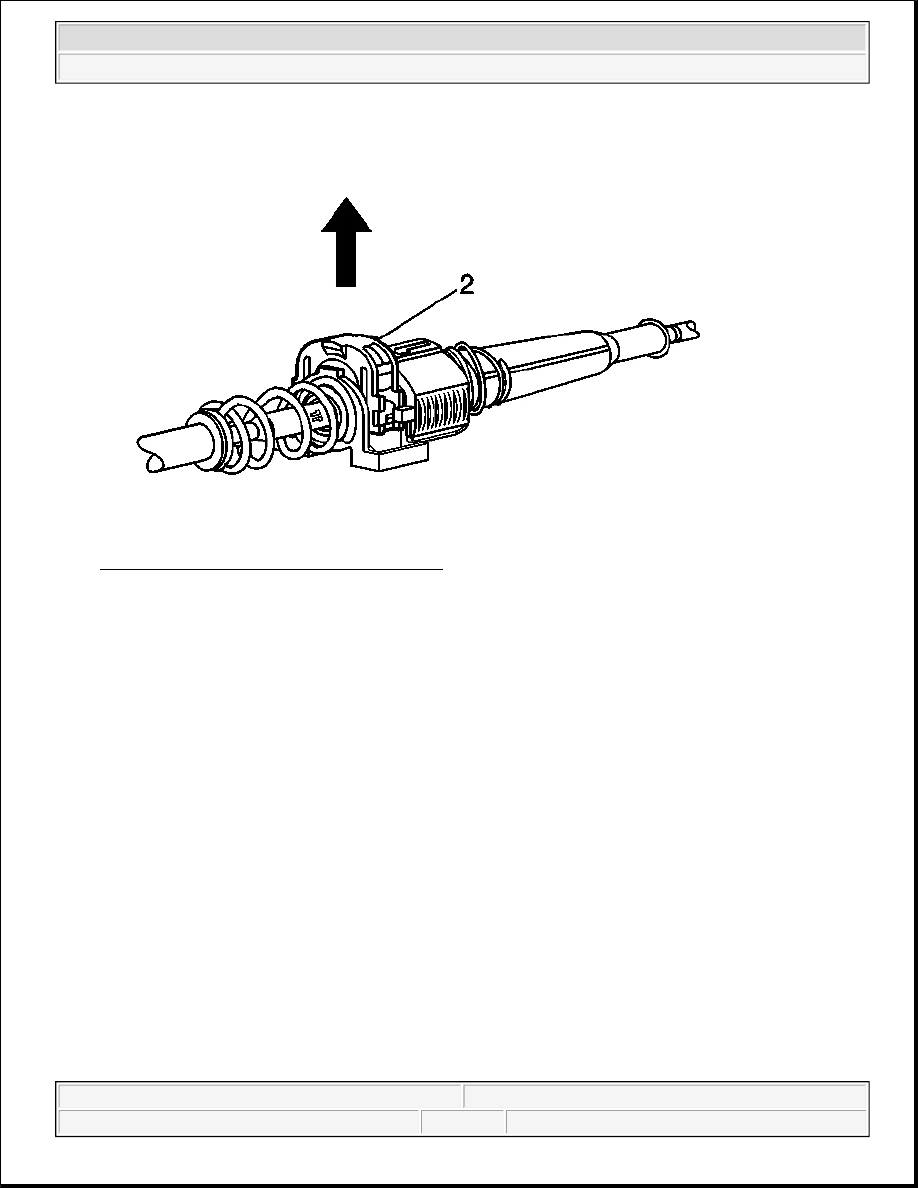

Fig. 32: Pulling Center Tabs Of Lock Button
Courtesy of GENERAL MOTORS CORP.

4. Pull up on the center tabs of the lock button (2).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

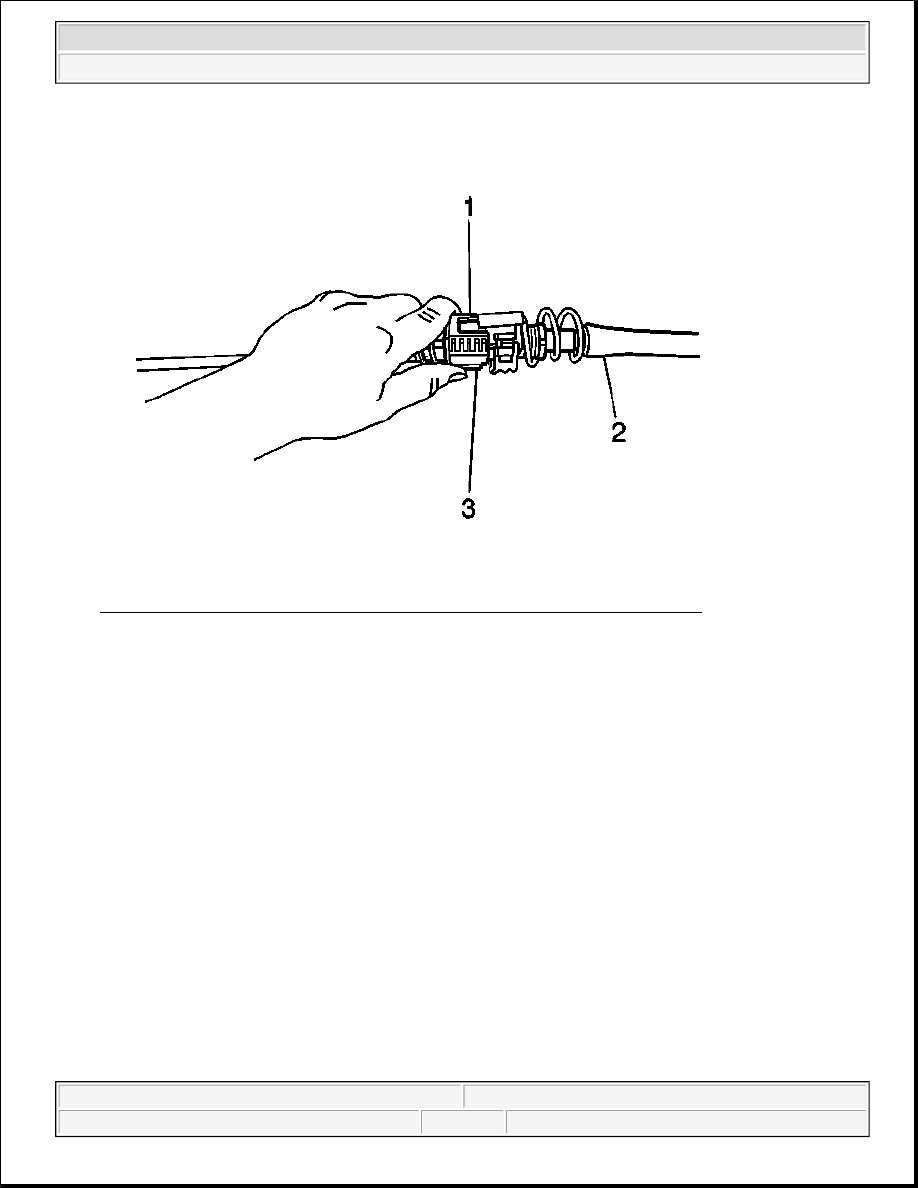

Fig. 33: Releasing Shift Cable End & Pulling White Cover On Shift Cable End
Courtesy of GENERAL MOTORS CORP.

5. Release the shift cable end (2) and allow the blue spring to tension/adjust the shift cable system.

6. Pull the white cover (3) on the shift cable end (1) back.

IMPORTANT: This step must be performed correctly to avoid a misadjusted cable.

Do not grasp the shift cable end (2) during this procedure.
