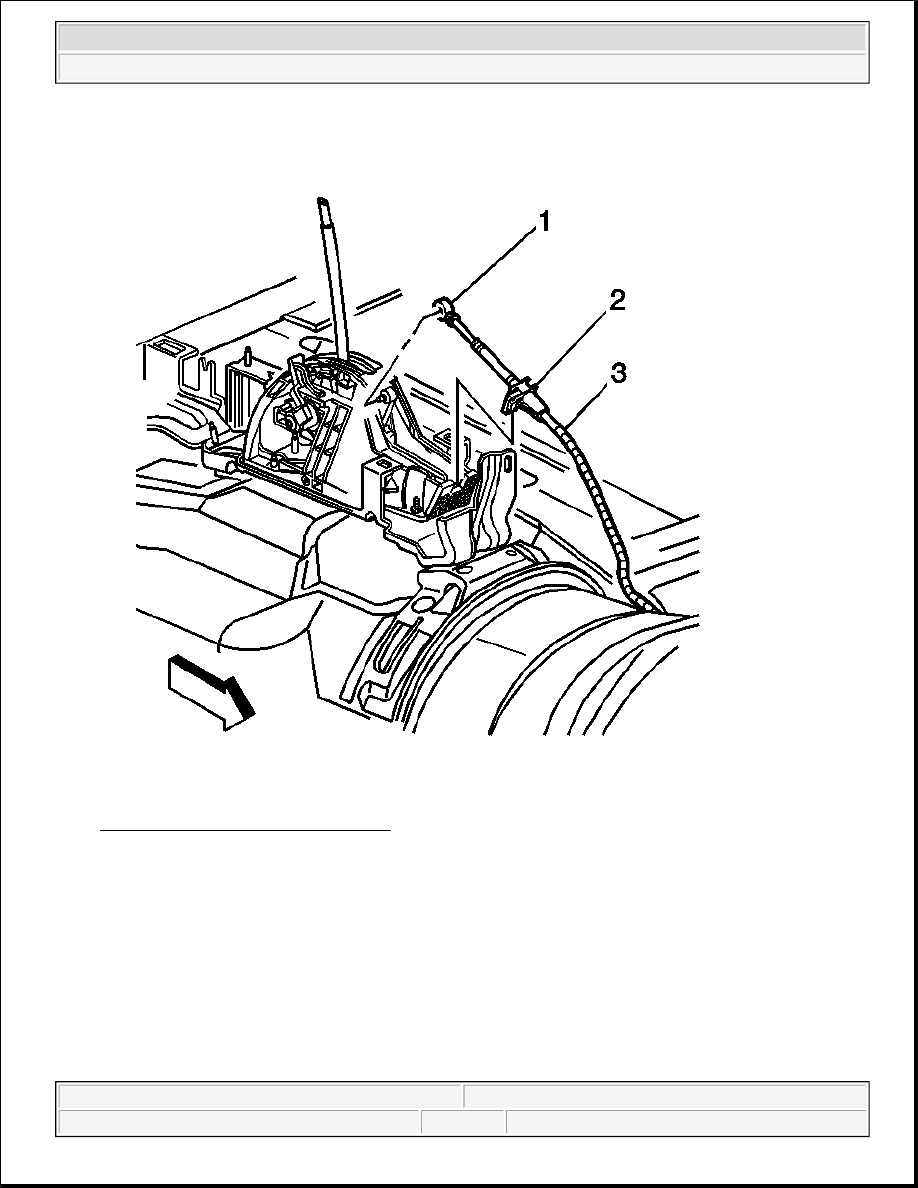

Fig. 26: Shift Control Cable & Shifter
Courtesy of GENERAL MOTORS CORP.

8. Remove the cable end (1) from the floor shift control assembly ball stud.

9. Remove the range selector cable (2) from the floor shift control assembly.

10. Remove the grommet on the shift cable from the floor panel.

11. Remove the range selector cable from the vehicle.

Installation Procedure



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Fig. 27: Shift Control Cable & Shifter
Courtesy of GENERAL MOTORS CORP.

1. Route the cable through the hole in the floor panel.

2. Ensure that the steering column shift lever is in the park position.

3. Install the cable grommet to the floor panel.

4. Install the cable end (1) to the floor shift control assembly ball stud.

5. Install the console. Refer to Console Replacement in Instrument Panel, Gauges and Console.

6. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



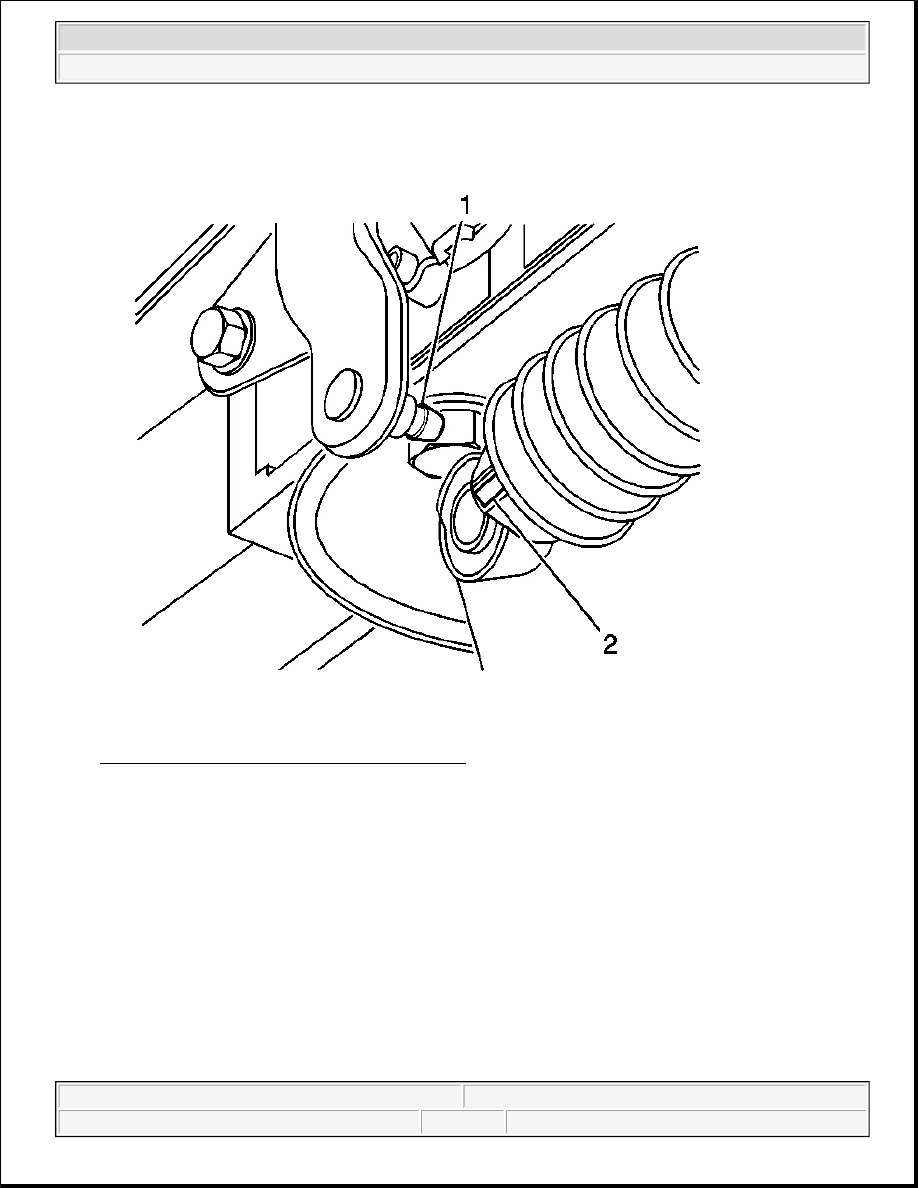

Fig. 28: Aligning & Installing Cable To Bracket
Courtesy of GENERAL MOTORS CORP.

7. Ensure that the transmission manual shaft lever is in the mechanical park position.

8. Install the range selector cable into the bracket at the transmission.

9. Install the cable retaining clip.

10. Install the range selector cable end (2) to the transmission range selector lever ball stud (1).

11. Lower the vehicle.

AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE BRACKET REPLACEMENT

Removal Procedure

1. Apply the parking brake.

2. Shift the transmission into neutral.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

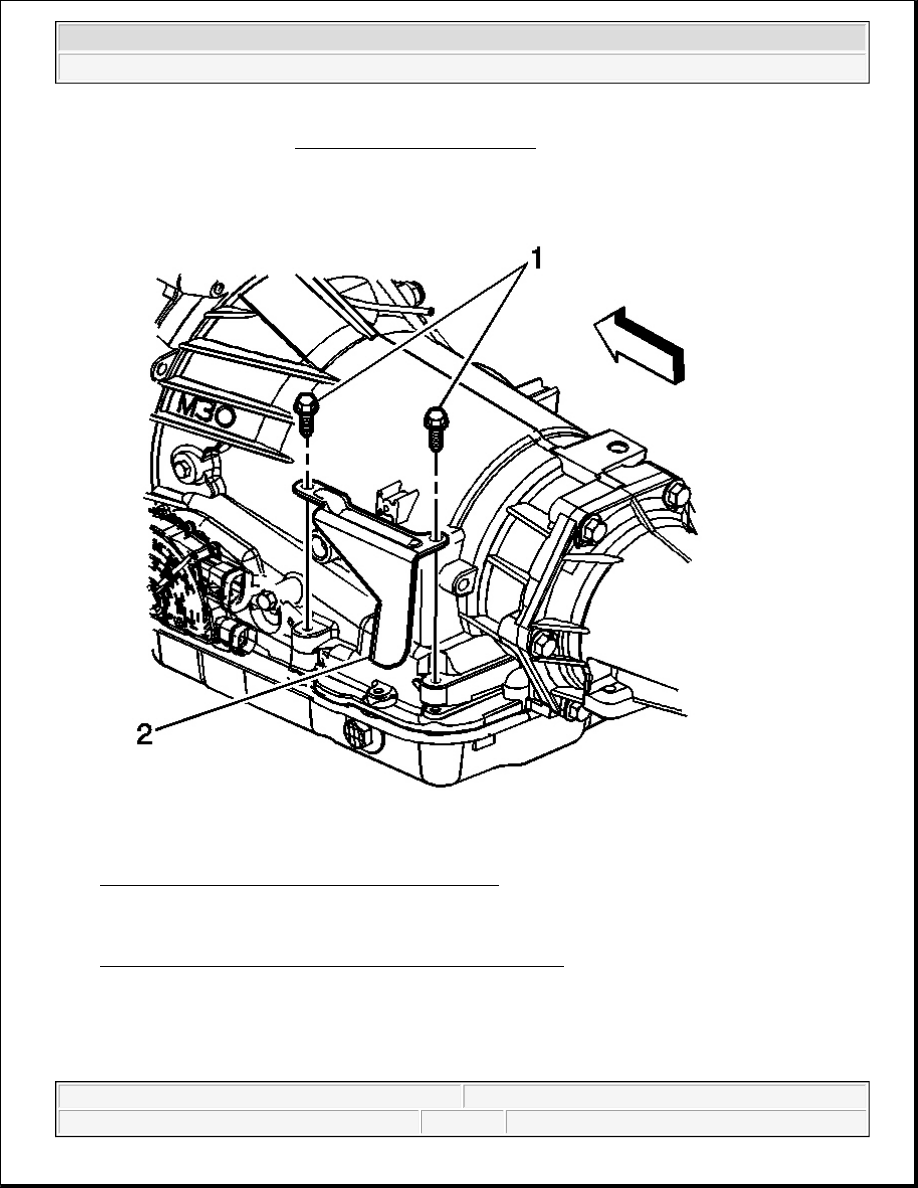

Fig. 29: Positioning Selector Cable Bracket & Cable
Courtesy of GENERAL MOTORS CORP.

4. Disconnect the transmission range selector cable from the shift lever and the bracket (2). Refer to

Automatic Transmission Range Selector Cable Replacement .

5. Remove the bolts (1) securing the transmission range selector cable bracket (2) to the transmission.

6. Remove the transmission range selector cable bracket from the vehicle.

Installation Procedure
