Hummer H2. Manual - part 2237

13

2nd Apply Piston Pin

14

Retainer Ring - 2nd Apply Piston

15

Servo Cushion Spring Retainer

16

Servo Cushion Spring - Outer

17

2nd Apply Piston

18

Oil Seal Ring - 2nd Apply Piston - Outer

19

Oil Seal Ring - 2nd Apply Piston - Inner

20

Servo Piston Housing - Inner

21

O-Ring Seal

22

Servo Apply Pin Spring

23

Servo Apply Pin Washer

24

Retainer Ring - Apply Pin

25

4th Apply Piston

26

Oil Seal Ring - 4th Apply Piston - Outer

27

O-Ring Seal - 2-4 Servo Cover

28

2-4 Servo Cover

29

Servo Cover Retaining Ring

30

Case Extension to Case Seal

31

Case Extension - Model Dependent

32

Case Extension to Case Bolt

33

Case Extension Bushing

34

Case Extension Oil Seal Assembly - Model Dependent

34

Case Extension Oil Seal Assembly - Model Dependent

35

Speed Sensor Retaining Bolt

36

Internal Transmission Speed Sensor

37

O-Ring Seal - ITSS to Case Extension

71

Filter Seal

72

Transmission Oil Filter Assembly - Model Dependent

73

Transmission Oil Pan Gasket

74

Chip Collector Magnet

75

Transmission Oil Pan - Model Dependent

76

Transmission Oil Pan Screw

94

Converter Housing to Case Bolt

95

Oil Cooler Quick Connector - Model Dependent

96

Oil Cooler Quick Connect Clip - Model Dependent

97

Converter Housing Access Hole Plug - Model Dependent

98

Converter Bolt Inspection Plate - Model Dependent

99

Cup D4 Orifice Plug

102

Converter Housing - Model Dependent

103

Main Section Case - Model Dependent

105

Servo Cushion Spring - Inner - Model Dependent



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



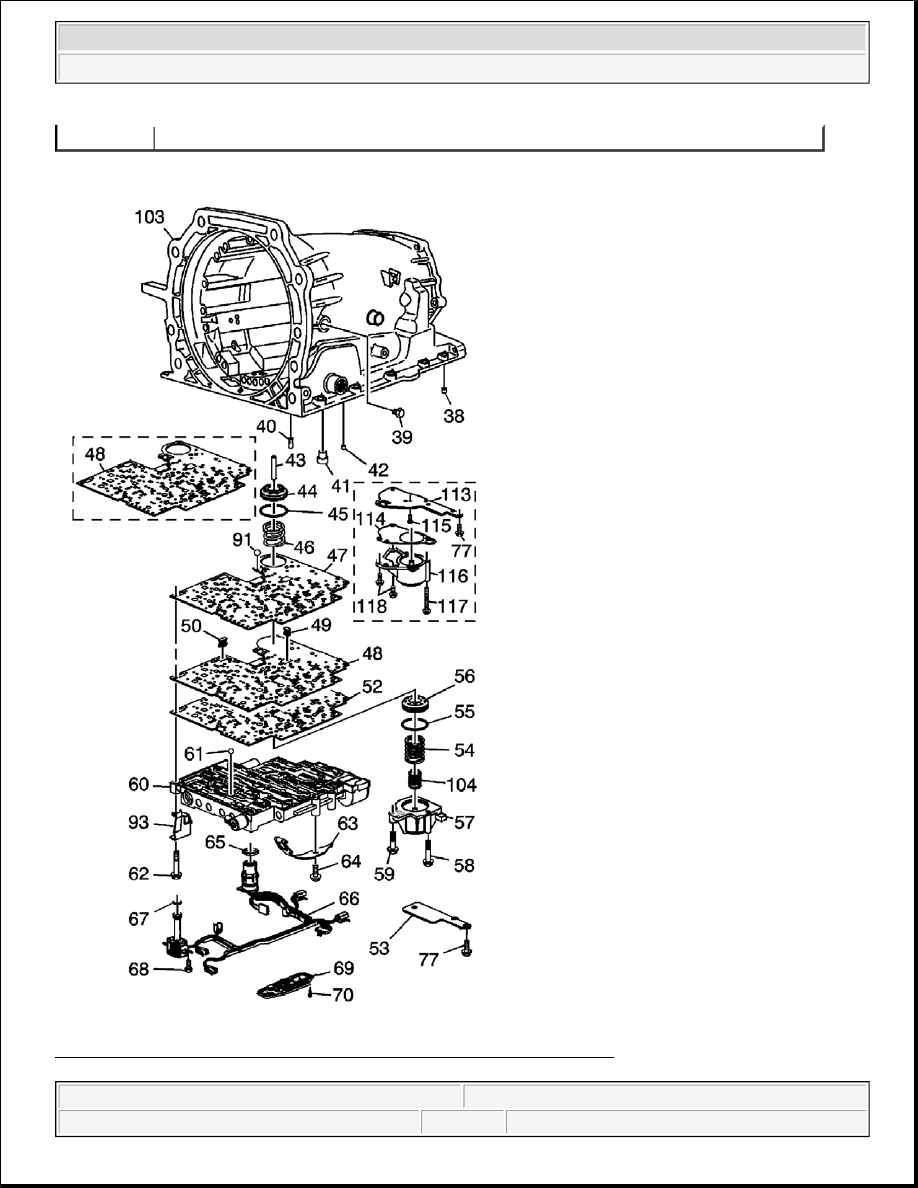

Fig. 11: Case and Associated Parts Component Views (2 of 2) - M30/M32
Courtesy of GENERAL MOTORS CORP.

107

A/T Oil Pan Hex Head Plug Assembly - Model Dependent



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Callouts For Fig. 11

Callout

Component Name

38

Transmission Case Plug - Accumulator Bleed

39

Pressure Plug

40

Third Accumulator (#7) Retainer and Ball Assembly

41

Band Anchor Pin

42

Retainer and Ball Assembly - Double Orifice (#10)

43

Accumulator Piston Pin

44

3-4 Accumulator Piston

45

Oil Seal Ring - 3-4 Accumulator Piston

46

3-4 Accumulator Spring - Model Dependent

47

Spacer Plate to Case Gasket

48

Valve Body Spacer Plate

48

Valve Body Spacer Plate

49

Shift Solenoids Screen

50

Pressure Control Solenoid Screen

52

Spacer Plate to Valve Body Gasket

53

Spacer Plate Support Plate

54

1-2 Accumulator Spring - Outer

55

Oil Seal Ring - 1-2 Accumulator

56

1-2 Accumulator Piston

57

1-2 Accumulator Cover and Pin Assembly - Model Dependent

58

Accumulator Cover Bolt

59

Accumulator Cover Bolt

60

Control Body Valve Assembly - Model Dependent

61

Checkball (#2, 3, 4, 5, 6, 8, 12)

62

Valve Body Bolt

63

Manual Detent Spring Assembly

64

Manual Detent Spring Bolt

65

Wiring Harness Pass-Through Connector O-Ring Seal

66

Wiring Harness Solenoid Assembly - Model Dependent

67

O-Ring Seal - Solenoid

68

Hex Washer Head Bolt - Solenoid

69

Transmission Fluid Pressure Manual Valve Position Switch Assembly

70

Pressure Switch Assembly Bolt

77

Spacer Plate Support Bolt

77

Spacer Plate Support Bolt

91

Number 1 Checkball

93

Dipstick Stop Bracket - Model Dependent

103

Main Section Case - Model Dependent

104

1-2 Accumulator Spring - Inner



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



113

Spacer Plate Support Plate - Colorado/Canyon

114

Accumulator Gasket - Colorado/Canyon

115

Accumulator Bolt - Colorado/Canyon

116

Accumulator Cover - Colorado/Canyon

117

Accumulator Bolt - Colorado/Canyon

118

Accumulator Bolt - Colorado/Canyon
