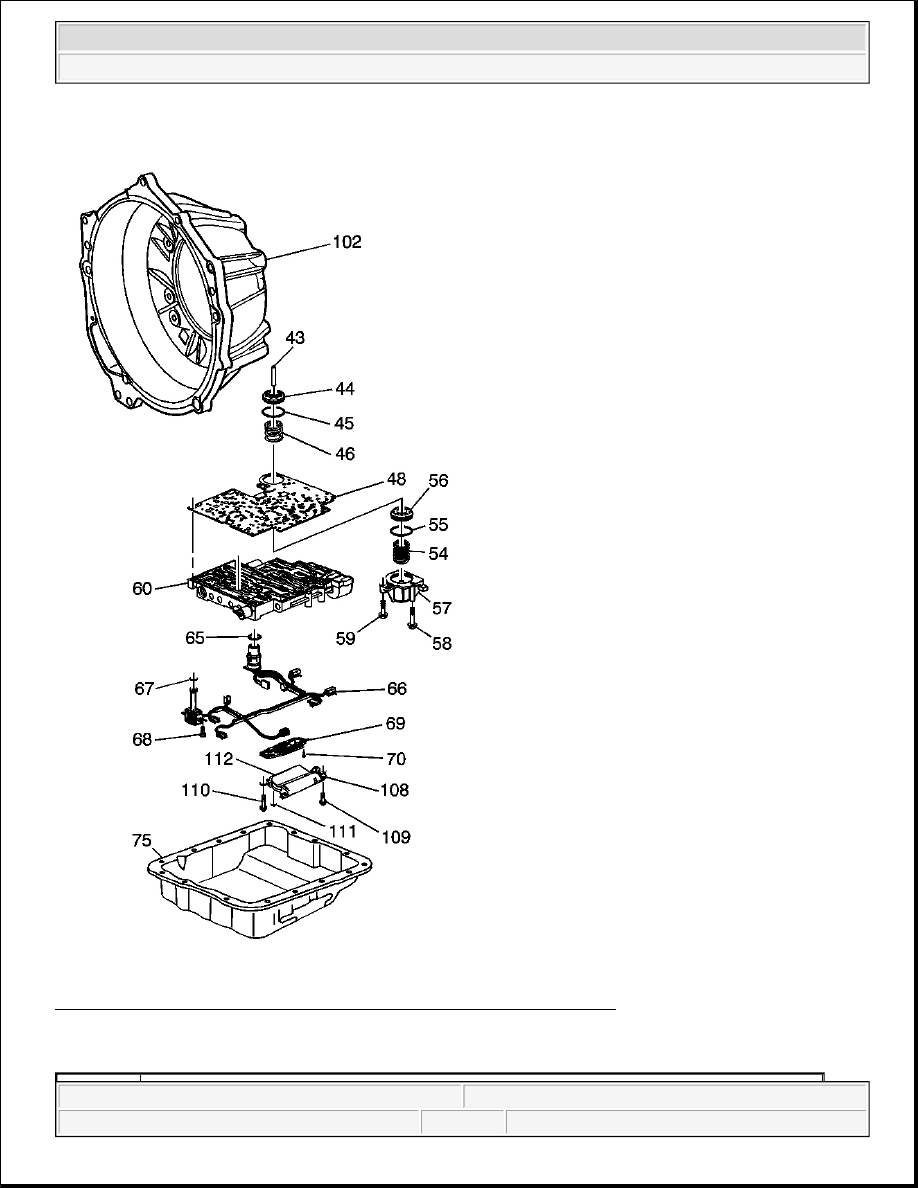

Fig. 12: Case and Associated Parts Component Views (2 of 2) - M33 Only
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 12



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



Callout

Component Name

43

Accumulator Piston Pin

44

3-4 Accumulator Piston

45

Oil Seal Ring - 3-4 Accumulator Piston

46

3-4 Accumulator Spring - Model Dependent

48

Valve Body Spacer Plate with Bonded Gasket

54

1-2 Accumulator Spring - Outer

55

Oil Seal Ring - 1-2 Accumulator

56

1-2 Accumulator Piston

57

1-2 Accumulator Cover and Pin Assembly

58

Accumulator Cover Bolt

59

Accumulator Cover Bolt

60

Control Body Valve Assembly - Model Dependent

65

Wiring Harness Pass-through Connector O-Ring Seal

66

Wiring Harness Solenoid Assembly - Model Dependent

67

O-Ring Seal - Solenoid

68

Hex Washer Head Bolt - Solenoid

69

Transmission Fluid Pressure Manual Valve Position Switch Assembly

70

Pressure Switch Assembly Bolt

75

Transmission Oil Pan

102

Converter Housing

108

Secondary Fluid Pump Assembly

109

Secondary Fluid Pump Bolts

110

Secondary Fluid Pump Bolt

111

Filter Retainer

112

Secondary Fluid Pump Filter



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



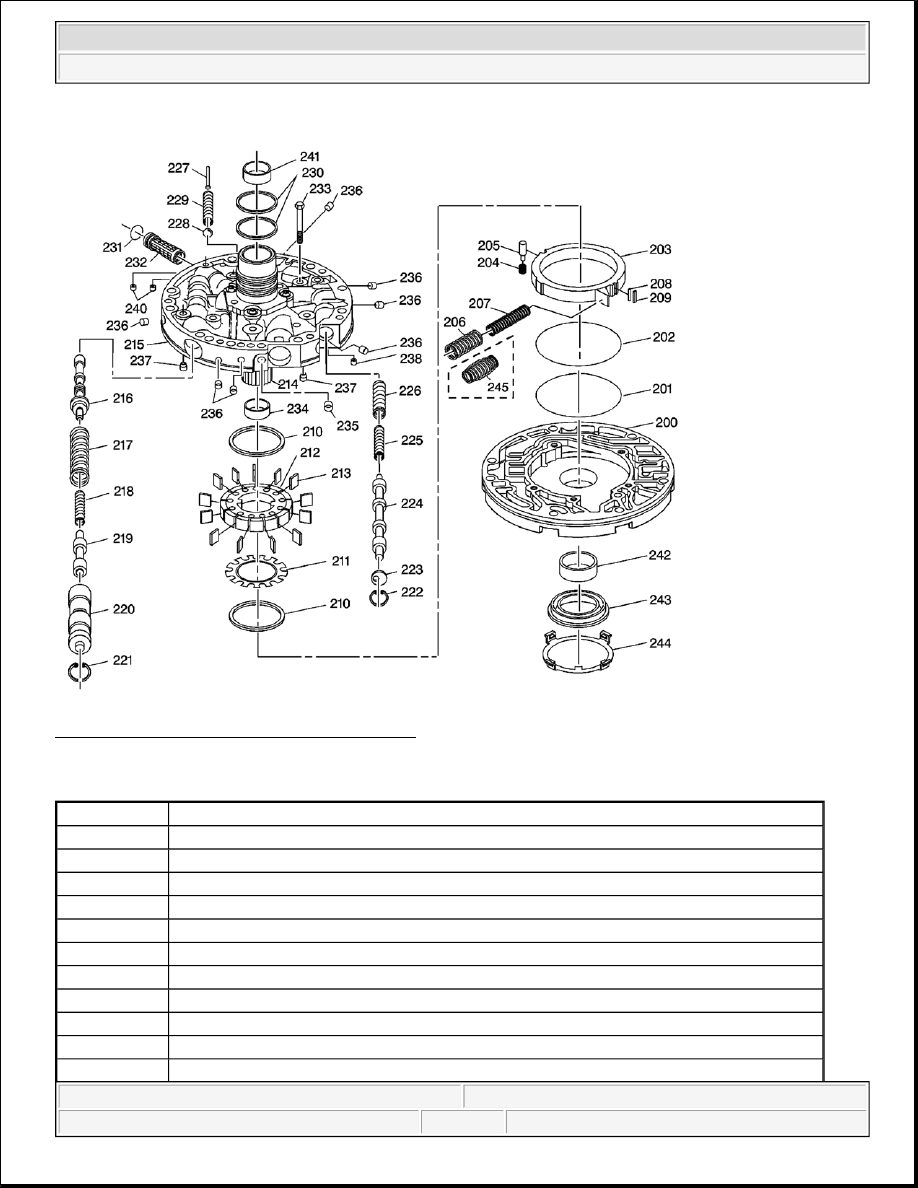

Fig. 13: Oil Pump Assembly Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 13

Callout

Component Name

200

Pump Body

201

Oil Seal Ring - Slide to Wear Plate

202

O-Ring Seal - Slide Seal Back-Up

203

Pump Slide

204

Pivot Pin Spring

205

Pivot Slide Pin

206

Pump Slide Spring - Outer

207

Pump Slide Spring - Inner

208

Pump Slide Seal Support

209

Pump Slide Seal

210

Pump Vane Ring



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



210

Pump Vane Ring

211

Rotor Guide

212

Oil Pump Rotor

213

Pump Vane

214

Stator Shaft

215

Pump Cover

216

Pressure Regulator Valve

217

Pressure Regulator Valve Spring

218

Pressure Regulator Isolator Spring

219

Reverse Boost Valve

220

Reverse Boost Valve Sleeve

221

Oil Pump Reverse Boost Valve Retaining Ring

222

Oil Pump Converter Clutch Valve Retaining Ring

223

Stop Valve

224

Converter Clutch Valve

225

Converter Clutch Valve Spring - Inner

226

Converter Clutch Valve Spring - Outer

227

Pressure Relief Bolt Rivet

228

Pressure Relief Ball

229

Pressure Relief Spring

230

Oil Seal Ring - Stator Shaft

231

Oil Pump Cover Screen Seal

232

Oil Pump Cover Screen

233

Bolt M8 X 1.25 X 40 - Cover to Body

234

Stator Shaft Bushing - Front

235

Oil Pump Cover Plug - FWD Clutch Feed

236

Oil Pump Cover Plug

236

Oil Pump Cover Plug

236

Oil Pump Cover Plug

236

Oil Pump Cover Plug

236

Oil Pump Cover Plug

236

Oil Pump Cover Plug

237

Check Valve Retainer and Ball Assembly

237

Check Valve Retainer and Ball Assembly

238

Converter Clutch Signal Orifice - Cup Plug

240

Cup Orifice Plug

241

Stator Shaft Bushing - Rear

242

Pump Body Bushing

243

Oil Seal Assembly

244

Front Helix Retainer

245

A/T Fluid Pump Slide Outer Spring
