Hummer H2. Manual - part 2236

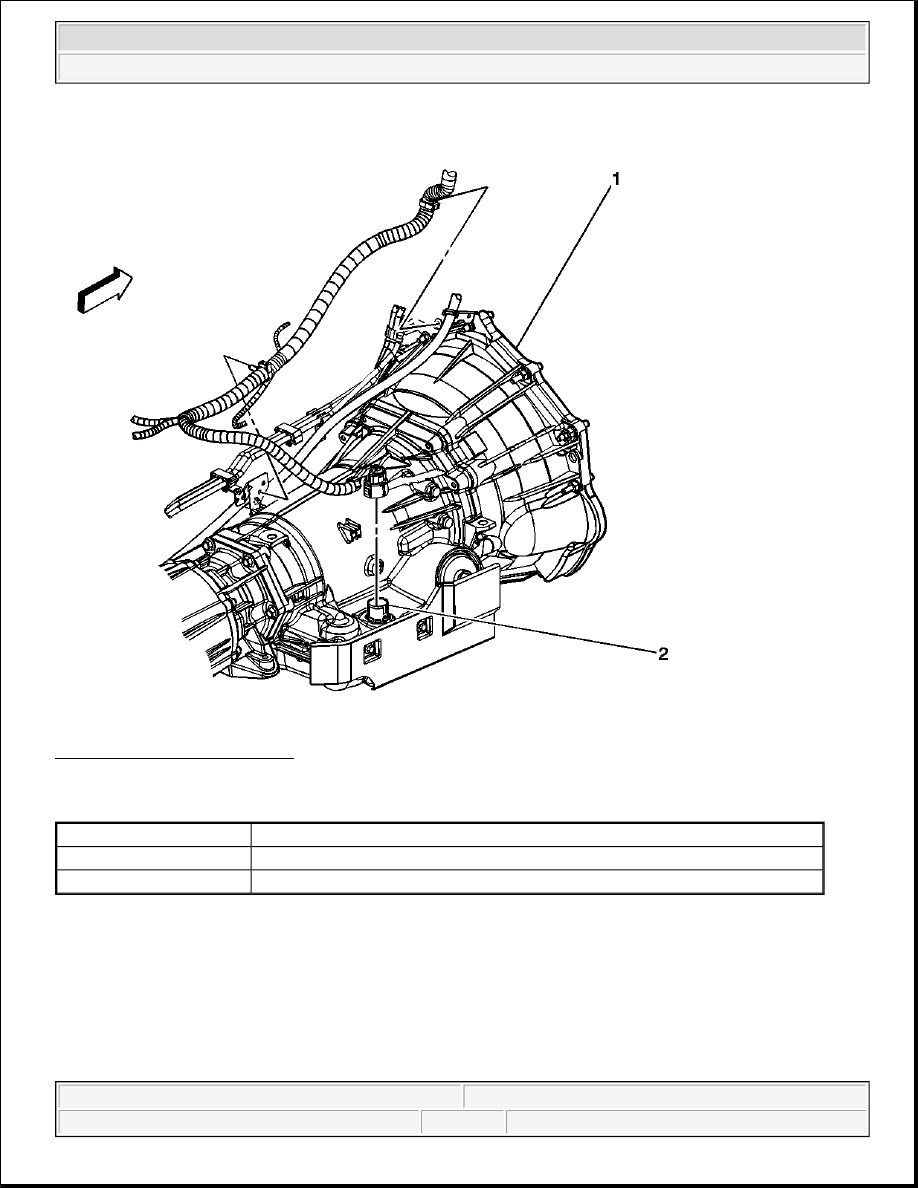

Fig. 7: C175 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 7

Callout

Component Name

1

Automatic Transmission

2

C175



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



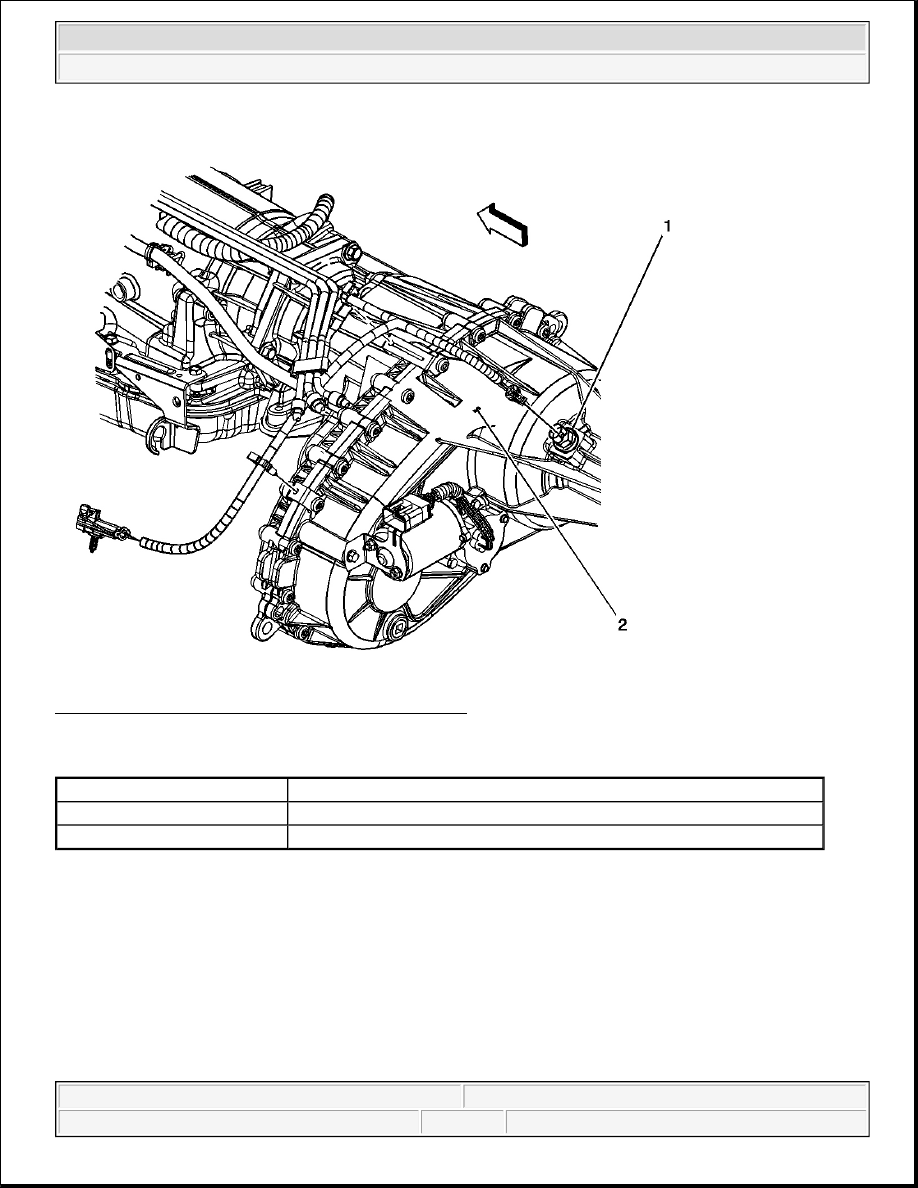

Fig. 8: Vehicle Speed Sensor (VSS) Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 8

Callout

Component Name

1

VSS Sensor

2

Transfer Case



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



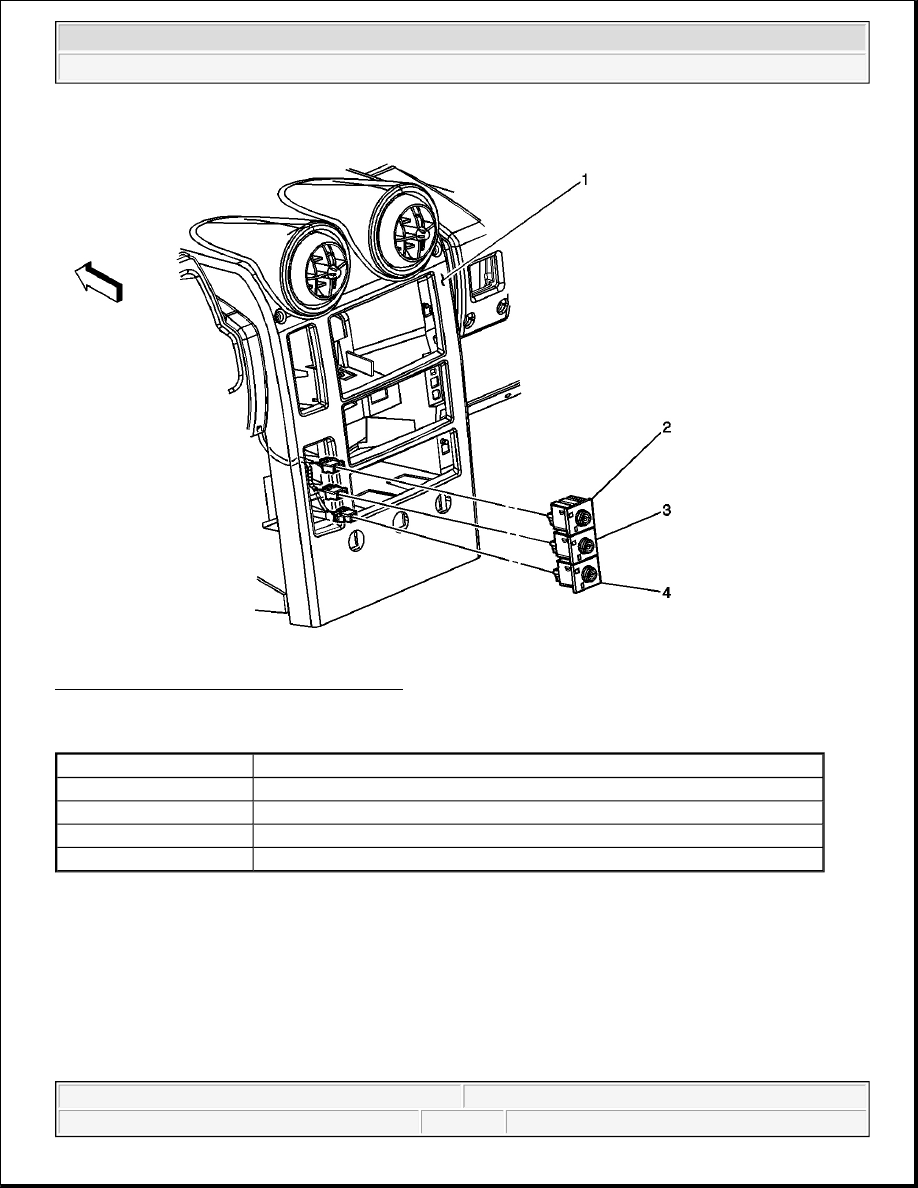

Fig. 9: Ride Height Switch Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 9

DISASSEMBLED VIEWS

Callout

Component Name

1

IP Compartment

2

Traction Control Switch

3

Tow/Haul Switch

4

Ride Height Switch



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



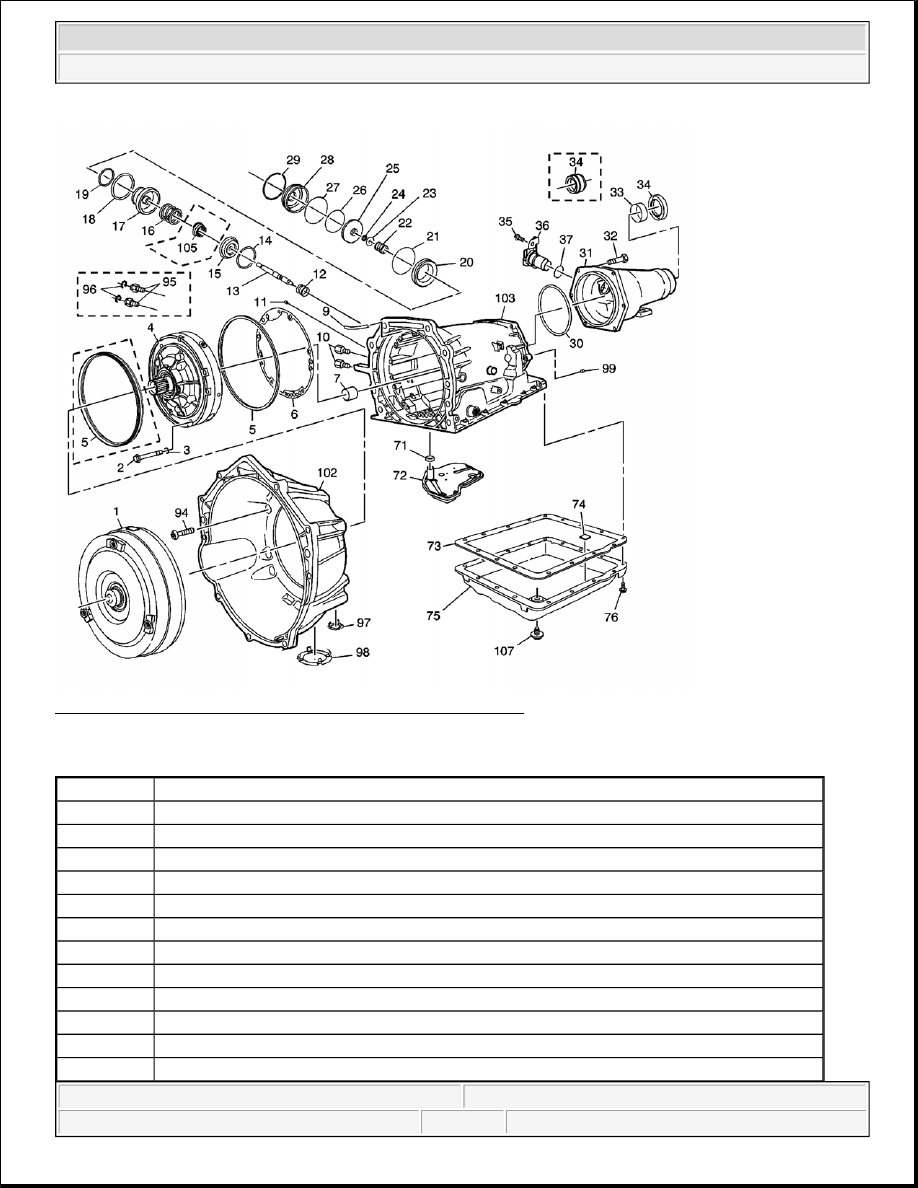

Fig. 10: Case and Associated Parts Component Views (1 of 2)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

1

Torque Converter Assembly - Model Dependent On Size

2

Pump to Case Bolt

3

Pump to Case Bolt O-Ring

4

Oil Pump Assembly

5

A/T Fluid Pump Seal - Pump to Case - Model Dependent

5

A/T Fluid Pump Seal - Pump to Case - Model Dependent

6

Pump Cover to Case Gasket

7

Case Bushing

9

Transmission Vent Assembly

10

Oil Cooler Pipe Connector - Model Dependent

11

Case Servo Plug

12

Servo Return Spring



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
