Hummer H2. Manual - part 2235

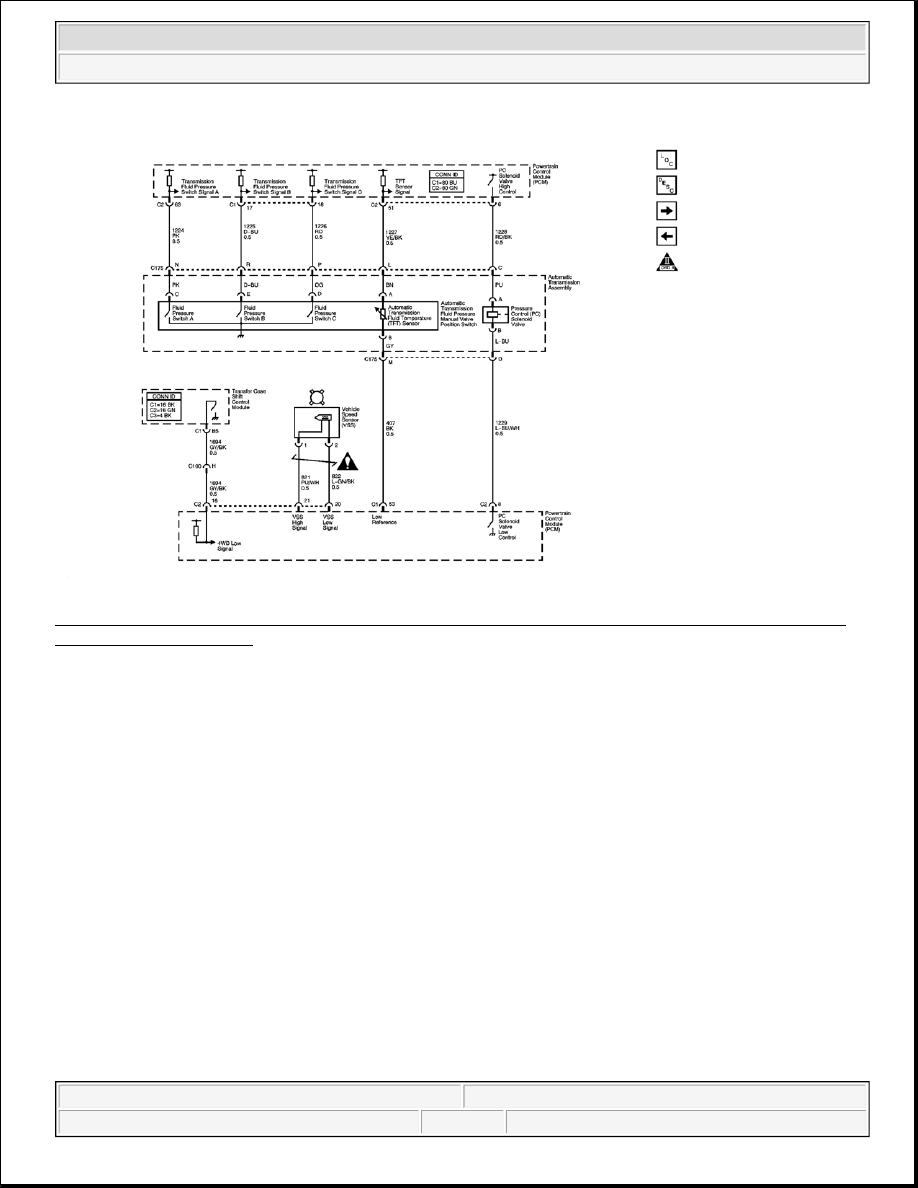

Fig. 3: Fluid Pressure Control Switch, TFT Sensor, PC Solenoid Valve, Transfer Case Control Module,
and Vehicle Speed Sensor
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



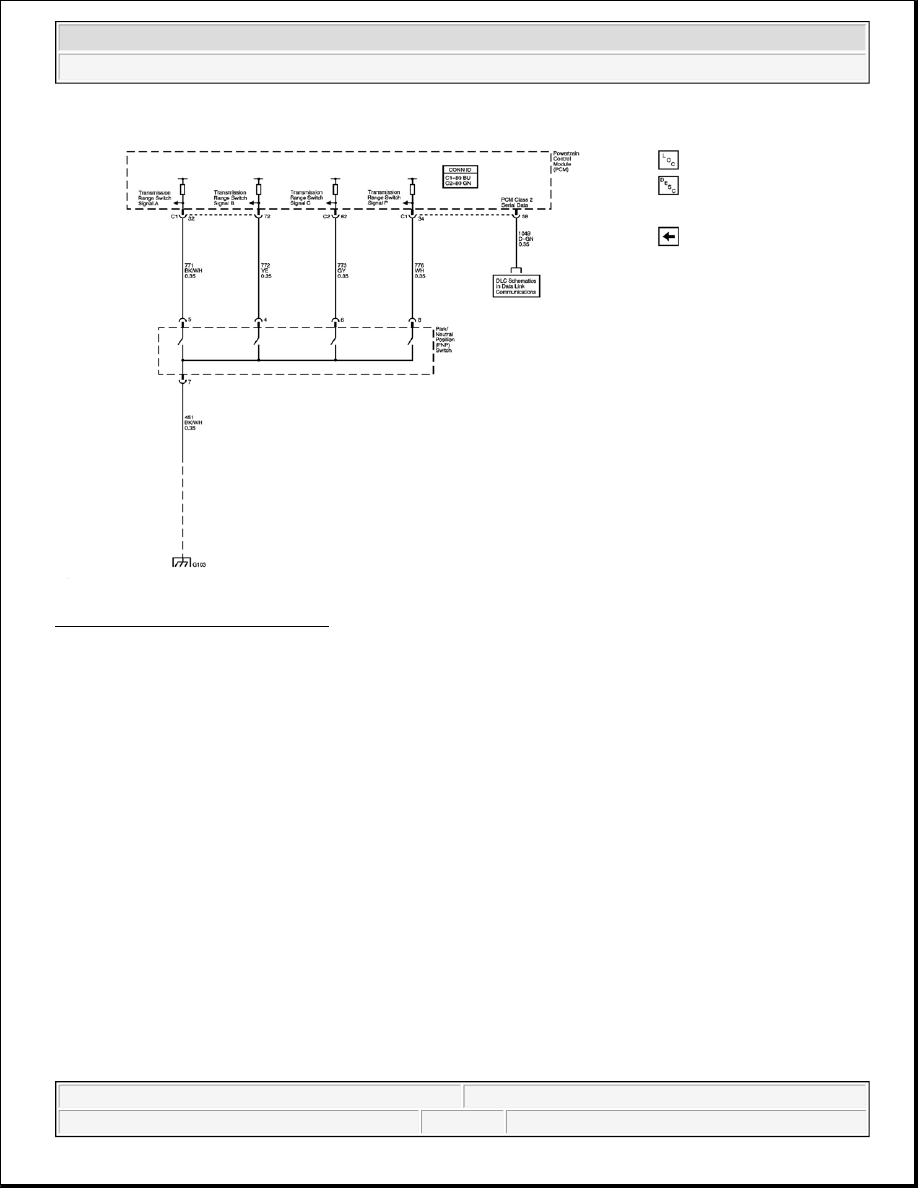

Fig. 4: Transmission Range Display
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

AUTOMATIC TRANSMISSION ELECTRONIC COMPONENT VIEWS



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



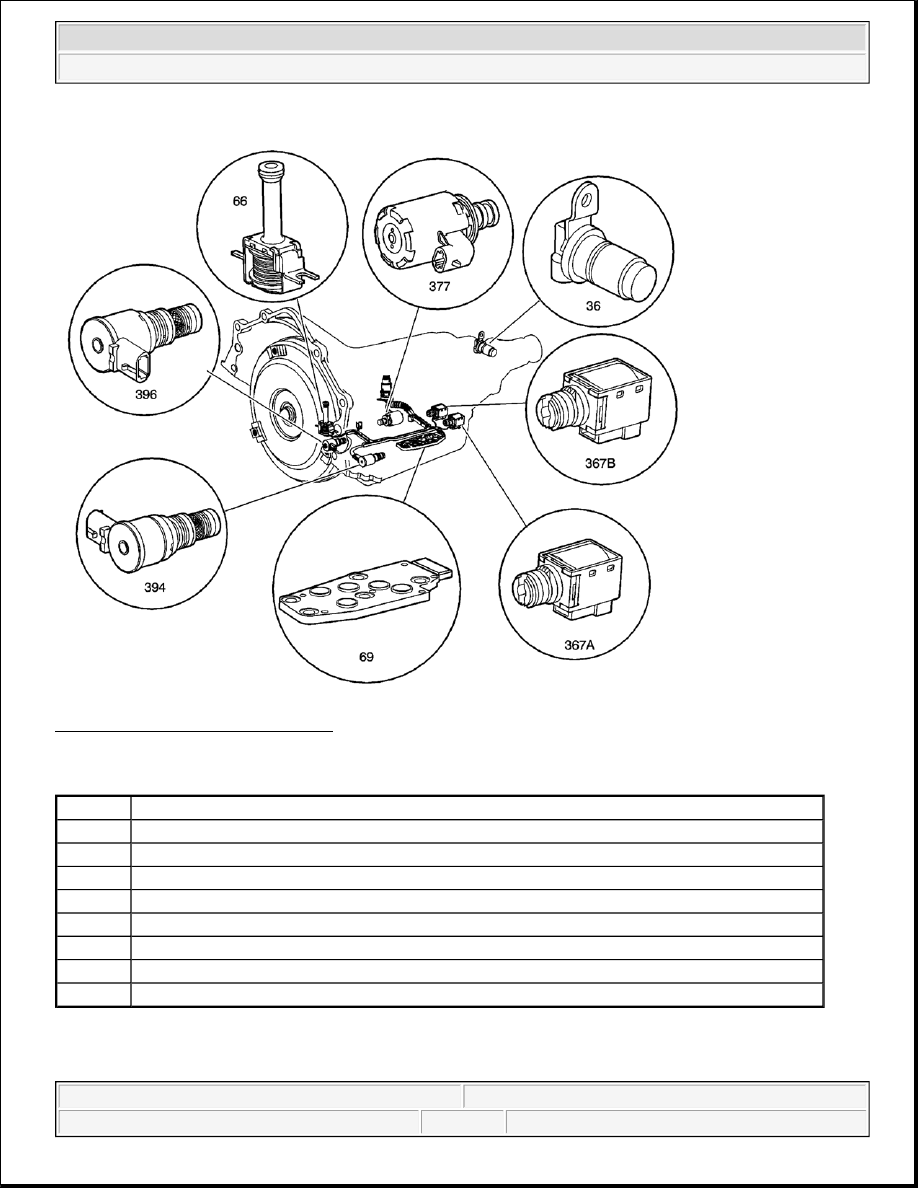

Fig. 5: Electronic Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

Callout

Component Name

36

Vehicle Speed Sensor (VSS)

66

Torque Converter Clutch (TCC) Solenoid Valve

69

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch

367a

1-2 Shift Solenoid (SS) Valve

367b

2-3 Shift Solenoid (SS) Valve

377

Pressure Control (PC) Solenoid Valve

394

3-2 Shift Solenoid (SS) Valve Assembly

396

Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2



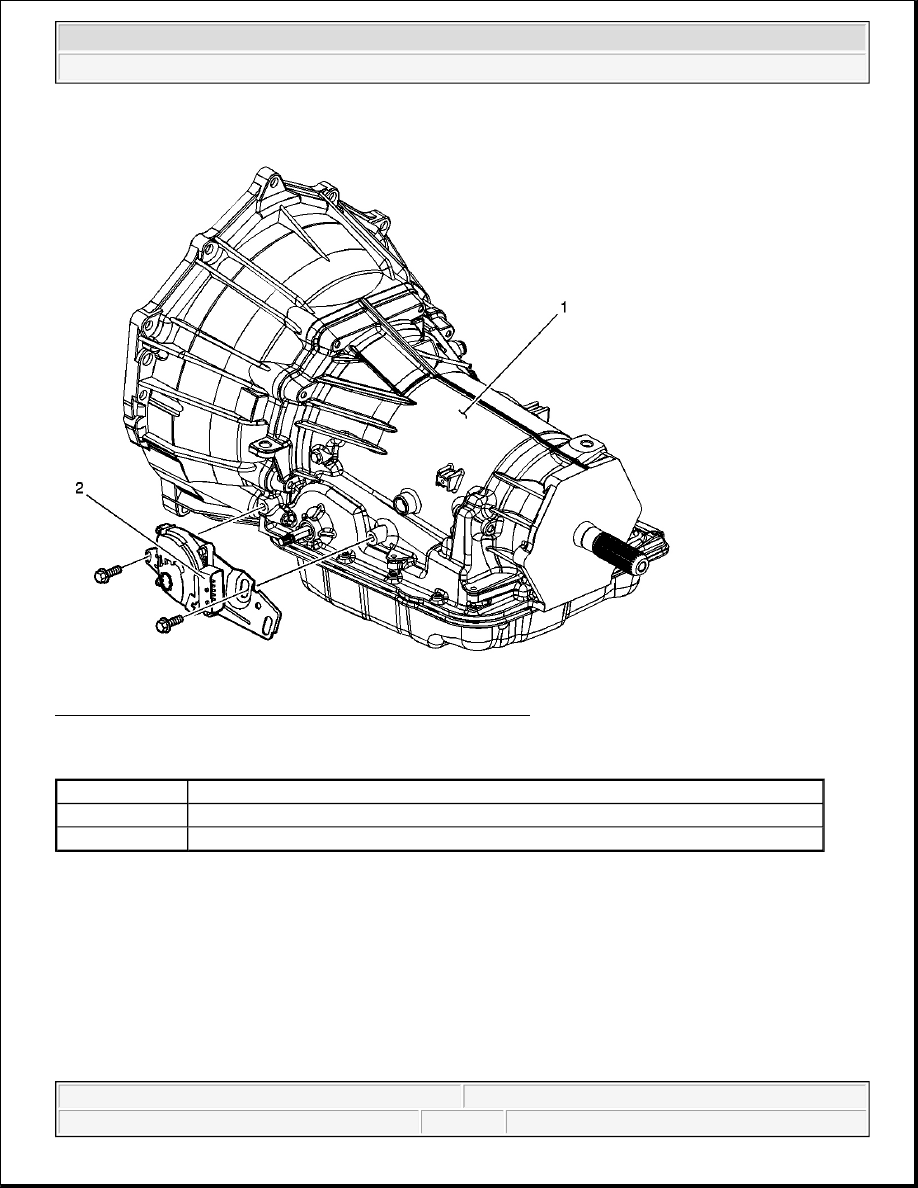

Fig. 6: Park Neutral Position (PNP) Switch Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 6

Callout

Component Name

1

Automatic Transmission 4L60-E/4L65-E

2

Park/Neutral Position (PNP) Switch



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
