13. Lower the vehicle.

STABILIZER SHAFT LINK REPLACEMENT

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

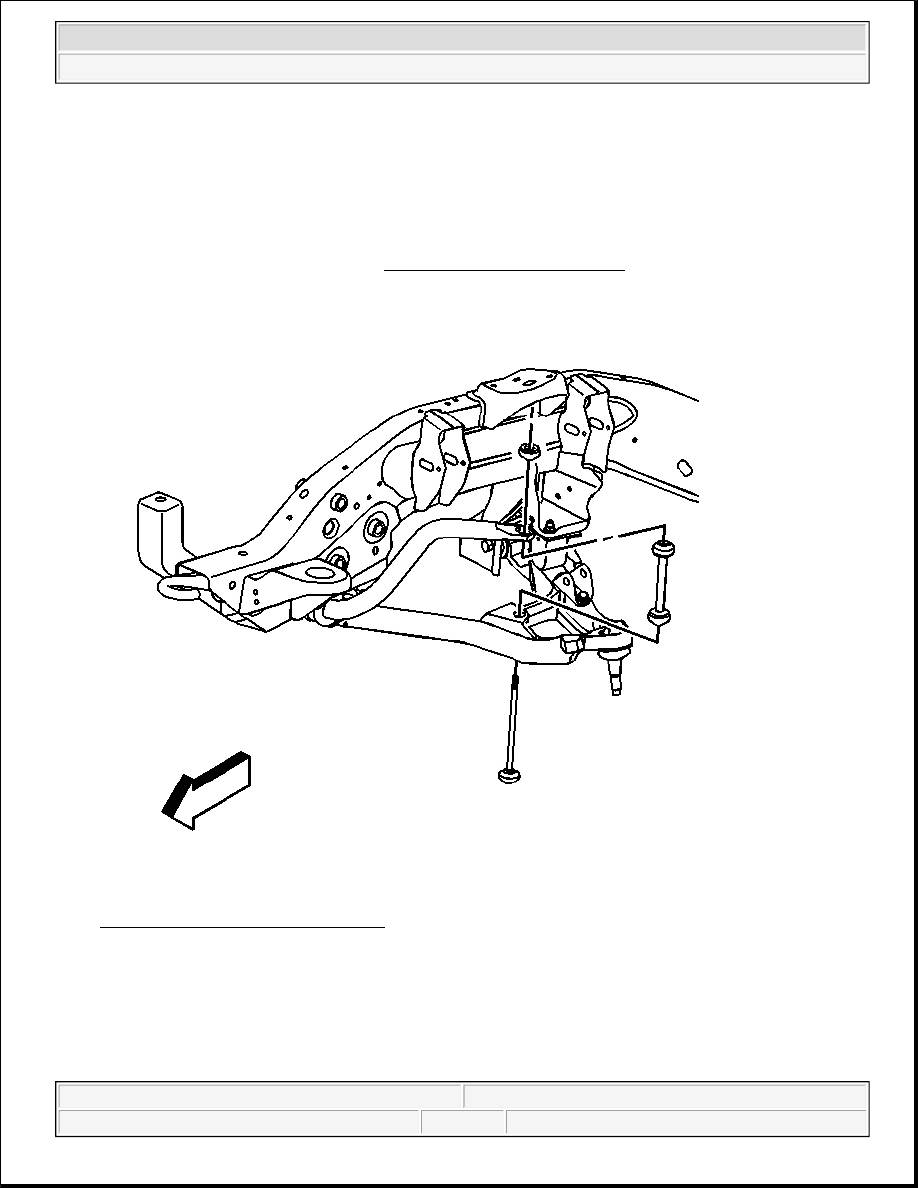

Fig. 6: Link Bolts & Link Assemblies
Courtesy of GENERAL MOTORS CORP.

2. Remove the nuts from the link bolt assemblies.

3. Remove the link bolts.

4. Remove the link assemblies.

Installation Procedure

2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

1. Support the lower control arms at curb height.

2. Perform the following procedure before installing the bolts.

Remove all traces of the original adhesive patch.

Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.

Apply Threadlocker GM P/N 12345382 (Canadian P/N 10953489).

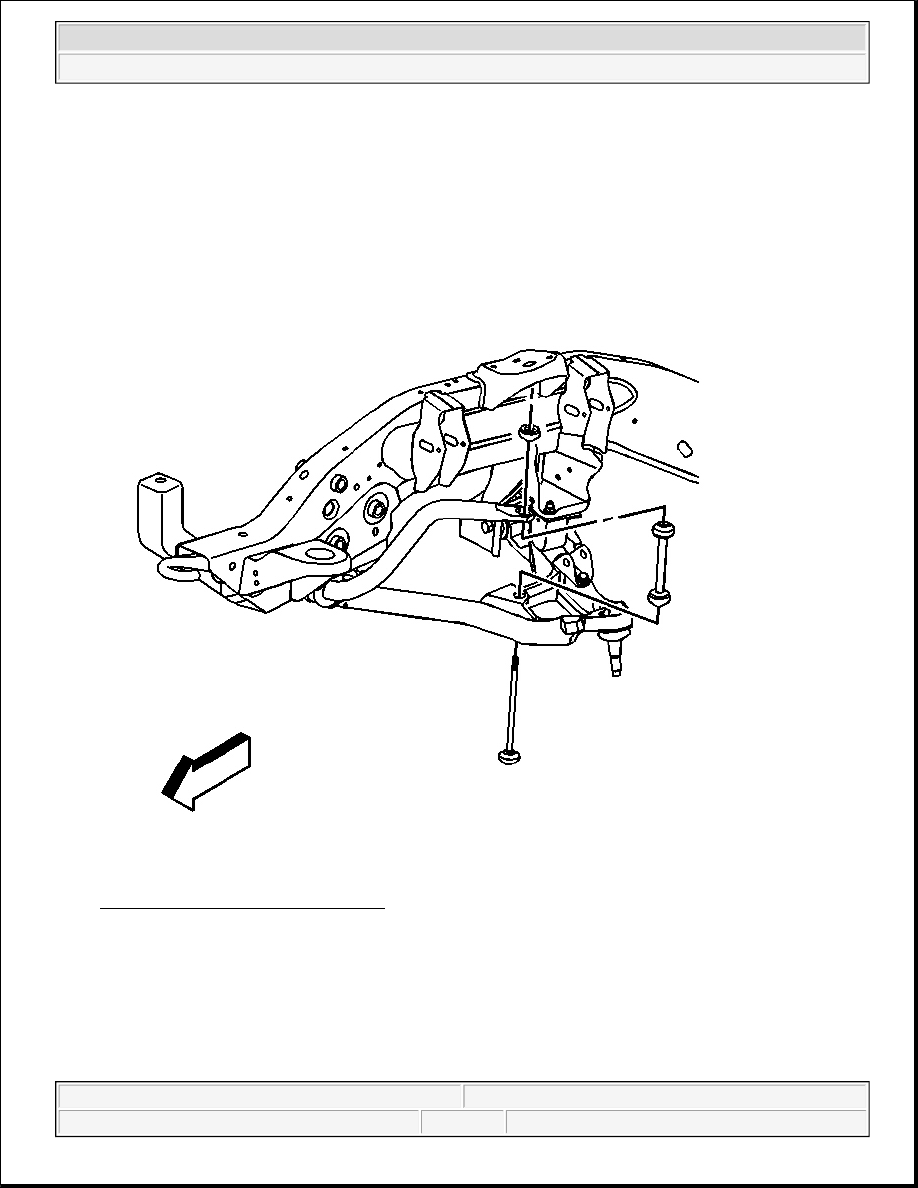

Fig. 7: Link Bolts & Link Assemblies
Courtesy of GENERAL MOTORS CORP.

3. Install the link assemblies.

4. Install the link bolts.

5. Install the nuts to the link bolt assemblies.

Tighten: Tighten the nut to 14 N.m (10 lb ft).

2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

6. Ensure that the threads of the link bolt protrude 2 to 4 threads above the link nut.

7. Lower the vehicle.

STABILIZER SHAFT INSULATOR REPLACEMENT

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the engine protection shield. Refer to Engine Protection Shield Replacement .

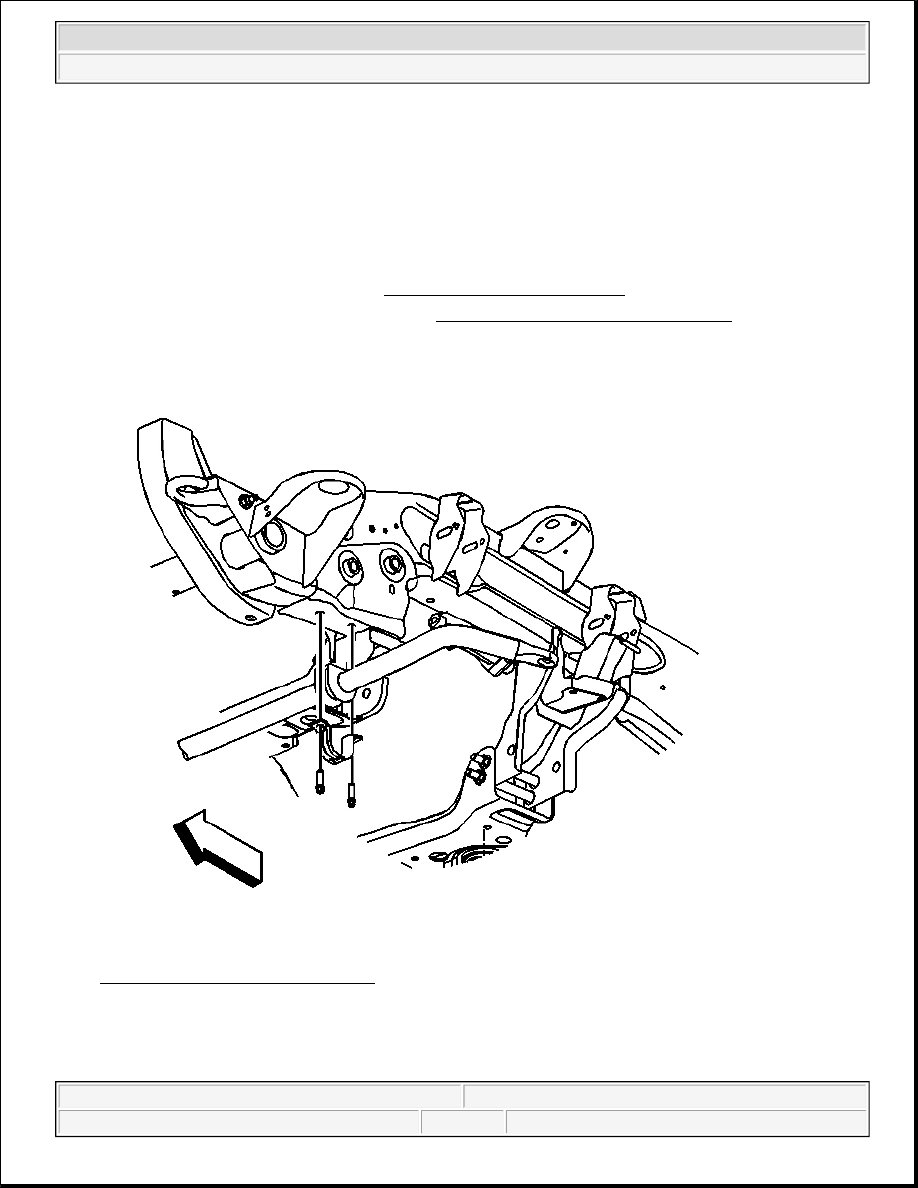

Fig. 8: Insulators & Stabilizer Shaft
Courtesy of GENERAL MOTORS CORP.

3. Remove the insulator clamp bolts.

4. Remove the clamps.

2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2

5. Remove the insulators.

6. Inspect all of the parts for wear and damage.

Installation Procedure

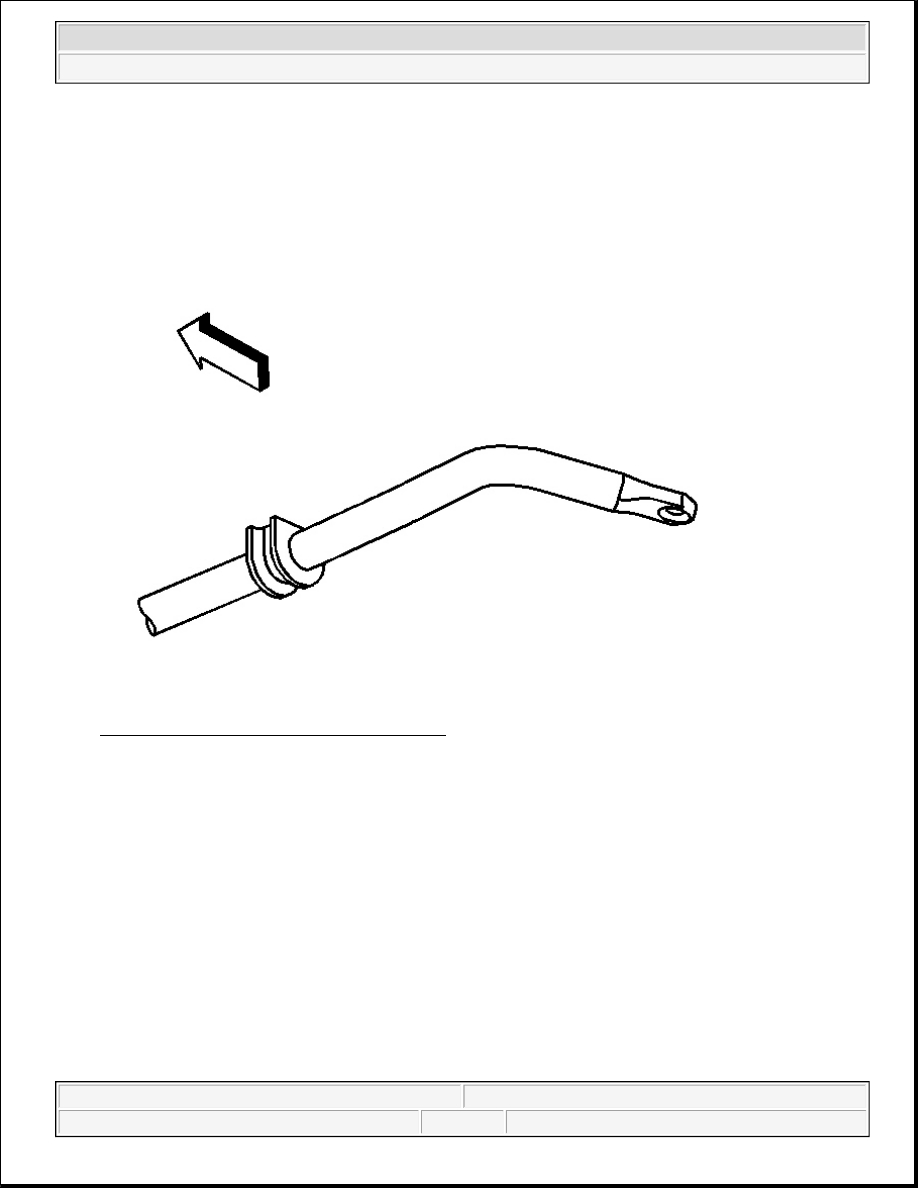

Fig. 9: Placing Insulators On Stabilizer Shaft
Courtesy of GENERAL MOTORS CORP.

1. Place the insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.
