Fig. 2: Insulators & Stabilizer Shaft
Courtesy of GENERAL MOTORS CORP.

6. Remove the insulator clamp bolts.

7. Remove the clamps.

8. Remove the stabilizer shaft.

9. Remove the insulators.

10. Inspect all of the parts for wear and damage.

Installation Procedure

1. Place the insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



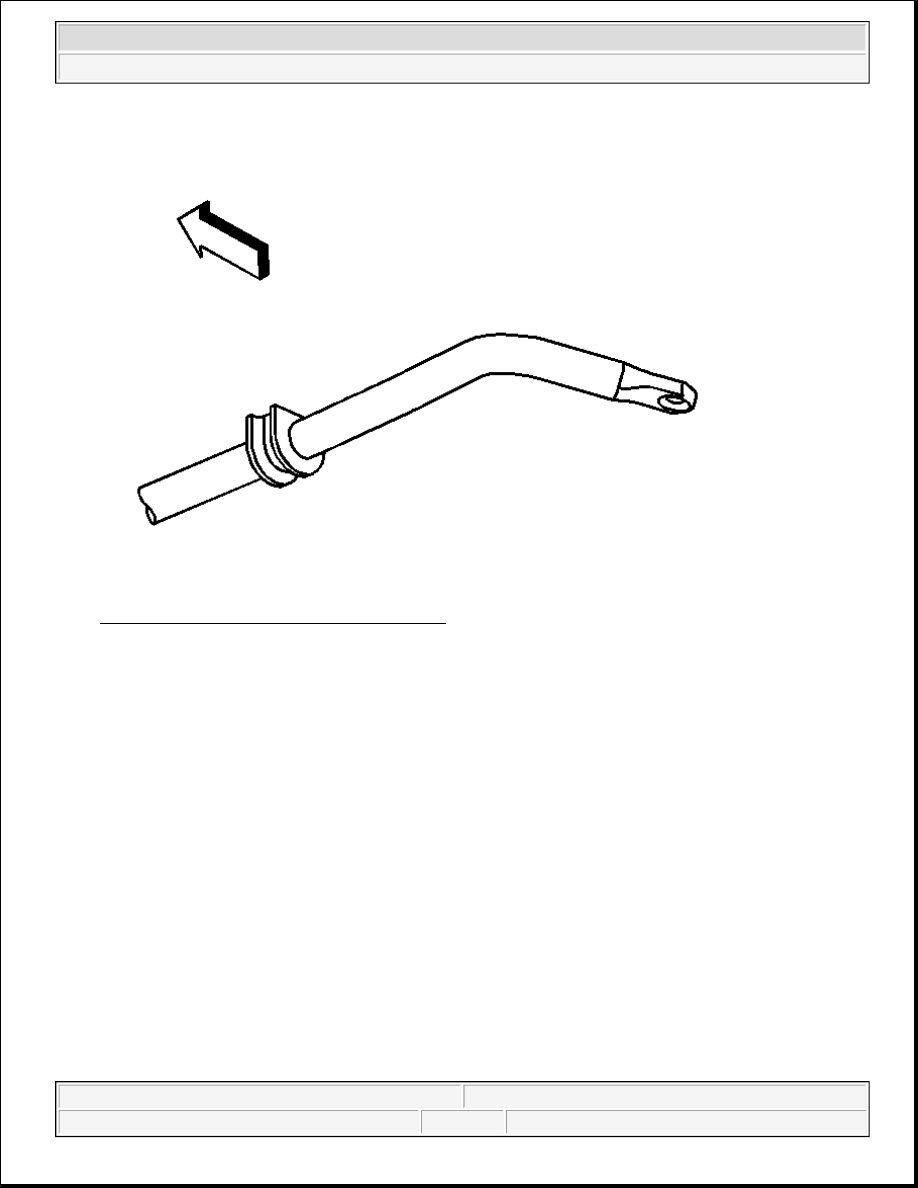

Fig. 3: Placing Insulators On Stabilizer Shaft
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



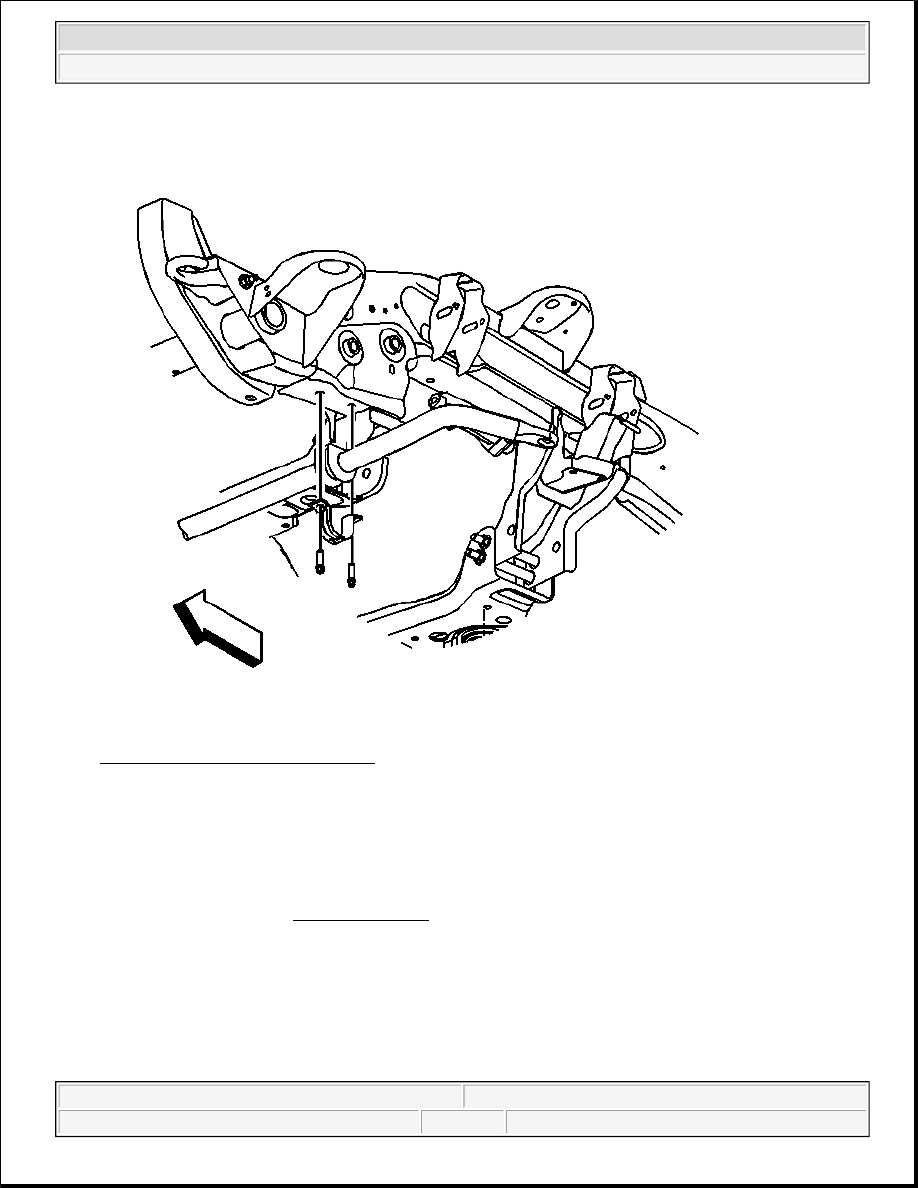

Fig. 4: Insulators & Stabilizer Shaft
Courtesy of GENERAL MOTORS CORP.

2. Install the insulators to the stabilizer shaft.

3. Install the stabilizer shaft.

4. Install the clamps over the insulators and the stabilizer shaft.

5. Install insulator clamp bolts.

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

6. Support the lower control arms at curb height.

7. Perform the following procedure before installing the bolts.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



z

Remove all traces of the original adhesive patch.

z

Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.

z

Apply Threadlocker GM P/N 12345382 (Canadian P/N 10953489).

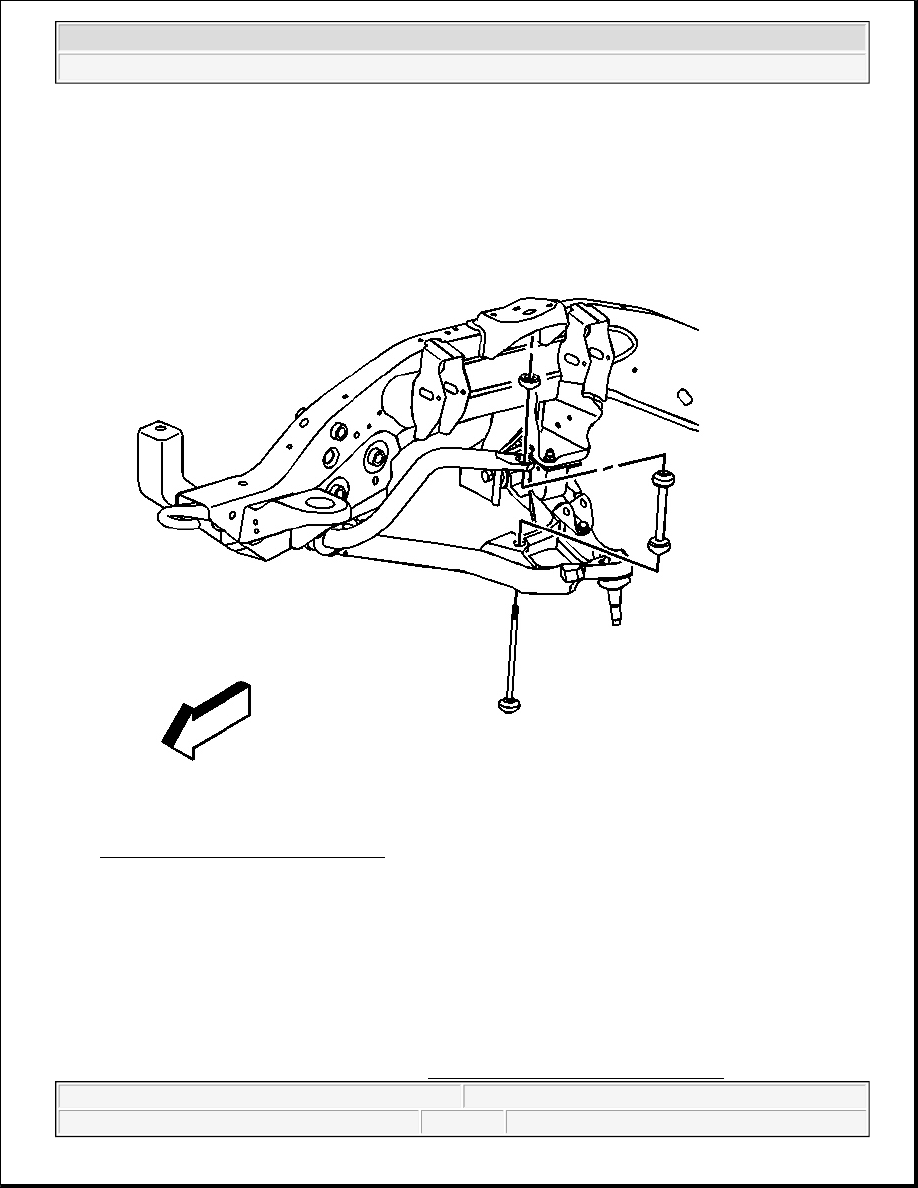

Fig. 5: Link Bolts & Link Assemblies
Courtesy of GENERAL MOTORS CORP.

8. Install the link assemblies.

9. Install the link bolts.

10. Install the nuts to the link bolt assemblies.

Tighten: Tighten the nut to 14 N.m (10 lb ft).

11. Ensure that the threads of the link bolt protrude 2 to 4 threads above the link nut.

12. Install the engine protections shield. Refer to Engine Protection Shield Replacement .
