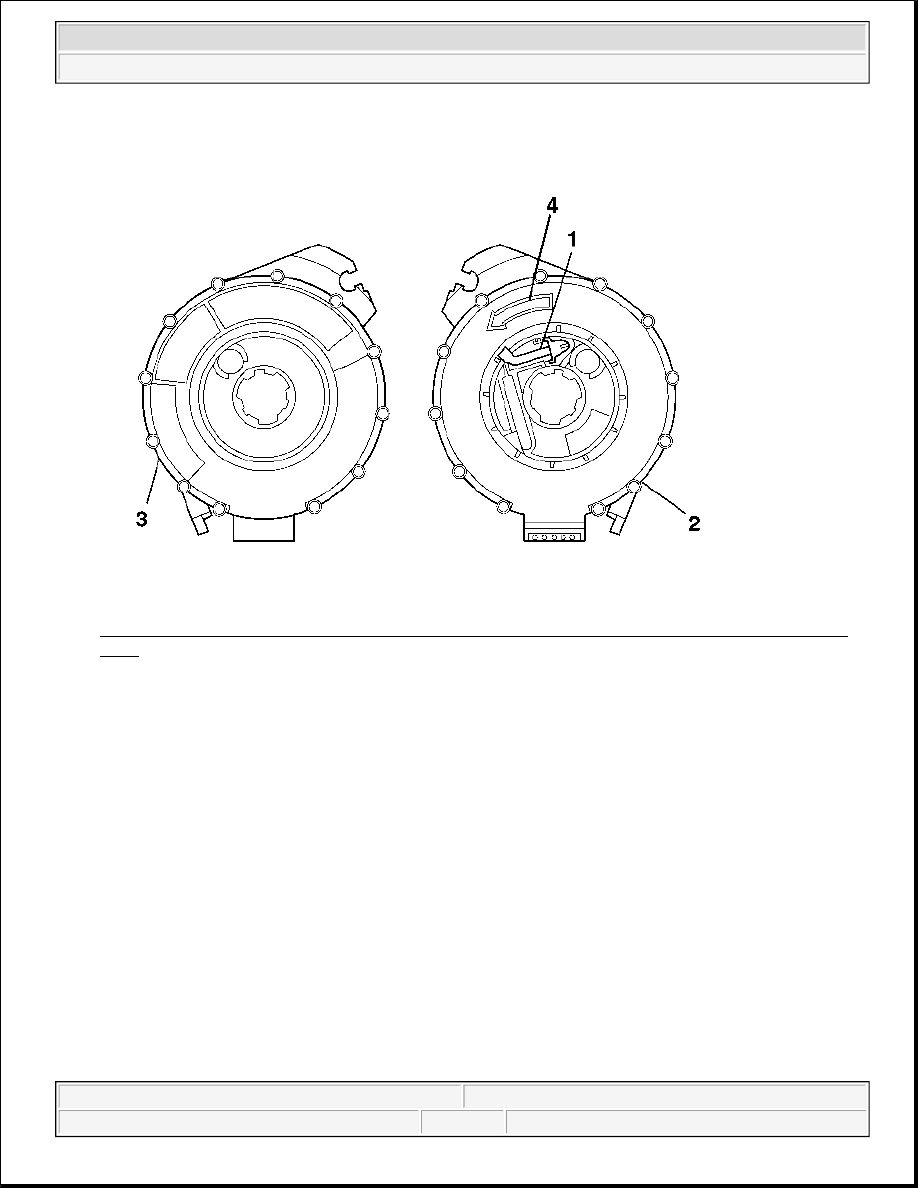

Fig. 111: Inflatable Restraint Steering Wheel Module Coil (Without Centering Window On Front
Side)
Courtesy of GENERAL MOTORS CORP.

4. If no centering window is present on the front side (3) of the inflatable restraint steering wheel module

coil, but a spring service lock (1) is on the back side (2), perform the following steps:

1. Hold the inflatable restraint steering wheel module coil with the back side up.

2. While depressing the spring service lock, rotate the coil hub in the direction of the arrow (4) until

the coil ribbon stops.

3. Still pressing the spring service lock, rotate the coil hub in the opposite direction 2 1/2 revolutions.

4. Release the spring service lock between locking tabs. The inflatable restraint steering wheel module

coil is now centered.

5. Align the centered inflatable restraint steering wheel module coil with the horn tower and slide onto

the steering shaft assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

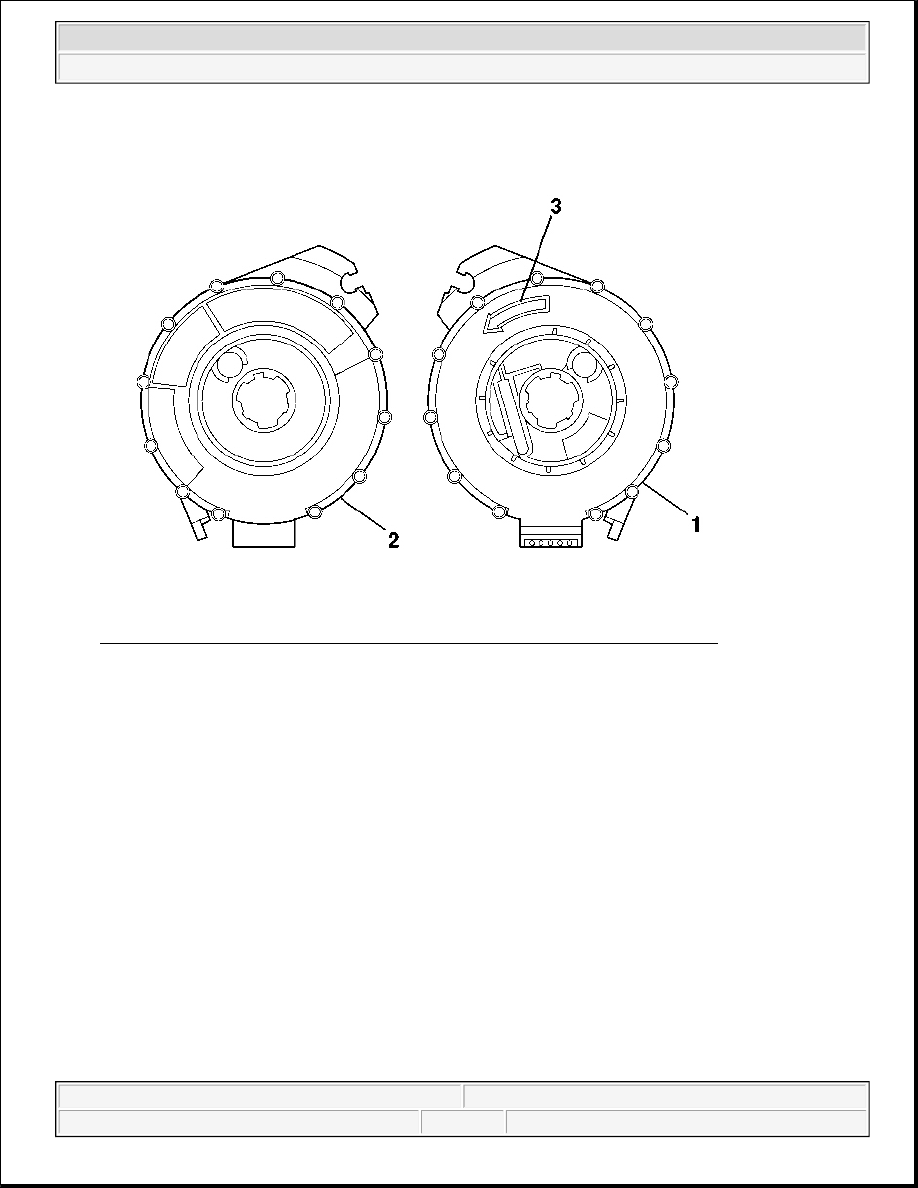

Fig. 112: SIR Coil (Without Centering Window & Without Spring Service Lock)
Courtesy of GENERAL MOTORS CORP.

5. For no centering window on the front side (2) of the inflatable restraint steering wheel module coil and no

spring service lock on the back side (1), perform the following steps:

1. Hold the inflatable restraint steering wheel module coil with the face up.

2. Rotate the coil hub in the direction of the arrow until the coil ribbon stops.

3. Rotate the coil hub, slowly, counterclockwise, for 2 1/2 revolutions. This is the CENTER position.

4. While maintaining the coil hub in the CENTER position, align the centered inflatable restraint

steering wheel module coil with the horn tower and slide onto the steering shaft assembly.

DESCRIPTION AND OPERATION

STEERING WHEEL AND COLUMN DESCRIPTION AND OPERATION

The steering wheel and column has 4 primary functions:

z

Vehicle steering

z

Vehicle security

z

Driver convenience



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



z

Driver safety

Vehicle Steering

The steering wheel is the first link between the driver and the vehicle. The steering wheel is fastened to a
steering shaft within the column. At the lower end of the column, the intermediate shaft connects the column to
the steering gear.

Vehicle Security (Some Vehicle Models)

Theft deterrent components are mounted and designed into the steering column. The following components
allow the column to be locked in order to minimize theft:

z

The ignition switch

z

The steering column lock

z

The ignition cylinder

Driver Convenience

The steering wheel and column may also have driver controls attached for convenience and comfort. The
following controls may be mounted on or near the steering wheel or column.

z

The turn signal switch

z

The hazard switch

z

The headlamp dimmer switch

z

The wiper/washer switch

z

The horn pad/cruise control switch

z

The redundant radio/entertainment system controls

z

The tilt or tilt/telescoping functions

z

The navigation/OnStar(R) features

z

The HVAC controls

Driver Safety

The energy-absorbing steering column compresses in the event of a front-end collision, which reduces the
chance of injury to the driver. The mounting capsules break away from the mounting bracket in the event of an
accident.

Ignition Lock Cylinder Control Actuator

If the vehicle is equipped with a floor mounted console gear shifter, it has a ignition lock cylinder control
actuator system in the steering column as an added safety feature. The ignition lock cylinder control actuator's
purpose is to prevent the steering wheel from being locked when the transmission is in gear and the vehicle may
still be moving. The column ignition lock system consists of a ignition lock cylinder control actuator, and a park



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



position switch that is located in the A/T shift lock control switch. The ignition lock cylinder control actuator
contains a pin that is spring loaded out to mechanically prevent the ignition key cylinder from being turned to
the lock position when vehicle transmission is not in the Park position. If vehicle power is lost, and/or the
transmission is not in the Park position the operator will not be able to turn the ignition key to the lock position
and will not be able to remove the ignition key from the column.

SPECIAL TOOLS AND EQUIPMENT

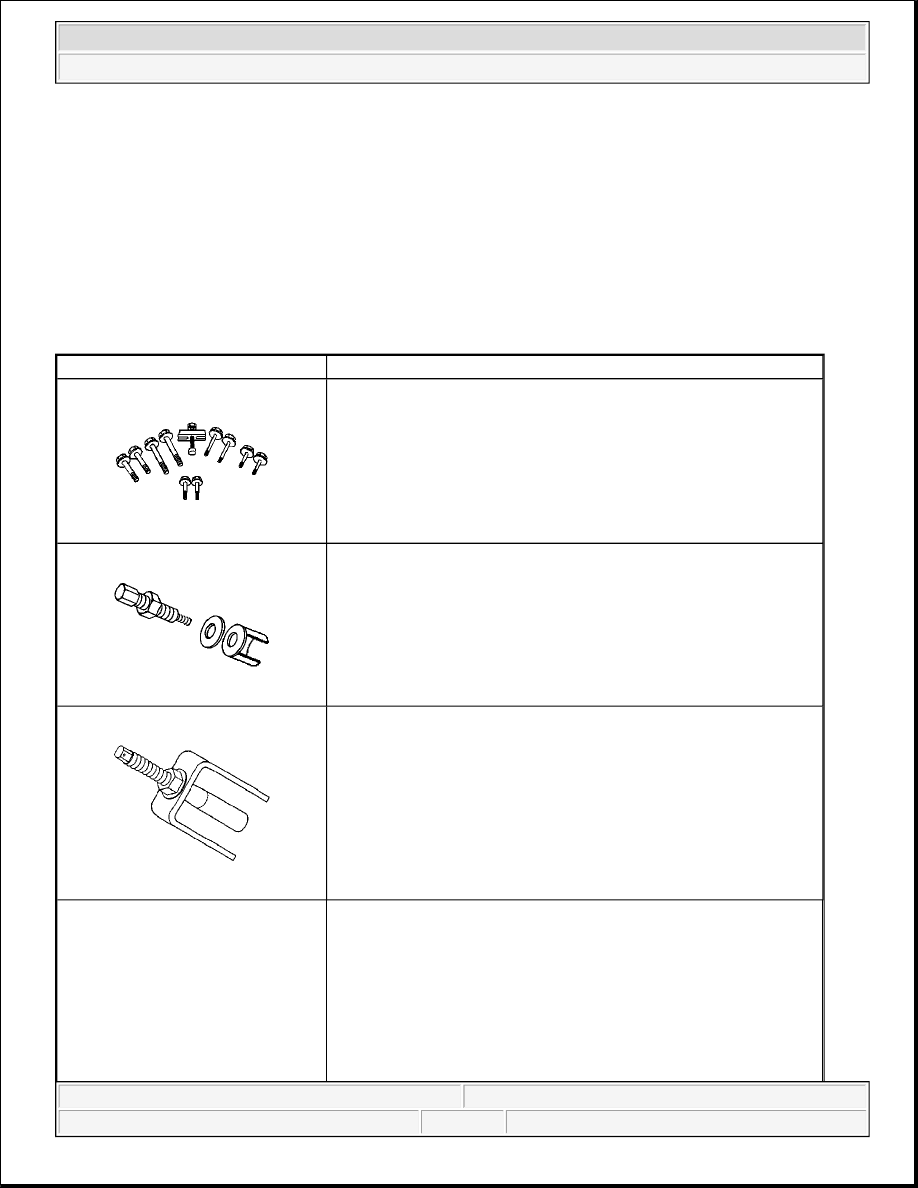

SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 1859-A

Steering Wheel Puller

J 21854-01

Pivot Pin Remover

J 23653-SIR

Steering Column Lock Plate Compressor
