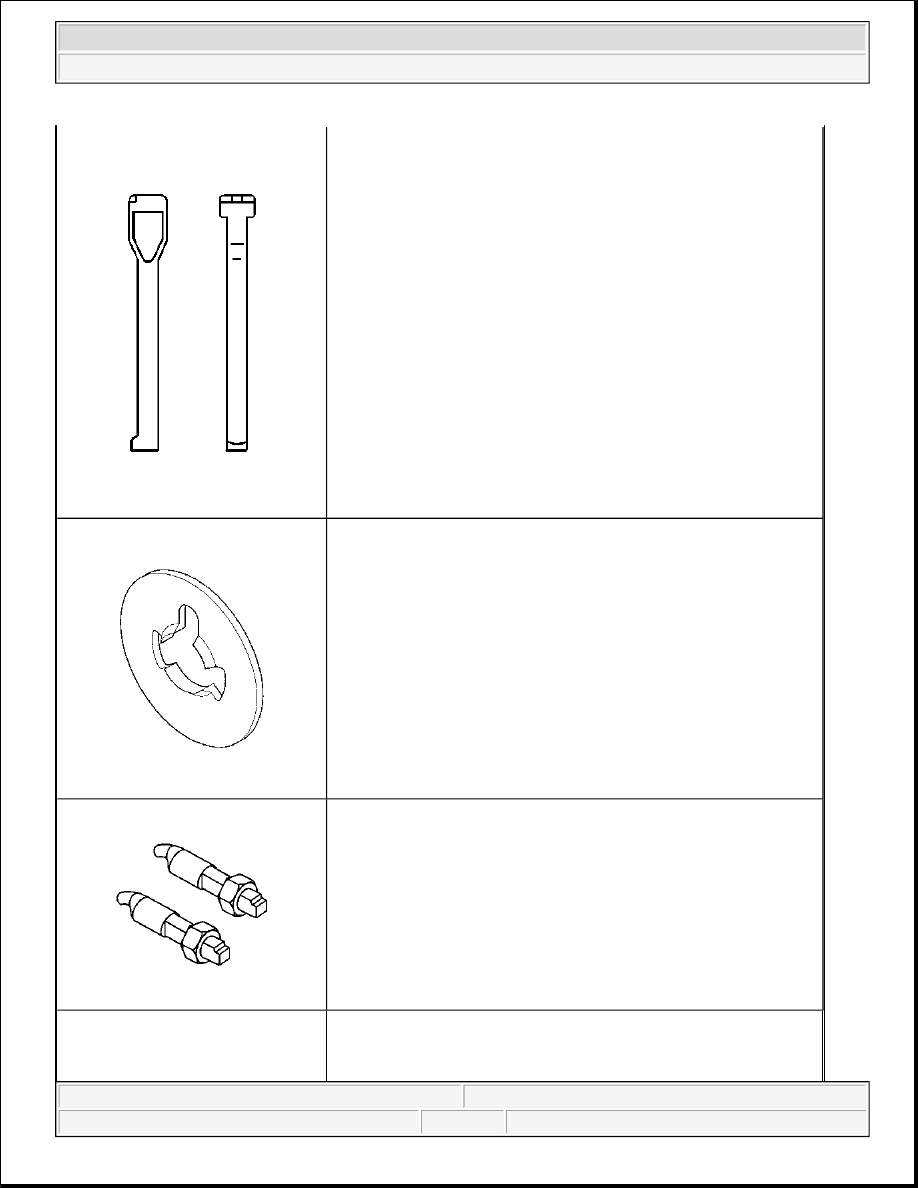

J 36541-A

Steering Wheel Puller Adapter

J 42137

Steering Column Lock Plate Compressor Adapter

J 42578

Steering Wheel Puller Legs



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



J 42640

Steering Column Anti-Rotation Pin

J 42759

Ignition Switch Connector Release Tool



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



2004 SUSPENSION

Front Suspension - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

REPAIR INSTRUCTIONS

STABILIZER SHAFT REPLACEMENT

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

2. Remove the nuts from the link bolt assemblies.

Application

Specification

Metric

English

Brake Hose Bracket Bolt

9 N.m

80 lb in

Brake Hose Clip Bolts

12 N.m

106 lb in

Hub and Bearing Assembly to Steering Knuckle Bolts

180 N.m

133 lb ft

Jounce Bumper Stud Nut

30 N.m

22 lb ft

Lower Control Arm Ball Joint Stud Nut

100 N.m

74 lb ft

Lower Control Arm to Frame Nuts

175 N.m

129 lb ft

Sensor Wheel Speed Mounting Bolt

18 N.m

13 lb ft

Shock Absorber Tennon Nut

20 N.m

15 lb ft

Shock Absorber to Lower Control Arm Nut

80 N.m

59 lb ft

Stabilizer Shaft Insulator Clamp Bolts

50 N.m

37 lb ft

Stabilizer Shaft Link Nuts

14 N.m

10 lb ft

Torsion Bar Support Mounting Nuts

110 N.m

81 lb ft

Upper Control Arm Ball Joint Stud Nut

50 N.m

37 lb ft

Upper Control Arm to Frame Nuts

190 N.m

140 lb ft

Wheel Drive Shaft Nut

235 N.m

173 lb ft



2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2





2004 Hummer H2

2004 SUSPENSION Front Suspension - Hummer H2



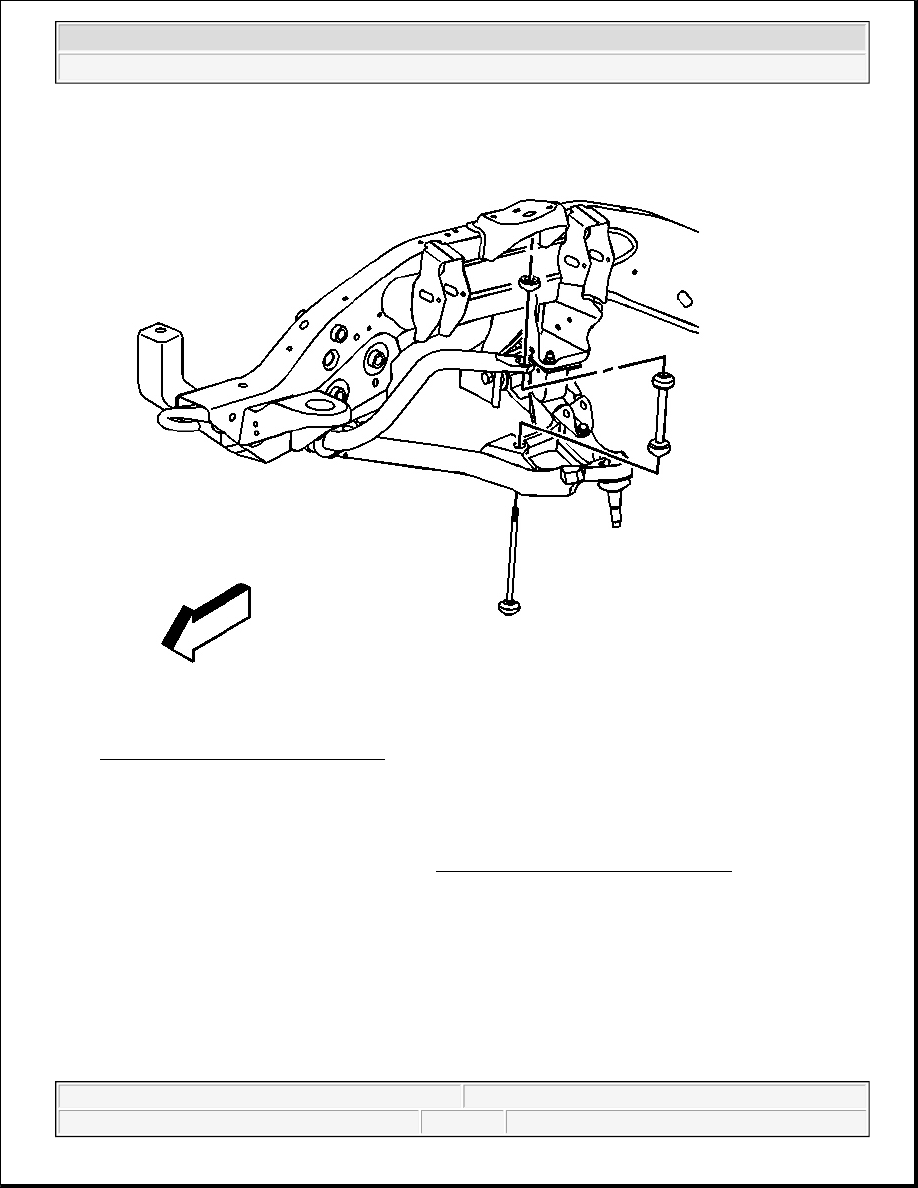

Fig. 1: Link Bolts & Link Assemblies
Courtesy of GENERAL MOTORS CORP.

3. Remove the link bolts.

4. Remove the link assemblies.

5. Remove the engine protection shield. Refer to Engine Protection Shield Replacement .
