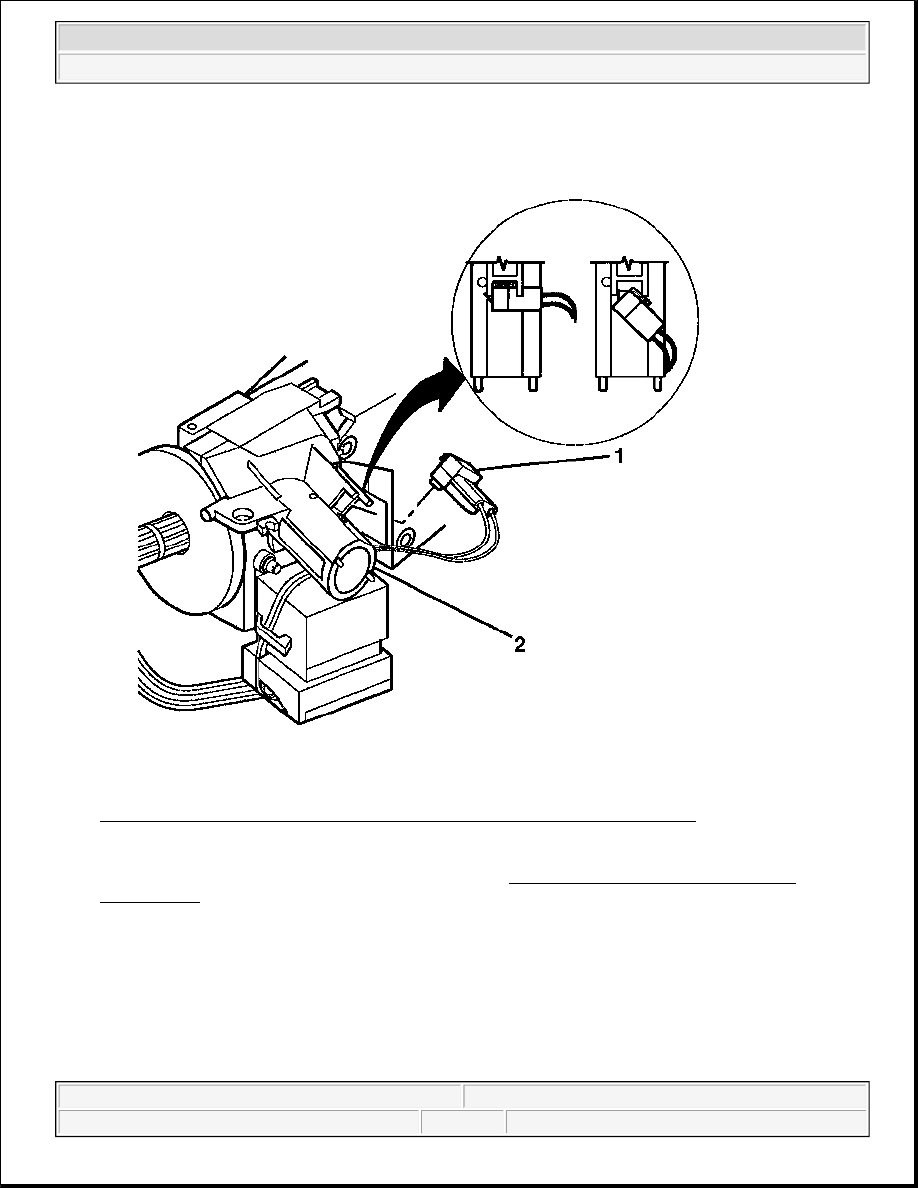

Fig. 103: Removing Key Alarm Connector From Ignition Lock Cylinder Case
Courtesy of GENERAL MOTORS CORP.

4. Remove the steering wheel theft deterrent lock. Refer to Steering Wheel Theft Deterrent Lock

Replacement .

5. If equipped, remove the theft deterrent control module.

6. Rotate the key alarm connector (1) 90 degrees.

7. Gently pull the key alarm connector (1) out of the ignition lock cylinder case assembly (2).

8. Disconnect the connector from the ignition switch assembly.

9. Remove the wires encased in the ignition switch clip, which is located on the side of the ignition switch.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



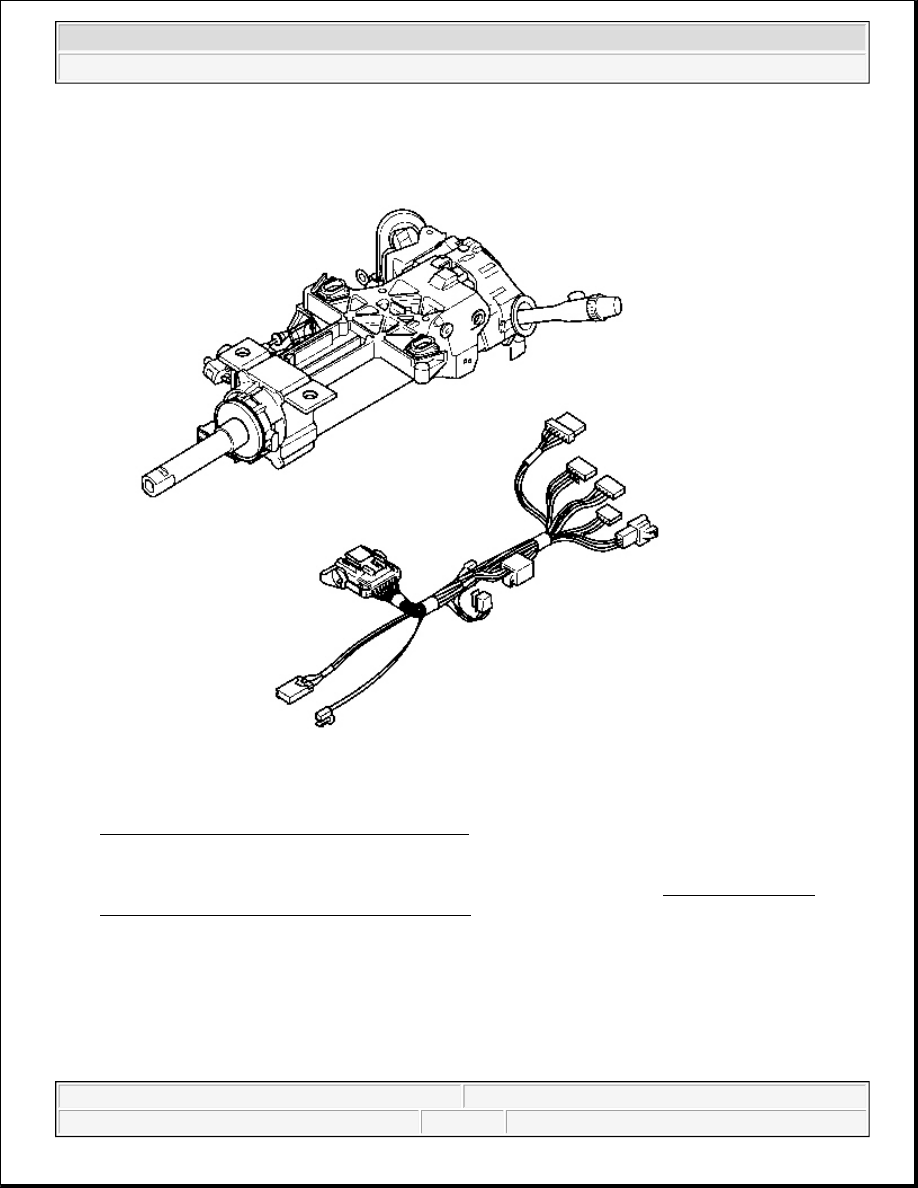

Fig. 104: Connectors & Wire Harness Assembly
Courtesy of GENERAL MOTORS CORP.

10. Disconnect all connectors attached to the wire harness assembly.

Installation Procedure

IMPORTANT: If the steering wheel has steering wheel controls, the inflatable restraint

steering wheel module coil and the wire harness assembly must come off
as one piece. Refer to Inflatable Restraint Steering Wheel Module Coil
Replacement (Coil) in SIR.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Fig. 105: Connectors & Wire Harness Assembly
Courtesy of GENERAL MOTORS CORP.

1. If the steering wheel has steering wheel controls, install the SIR coil. Refer to Inflatable Restraint

Steering Wheel Module Coil Replacement (Coil) in SIR.

2. Connect all of the connectors from the new wire harness assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



Fig. 106: Removing Key Alarm Connector From Ignition Lock Cylinder Case
Courtesy of GENERAL MOTORS CORP.

3. Push the key alarm connector (1) into the ignition lock cylinder case assembly (2).

4. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.

5. Install the steering wheel theft deterrent lock. Refer to Steering Wheel Theft Deterrent Lock

Replacement .

6. If equipped, install the theft deterrent control module.

CAUTION: Refer to SIR Inflator Module Coil Caution in Cautions and Notices.
