Installation Procedure

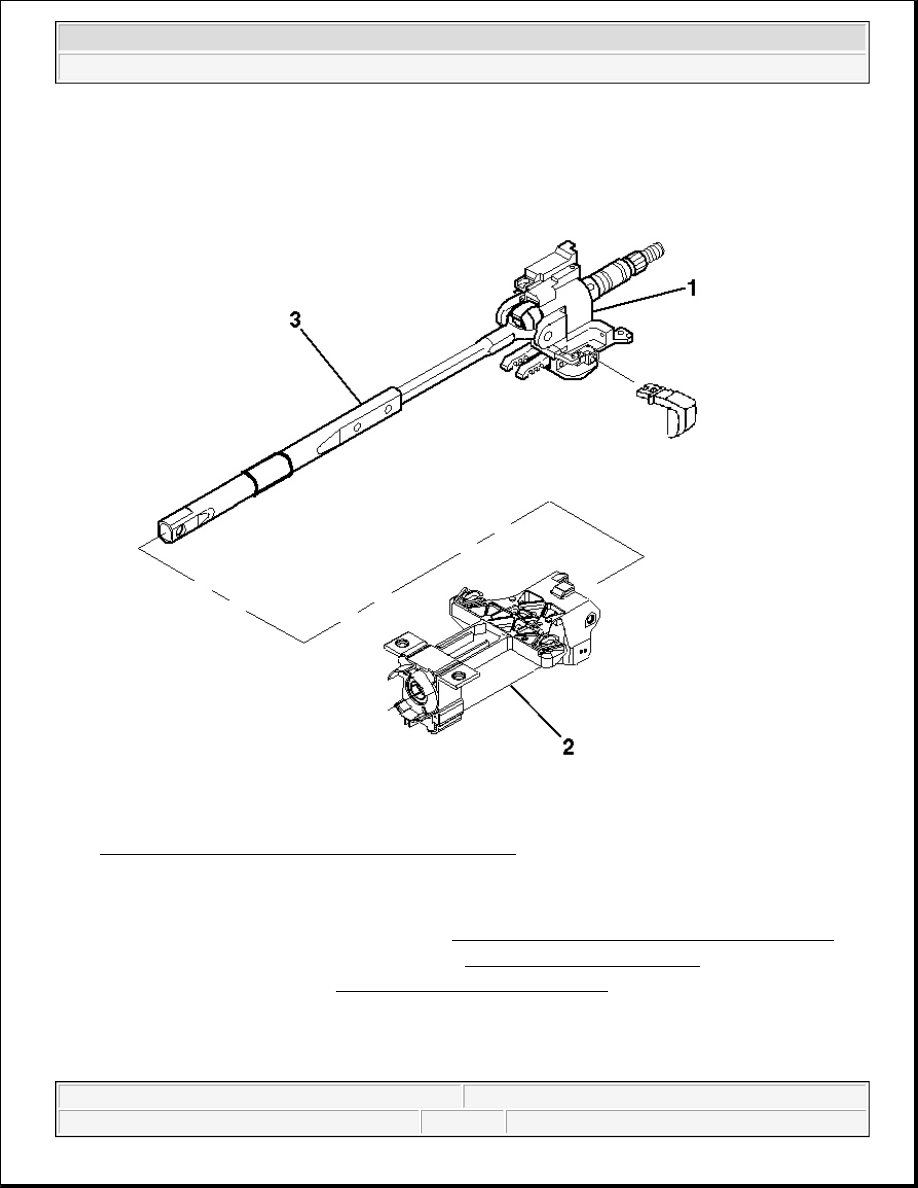

Fig. 99: View Of Upper Steering Column Components
Courtesy of GENERAL MOTORS CORP.

1. Install the jacket (2).

2. Install the steering column tilt head (1). Refer to Steering Column Tilt Head Housing Replacement .

3. Install the steering column to the vehicle. Refer to Steering Column Replacement .

4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

STEERING COLUMN SHAFT REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



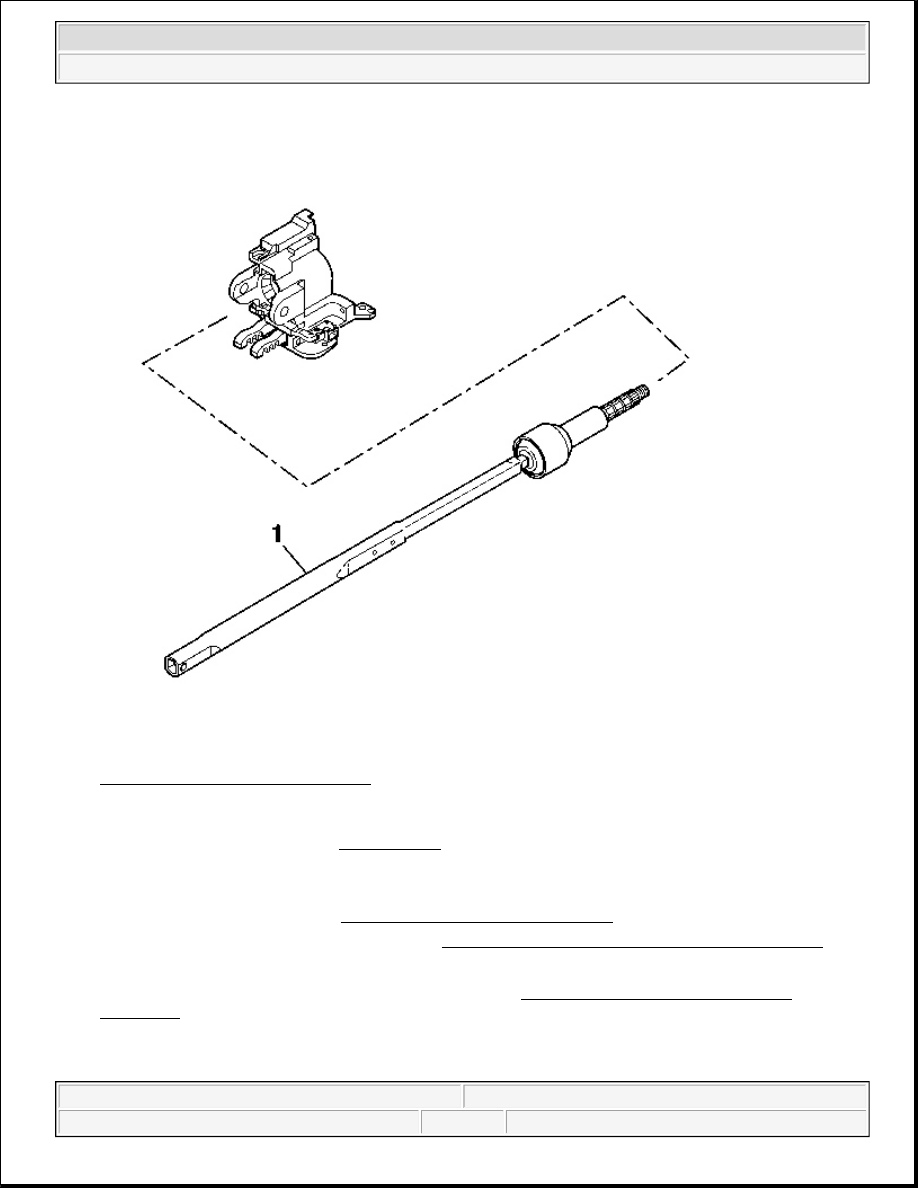

Fig. 100: Identifying Steering Shaft
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

2. Remove the steering column tilt head. Refer to Steering Column Tilt Head Housing Replacement .

3. Remove the steering shaft (1) from the steering column tilt head assembly.

4. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage

Inspection .

Installation Procedure

CAUTION: Refer to SIR Caution in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



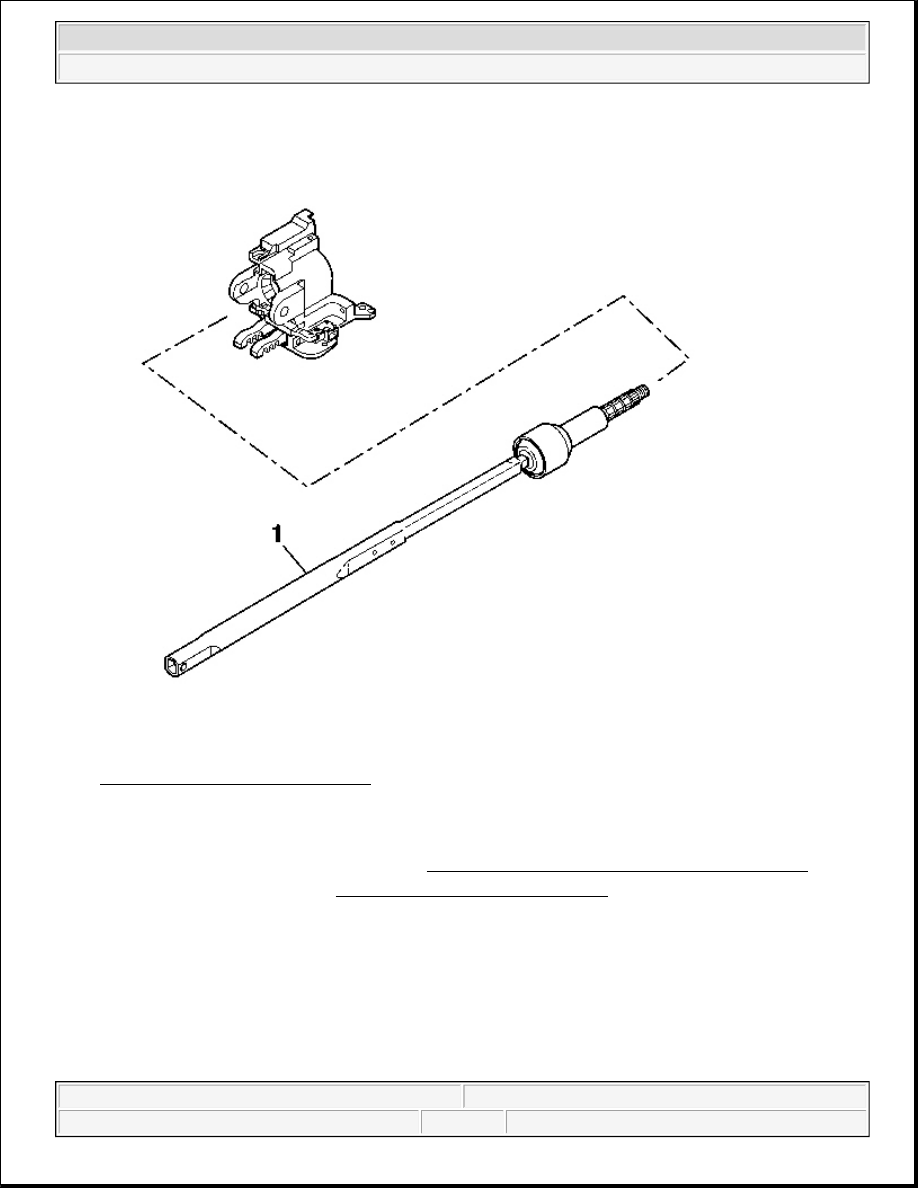

Fig. 101: Identifying Steering Shaft
Courtesy of GENERAL MOTORS CORP.

1. Install the steering shaft (1) into the steering column tilt head assembly.

2. Install the steering column tilt head. Refer to Steering Column Tilt Head Housing Replacement .

3. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

STEERING COLUMN WIRE HARNESS ASSEMBLY REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



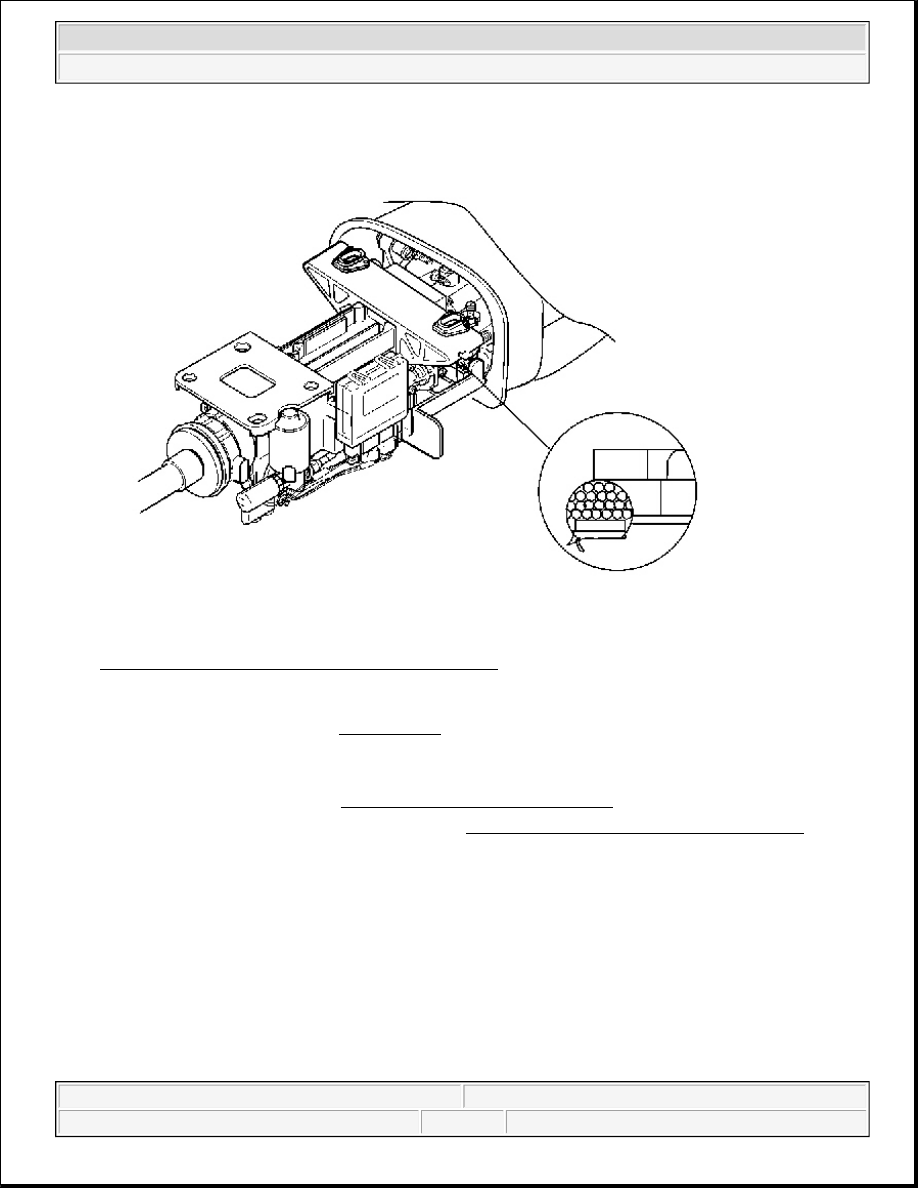

Fig. 102: Plastic Mounted Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .

3. Remove the wire harness strap.

CAUTION: Refer to SIR Caution in Cautions and Notices.
