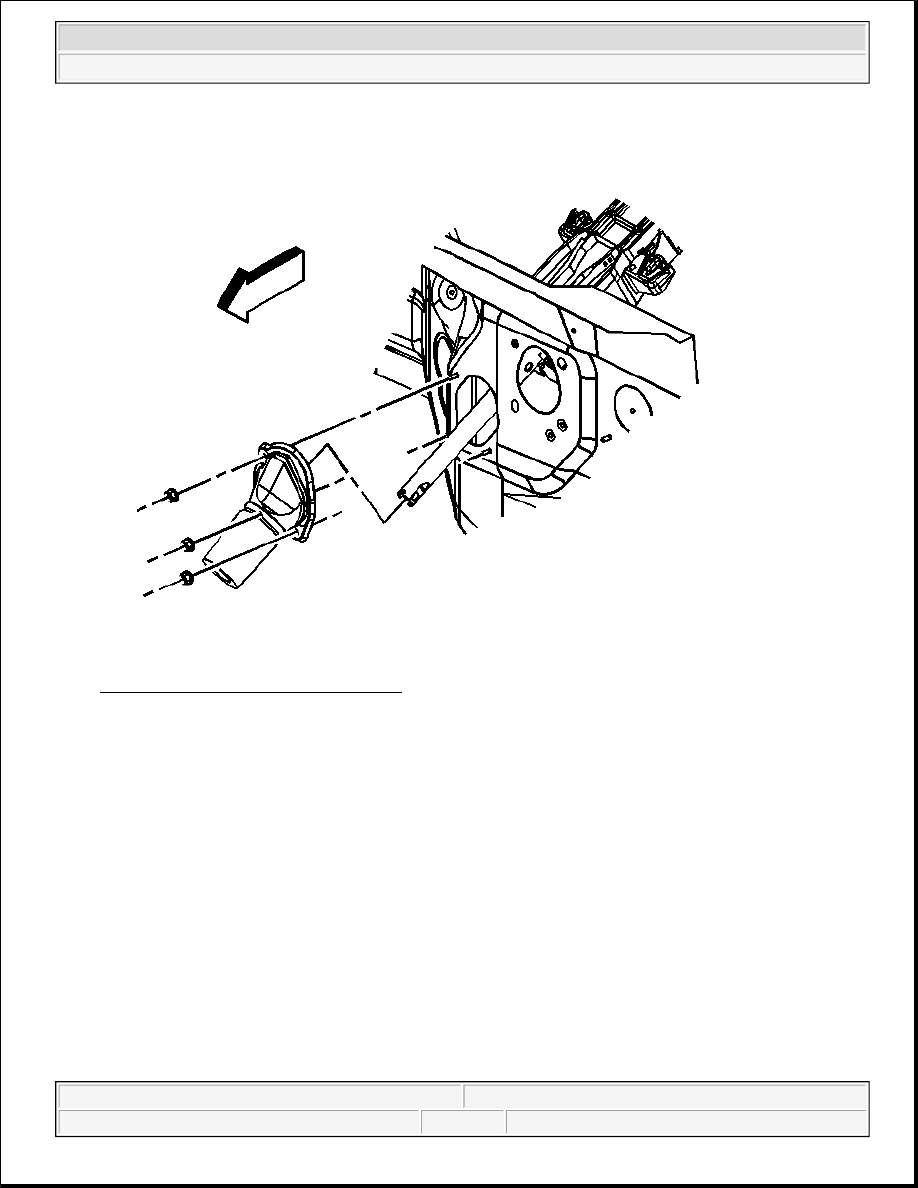

Fig. 95: Upper Intermediate Shaft Boot
Courtesy of GENERAL MOTORS CORP.

1. Install the upper intermediate shaft boot.

Tighten: Tighten the upper intermediate shaft to boot nuts to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

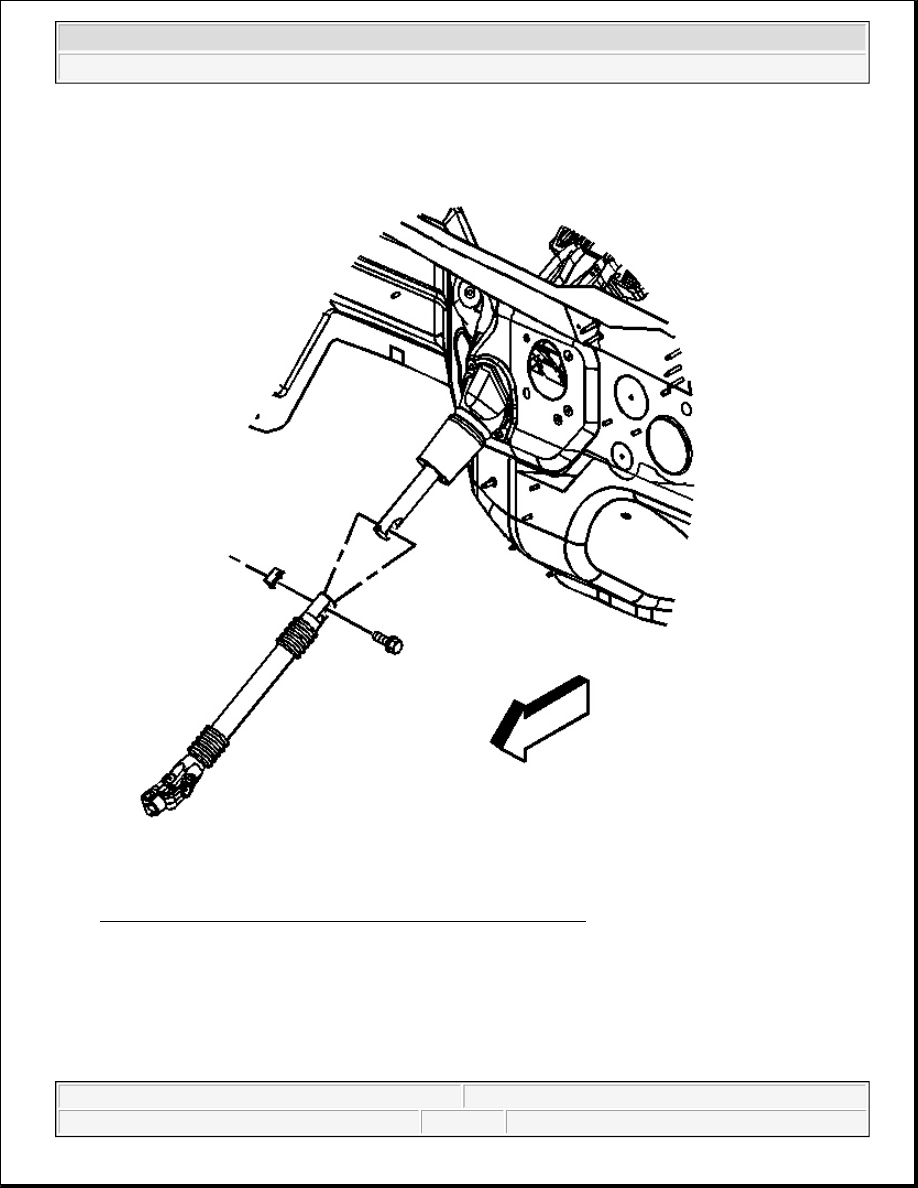

Fig. 96: Upper Intermediate Shaft & Lower Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

2. Connect the upper intermediate shaft to the lower intermediate shaft.

3. Install the upper intermediate shaft to the lower intermediate shaft pinch bolt.

Tighten: Tighten the upper intermediate shaft pinch bolt to 50 N.m (37 lb ft).



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

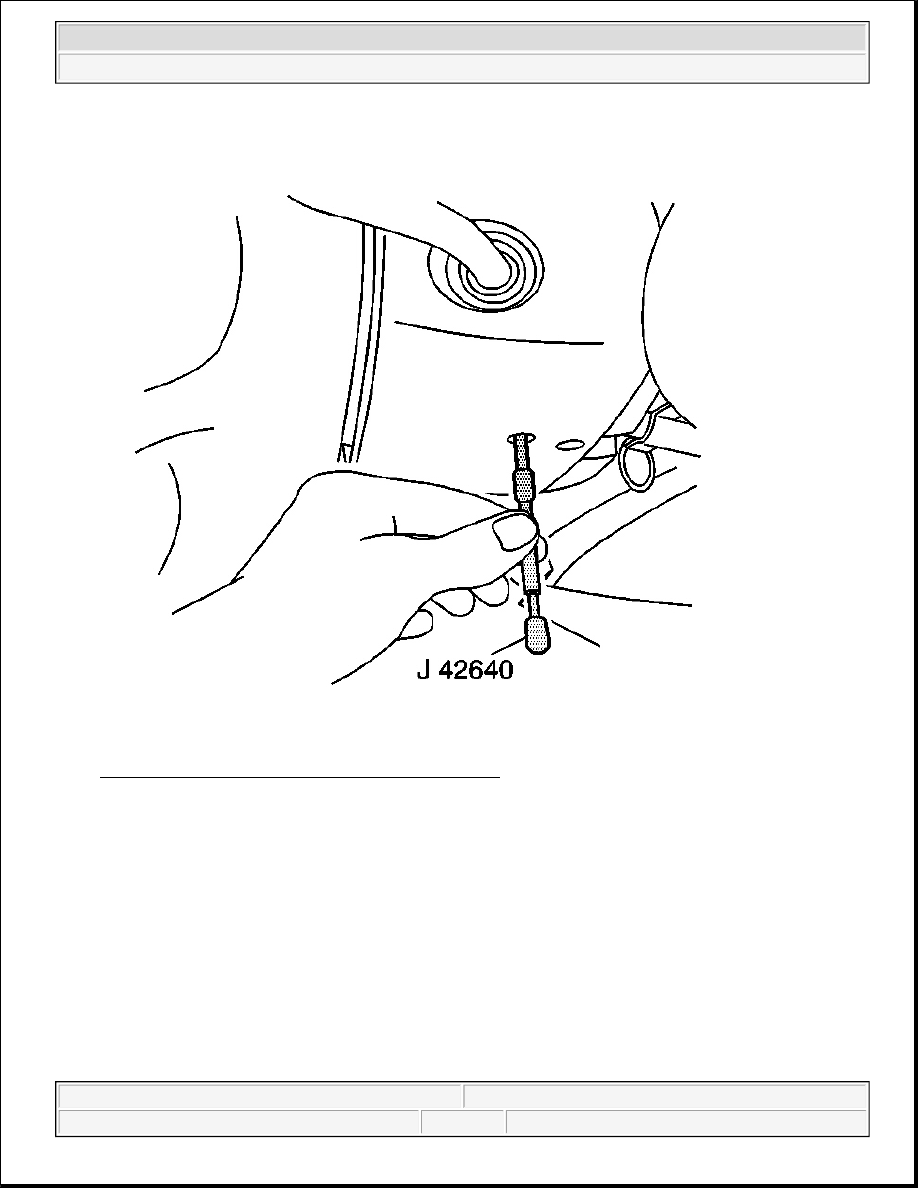

Fig. 97: Inserting J 42640 To Lock Steering Column
Courtesy of GENERAL MOTORS CORP.

4. Unlock the steering column by removing J 42640 from the steering column lower trim cover access hole.

STEERING COLUMN JACKET REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2

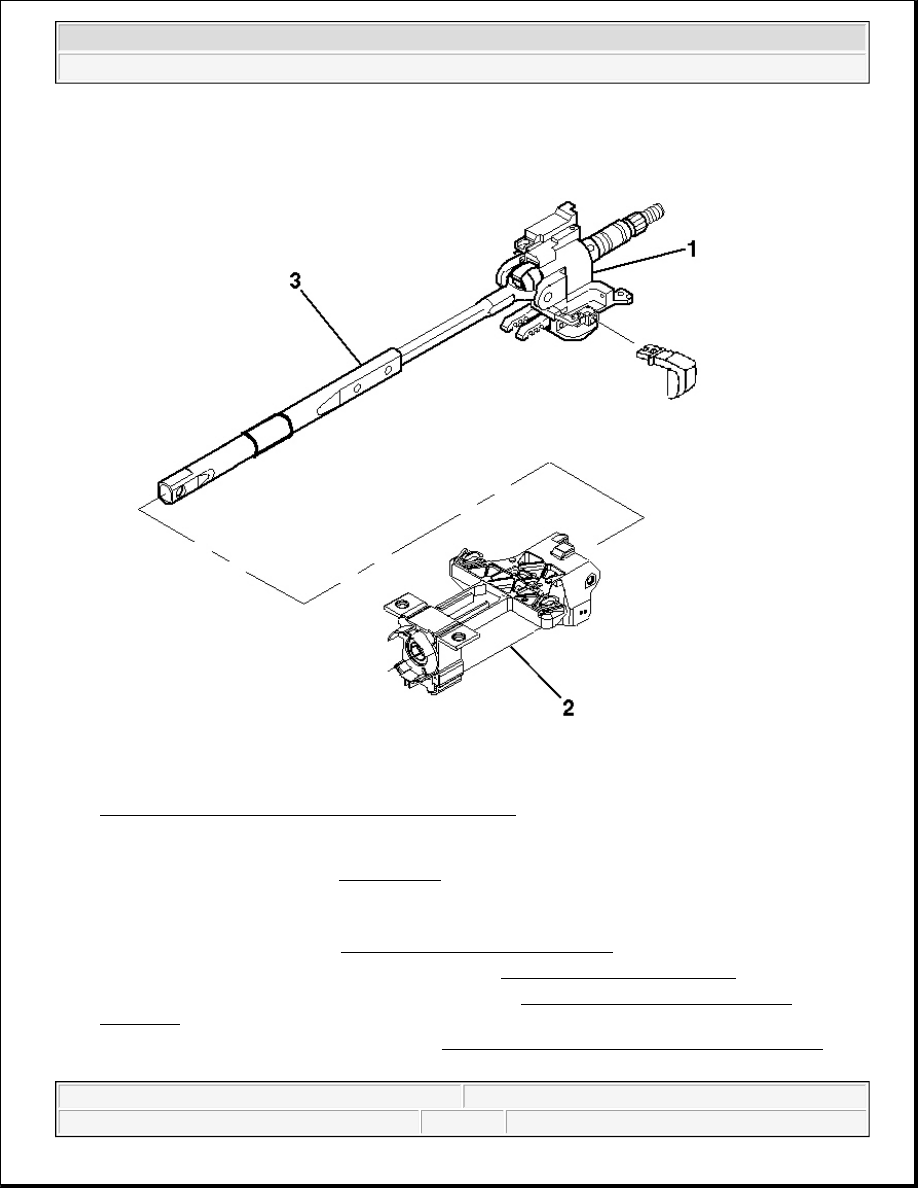

Fig. 98: View Of Upper Steering Column Components
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

2. Remove the steering column from the vehicle. Refer to Steering Column Replacement .

3. Inspect the steering column for accident damage. Refer to Steering Column Accident Damage

Inspection .

4. Remove the steering column tilt head. Refer to Steering Column Tilt Head Housing Replacement .

5. Remove the jacket (2).

CAUTION: Refer to SIR Caution in Cautions and Notices.
