Fig. 87: View Of Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

10. Remove the steering column mounting nuts.

11. Remove the steering column from the vehicle.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



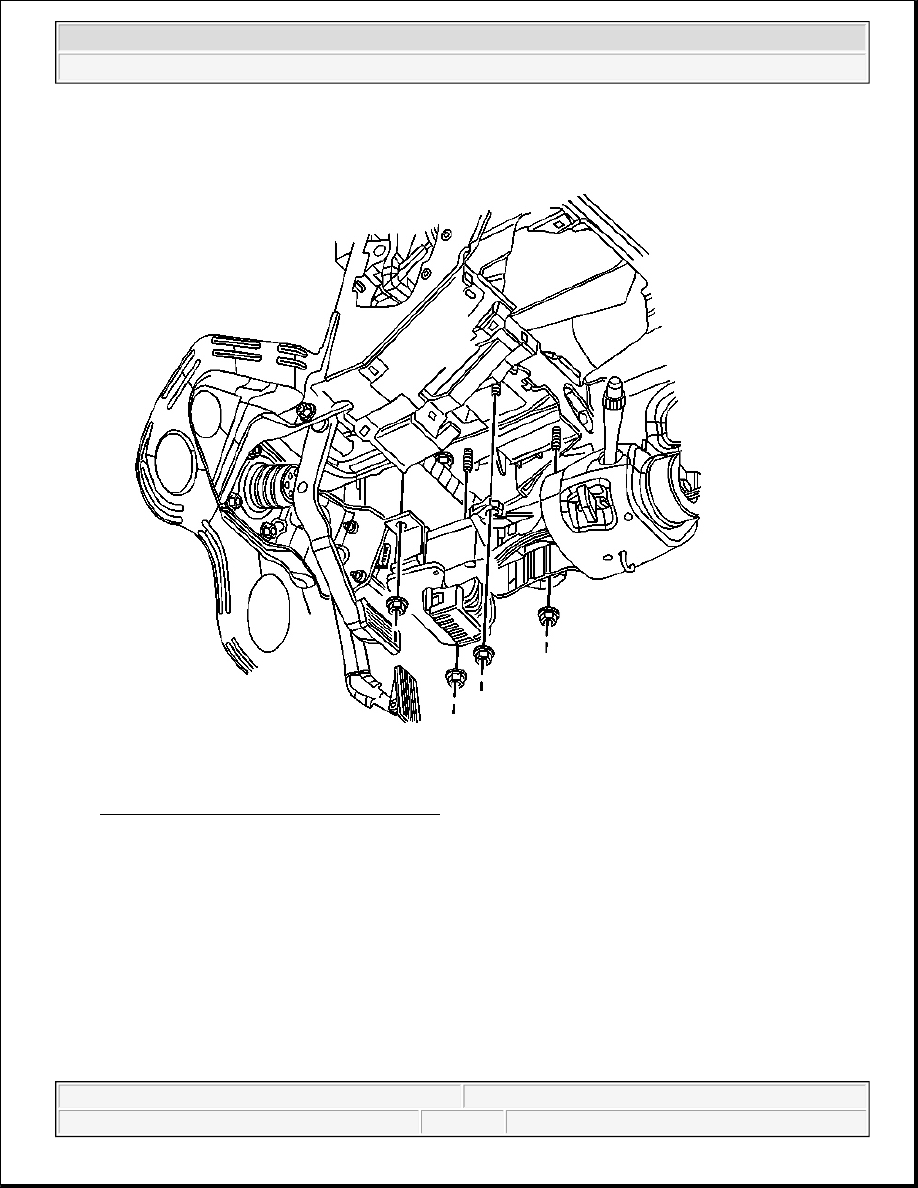

Fig. 88: View Of Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

1. Install the steering column to the vehicle and connect the column to the intermediate shaft.

2. Install the steering column mounting nuts.

Tighten: Tighten the nuts to 27 N.m (20 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



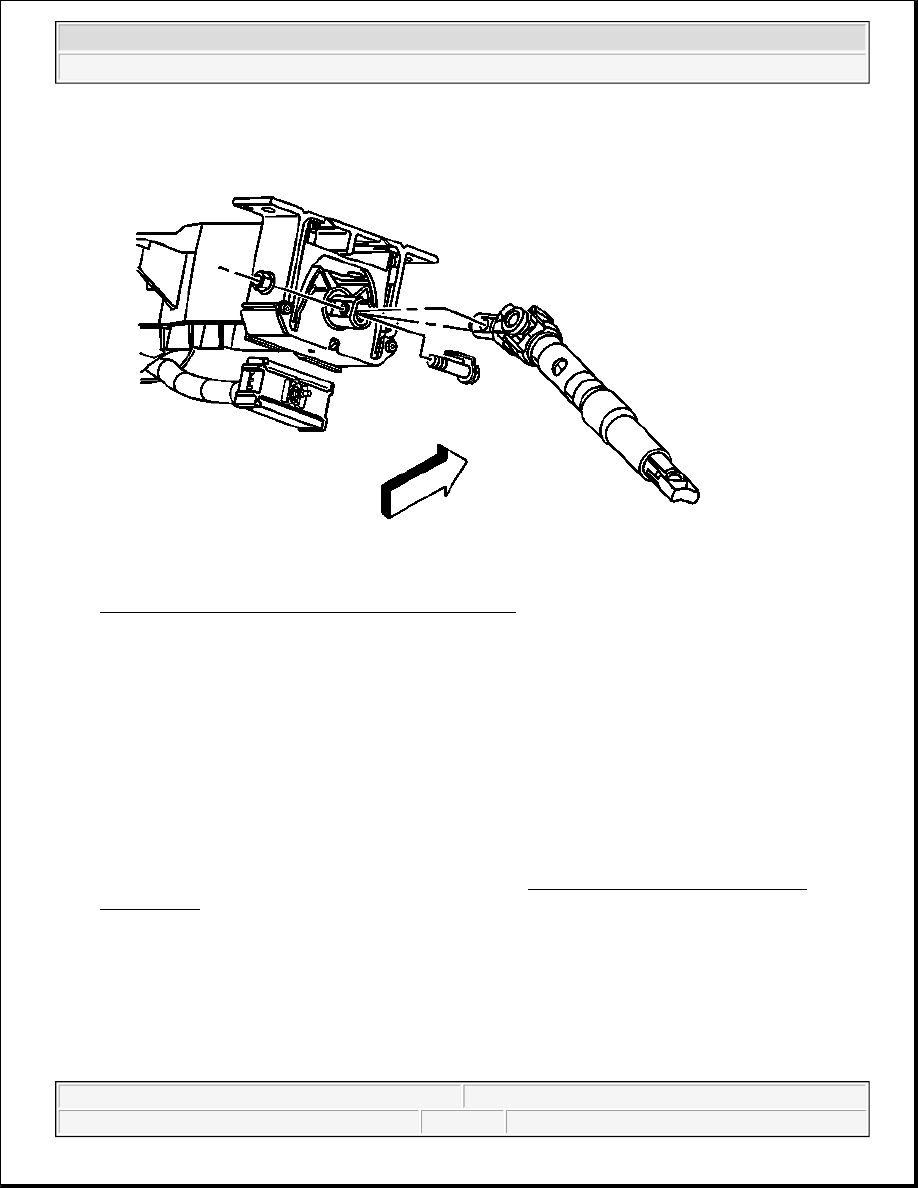

Fig. 89: Steering Column & Upper Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

3. Install the intermediate shaft bolt to the steering column.

Tighten: Tighten the bolt to 50 N.m (37 lb ft).

4. Connect the wiring harness connector to the back of the fuse block.

5. Connect the steering column electrical connector to the body wiring harness.

6. Reposition the transfer case electronic control module bracket and install the bolts.

Tighten: Tighten the bolts to 2 N.m (18 lb in).

7. Install the transfer case electronic control module. Refer to Transfer Case Shift Control Module

Replacement in Transfer Case BW 4484.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



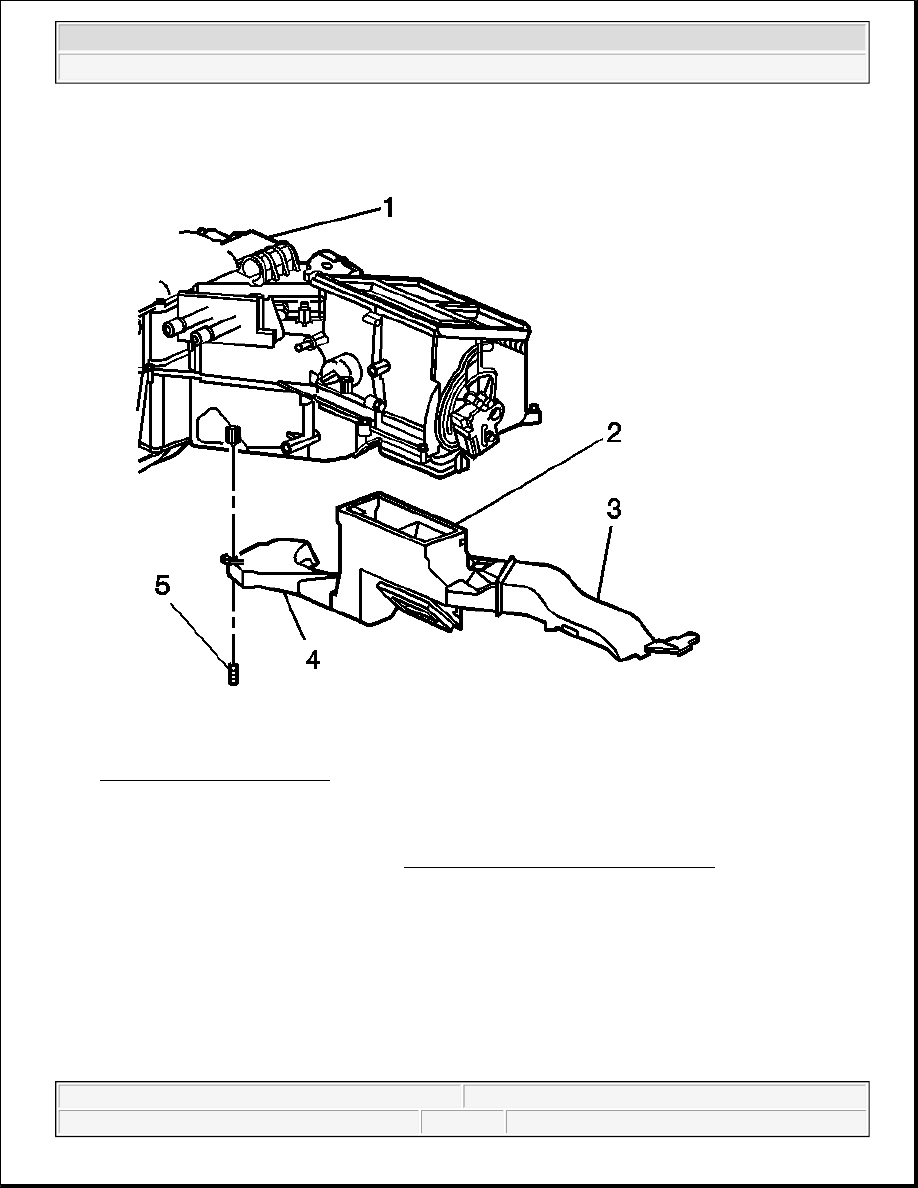

Fig. 90: Floor Air Outlet Duct
Courtesy of GENERAL MOTORS CORP.

8. Connect the HVAC duct (3).

9. Install the knee bolster deflector. Refer to Bracket Replacement - Steering Column in Instrument Panel,

Gauges and Console.
