11. Remove the tilt lever.

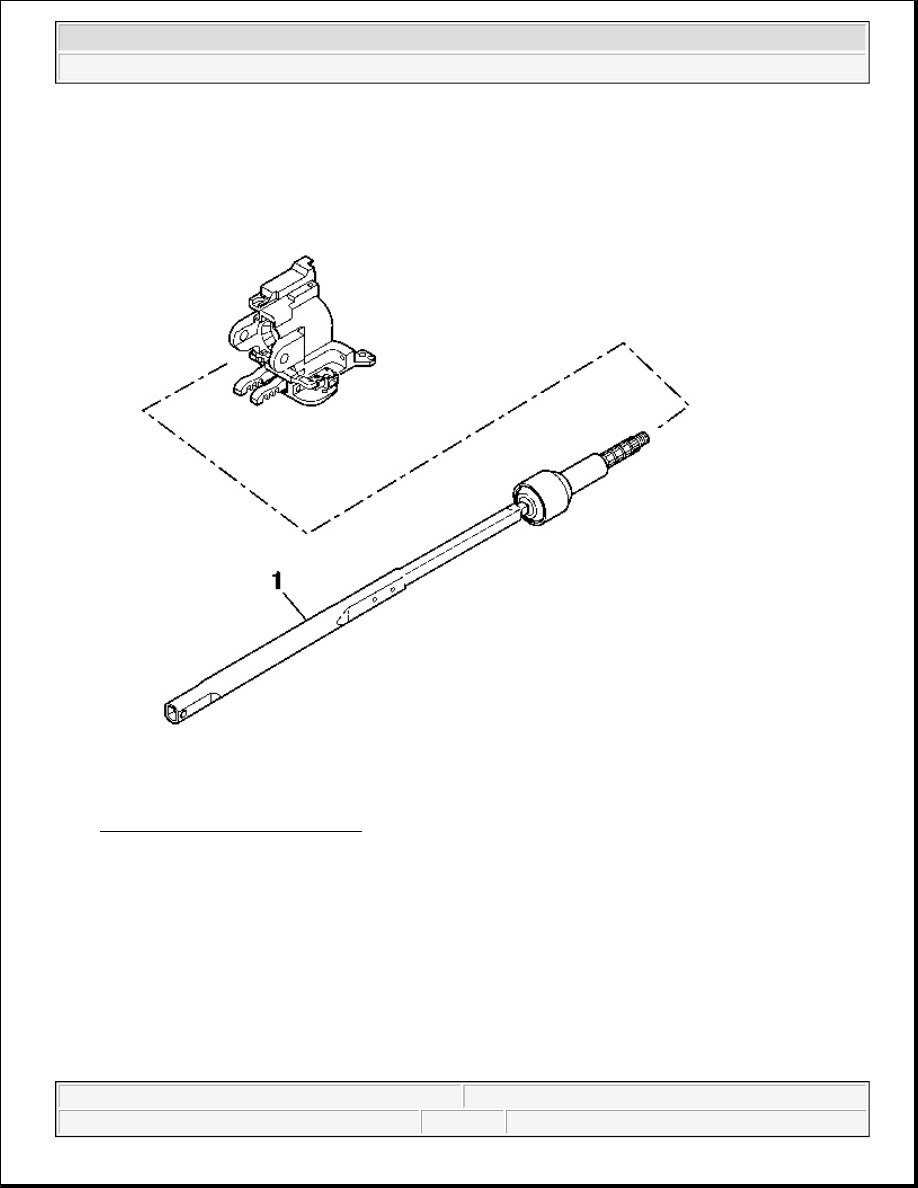

Fig. 80: Identifying Steering Shaft
Courtesy of GENERAL MOTORS CORP.

12. Remove the steering shaft (1) from the steering column tilt head assembly.

Installation Procedure



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



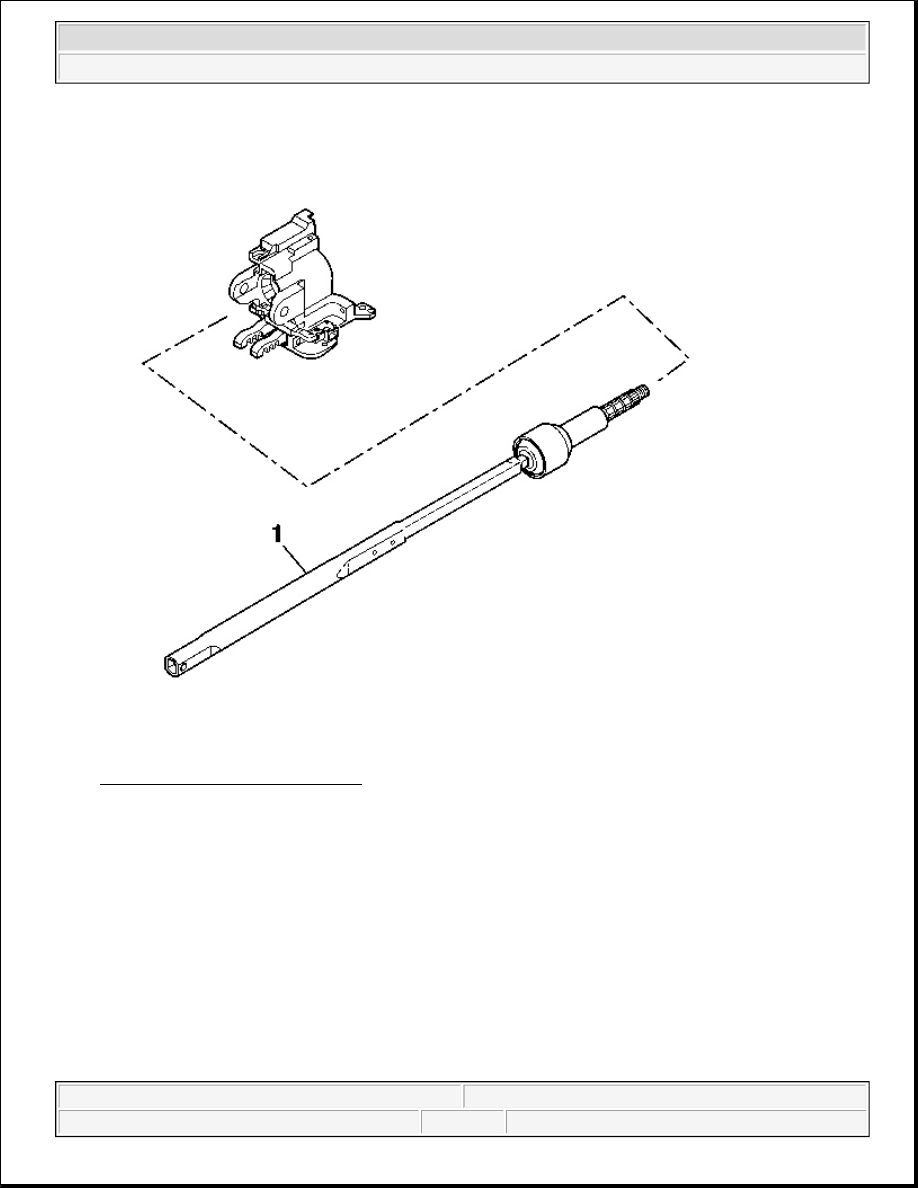

Fig. 81: Identifying Steering Shaft
Courtesy of GENERAL MOTORS CORP.

1. Install the steering shaft (1) into the steering column tilt head assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



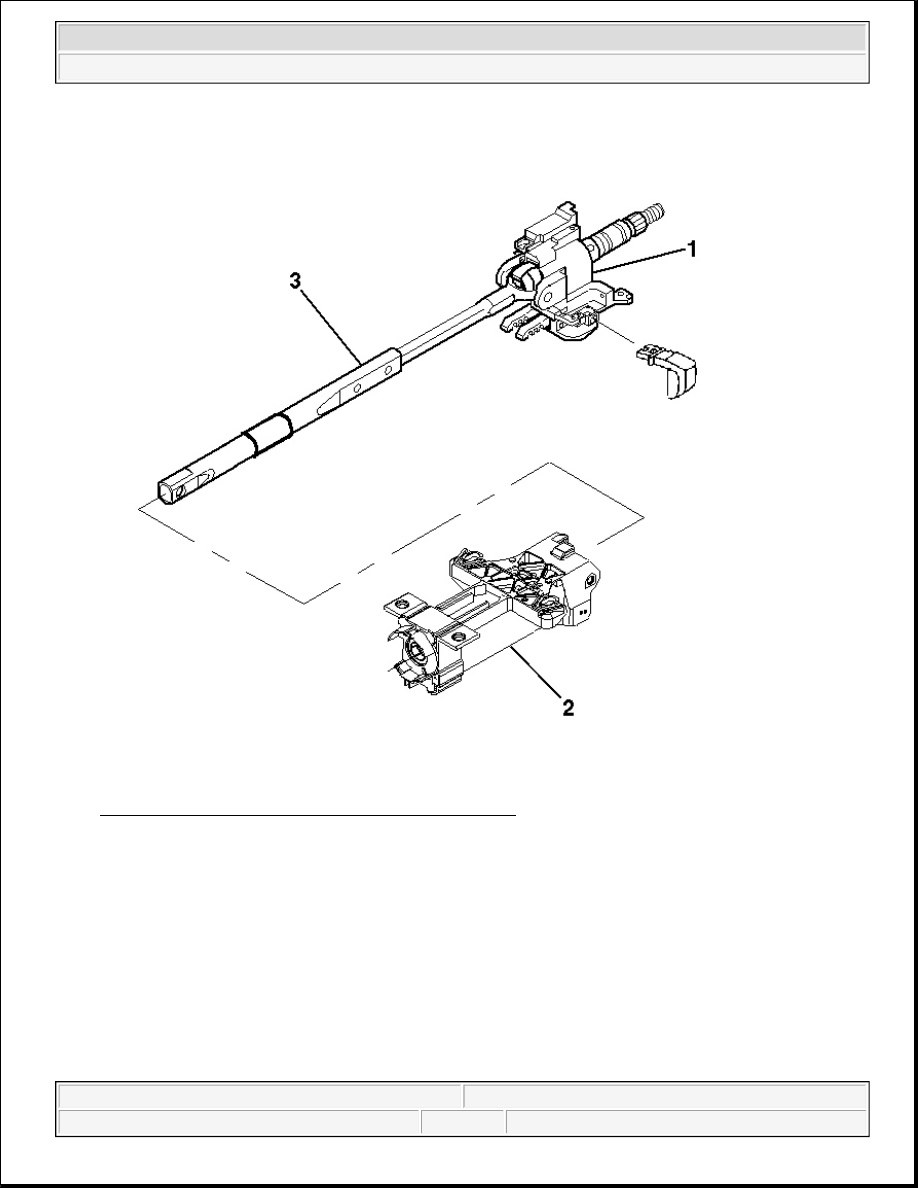

Fig. 82: View Of Upper Steering Column Components
Courtesy of GENERAL MOTORS CORP.

2. Install the steering shaft (3) into the steering column tilt head assembly (1).

Install the tilt head assembly (1) and the steering shaft (3) into the steering column jacket assembly (2).

3. Align the steering column tilt head assembly with the pivot pin holes on the steering column jacket

assembly.

IMPORTANT: The steering wheel lock shoes teeth must be resting on the bar in the

steering column jacket assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



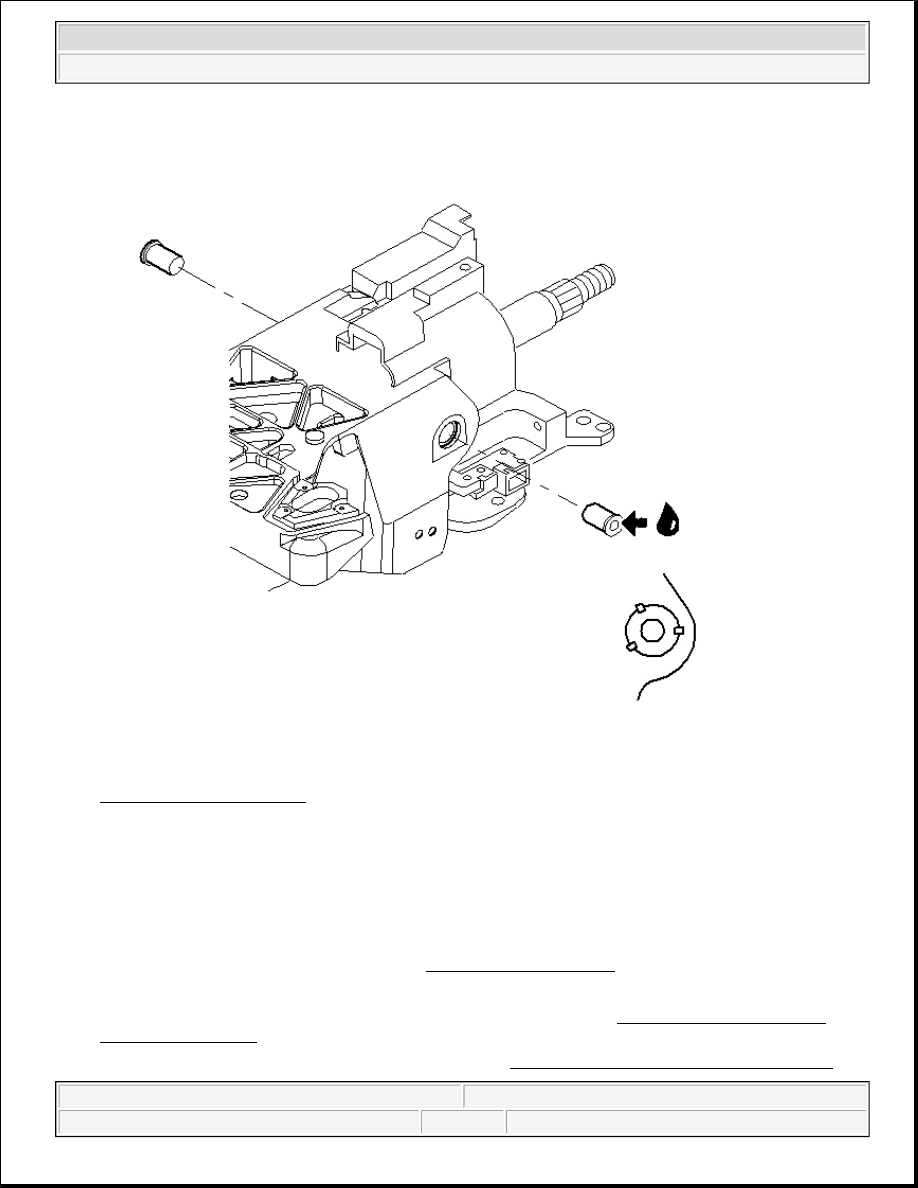

Fig. 83: Pivot Pin Location
Courtesy of GENERAL MOTORS CORP.

4. Lubricate the pivot pins with GM P/N 12346293 (Canadian P/N 992723).

Install the 2 pivot pins into the steering column support assembly.

5. Stake the pins in 3 places.

6. Install the tilt spring assembly only. Refer to Tilt Spring Replacement .

7. Install the turn signal switch housing only.

8. Install the turn signal and multifunction switch assembly only. Refer to Multifunction, Turn Signal

Switch Replacement .

9. Install the ignition lock cylinder case assembly. Refer to Ignition Lock Cylinder Case Replacement .
