10. Install the steering column to the vehicle. Refer to Steering Column Replacement .

11. Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3 in

SIR.

STEERING COLUMN REPLACEMENT

Tools Required

J 42640 Steering Column Lock Pin

Removal Procedure

CAUTION: Refer to SIR Caution in Cautions and Notices.

NOTE:

Once the steering column is removed from the vehicle, the column is extremely
susceptible to damage. Dropping the column assembly on the end could
collapse the steering shaft or loosen the plastic injections, which maintain
column rigidity. Leaning on the column assembly could cause the jacket to
bend or deform. Any of the above damage could impair the columns collapsible
design. Do NOT hammer on the end of the shaft, because hammering could
loosen the plastic injections, which maintain column rigidity. If you need to
remove the steering wheel, refer to the Steering Wheel Replacement procedure
in this section.

NOTE:

The front wheels of the vehicle must be maintained in the straight ahead
position and the steering column must be in the LOCK position before
disconnecting the steering column or intermediate shaft. Failure to follow these
procedures will cause improper alignment of some components during
installation and result in damage to the SIR coil assembly.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



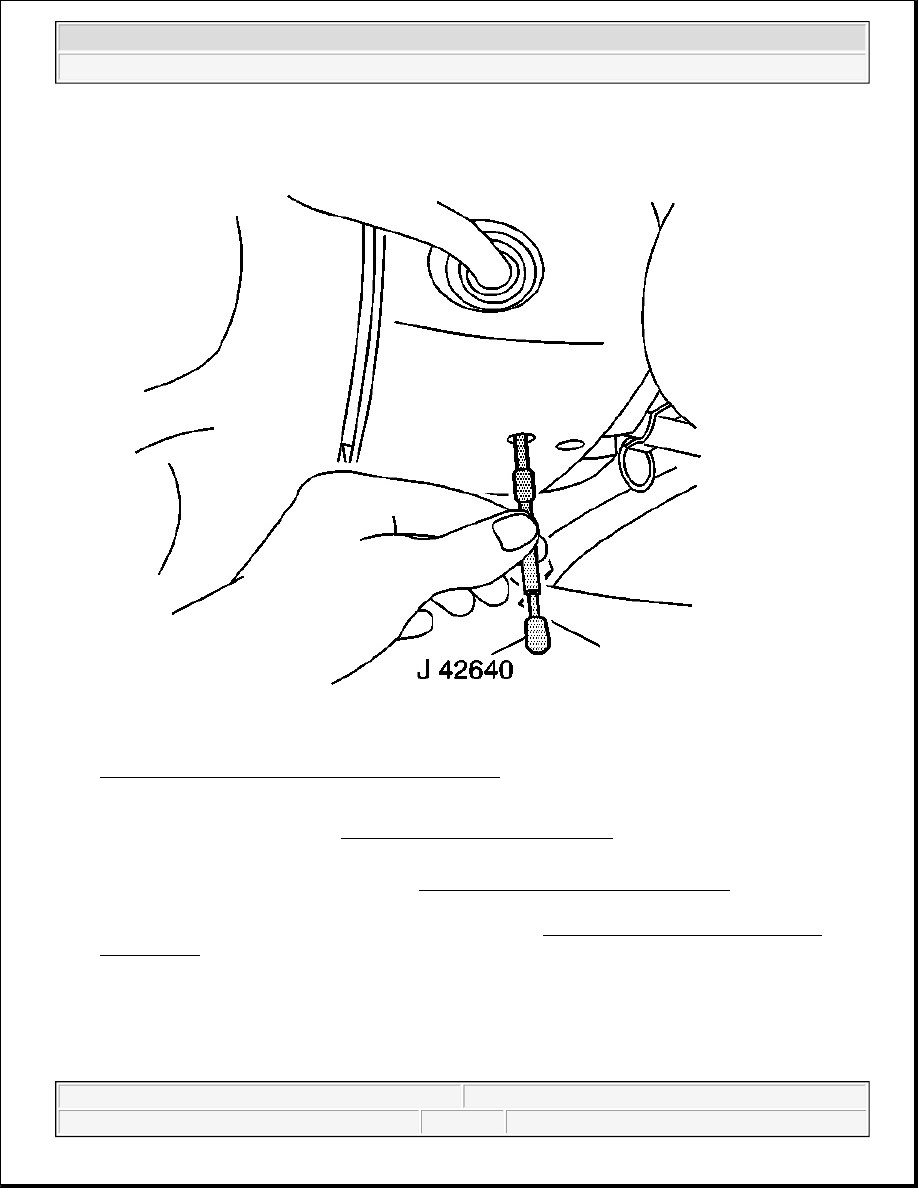

Fig. 84: Inserting J 42640 To Lock Steering Column
Courtesy of GENERAL MOTORS CORP.

1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.

2. Lock the steering column through the access hole in the lower steering column trim cover using J 42640 .

3. Remove the knee bolster deflector. Refer to Bracket Replacement - Steering Column in Instrument

Panel, Gauges and Console.

4. Remove the transfer case electronic control module. Refer to Transfer Case Shift Control Module

Replacement in Transfer Case BW 4484.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



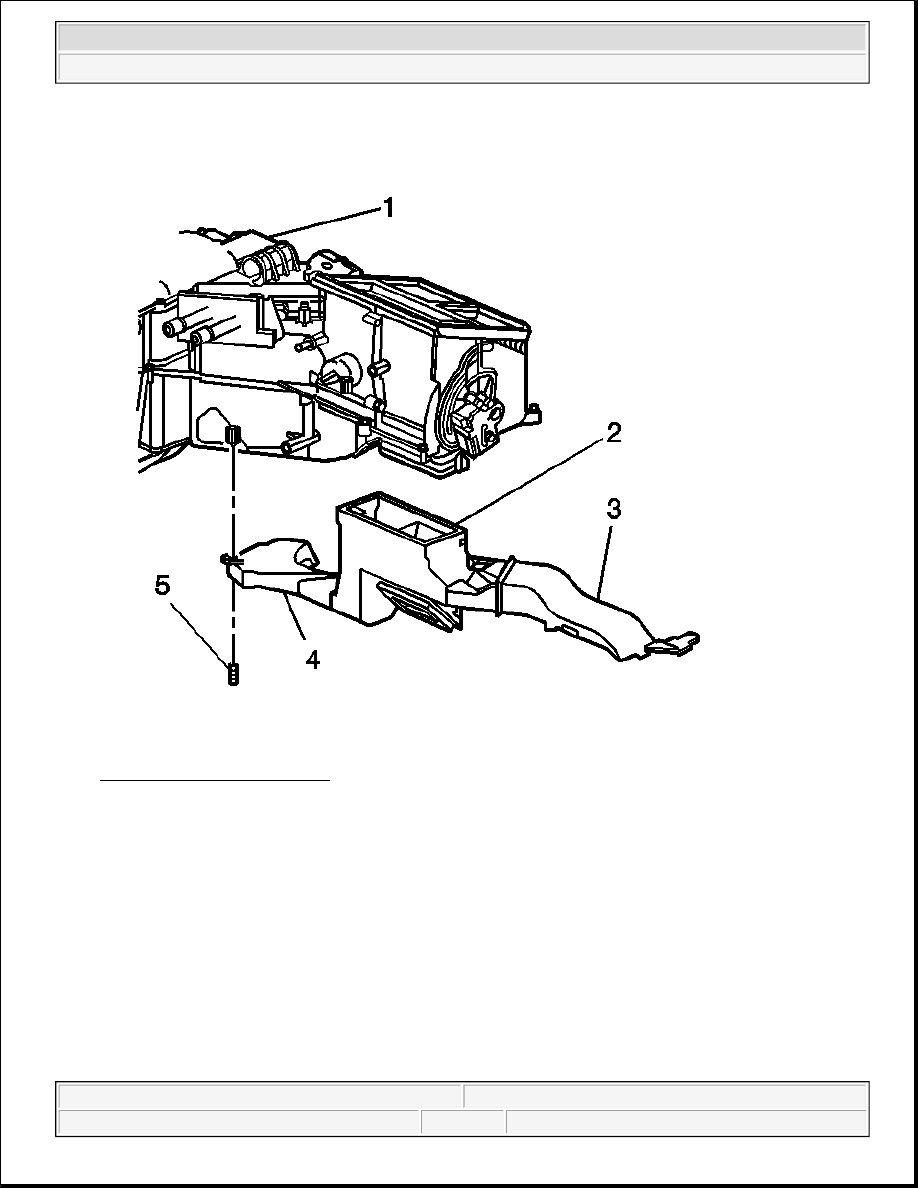

Fig. 85: Floor Air Outlet Duct
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the heating, ventilation, and air conditioning (HVAC) duct (3) and move out of the way.

6. Remove the transfer case electronic control module bracket bolts and lower bracket out of the way.

7. Disconnect the steering column electrical connector.

8. Disconnect the wiring harness connector from the back of the fuse block.



2004 Hummer H2

2004 STEERING Steering Wheel and Column - Hummer H2



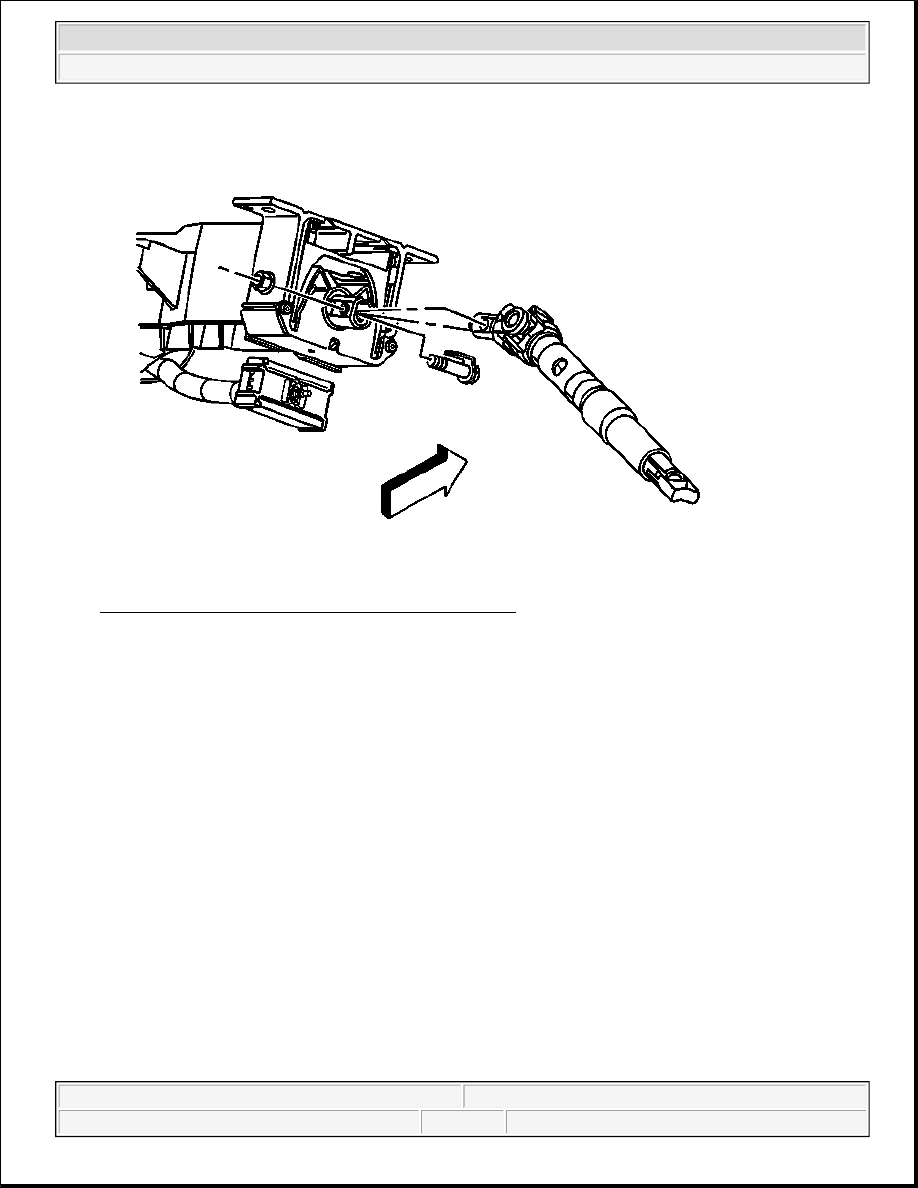

Fig. 86: Steering Column & Upper Intermediate Shaft
Courtesy of GENERAL MOTORS CORP.

9. Remove the intermediate shaft bolt from the steering column.
