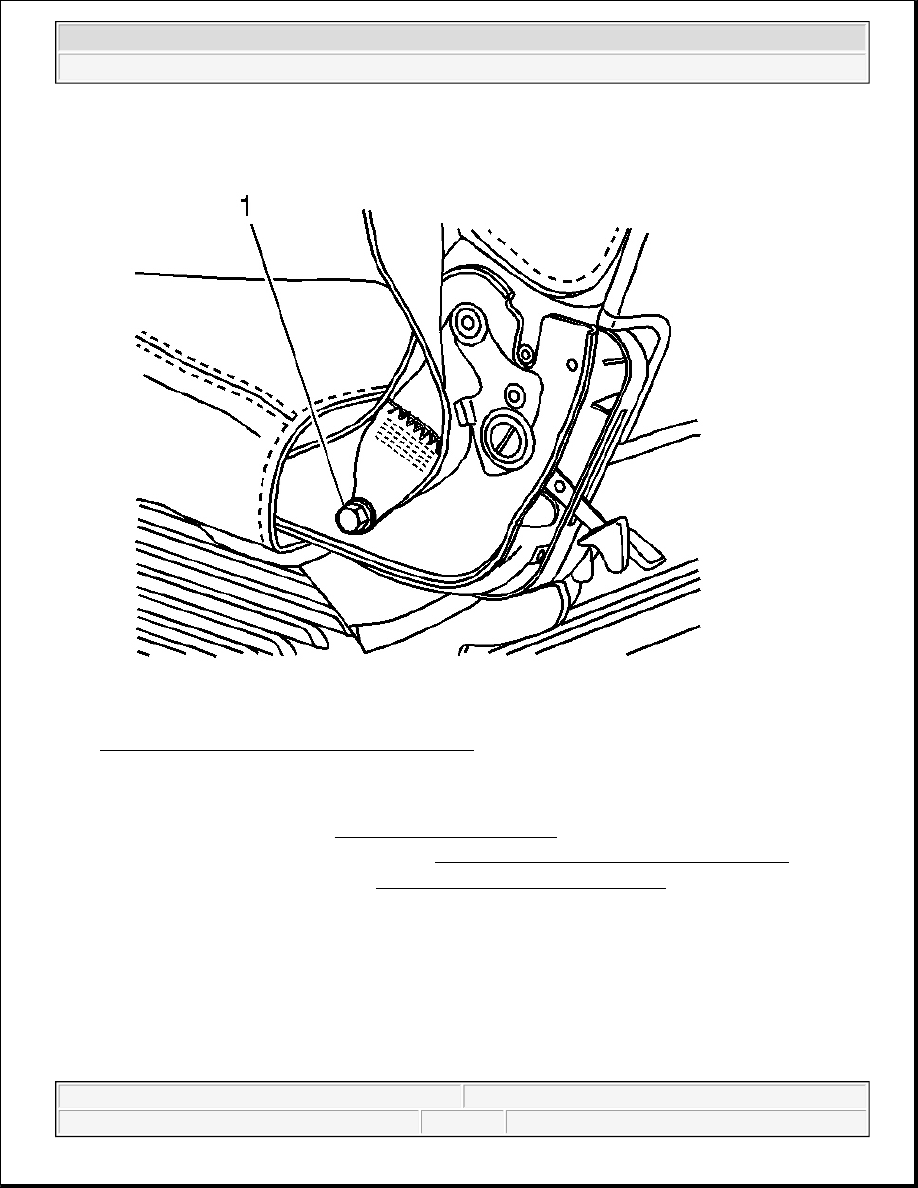

Fig. 31: Seat Belt Anchor Bolt & Cushion Frame
Courtesy of GENERAL MOTORS CORP.

4. Remove the seat belt anchor bolt (1) from the cushion frame.

5. Remove the head rests. Refer to Head Restraint Replacement in Seats.

6. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear .

7. Remove the seat back frame. Refer to Seat Back Frame Replacement - Rear in Seats.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



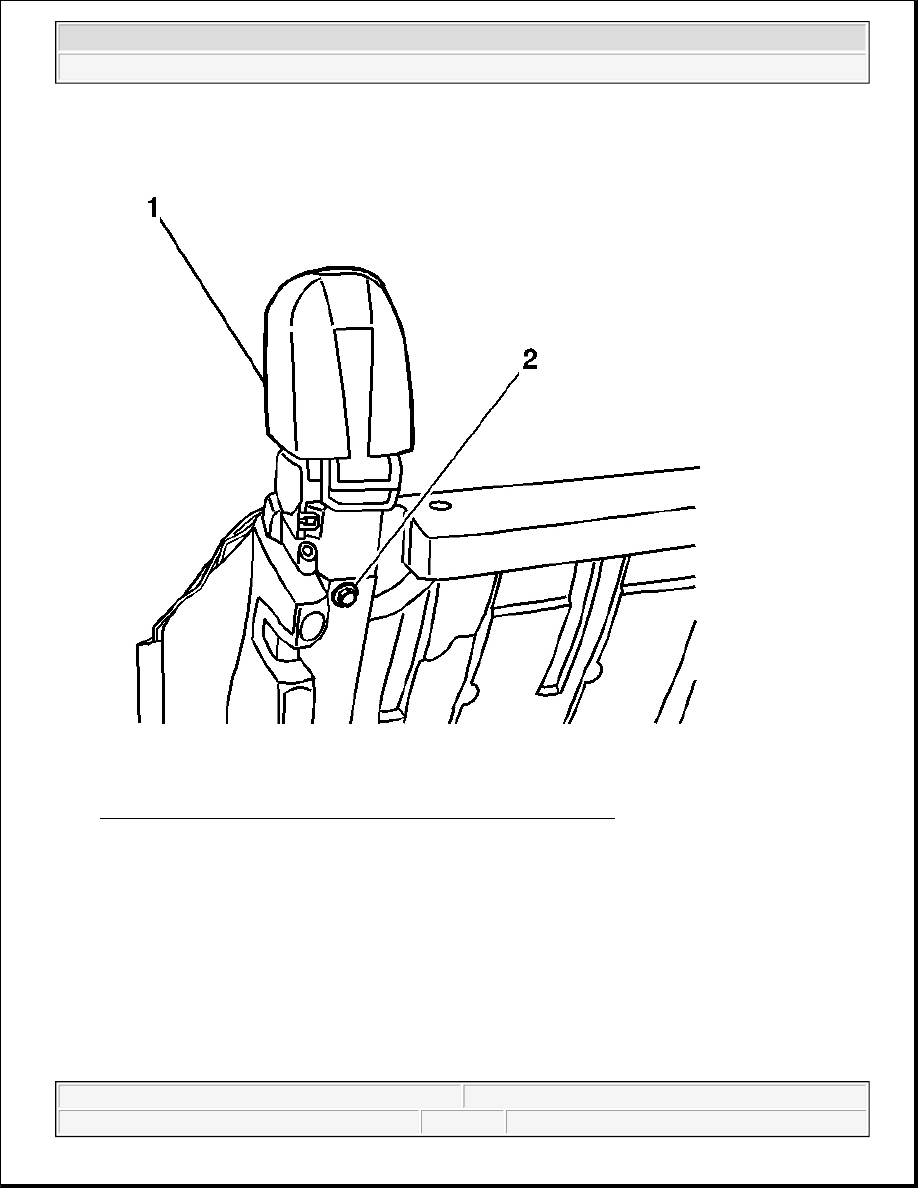

Fig. 32: Seatbelt Retractor Bolt Cover & Retractor Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

8. Remove the seatbelt retractor bolt cover (1).

9. Remove the retractor mounting bolts (2).



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



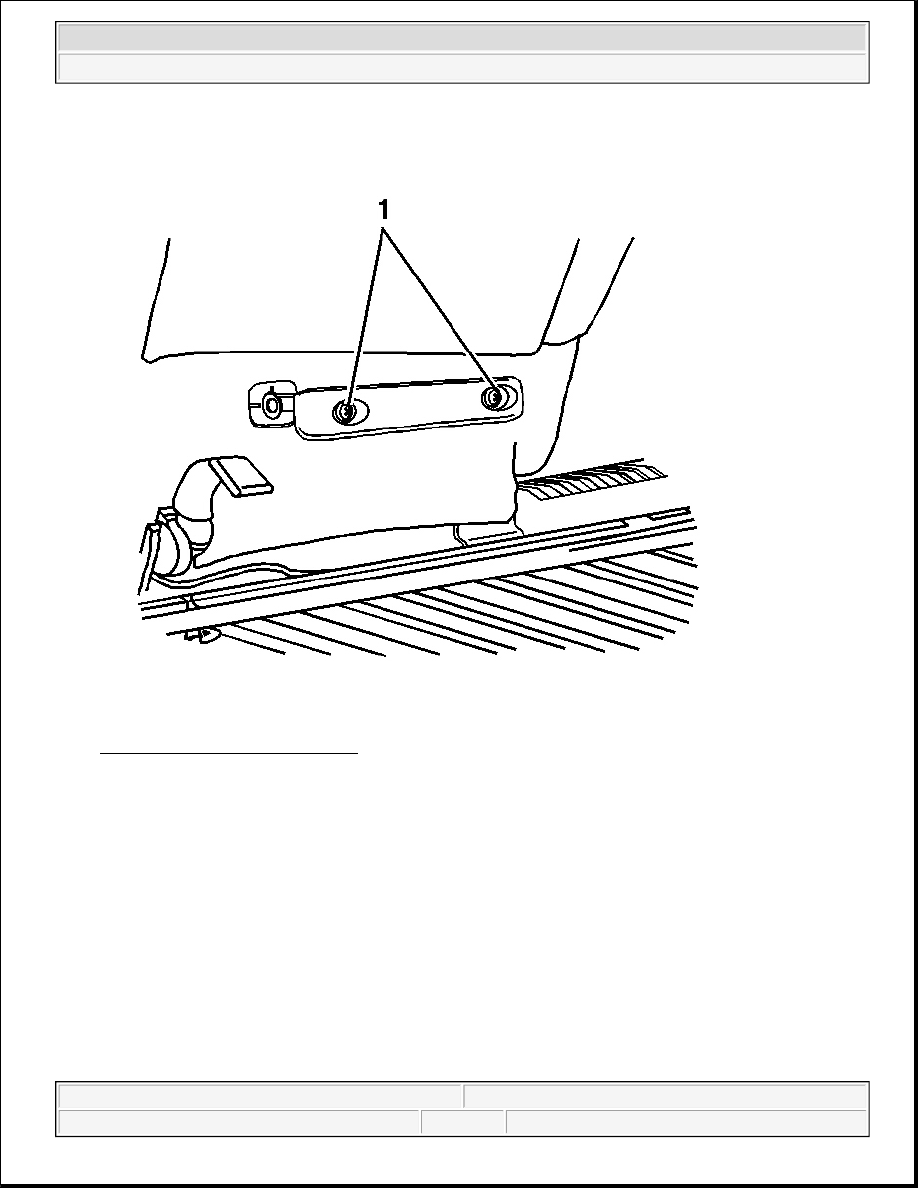

Fig. 33: Handle Mounting Screws
Courtesy of GENERAL MOTORS CORP.

10. Remove the handle mounting screws (1).

11. Partially remove the seat cushion cover by separating the cushion trim J-strips.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



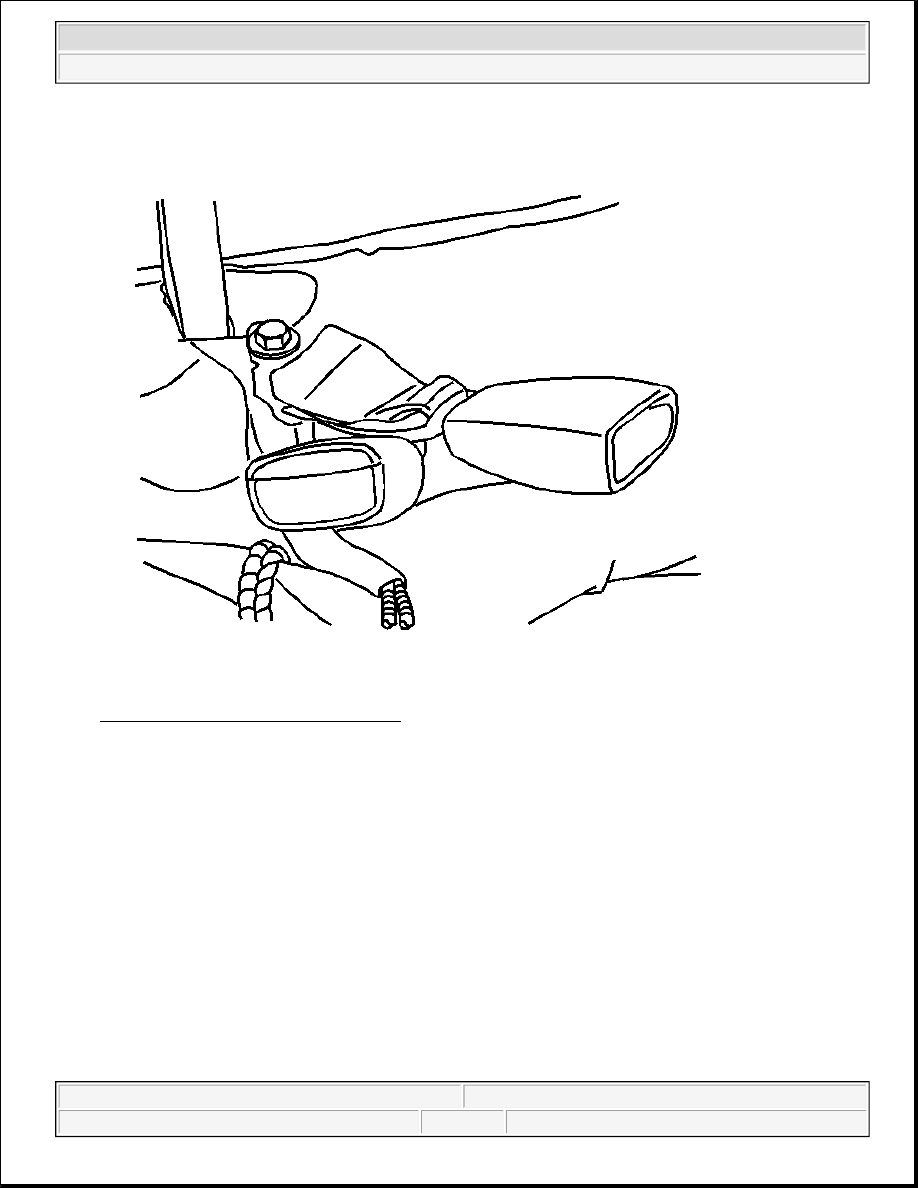

Fig. 34: Seat Belt Buckle & Seat Frame
Courtesy of GENERAL MOTORS CORP.

12. Remove the bolts attaching the buckle to the seat cushion frame.

13. Remove the buckle and the latch from the seat frame.

Installation Procedure

1. Install the buckle and the latch to the seat frame.
