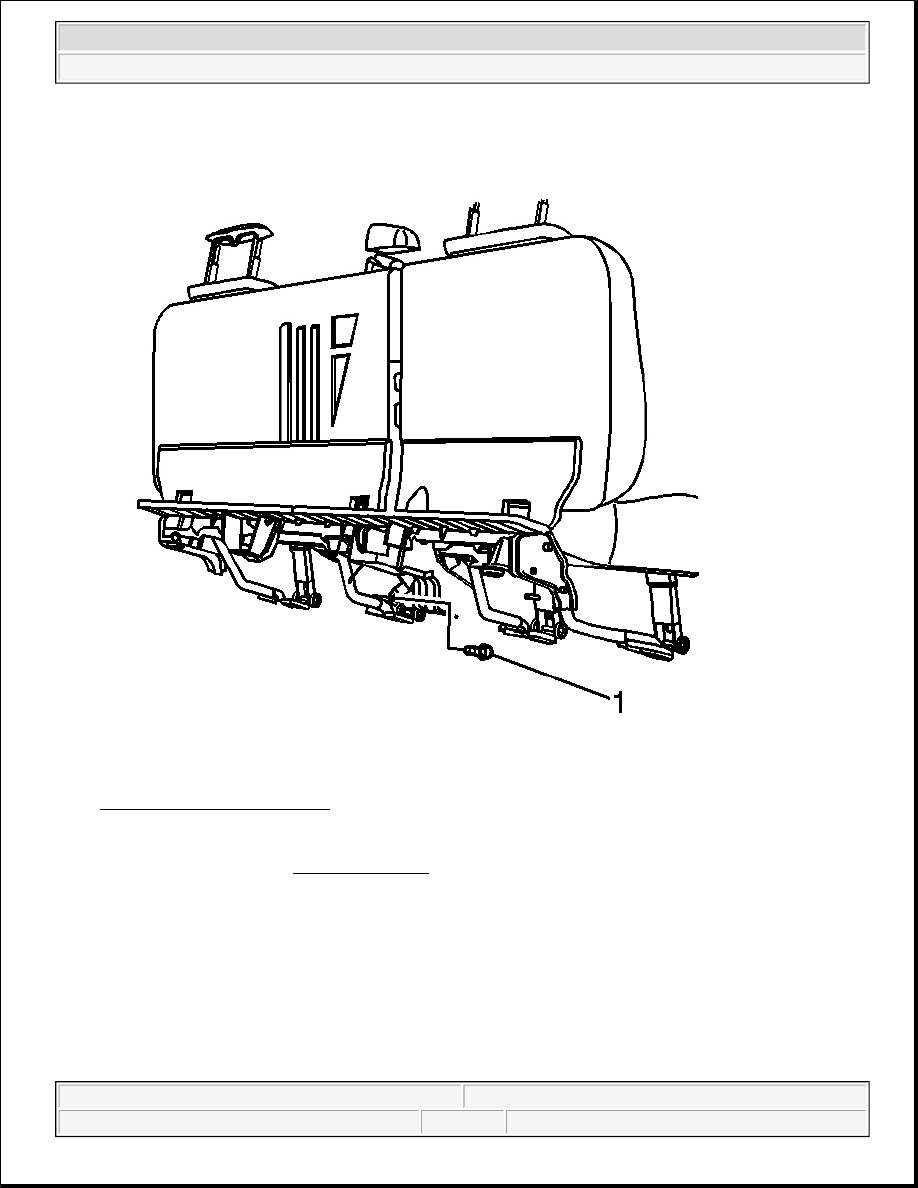

Fig. 27: Seat Belt Anchor Bolt
Courtesy of GENERAL MOTORS CORP.

1. Install the bolt (1) to the seat belt anchor.

Tighten: Tighten the bolt to 52 N.m (38 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



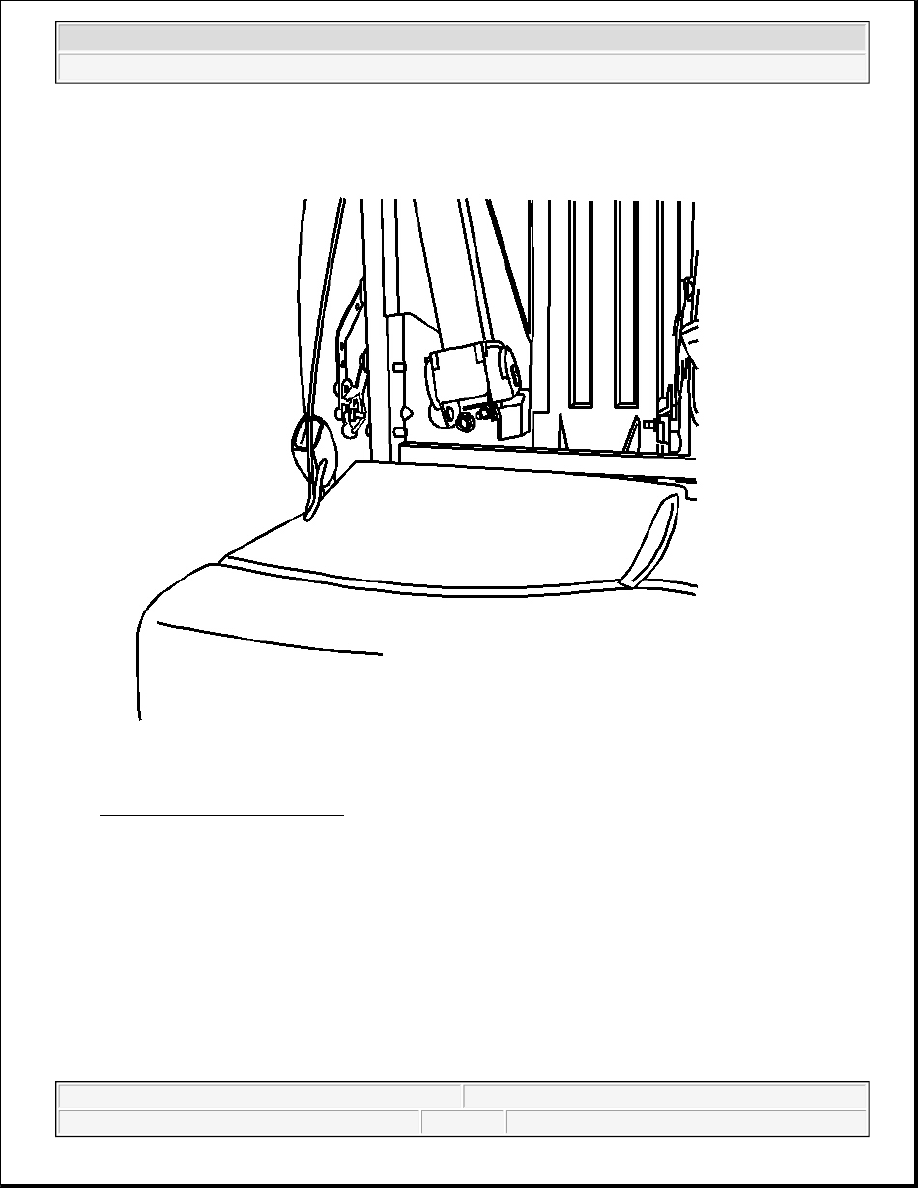

Fig. 28: Seat Belt Retractor Nut
Courtesy of GENERAL MOTORS CORP.

2. Install the nut to the seat belt retractor.

Tighten: Tighten the nut to 52 N.m (38 lb ft).

3. Install the J-Clip under the center armrest.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



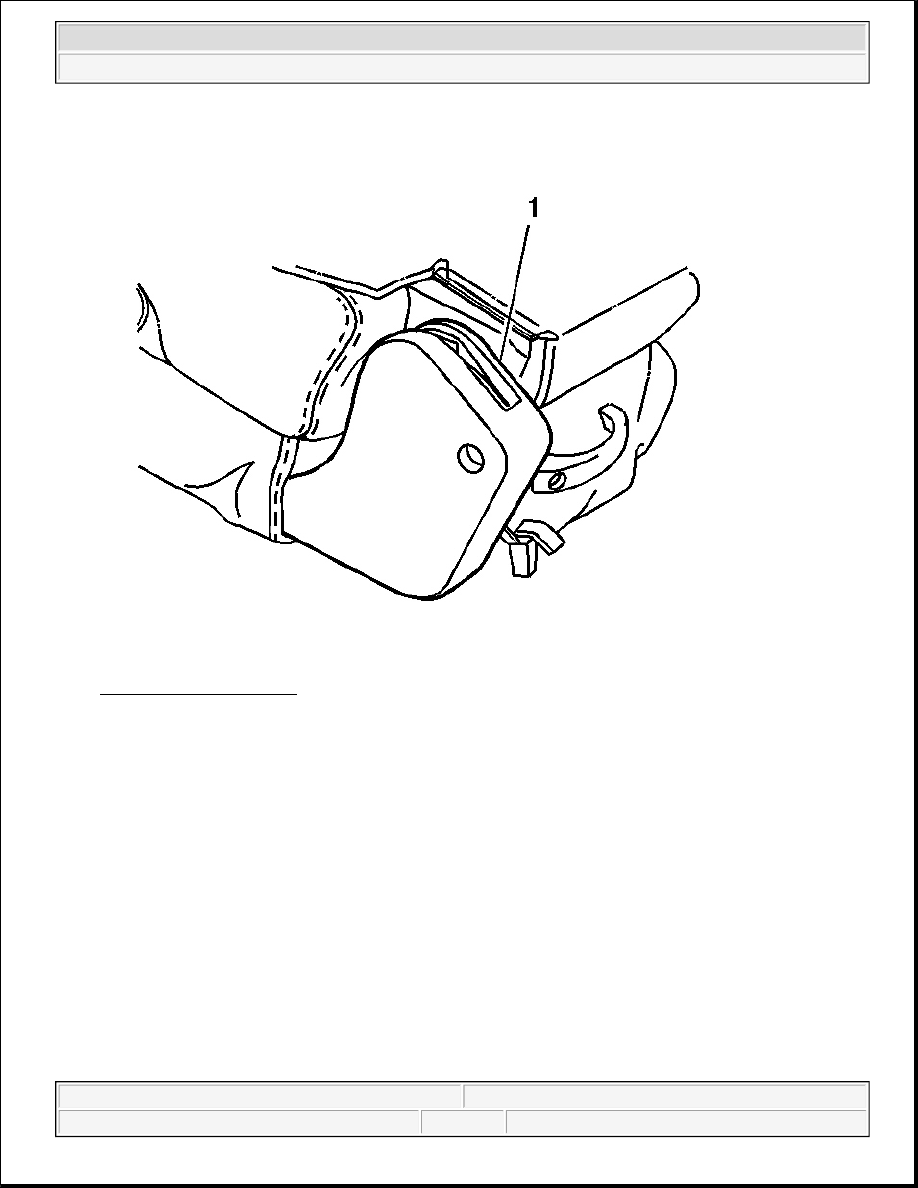

Fig. 29: Seat Belt Guide Cover
Courtesy of GENERAL MOTORS CORP.

4. Install the rear seat armrest. Refer to Armrest Replacement - Rear Seat in Seats.

5. Install the seat belt guide cover (1).

SEAT BELT RETRACTOR REPLACEMENT - NO. 2 REAR

Removal Procedure

1. Remove the seat from the vehicle. Refer to Seat Replacement - Rear No. 2 in Seats.

2. In order to release the seat back, manually rotate the center latch. Rotate the latch until the seat back

releases the seat back.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



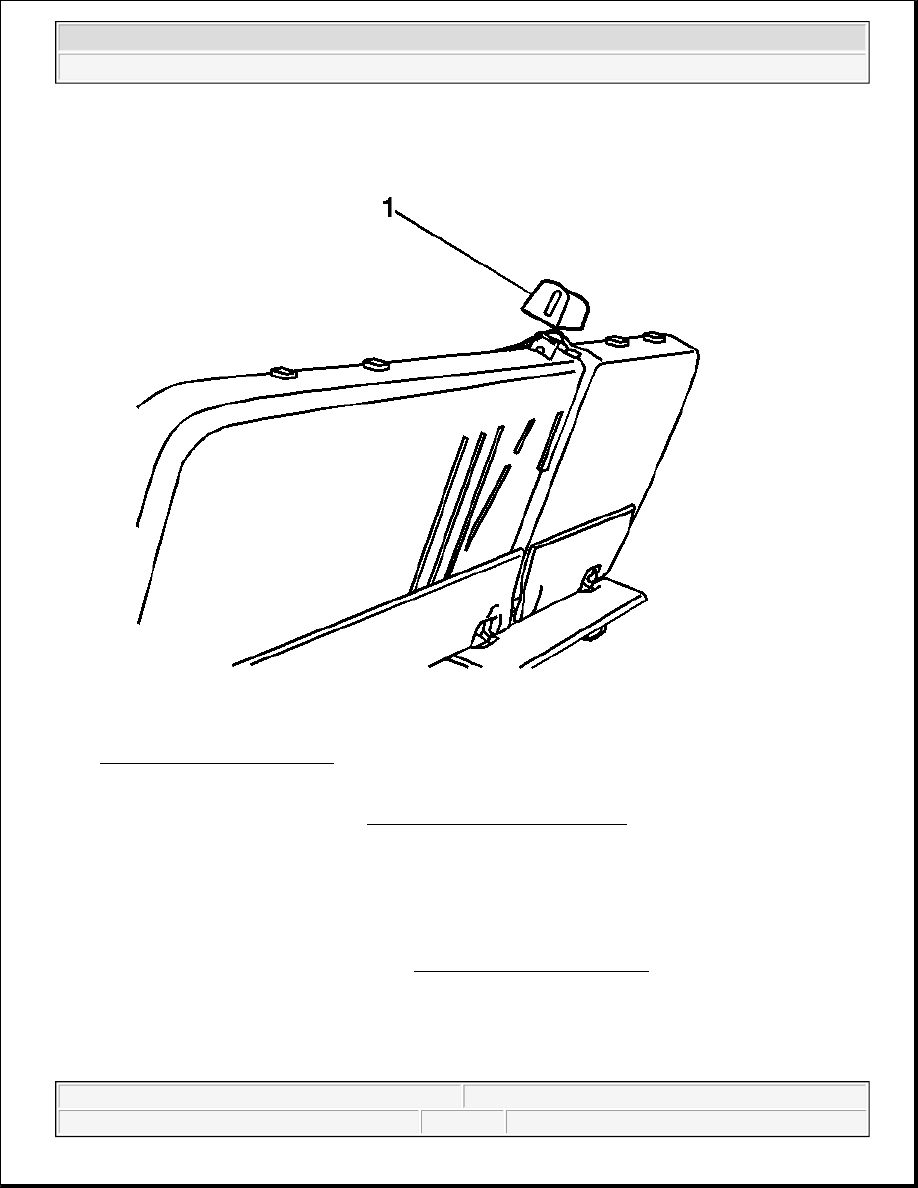

Fig. 30: Seat Latch Cover
Courtesy of GENERAL MOTORS CORP.

3. Remove the latch cover (1) from the seat.
