7. Install the floor anchor bolt.

Tighten: Tighten the bolt to 55 N.m (41 lb ft).

8. Install the seat belt anchor bolt cover.

9. Install the door sill plate. Refer to Door Sill Plate Replacement - Front or Door Sill Plate Replacement

- Rear in Interior Trim.

SEAT BELT RETRACTOR REPLACEMENT - CENTER REAR

Removal Procedure

CAUTION: To avoid personal injury to the occupants of the vehicle, observe the

following precautions:

z

More than one supplier's seat belts are used, therefore, install ONLY
the seat belt components specified in the GM parts catalog.

z

To verify that the correct seat belt components were installed, insert
the seat belt latch in the seat belt buckle. The latch must be fully
seated and be retained in the buckle until purposely released.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



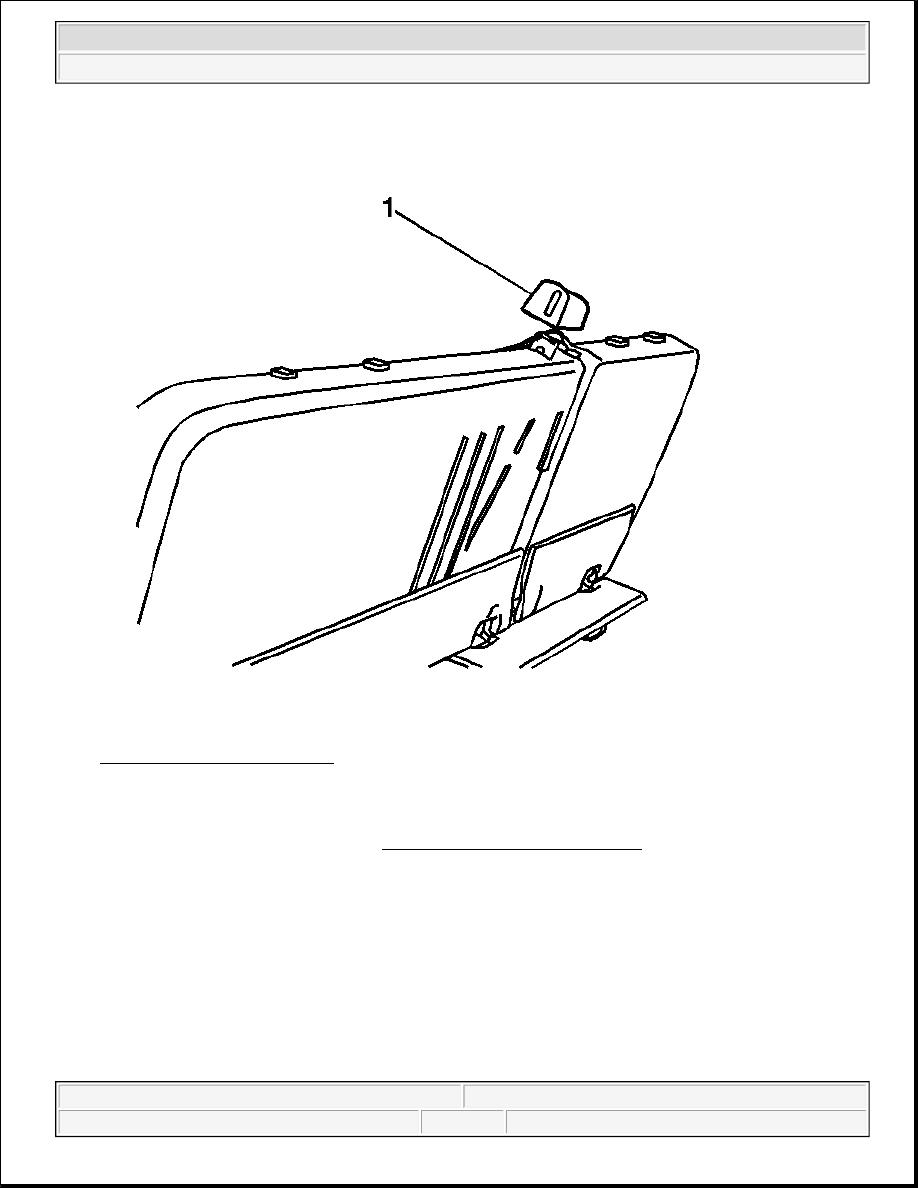

Fig. 24: Seat Belt Guide Cover
Courtesy of GENERAL MOTORS CORP.

1. Remove the seat belt guide cover (1).

2. Remove the rear seat armrest. Refer to Armrest Replacement - Rear Seat in Seats.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



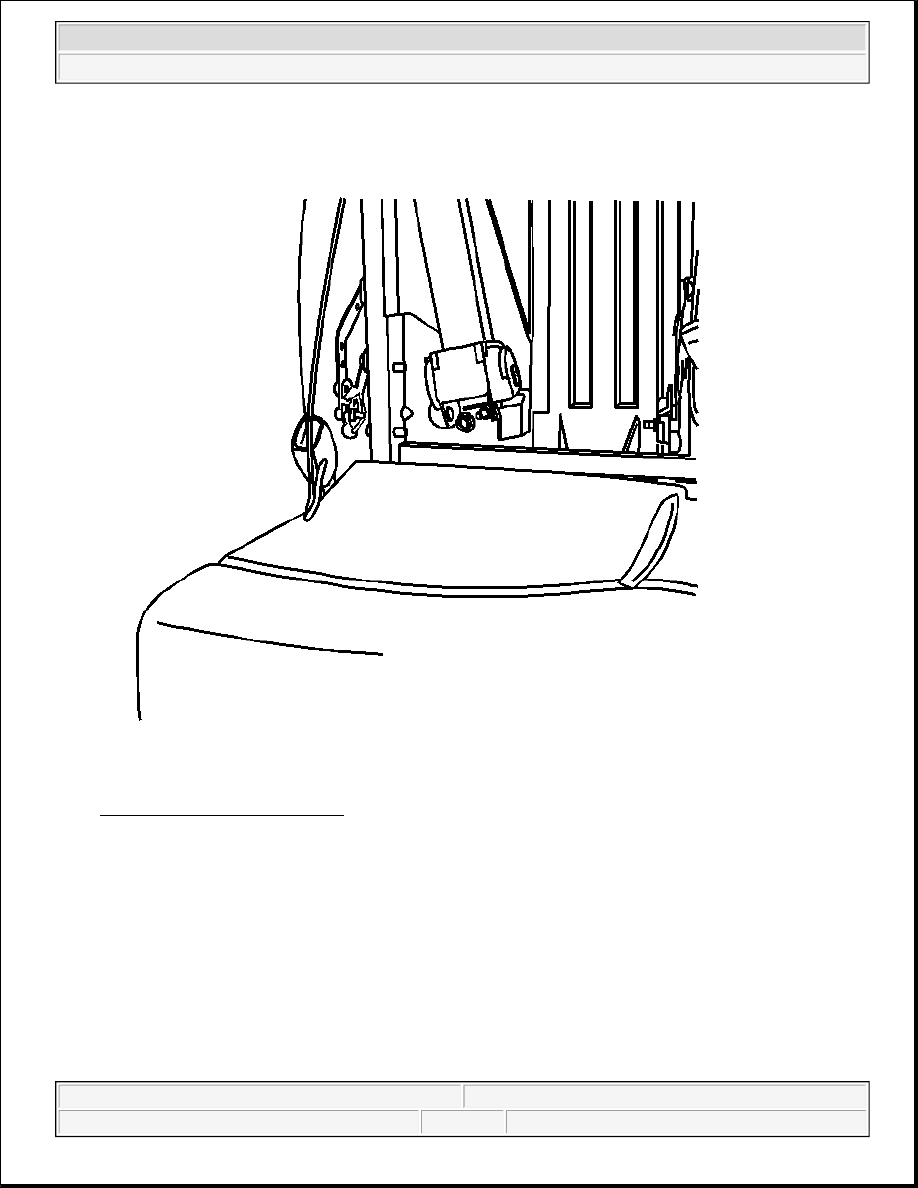

Fig. 25: Seat Belt Retractor Nut
Courtesy of GENERAL MOTORS CORP.

3. Release the J-Clip from under the center armrest.

4. Remove the nut from the seat belt retractor.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



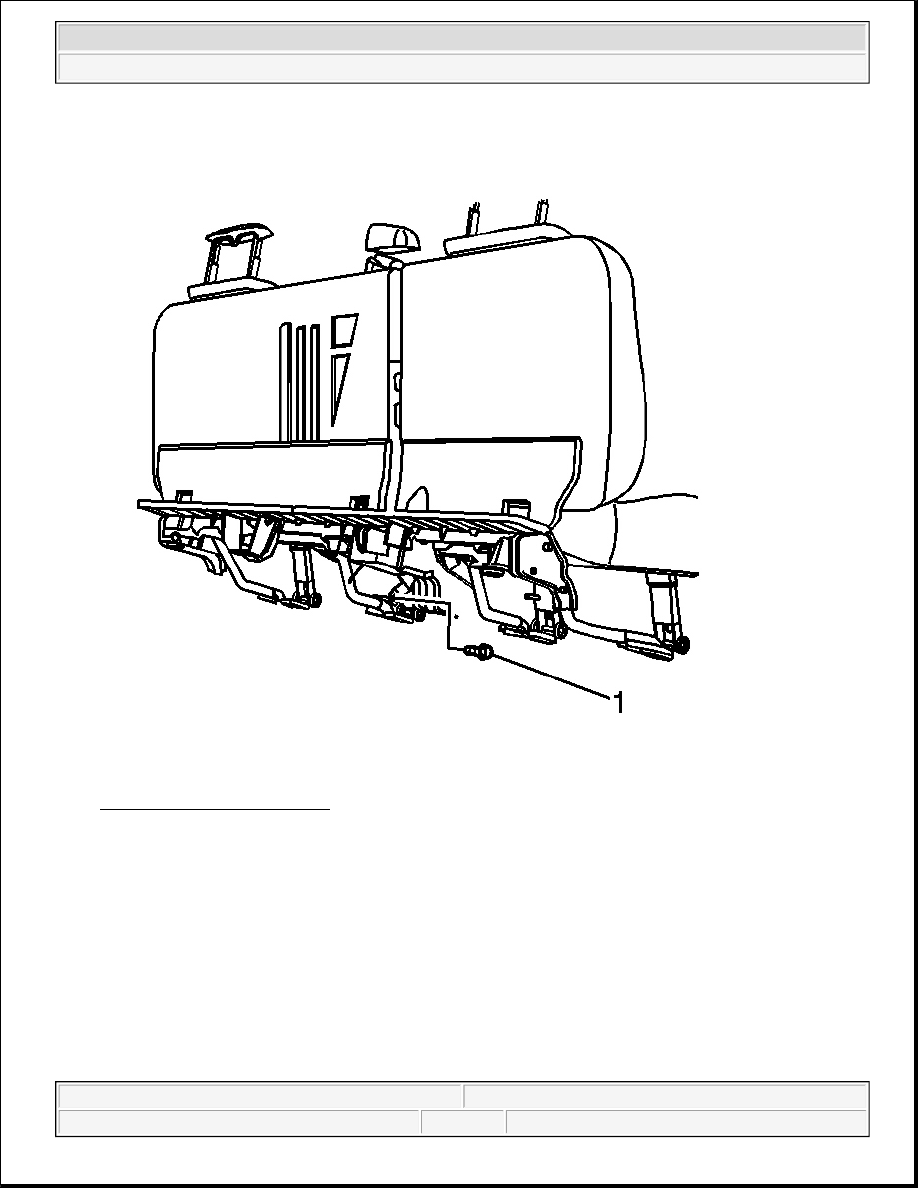

Fig. 26: Seat Belt Anchor Bolt
Courtesy of GENERAL MOTORS CORP.

5. Remove the bolt (1) from the seat belt anchor.
