Hummer H2. Manual - part 2099

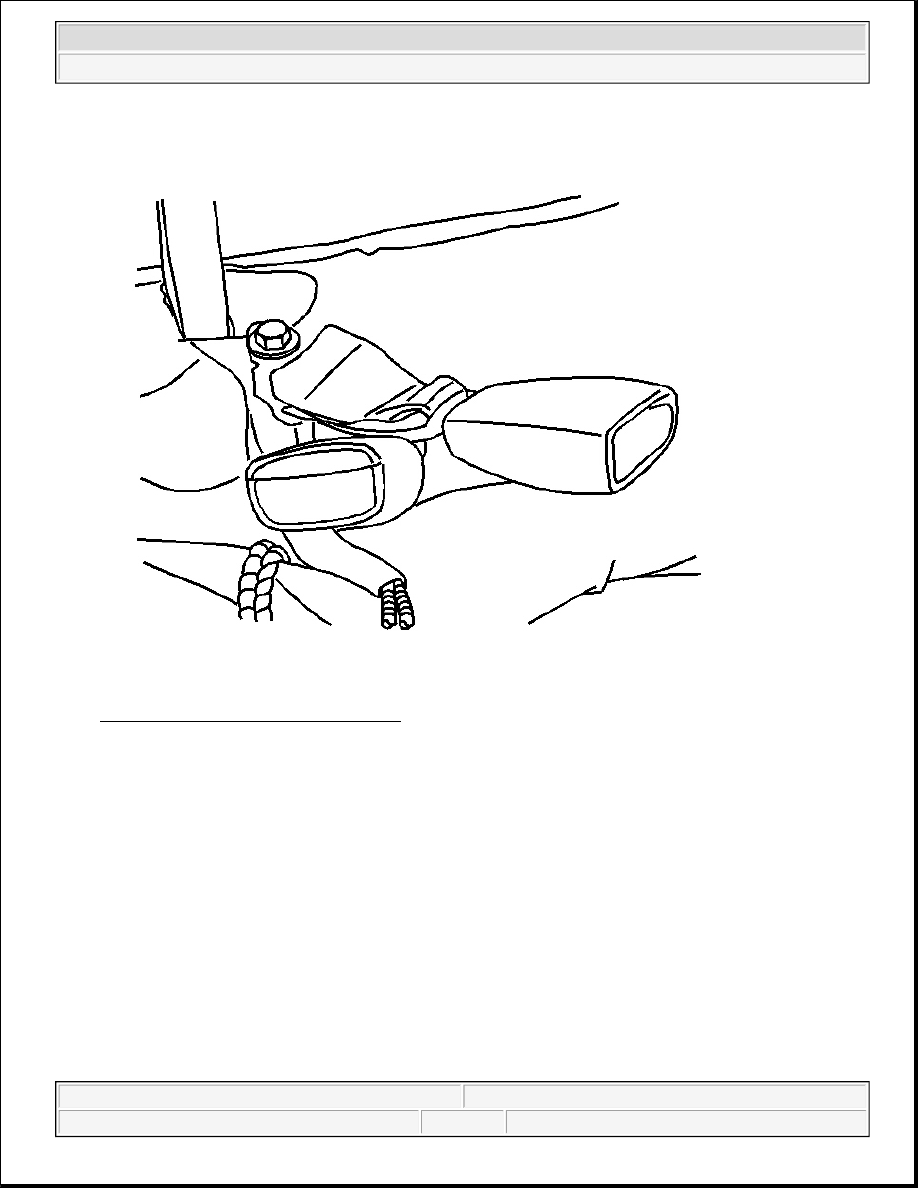

Fig. 35: Seat Belt Buckle & Seat Frame
Courtesy of GENERAL MOTORS CORP.

2. Install the buckle bolts.

Tighten: Tighten the bolts to 55 N.m (41 lb ft).

3. Connect the seat cushion cover by joining the cushion trim J-strips.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



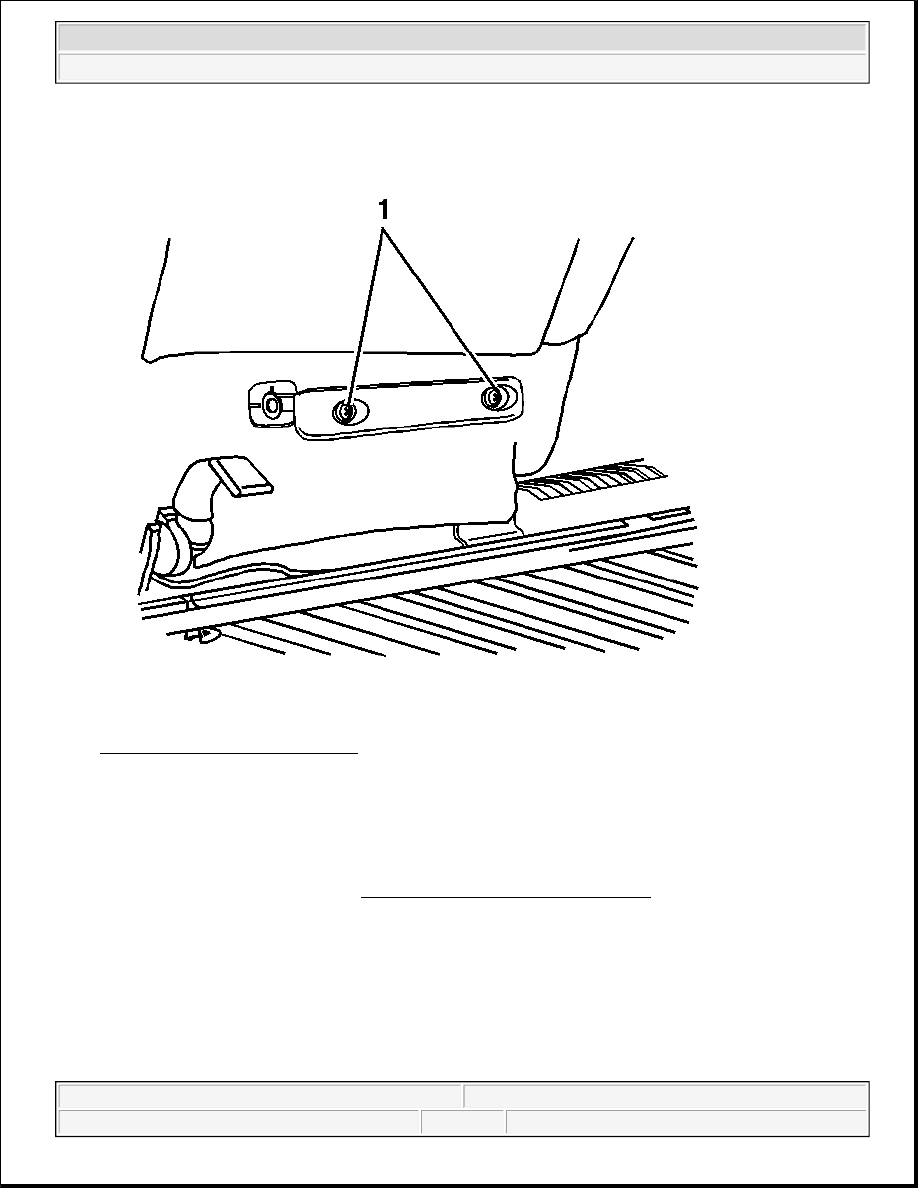

Fig. 36: Handle Mounting Screws
Courtesy of GENERAL MOTORS CORP.

4. Install the handle mounting screws (1).

Tighten: Tighten the screws to 7 N.m (61 lb in).

5. Install the seat back frame. Refer to Seat Back Frame Replacement - Rear in Seats.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



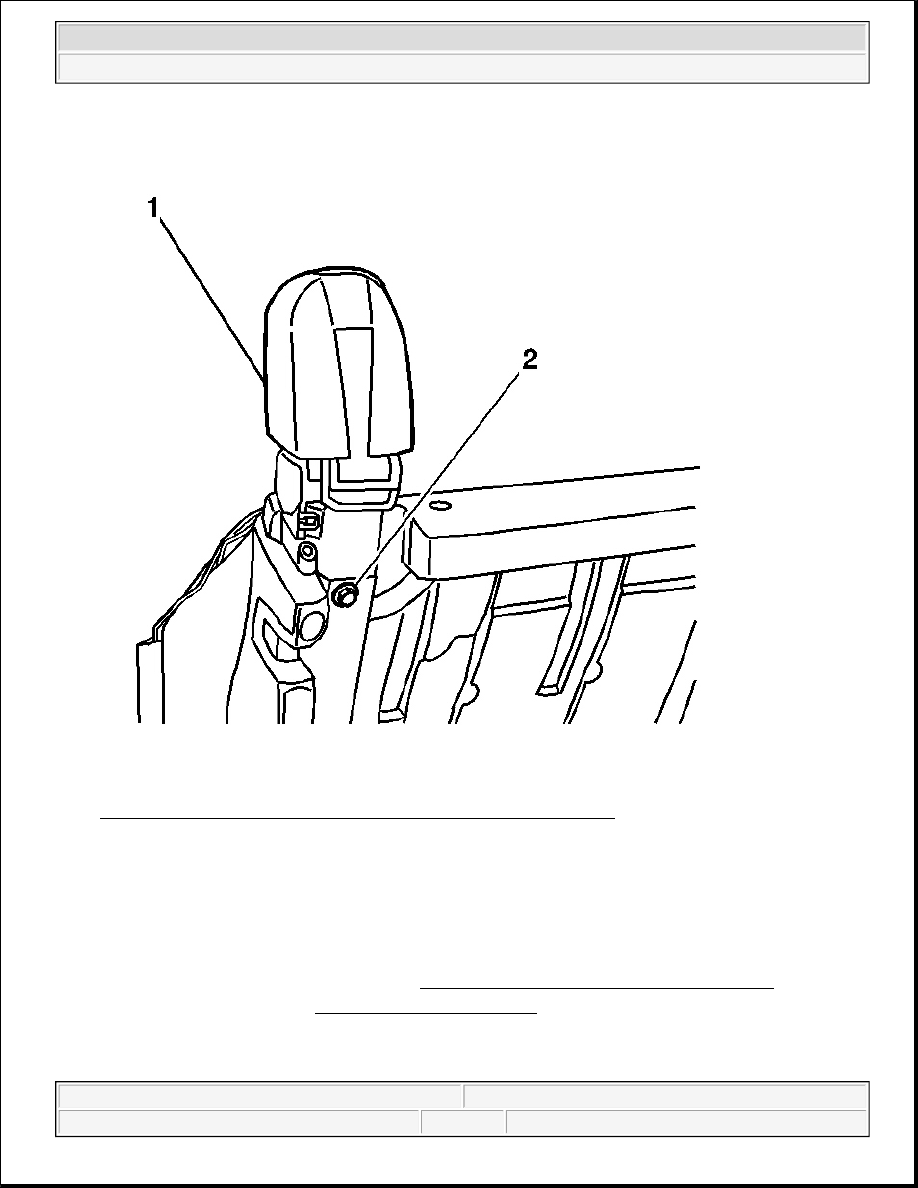

Fig. 37: Seatbelt Retractor Bolt Cover & Retractor Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

6. Install the retractor mounting bolt (2).

Tighten: Tighten the bolt to 55 N.m (410 lb ft).

7. Install the seatbelt retractor bolt cover (1).

8. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear .

9. Install the headrests. Refer to Head Restraint Replacement in Seats.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



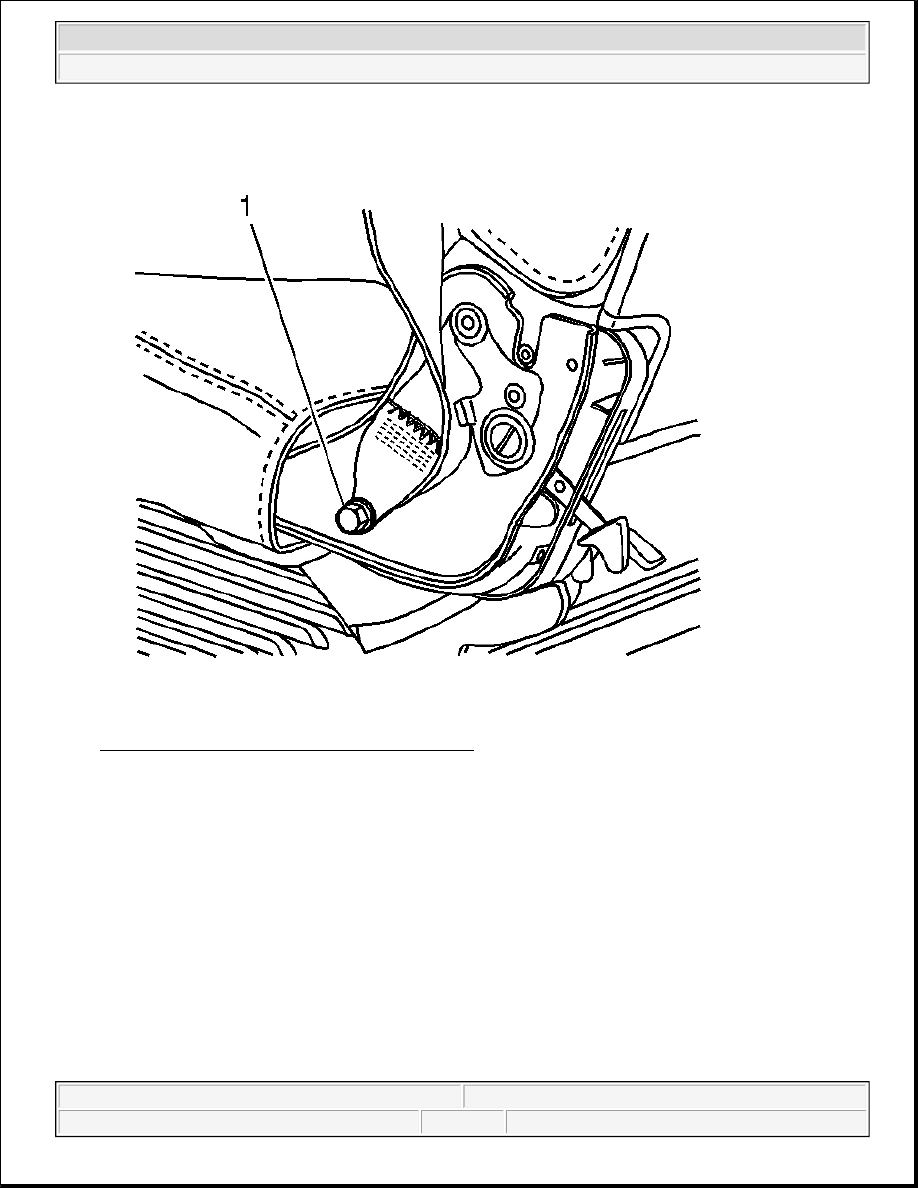

Fig. 38: Seat Belt Anchor Bolt & Cushion Frame
Courtesy of GENERAL MOTORS CORP.

10. Install the seat belt anchor bolt (1) to the cushion frame.

Tighten: Tighten the bolt to 55 N.m (41 lb ft)
