6. Remove the retractor bolt.

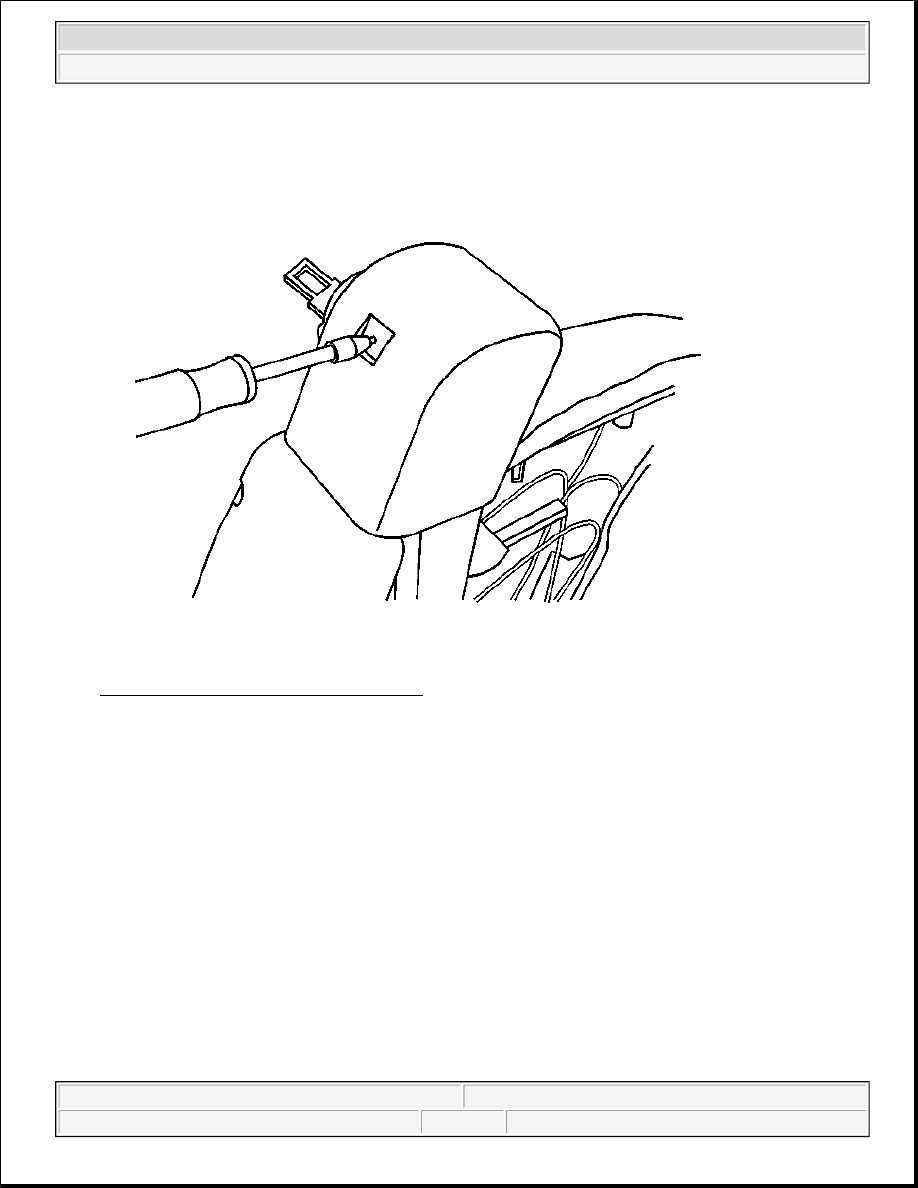

Fig. 11: Retractor Tower Retaining Screw
Courtesy of GENERAL MOTORS CORP.

7. Remove the retractor tower retaining screw.

8. Remove the retractor tower cover.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



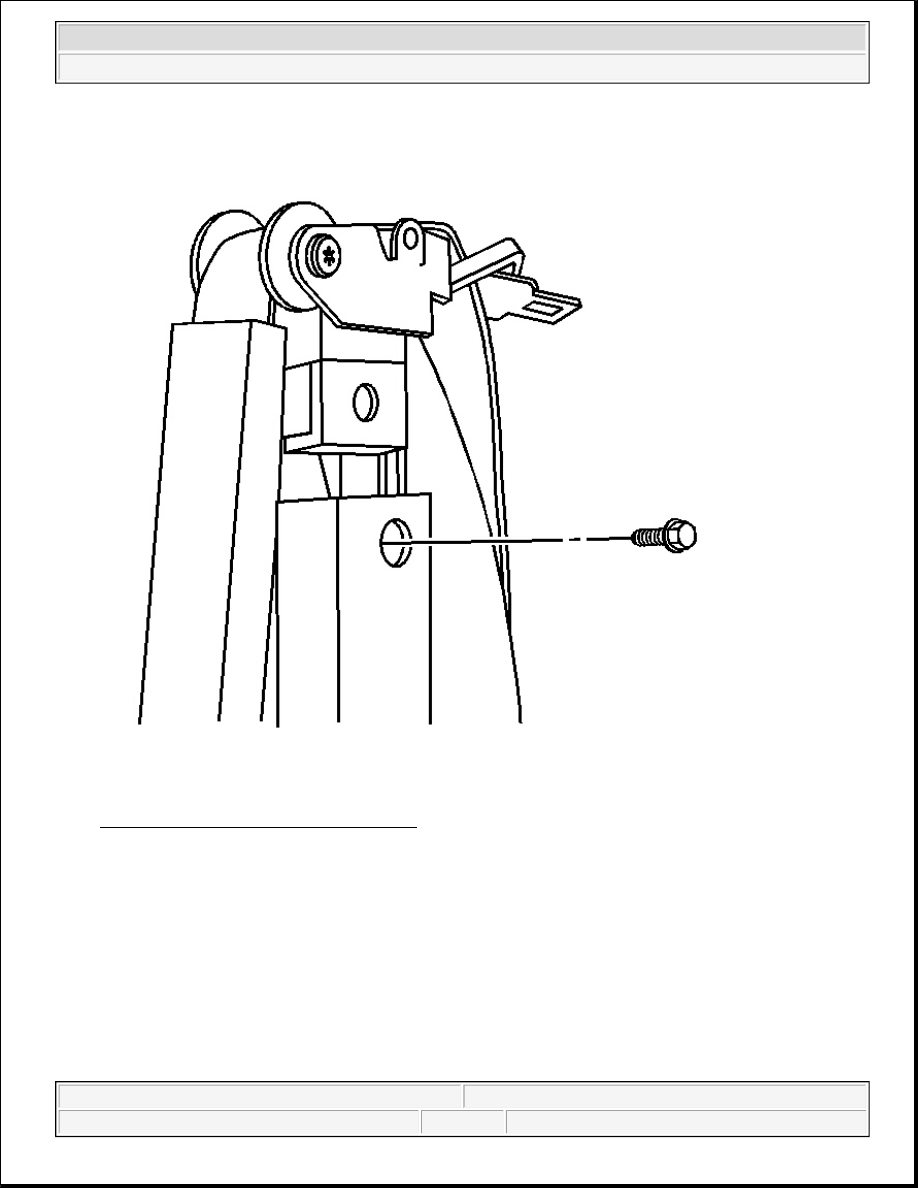

Fig. 12: Upper Anchor Bolt - Right Front
Courtesy of GENERAL MOTORS CORP.

9. Remove the upper anchor bolt.

10. Remove the retractor from the seat.

Installation Procedure

1. Position the seat belt retractor onto the seat.

Line up the tab on the retractor to the tab on the seat frame.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



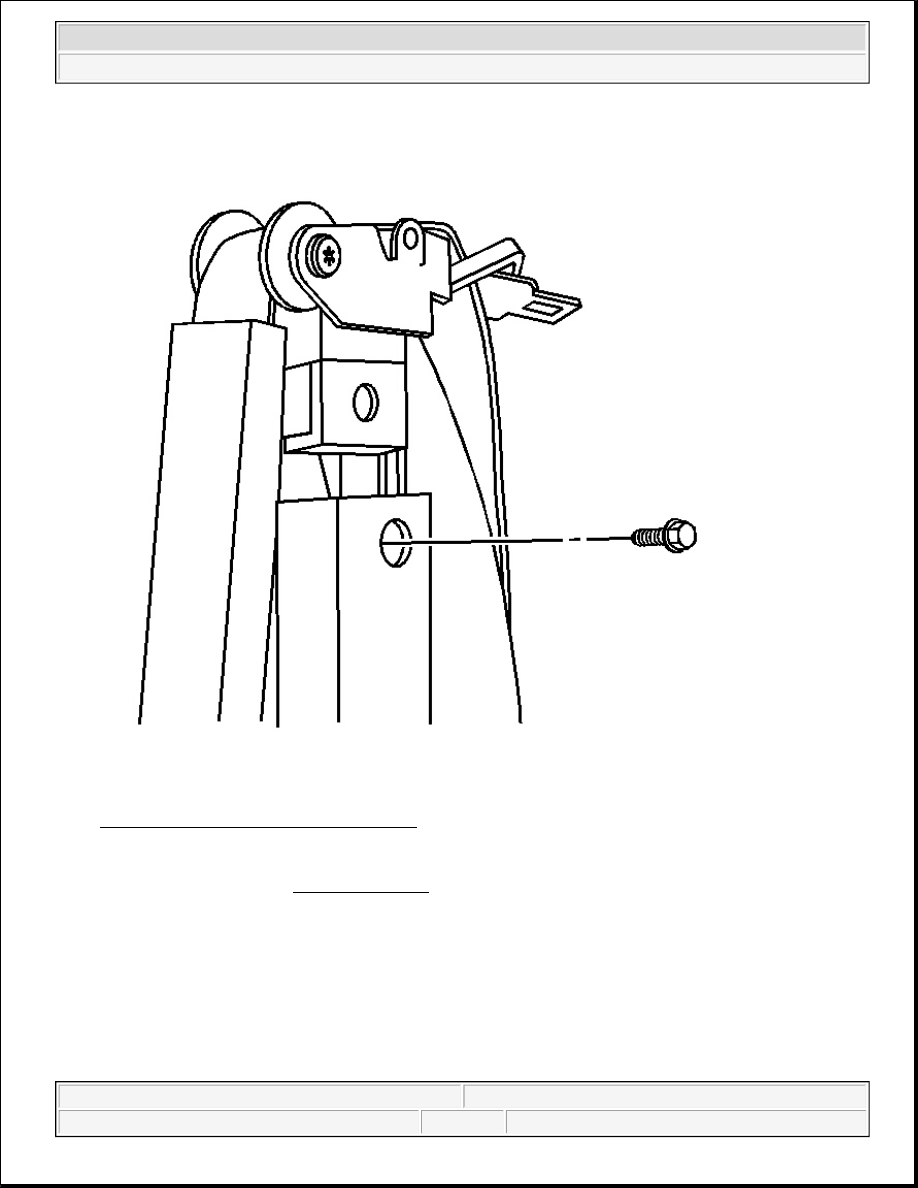

Fig. 13: Upper Anchor Bolt - Right Front
Courtesy of GENERAL MOTORS CORP.

2. Install the upper anchor bolt.

Tighten: Tighten the bolt to 53 N.m (39 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



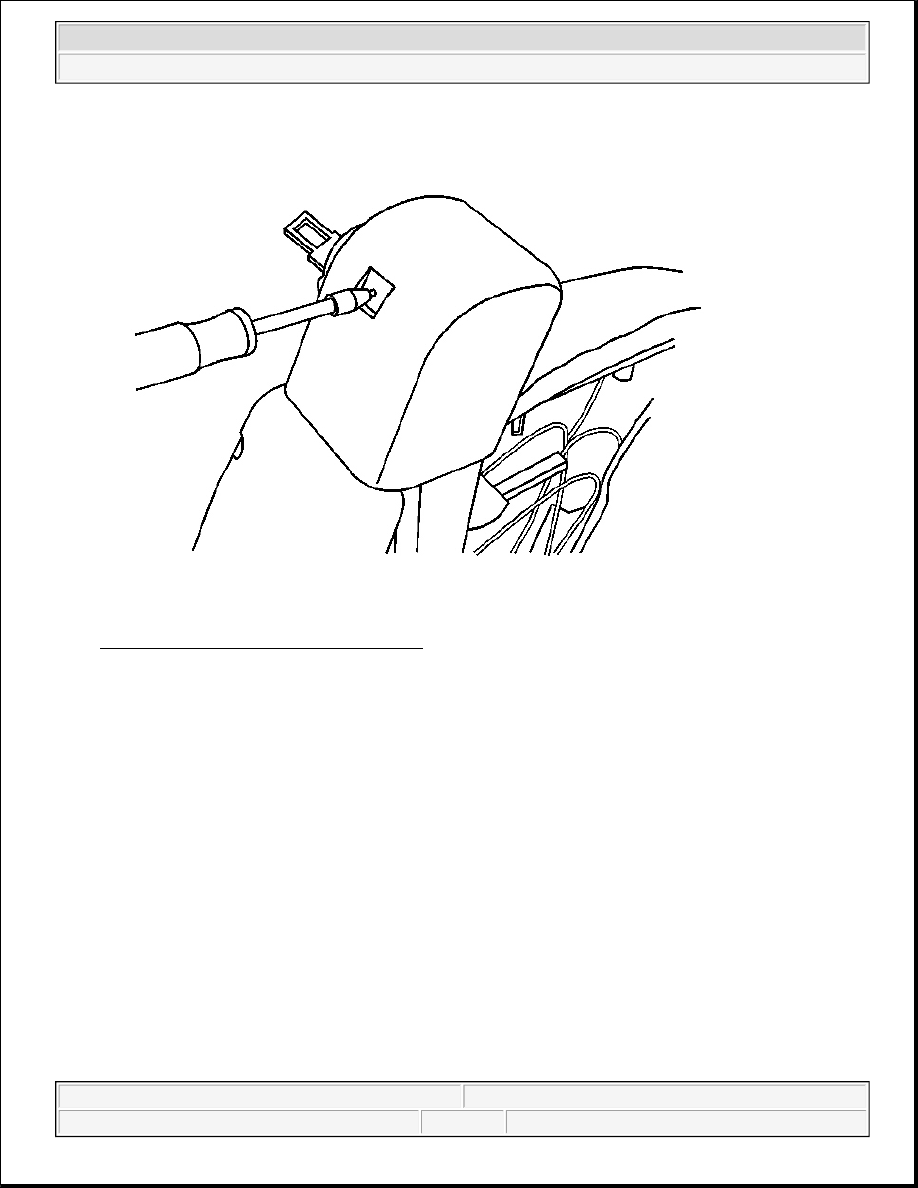

Fig. 14: Retractor Tower Retaining Screw
Courtesy of GENERAL MOTORS CORP.

3. Install the retractor tower cover.

4. Install the retractor tower cover retaining screw.

Tighten: Tighten the screw to 2 N.m (18 lb in).
