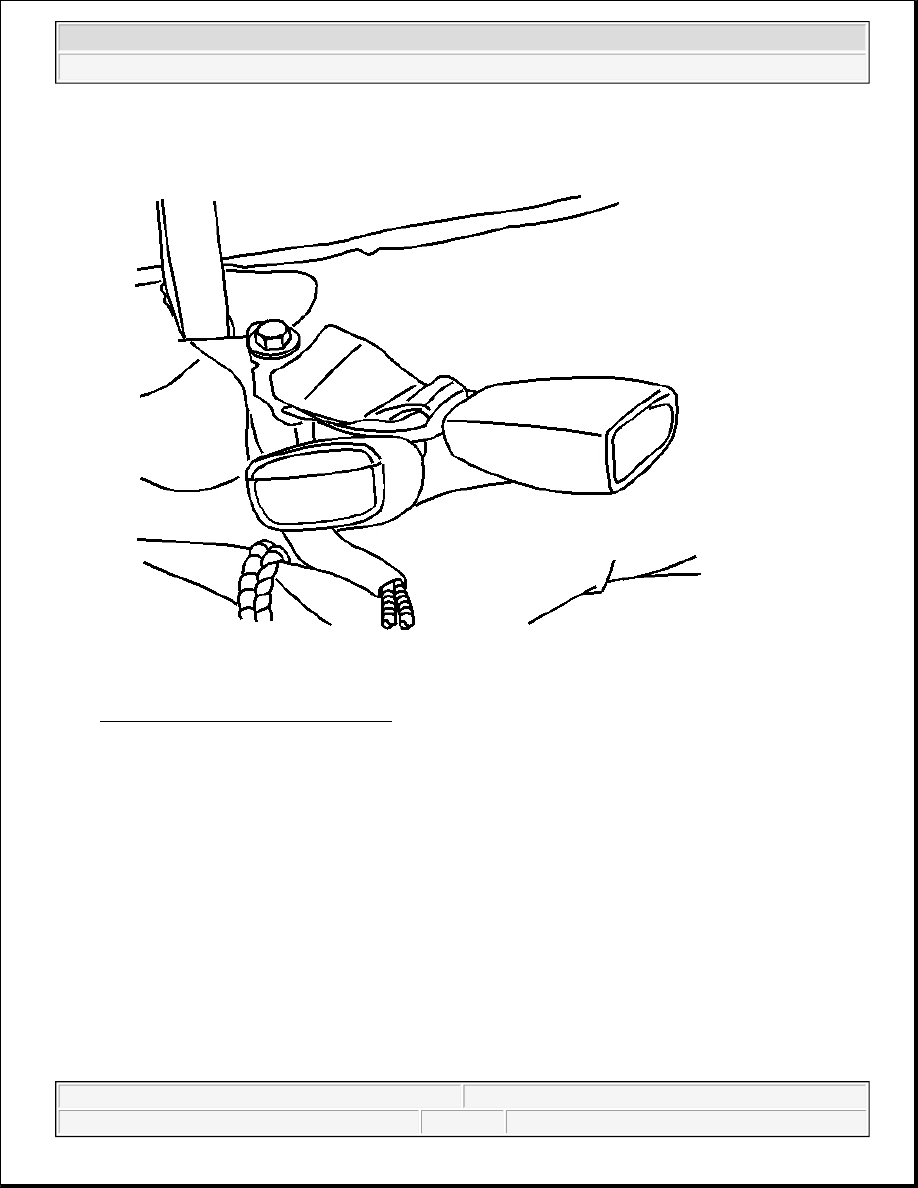

Fig. 7: Seat Belt Buckle & Seat Frame
Courtesy of GENERAL MOTORS CORP.

3. Remove the bolts attaching the buckle to the seat cushion frame.

4. Remove the buckle from the seat frame.

Installation Procedure



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2

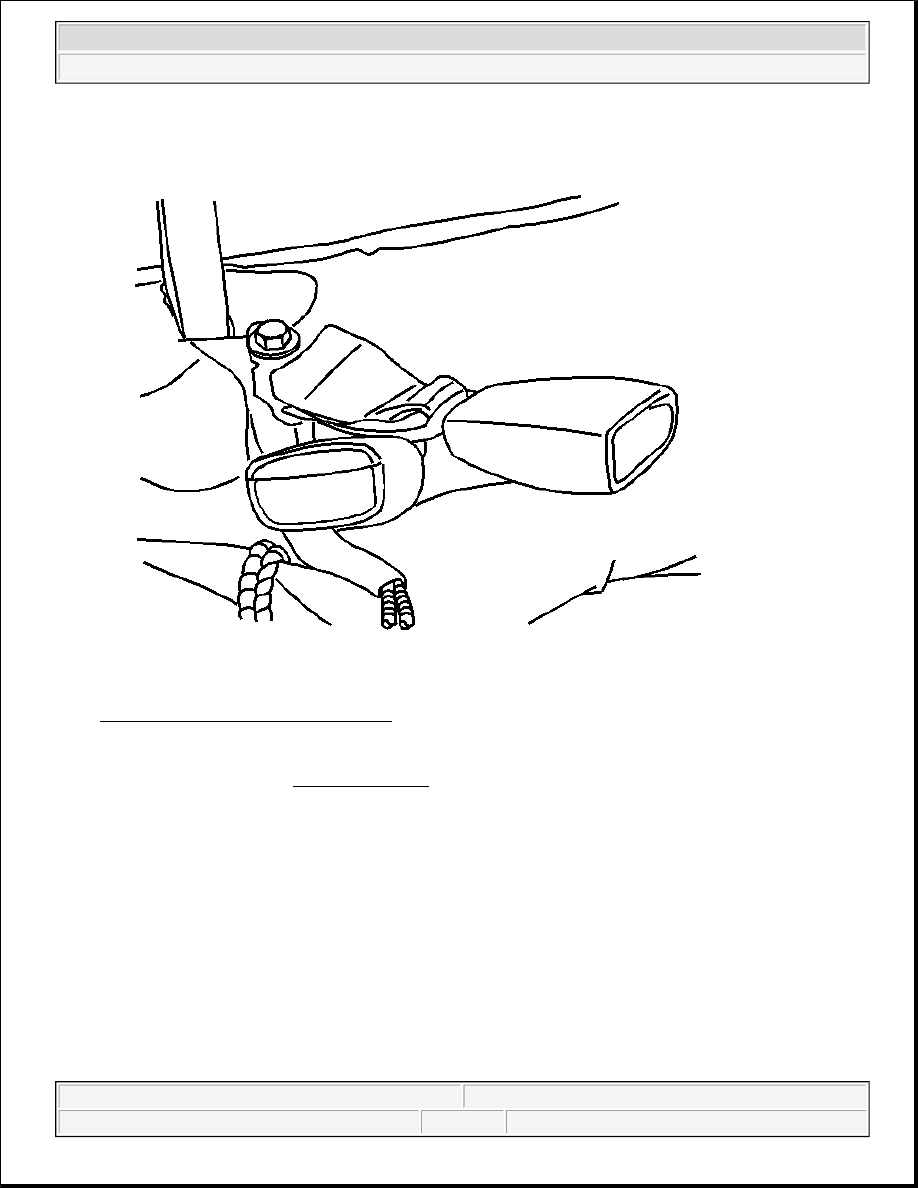

Fig. 8: Seat Belt Buckle & Seat Frame
Courtesy of GENERAL MOTORS CORP.

1. Install the buckle to the seat frame.

2. Install the buckle bolts.

Tighten: Tighten the bolts to 53 N.m (39 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2

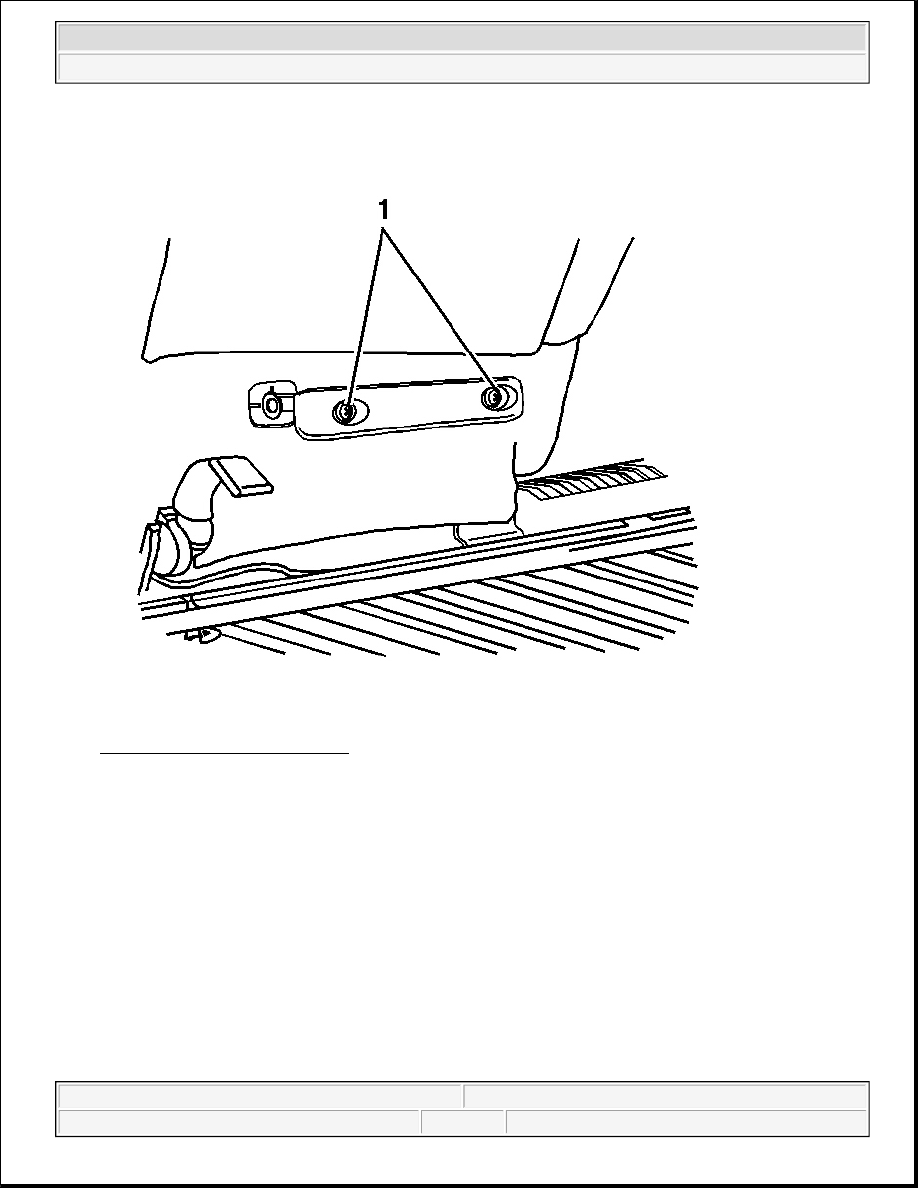

Fig. 9: Handle Mounting Screws
Courtesy of GENERAL MOTORS CORP.

3. Connect the seat cushion cover by joining the cushion J-strips.

4. Install the handle mounting screws.

Tighten: Tighten the screws to 7 N.m (61 lb in).

SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT

Removal Procedure

1. Move the front seat to the full forward position.

IMPORTANT: Do not remove the seat back cover from the head restraint retainers.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

3. Separate the seat foam from the cardboard to gain access to the retainer on the seat belt side.

4. Remove the seat belt side cardboard retainers.

5. Move the cardboard outwards to gain access to the lower seat belt retractor bolt.

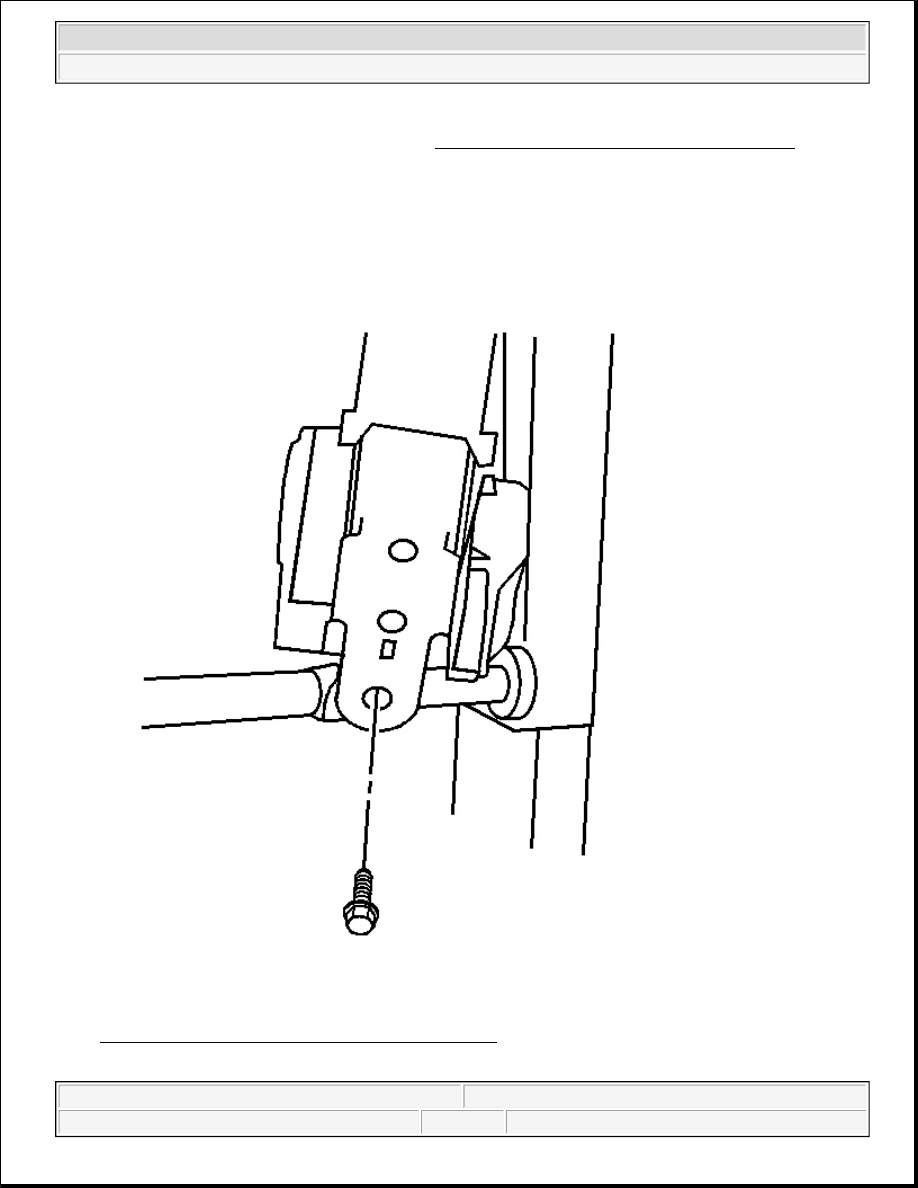

Fig. 10: Lower Seat Belt Retractor Bolt - Left Front
Courtesy of GENERAL MOTORS CORP.
