Do not bleach or dye the seat belt webbing. Use only the following items in order to clean the seat belt
webbing:

{

A mild soap and water solution

{

A soft brush or cloth

z

Keep sharp edges and damaging objects away from the seat belts. Do not bend or damage any part of the
seat belt buckle or the latch plate. Replace any seat belts that are cut or damaged in any manner.

z

Use only the correct seat belt anchor nuts/bolts. Tighten the correct seat belt anchor nut/bolt/screw to the
correct torque value. Refer to Fastener Tightening Specifications .

z

Some seat belts and retractors require service as a set with service replacement components only. Do not
repair individual components that must require service as a set.

z

Verify that the replacement part number is correct for the vehicle at that seating position. Do not
substitute a seat belt from a different seating position.

REPAIR INSTRUCTIONS

REPAIRS AND INSPECTIONS REQUIRED AFTER A COLLISION

After a minor collision where no automatic restraint device was deployed, seat belt system replacement may not

CAUTION: Restraint systems can be damaged in a collision. To help avoid injury and

ensure that all parts in need of replacement are replaced:

z

Replace any seat belt system that was in use during the collision
serious enough to deploy any automatic restraint device such as air
bags and seat belt pretensioners. This not only includes seat belt
systems in use by people of adult size, but seat belt systems used to
secure child restraints, infant carriers and booster seats, including
LATCH system and top tether anchorages.

z

Replace any seat belt system that has torn, worn, or damaged
components. This not only includes adult seat belt systems, but
built-in child restraints and LATCH system components, if any.

z

Replace any seat belt system if you observe the words "REPLACE"
or "CAUTION", or if a yellow tag is visible. Do not replace a seat belt
if only the child seat caution label is visible.

z

Replace any seat belt system if you are doubtful about its condition.
This not only includes adult seat belt systems, but built-in child
restraints, LATCH system components, and any restraint system
used to secure infant carriers, child restraints, and booster seats.


Do NOT replace single seat belt system components in vehicles that have
been in a collision as described above. Always replace the entire seat belt
system with the buckle, guide and retractor assembly, which includes the
latch and webbing material.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



be necessary, unless some of the parts are torn, worn, or damaged.

SEAT BELT BUCKLE REPLACEMENT - FRONT

Removal Procedure

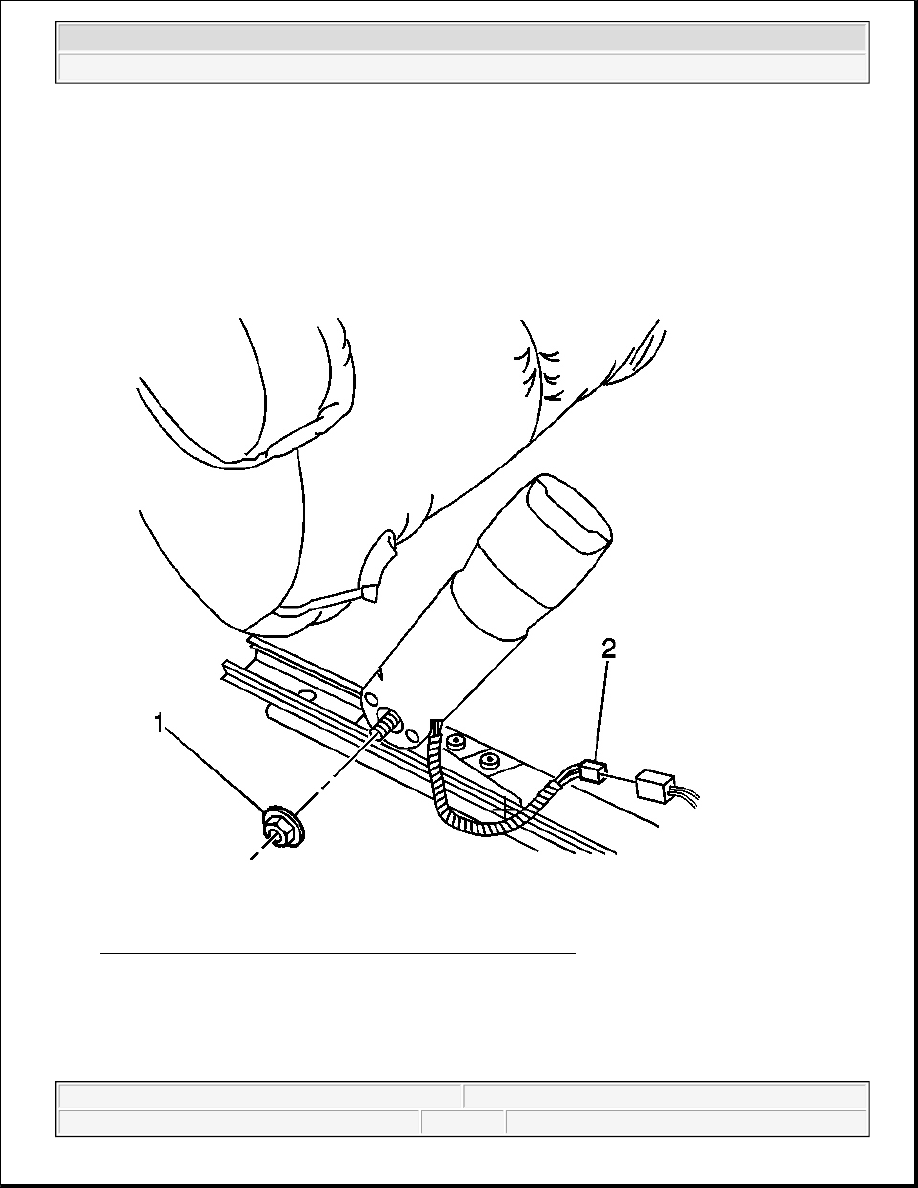

Fig. 4: Inboard Seat Belt Buckle, Nut & Electrical Connection
Courtesy of GENERAL MOTORS CORP.

1. Remove the front seat belt buckle nut (1).

Disconnect the electrical connection (2). The right seat buckle is shown, the left is similar.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



2. Remove the seat belt buckle from the vehicle.

Installation Procedure

1. Install the seat belt buckle in the vehicle.

2. Connect the electrical connection (2).

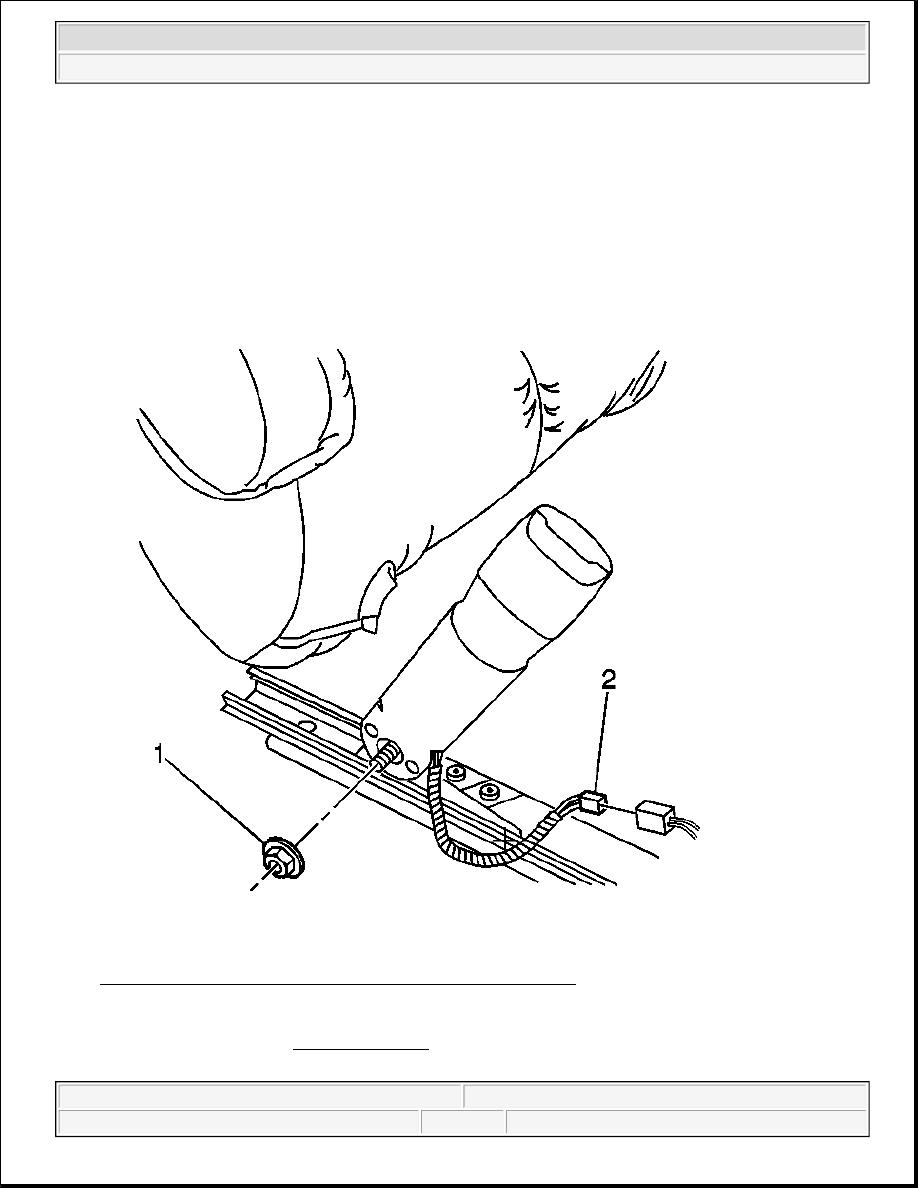

Fig. 5: Inboard Seat Belt Buckle, Nut & Electrical Connection
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



3. Install the front seat belt buckle nut (1).

Tighten: Tighten the nut to 53 N.m (39 lb ft).

SEAT BELT BUCKLE AND LATCH REPLACEMENT - NO. 2 REAR

Removal Procedure

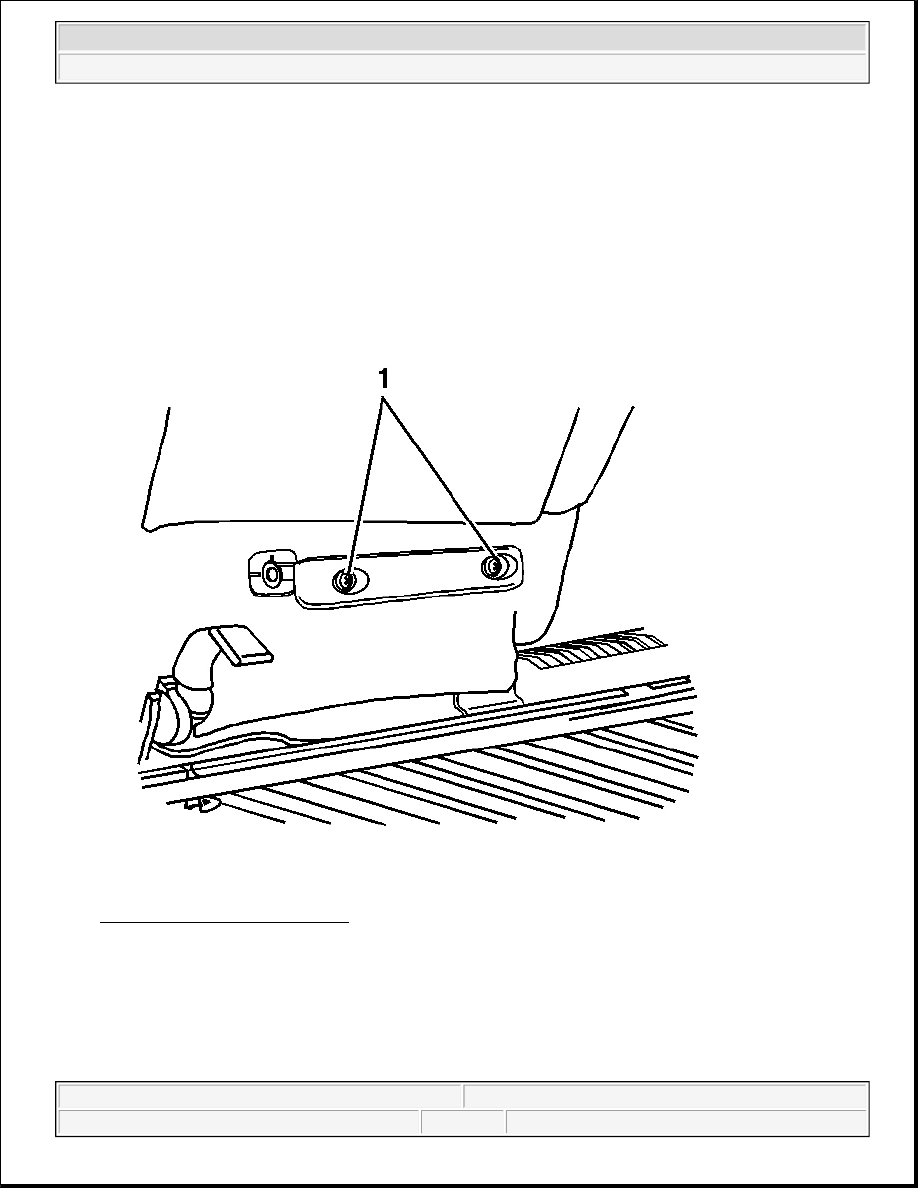

Fig. 6: Handle Mounting Screws
Courtesy of GENERAL MOTORS CORP.

1. Remove the handle mounting screws (1).

2. Partially remove the seat cushion cover by separating the cushion trim J-strips.
