Fig. 15: Lower Seat Belt Retractor Bolt - Left Front
Courtesy of GENERAL MOTORS CORP.

5. Install the retractor.

6. Install the retractor bolt.

Tighten: Tighten the bolt to 53 N.m (39 lb ft).



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



7. Install the rear cardboard panel retainers.

8. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

9. Move the seat to its original position.

SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT

Removal Procedure

1. Move the front seat to the full forward position.

2. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .

3. Separate the seat foam from the cardboard to gain access to the retainer on the seat belt side.

4. Remove the seat belt side cardboard retainers.

5. Move the cardboard outwards to gain access to the lower seat belt retractor bolt.

IMPORTANT: Do not remove the seat back cover from the head restraint retainers.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



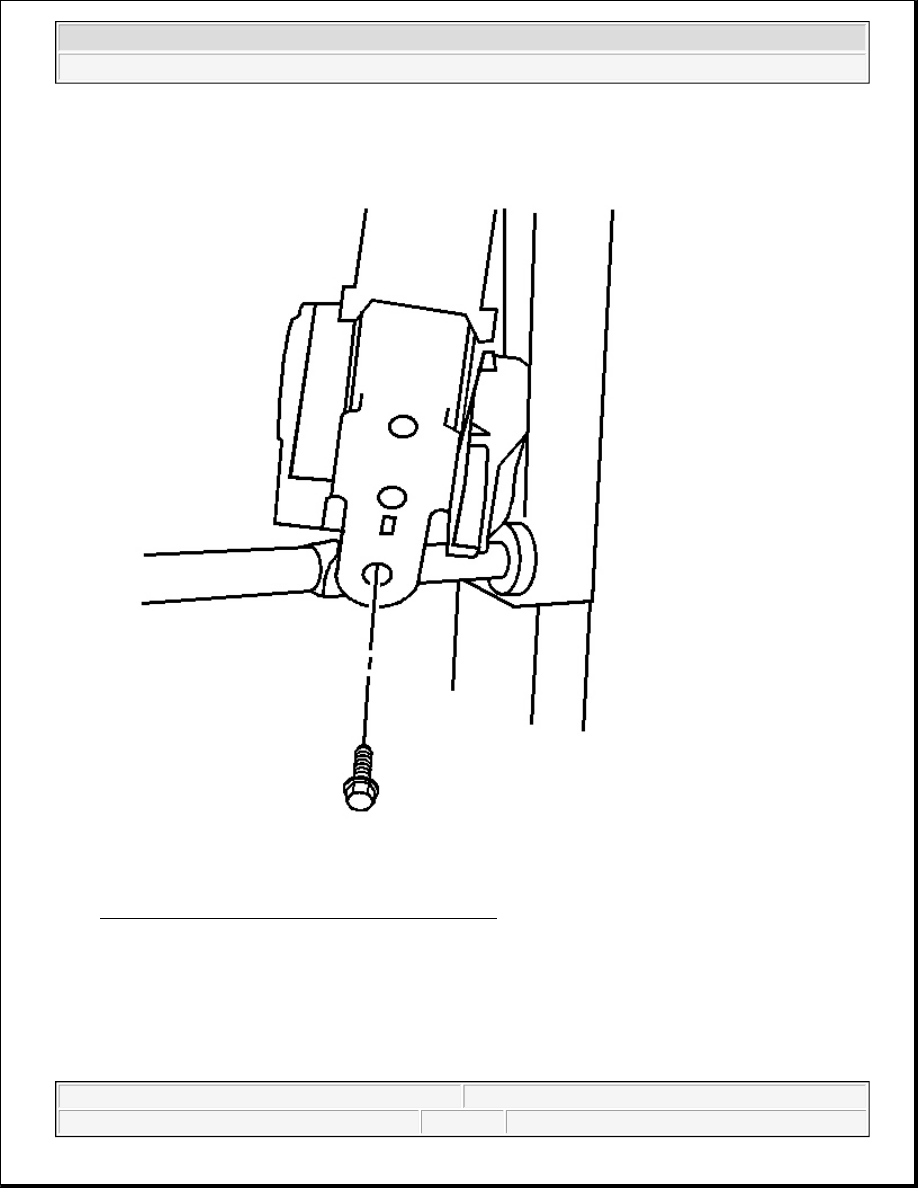

Fig. 16: Lower Seat Belt Retractor Bolt - Left Front
Courtesy of GENERAL MOTORS CORP.

6. Remove the retractor bolt.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2



Fig. 17: Retractor Tower Retaining Screw
Courtesy of GENERAL MOTORS CORP.

7. Remove the retractor tower retaining screw.

8. Remove the retractor tower cover.



2004 Hummer H2

2004 RESTRAINTS Seat Belts - Hummer H2
