Fig. 70: Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector -
Zone 7
Courtesy of GENERAL MOTORS CORP.

1. Turn OFF the ignition.

2. Remove the ignition key.

3. Put on safety glasses.

4. Remove all loose objects from the front seats.

5. Disconnect the inflatable restraint steering wheel module connector (2) located next to the steering



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



column.

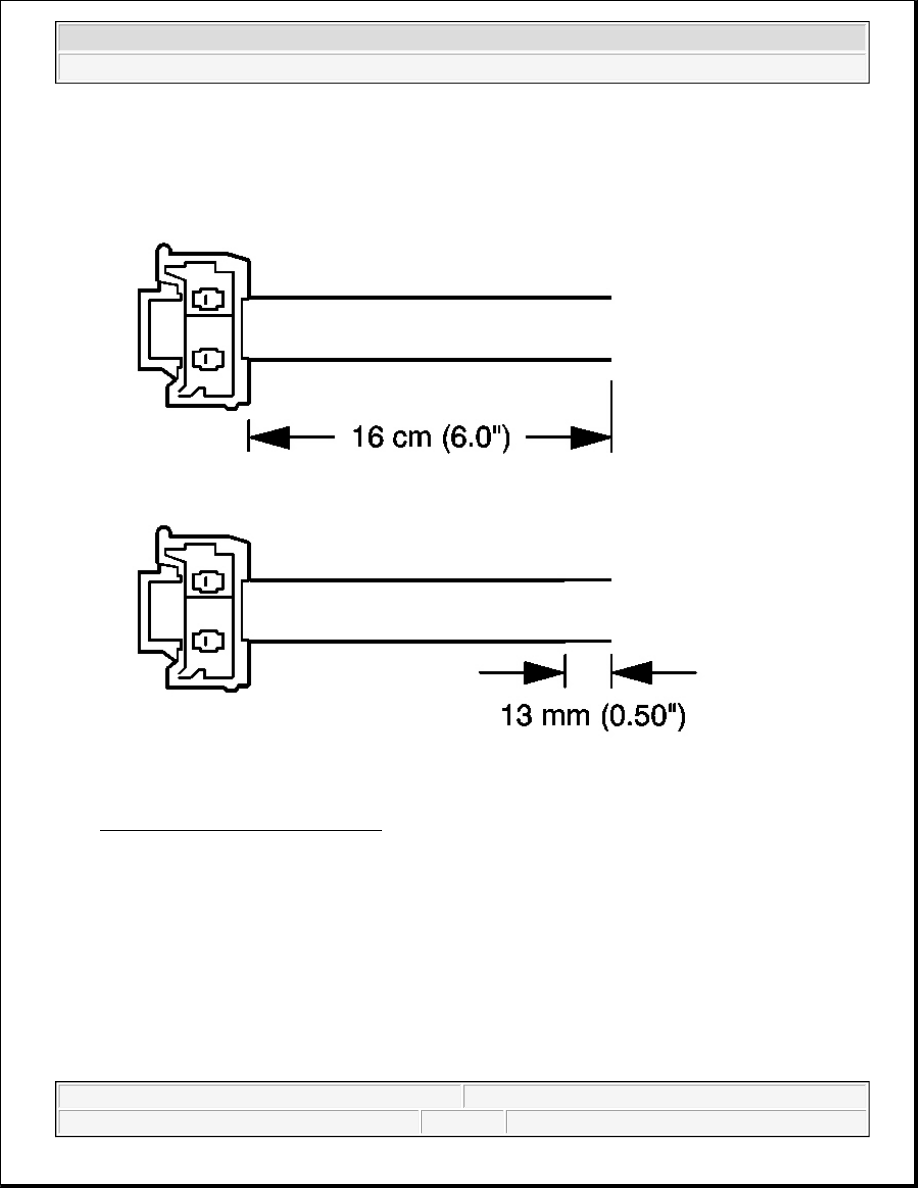

Fig. 71: Measuring Connector Wires
Courtesy of GENERAL MOTORS CORP.

6. Cut the steering wheel module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire

at the connector.

7. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



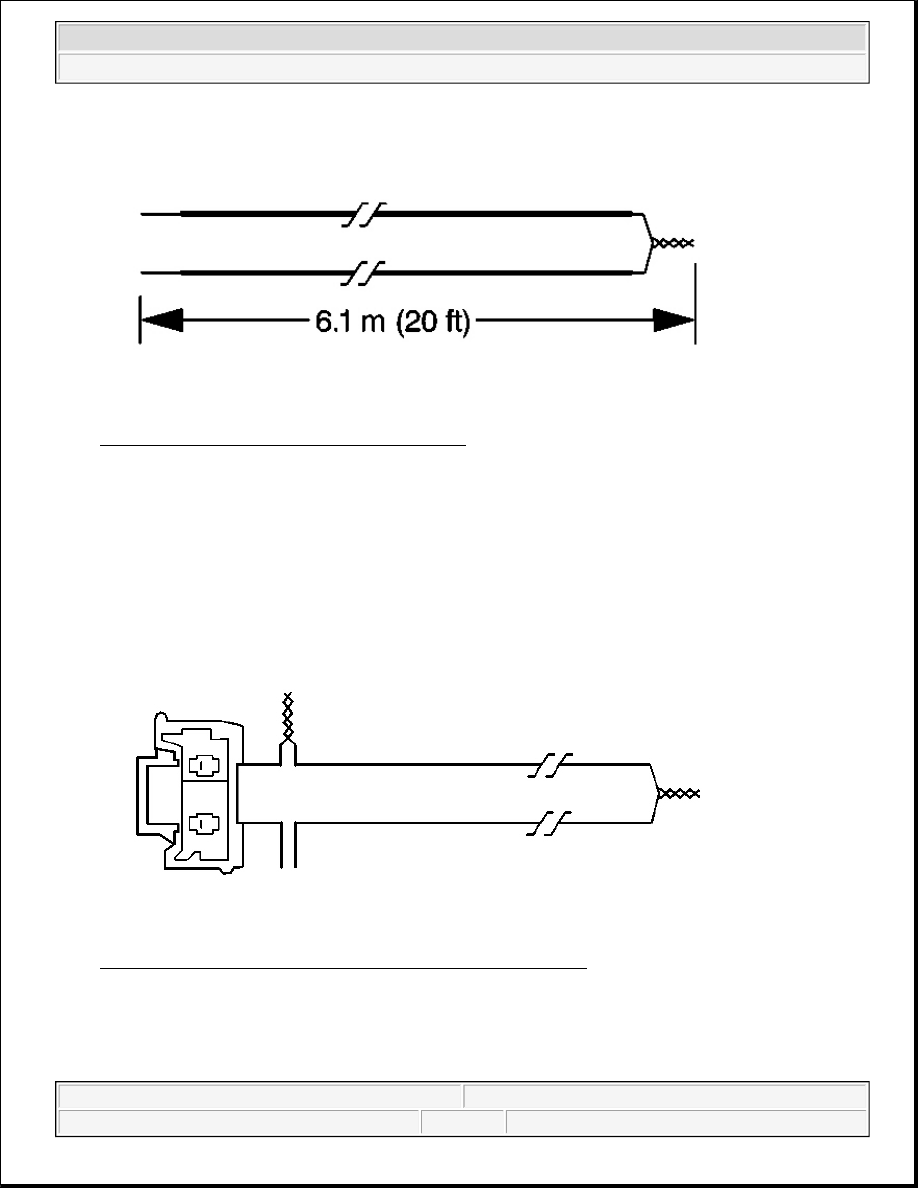

Fig. 72: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.

8. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. Use these

wires to fabricate the deployment harness.

9. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.

10. Twist together one end from each of the wires in order to short the wires. Deployment wires shall remain

shorted, and not connected to a power source until you are ready to deploy the inflator module.

Fig. 73: View Of Twisted Connector Wire To Deployment Wire
Courtesy of GENERAL MOTORS CORP.

11. Twist together one connector wire lead to one deployment wire.

12. Inspect that the connection is secure.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2



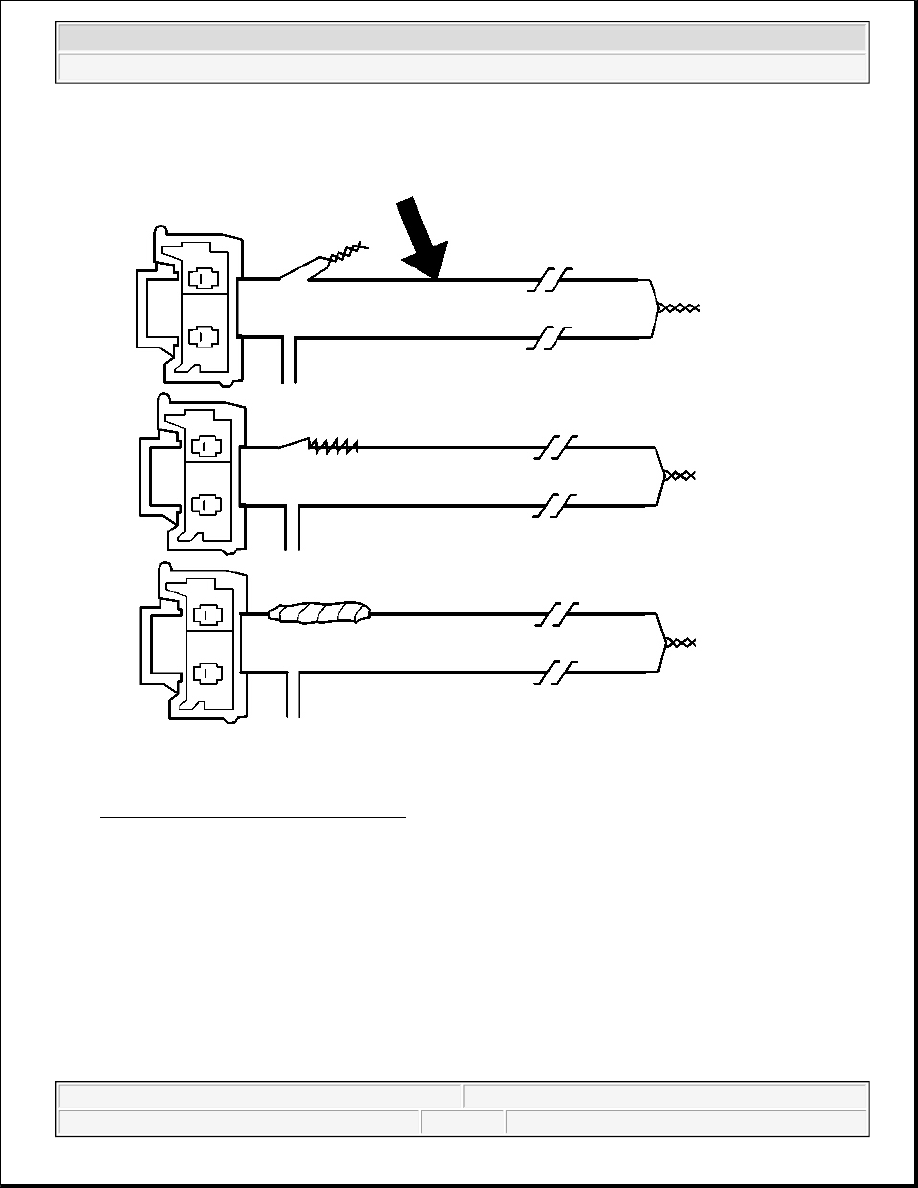

Fig. 74: Identifying Twisted Connection
Courtesy of GENERAL MOTORS CORP.

13. Bend flat the twisted connection.

14. Secure and insulate the connection using electrical tape.
